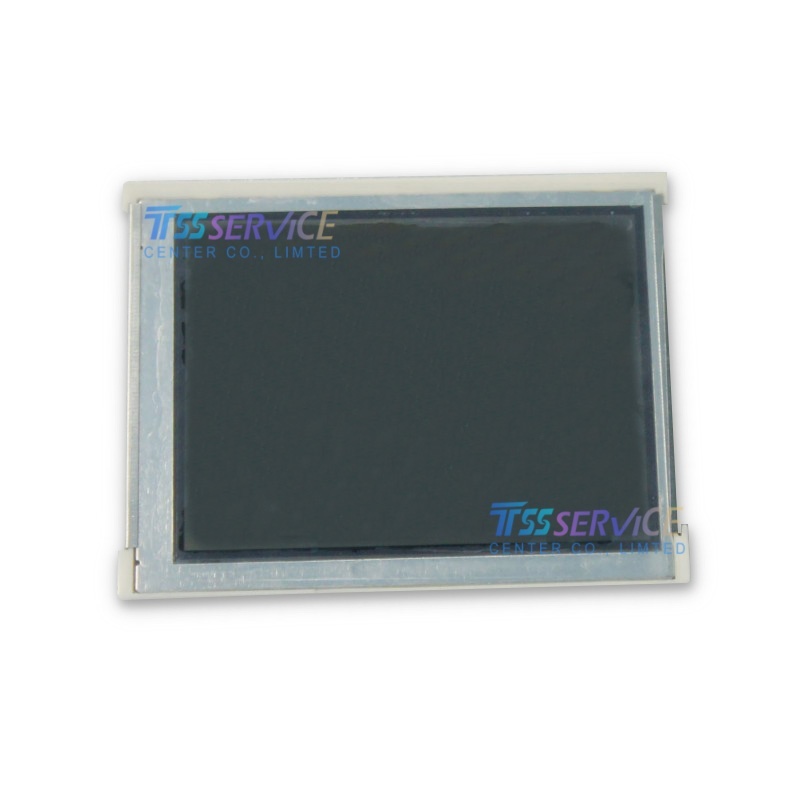

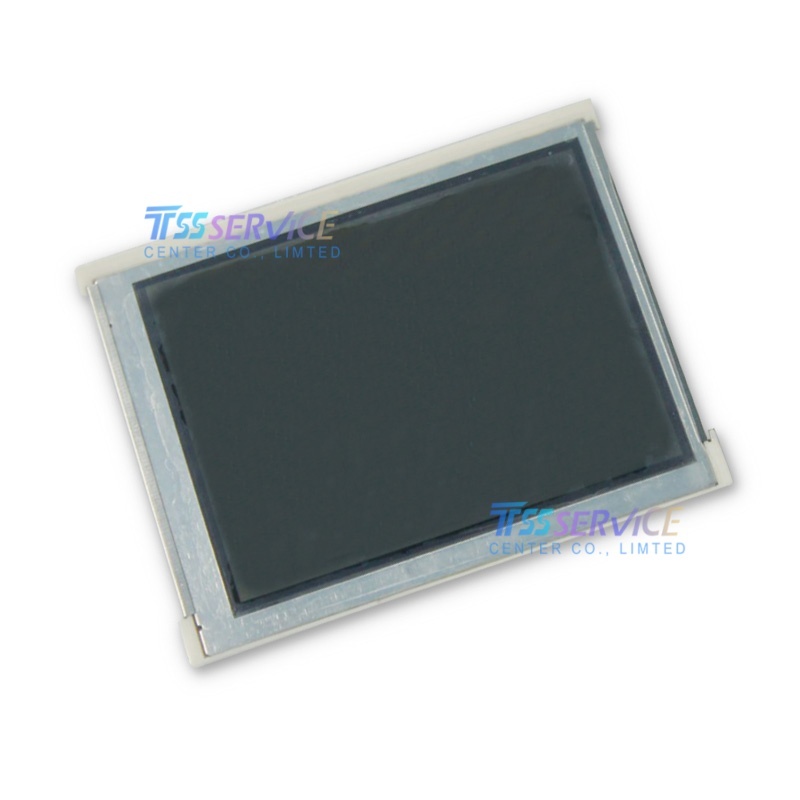

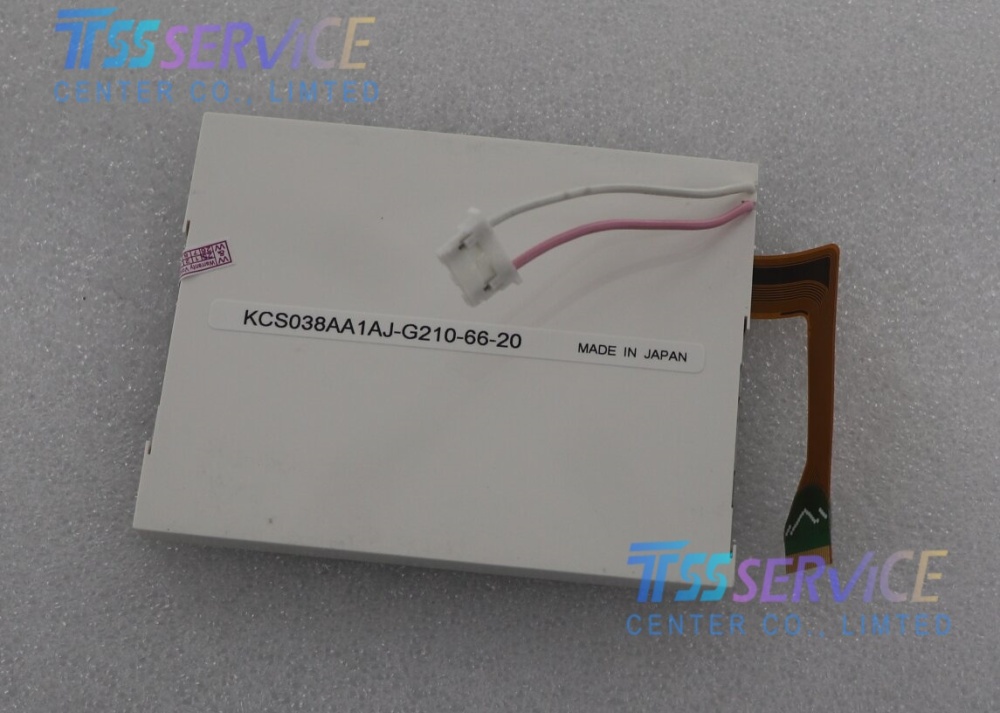

KCS038AA1AJ-G21 3.8 inch 240x320 LCD Display Module for Kyocera

Name: KCS038AA1AJ-G21 3.8 inch 240x320 LCD Display Module for Kyocera
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: KCS038AA1AJ-G21
Price: 75 USD
Availability: InStock

SKU: KCS038AA1AJ-G21

Model:KCS038AA1AJ-G21
Size:3.8"
Resolution:240x320
Interface:Parallel Data (8-bit) , 22 pins , FPC
Temperature(℃):0 ~ 50 °C

0.0 (0 Reviews)

0 Sold

~~$80.00~~ $75.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera Display KCS038AA1AJ-G21 General Features
KCS038AA1AJ-G21 is a 3.8-inch CSTN-LCD display module for Kyocera, offering a portrait-oriented QVGA resolution of 240 × 320 pixels for clear text and graphics. Engineered for energy efficiency and reliable performance, this compact module is well-suited for handheld and portable applications, including industrial terminals, medical monitoring devices, control interfaces, and portable instrumentation. Kyocera's high-quality manufacturing ensures durable construction, stable operation, and consistent visual output. This module provides a cost-effective and dependable display solution for compact systems requiring a vertical orientation, low power consumption, and robust performance.

Brand	KYOCERA
Model	KCS038AA1AJ-G21
Panel-type	CSTN-LCD , LCM
Size	3.8"
Resolution	240(RGB)×320 [QVGA]
Aspect Ratio	3:4 (H:V)
Outline Size	73×94 mm (H×V)
Display Mode	STN, Normally Black, Transmissive
Brightness	100 (Typ.)
Contrast Ratio	17:1 (Typ.) (TM)
Response Time	250/150 (Typ.)(Tr/Td) ms
Viewing Angle	50/50/50/50 (Typ.)(CR≥2)
Display Colors	Color
Lamp Type	1 pcs CCFL , 40K hours , Optional
Signal Interface	22 pins Parallel Data (8-bit) , FPC
Touch Screen	Without
Input Voltage	3.3V (Typ.)
Operating Temp	0 ~ 50 °C
Storage Temp	-20 ~ 60 °C

1.Question: What kind of packaging do you use to transport this 3.8-inch display to prevent damage?
Answer: Each module is individually sealed in an anti-static bag and placed in a custom foam tray to secure its position. The outer box uses thickened rigid cardboard with cushioning materials to ensure the product arrives safely during transit.

2.Question: Will this 240x320 resolution screen be tested for quality before shipment?
Answer: Yes, every KCS038AA1AJ-G21 undergoes strict quality control before shipment. We perform visual inspections and screen lighting tests to ensure there are no scratches or dead pixels, and that the display colors and backlight are normal.
