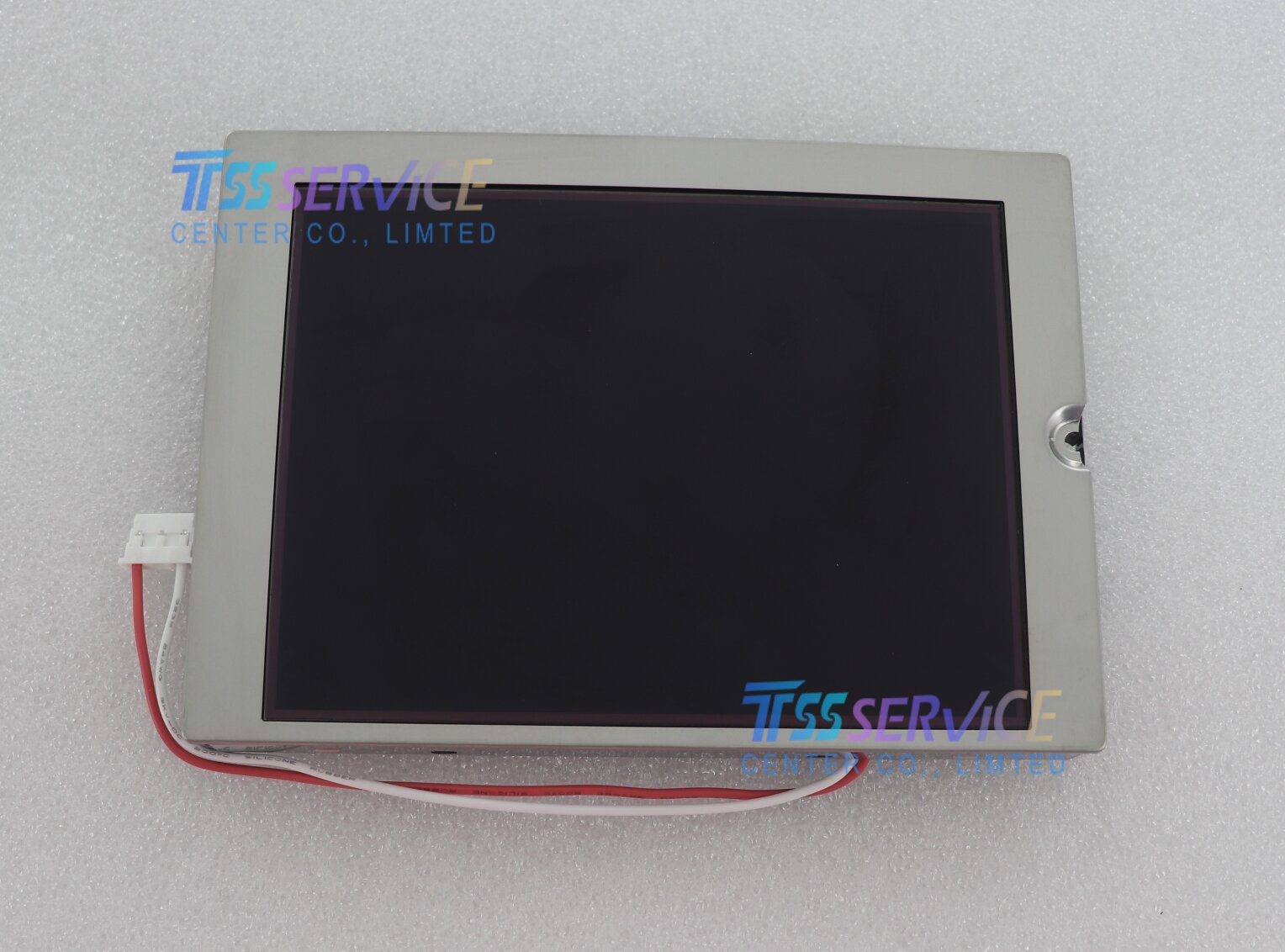

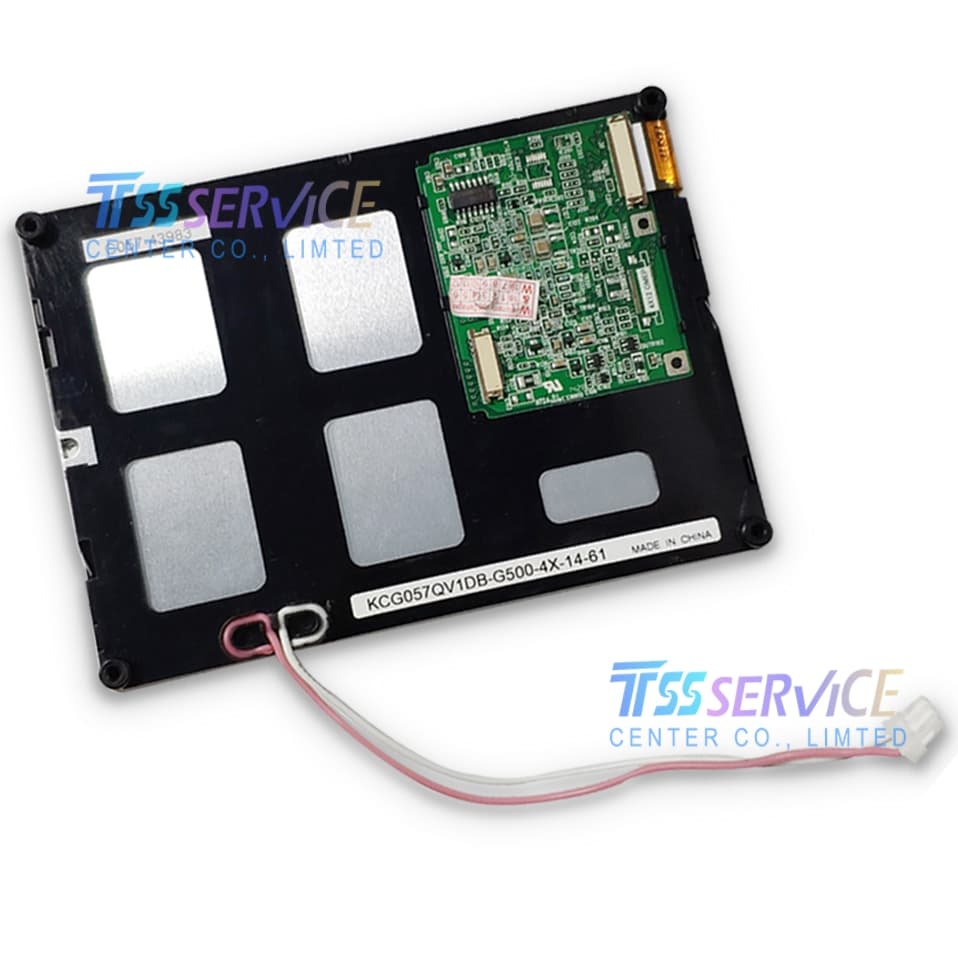

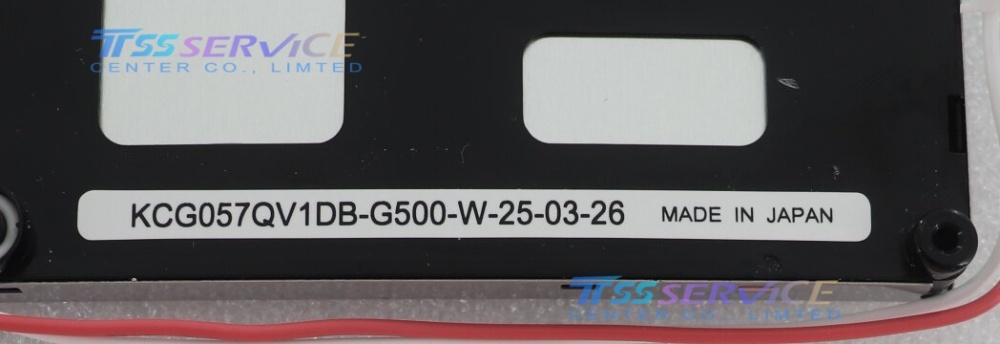

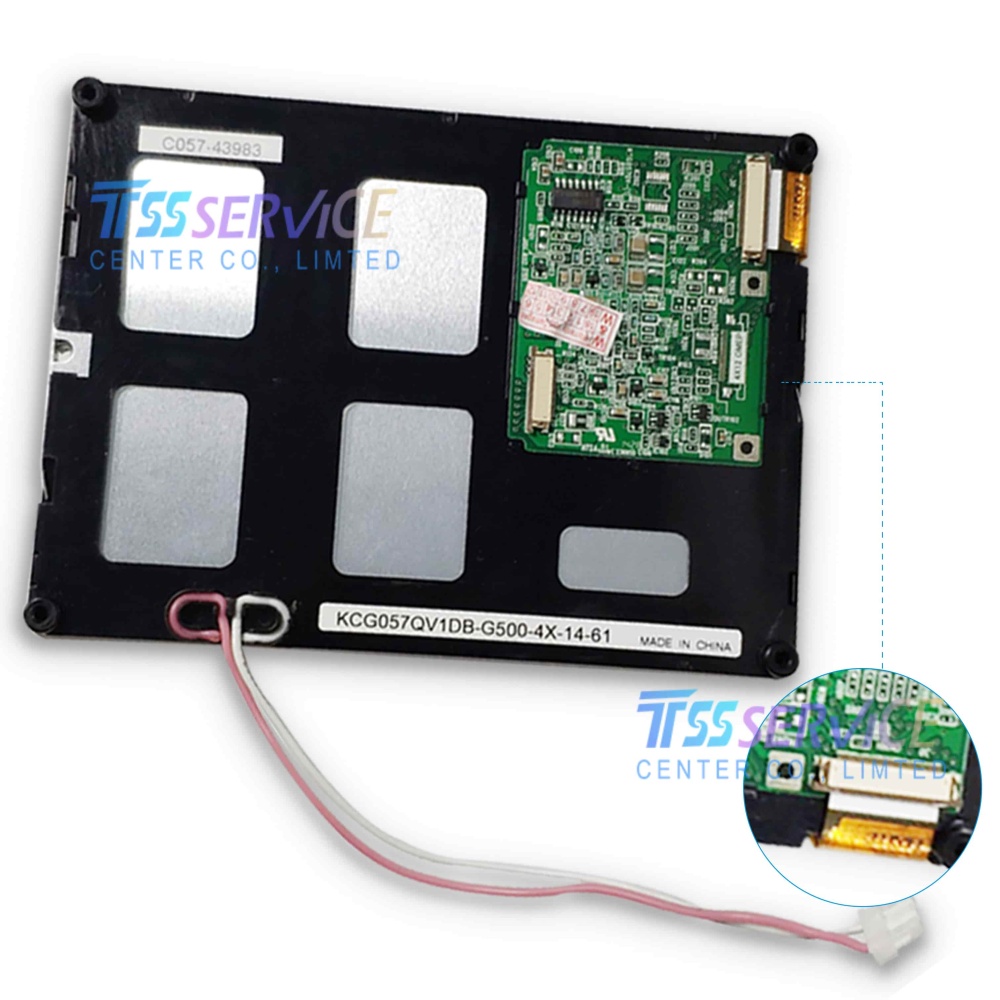

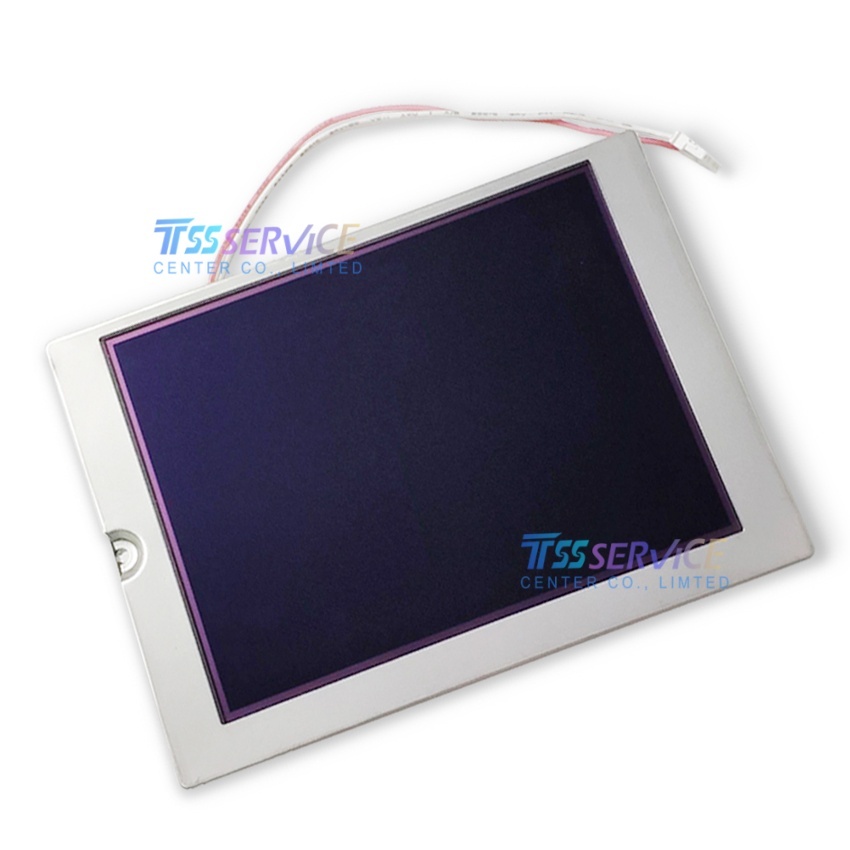

KCG057QV1DB-G500 Kyocera 5.7 inch 320*240 LCD Display Modules

Name: KCG057QV1DB-G500 Kyocera 5.7 inch 320*240 LCD Display Modules
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: KCG057QV1DB-G500
Price: 130 USD
Availability: InStock

SKU: KCG057QV1DB-G500

Model:KCG057QV1DB-G500
Size:5.7"
Resolution:320x240
Interface:Parallel Data (8-bit) , 20 pins , Connector
Temperature(℃):0 ~ 60 °C

0.0 (0 Reviews)

0 Sold

~~$135.00~~ $130.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera Display KCG057QV1DB-G500General Features
KCG057QV1DB-G500 is a 5.7-inch CSTN-LCD display module from Kyocera, offering clear QVGA resolution (320 × 240 pixels) for effective text and graphics presentation. Designed with CSTN technology, it provides an energy-efficient and cost-effective solution, making it suitable for applications where power savings and reliable monochrome or basic color display are priorities. Engineered for durability and stable performance, this module is well-suited for integration into handheld industrial devices, portable medical instruments, instrumentation panels, and other embedded systems. Kyocera’s quality assurance ensures robust construction and consistent visual reliability.

Brand	KYOCERA
Model	KCG057QV1DB-G500
Panel-type	CSTN-LCD , LCM
Size	5.7"
Resolution	320(RGB)×240 , QVGA
Aspect Ratio	4:3(H:V)
Dot Pitch(mm)	0.120×0.360 mm
Pixel Pitch(mm)	0.360×0.360 mm
Display Area	115.2(W)×86.4(H) mm
Bezel Opening	119.4(W)×90.6(H) mm
Outline Size	144(W)×104.8(H) mm
Display Mode	STN, Normally Black, Transmissive
Brightness	400 (Typ.)
Contrast Ratio	55:1 (Typ.) (TM)
Response Time	180/170 (Typ.)(Tr/Td) ms
Viewing Angle	50/50/20/35 (Typ.)(CR≥2)
Display Colors	Color
Lamp Type	1 pcs CCFL , 75K hours , Optional
Signal Interface	Parallel Data (8-bit) , 20 pins , Connector
Touch Screen	Without
Input Voltage	3.3/5.0V (Typ.)(VDD)
Operating Temp	0 ~ 60 °C
Storage Temp	-20 ~ 60 °C
