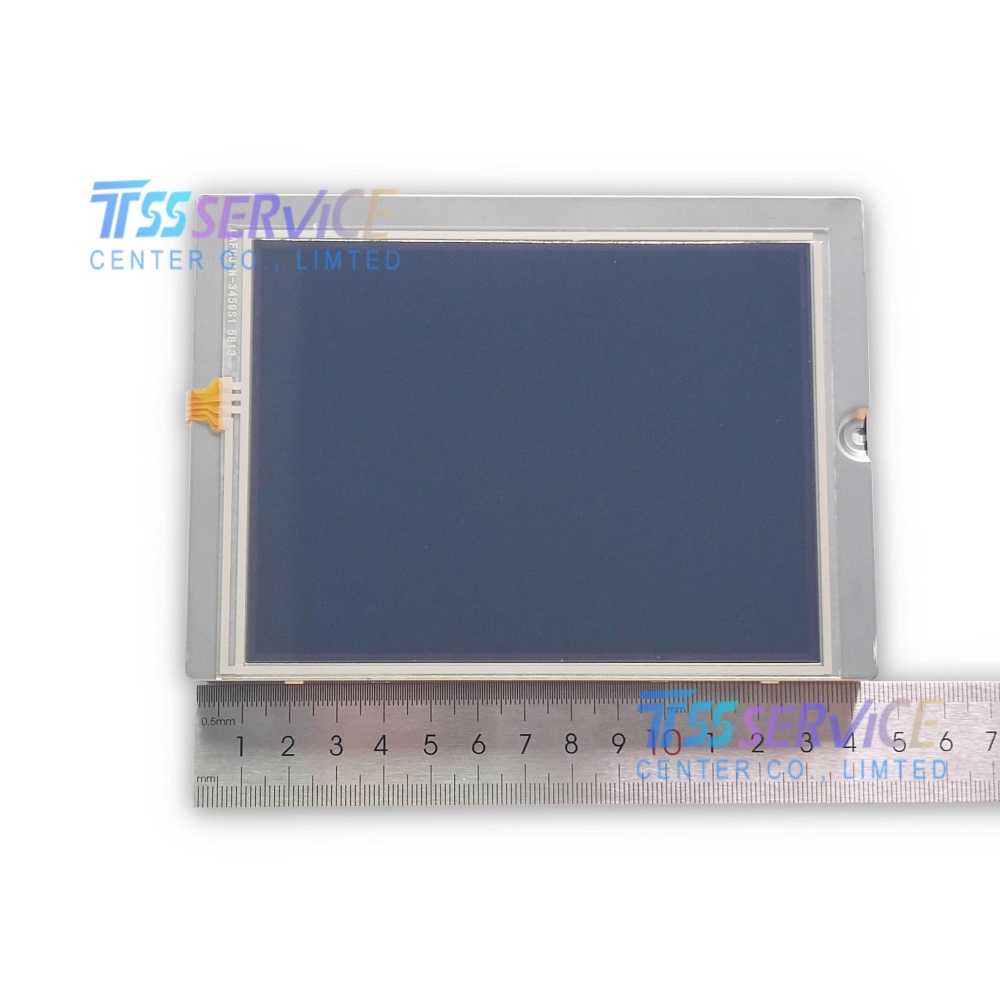

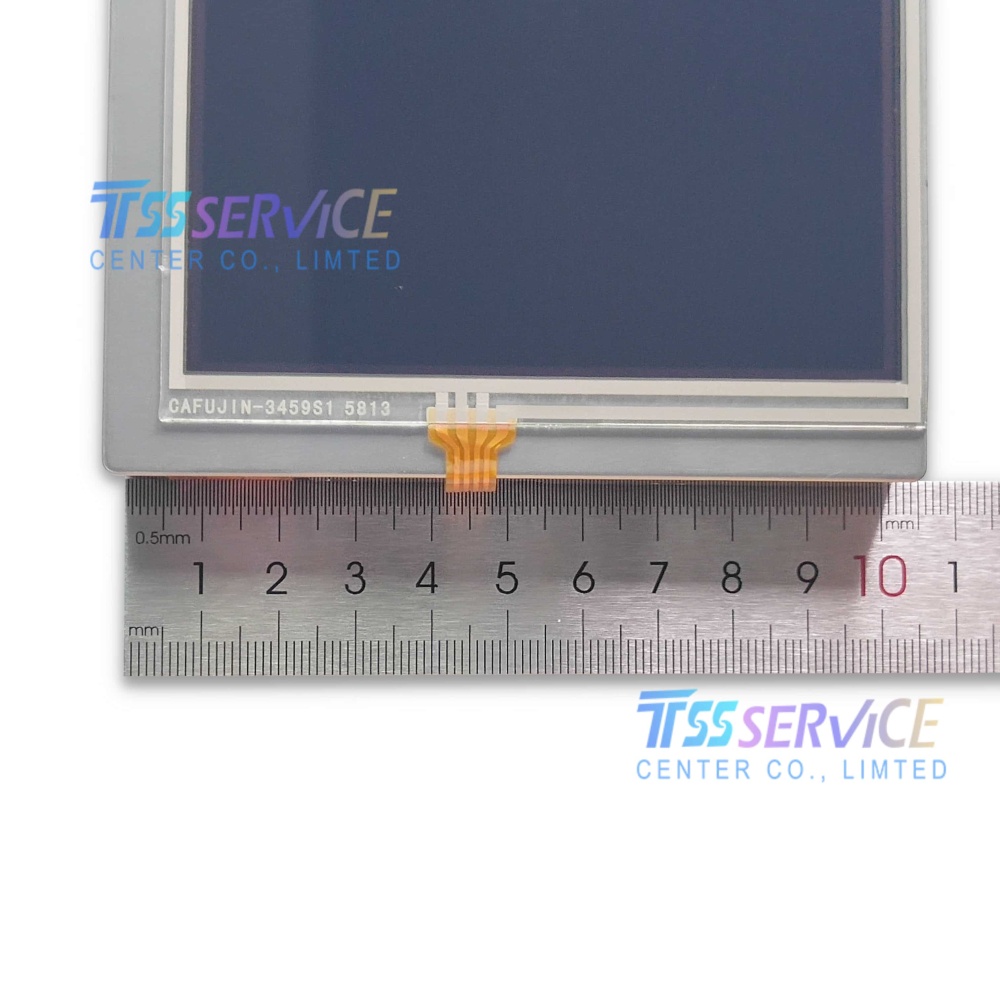

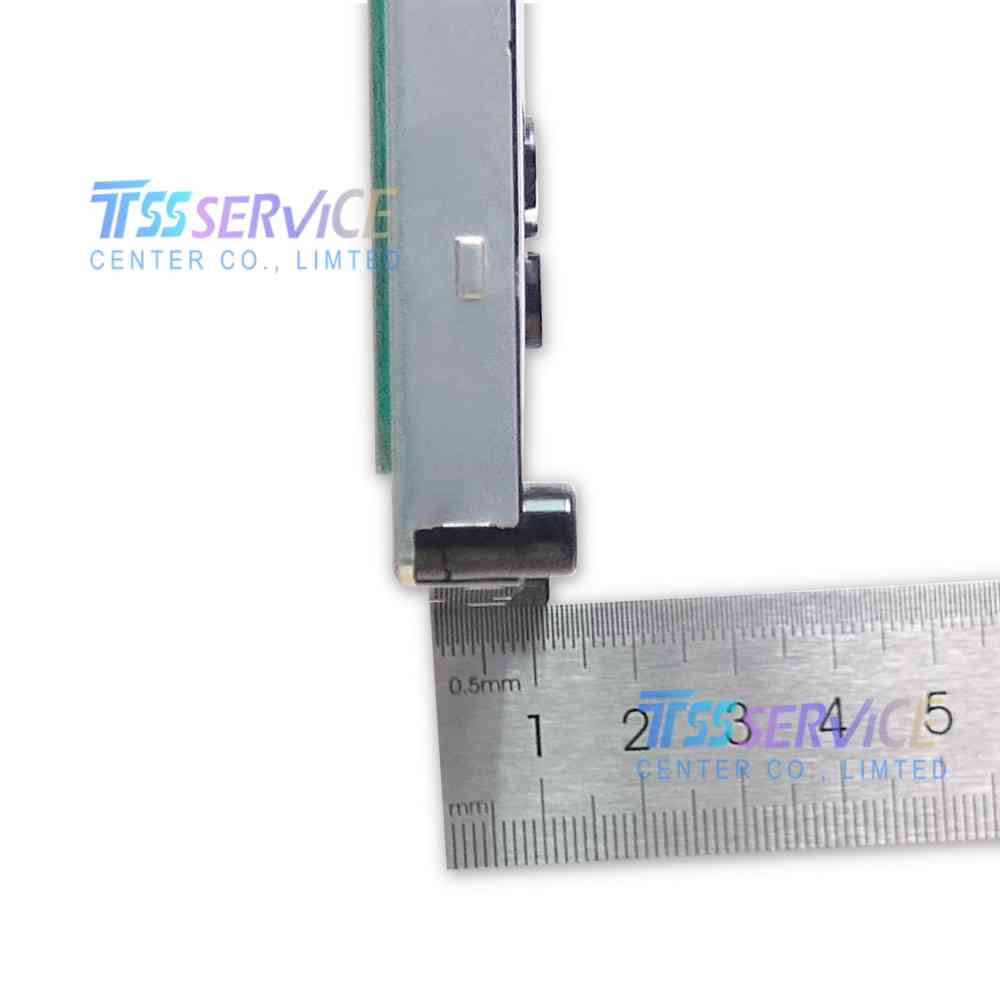

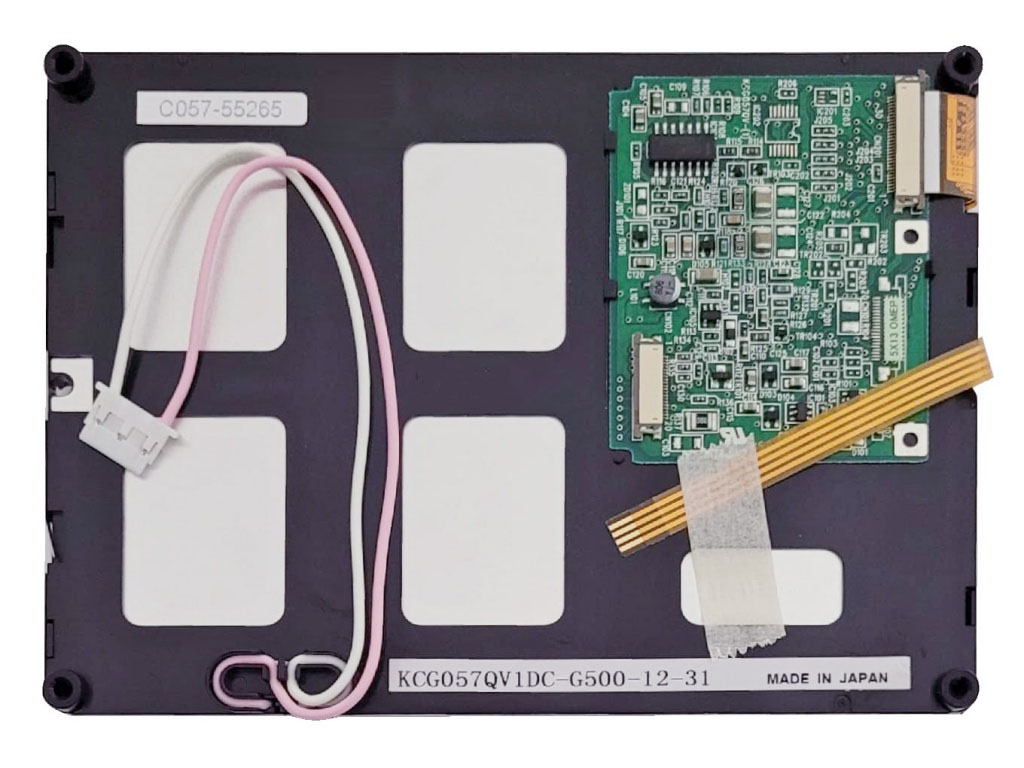

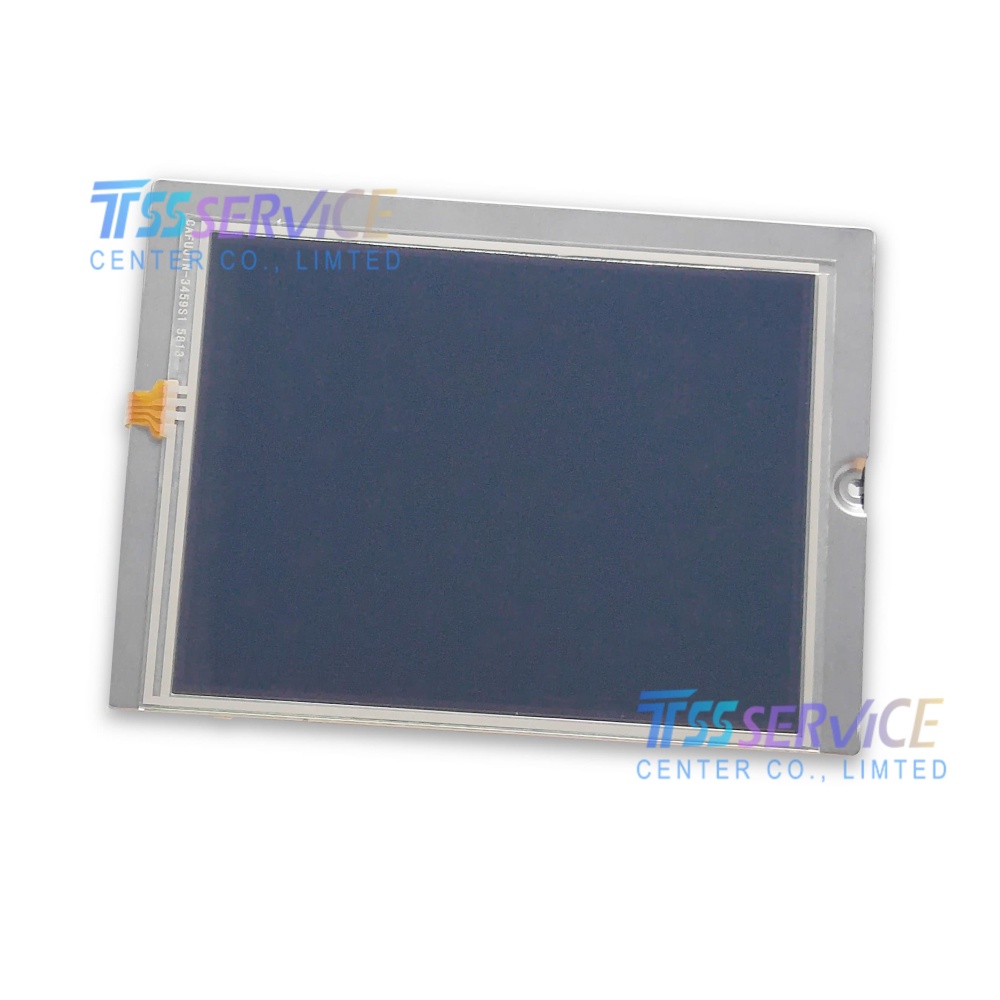

KCG057QV1DC-G500 Kyocera 5.7 inch 320x240 CSTN-LCD Display Panel

Name: KCG057QV1DC-G500 Kyocera 5.7 inch 320x240 CSTN-LCD Display Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: KCG057QV1DC-G500
Price: 128 USD
Availability: InStock

SKU: KCG057QV1DC-G500

Model:KCG057QV1DC-G500
Size:5.7"
Resolution:320x240
Interface:Parallel Data (8-bit) , 20 pins , Connector
Temperature(℃):0 ~ 50 °C

0.0 (0 Reviews)

0 Sold

~~$135.00~~ $128.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera Display KCG057QV1DC-G500 General Features

KCG057QV1DC-G500 is a 5.7-inch CSTN-LCD display module from Kyocera, offering QVGA resolution of 320 × 240 pixels for clear and functional text and graphics. Utilizing CSTN (Color Super-Twist Nematic) technology, this module provides a cost-effective and energy-efficient display solution, making it suitable for applications where power consumption and budget are key considerations. Engineered for reliable performance in various environments, it is ideal for integration into industrial handheld devices, portable medical monitors, instrumentation, and other embedded systems. Kyocera's quality construction ensures durability and stable operation, delivering dependable visual output for professional use.

Brand	KYOCERA
Model	KCG057QV1DC-G500
Panel-type	CSTN-LCD , LCM
Size	5.7"
Resolution	320(RGB)×240 , QVGA
Aspect Ratio	4:3(H:V)
Dot Pitch(mm)	0.120×0.360 (H×V)
Pixel Pitch(mm)	0.360×0.360 (H×V)
Display Area	115.2(H) × 86.4(V)
Bezel Opening	119.4(H) × 90.6(V)
Outline Size	144(H) × 104.8(V)
Display Mode	STN, Normally Black, Transmissive
Brightness	280 (Typ.)
Contrast Ratio	55:1 (Typ.) (TM)
Response Time	180/170 (Typ.)(Tr/Td) ms
Viewing Angle	50/50/20/35 (Typ.)(CR≥2)
Display Colors	Color
Signal Interface	20 pins Parallel Data (8-bit) , Connector
Touch Screen	4-wire Resistive Touch
Input Voltage	3.3V (Typ.)
Operating Temp	0 ~ 60 °C
Storage Temp	-20 ~ 60 °C

1.Question: What type of interface does this screen have? Can it directly replace older screens of the same series?
Answer: This module usually comes with a standard industrial interface (please refer to the datasheet for specifics, likely FPC or Pin header). Although it has a 320x240 resolution, because the driving method of CSTN differs from TFT, if you plan to use it to replace an older screen, please ensure that the interface definitions and driving timing are compatible with your motherboard.

2.Question: This screen is labeled CSTN. What is the difference between it and common TFT screens?
Answer: CSTN (Color Super-Twisted Nematic) is a color STN technology. Compared to TFT screens, CSTN has lower cost and lower power consumption, but slightly slower response times and narrower viewing angles. The KCG057QV1DC-G500 is very suitable for industrial data display equipment that requires high cost-effectiveness and low power consumption but does not demand high-definition video.
