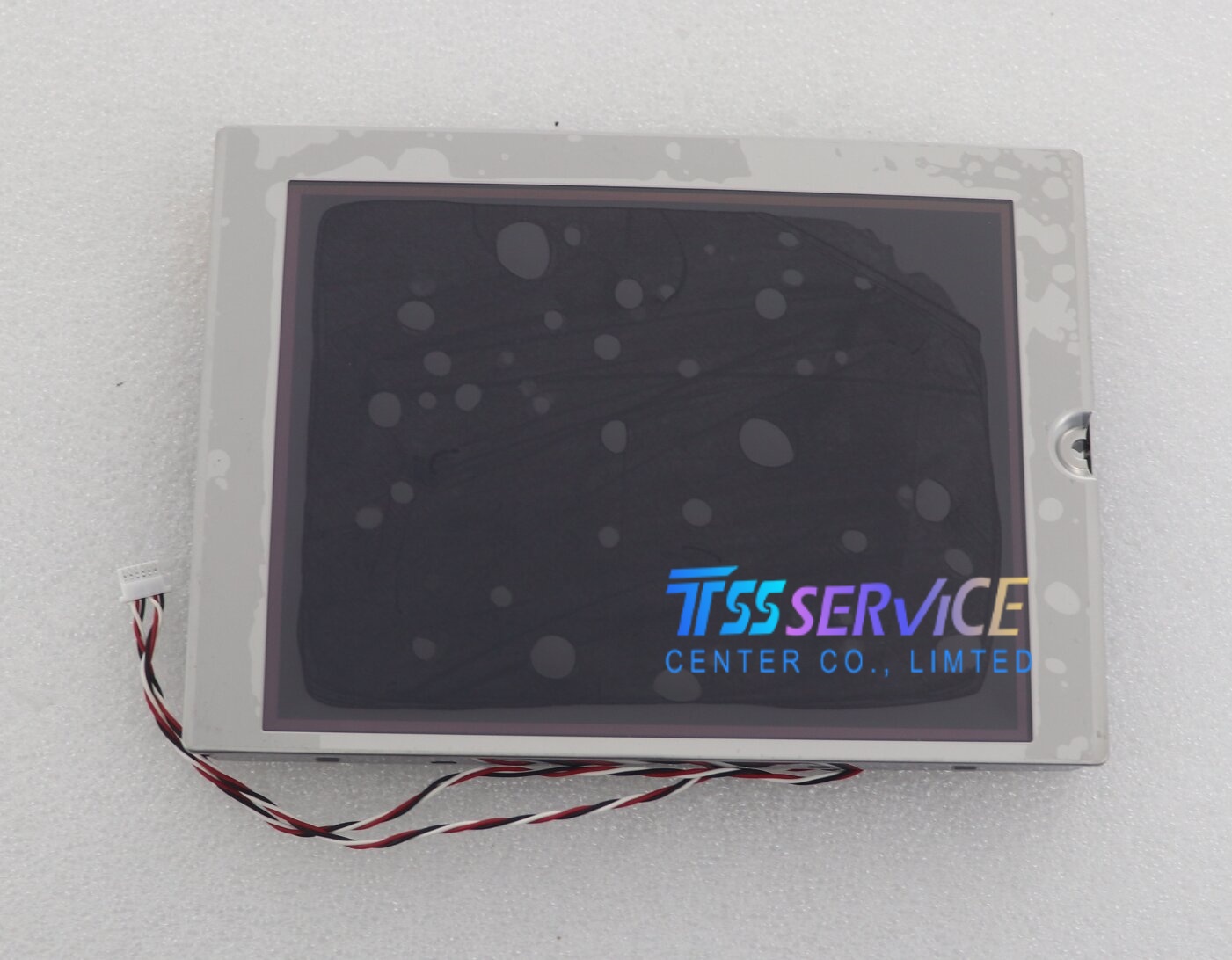

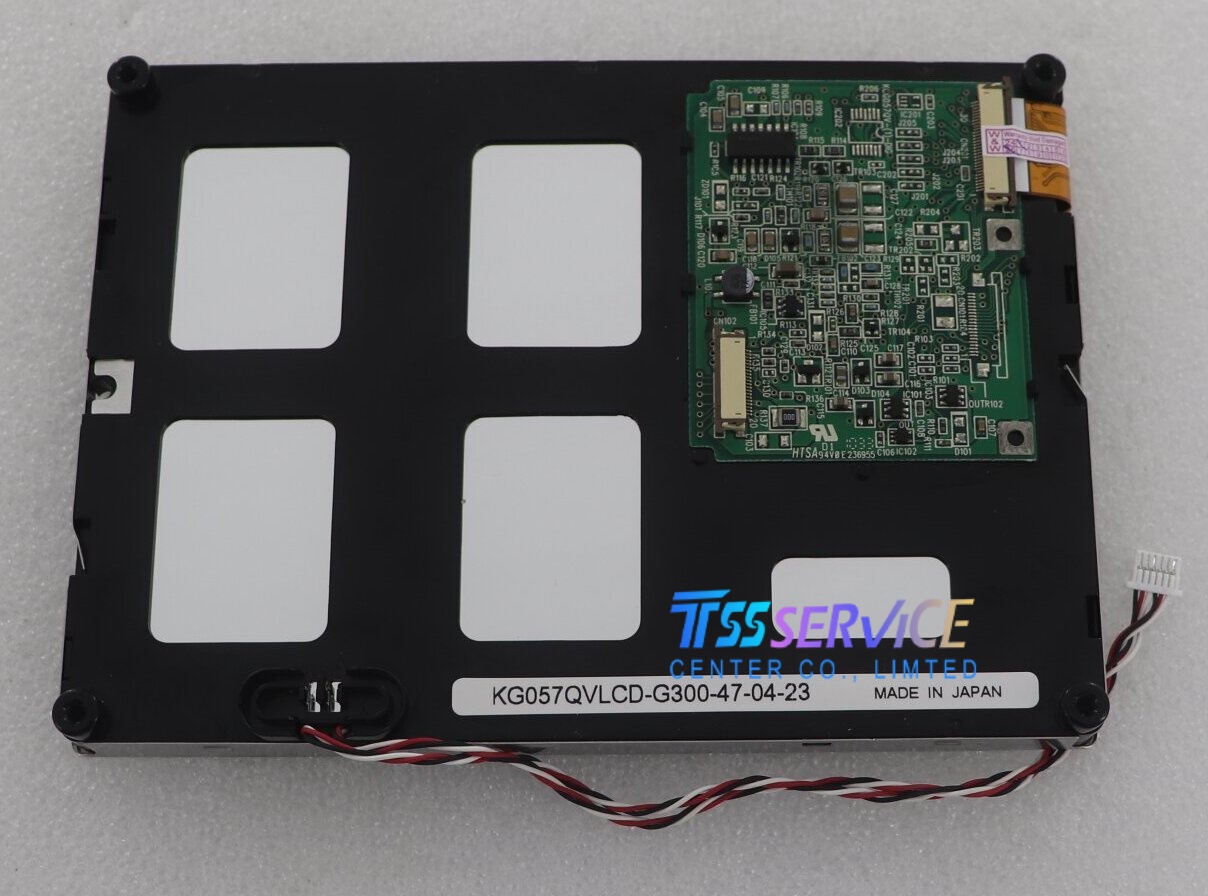

Kyocera 5.7 Inch LCD PANEL DISPLAY KG057QVLCD-G300 use for Industrial
Specifications
| Brand |
Kyocera |
Model |
KG057QVLCD-G300 |
| Size |
5.7 Inch |
Pixel Format |
RGB Vertical Stripe |
| Active Area |
115.18×86.38 mm (H×V) |
Outline Size |
144×104.8×13.2 mm (H×V×D) |
| Brightness |
200cd/m² |
Contrast Ratio |
10:1 |
| Resolution |
320×240, |
Lamp |
WR-LED |
| Surface |
Glare |
Frequency |
75HZ |
| Panel Type |
FSTN-LCD, LCM |
Touch screen |
Without |
| Signal Interface |
Parallel Data (1ch, 4-bit), 20 pins Connector |
Environment |
- Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C
|
Typical Applications
1.Industrial Automation Control Equipment
Injection molding machine operation panels, small CNC control terminals, assembly line data display, industrial PLC monitoring screens
2.Medical Testing Instruments
Portable medical diagnostic devices, lab analytical equipment, bedside parameter display terminals
3.Construction & Special Machinery
Forklift control displays, engineering machinery monitoring panels, agricultural equipment operation screens
4.Mini Intelligent Terminals
Small vending machine control screens, access control display units, handheld industrial measuring instruments
5. Vehicle & On-board Equipment
Old model vehicle monitoring panels, marine auxiliary data display, industrial onboard terminals
