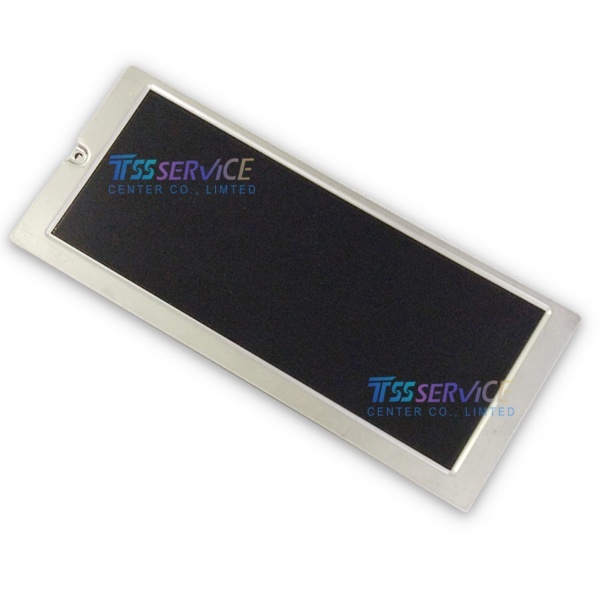

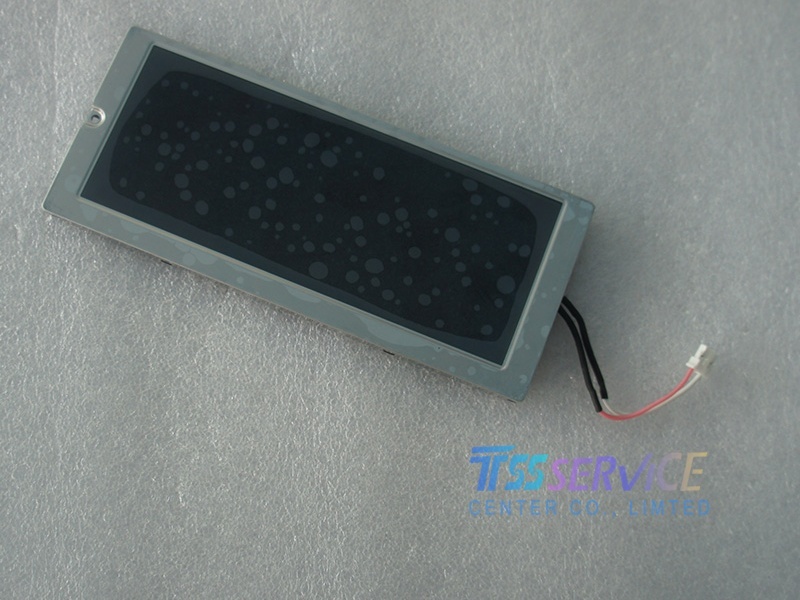

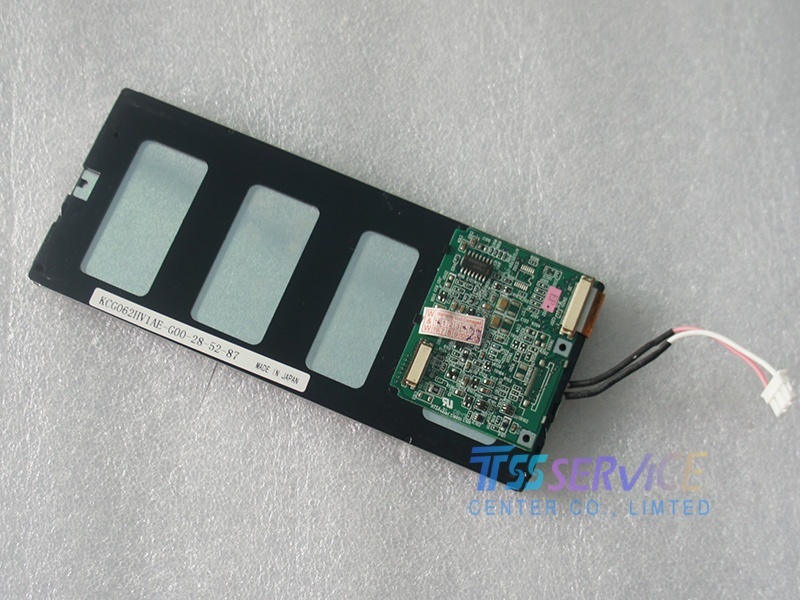

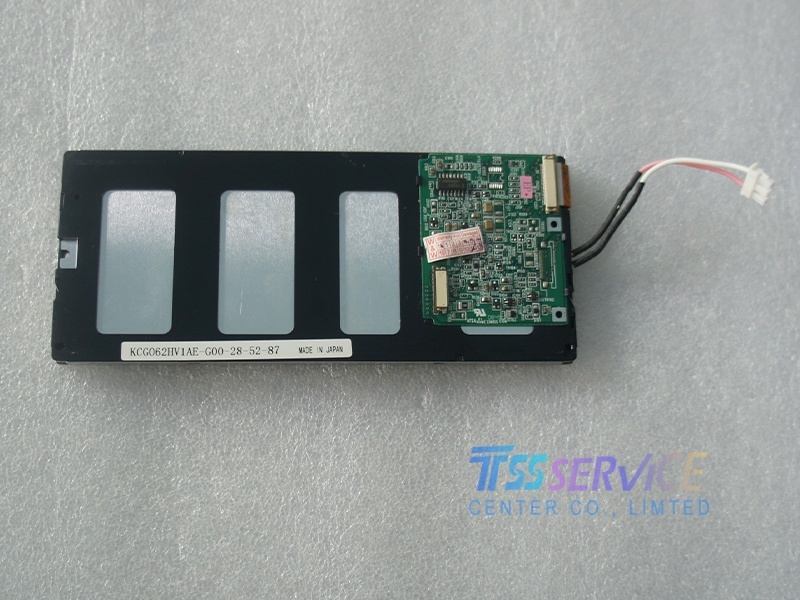

KCG062HV1AE-G00 Kyocera 6.2 inch 640x240 CSTN-LCD Display

Name: KCG062HV1AE-G00 Kyocera 6.2 inch 640x240 CSTN-LCD Display
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: KCG062HV1AE-G00
Price: 185 USD
Availability: InStock

SKU: KCG062HV1AE-G00

Model:KCG062HV1AE-G00
Size:6.2"
Resolution:640x240
Interface:20 pins Parallel Data (8-bit) , Connector
Temperature(℃):0 ~ 50 °C

0.0 (0 Reviews)

0 Sold

~~$190.00~~ $185.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera Display KCG062HV1AE-G00 General Features

KCG062HV1AE-G00 is a 6.2-inch CSTN-LCD display module from Kyocera, offering a resolution of 640 x 240 pixels for clear, efficient text and graphics presentation. Utilizing CSTN (Color Super-Twist Nematic) technology, this module provides a cost-effective and power-efficient alternative to standard TFT displays, making it ideal for applications where extended battery life and reliable monochrome or color output are required. Engineered for durability and stable performance in demanding environments, it is well-suited for integration into industrial handheld terminals, medical monitors, instrumentation, and portable devices. Kyocera's quality construction ensures long-term reliability and visual consistency in professional applications.

Brand	KYOCERA
Model	KCG062HV1AE-G00
Panel-type	CSTN-LCD , LCM
Size	6.2"
Resolution	640(RGB)×240 [HVGA]
Aspect Ratio	8:3(H:V)
Dot Pitch(mm)	0.077×0.231 mm (H×V)
Pixel Pitch(mm)	0.231×0.231 mm (H×V)
Display Area	147.82×55.42 mm (H×V)
Bezel Opening	152.4×60.0 mm (H×V)
Outline Size	174.2×73.4 mm (H×V)
Display Mode	STN, Normally Black, Transmissive
Brightness	130 cd/m² (Typ.)
Contrast Ratio	30:1 (Typ.) (TM)
Response Time	190/180 (Typ.)(Tr/Td) ms
Viewing Angle	50/50/30/20 (Typ.)(CR≥2)
Display Colors	Color
Lamp Type	1 pcs CCFL , 54K hours , Optional
Signal Interface	Parallel Data (8-bit) , 20 pins , Connector
Touch Screen	4-wire Resistive Touch
Input Voltage	3.3V (Typ.)
Operating Temp	0 ~ 50 °C
Storage Temp	-20 ~ 60 °C

C-A21
1.Question: This older model screen is quite fragile. Is the shipping packaging safe enough?
Answer: Regardless of the screen model’s age, we treat them all with the same care. We adhere to industrial-grade packaging standards.Each screen is individually sealed in an anti-static bag and placed in a custom foam recess to ensure it is not affected by compression or vibration during long-distance transport.

2.Question: What is the difference between CSTN-LCD and the common TFT-LCD? How is the color performance of this screen?
Answer: CSTN (Color Super-Twisted Nematic) is an early color display technology. Compared to TFT, it has lower cost and lower power consumption, but slightly slower response times and lower contrast. This screen is ideal for industrial control panels or instrumentation that only need to display simple graphics, text, or menus, offering very high cost-performance.
