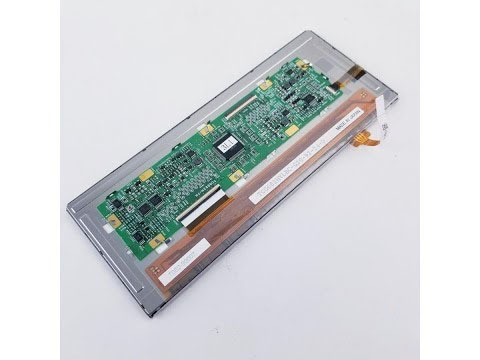

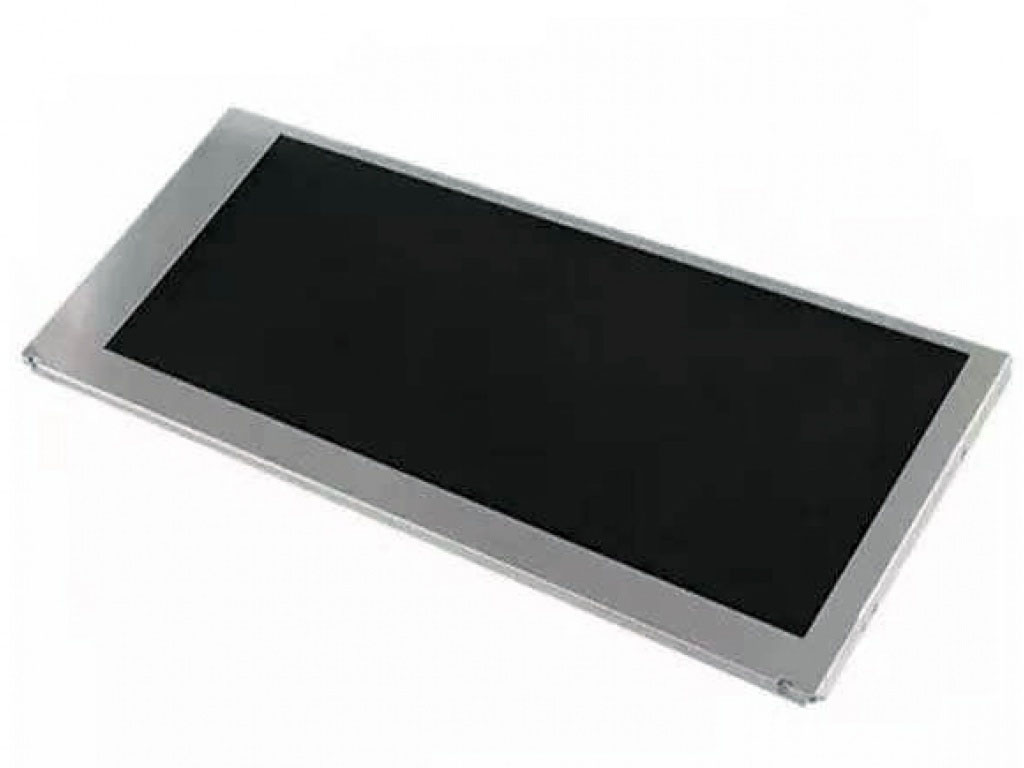

TCG062HVLDA-G20 WLED 6.2 inch 640*240 LCD Display Screen Panel for Kyocera

Name: TCG062HVLDA-G20 WLED 6.2 inch 640*240 LCD Display Screen Panel for Kyocera
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: TCG062HVLDA-G20
Price: 130 USD
Availability: InStock

SKU: TCG062HVLDA-G20

Model:TCG062HVLDA-G20
Size:6.2"
Resolution:640×240
Interface:40 pins Parallel RGB (1 ch, 6-bit)
Temperature(℃):-20 ~ 70 °C

0.0 (0 Reviews)

0 Sold

~~$135.00~~ $130.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Kyocera Display TCG062HVLDA-G20 General Features
TCG062HVLDA-G20 is a compact 6.2-inch WLED-backlit TFT-LCD display panel developed for Kyocera applications. It features a resolution of 640 × 240 pixels, providing a clear and efficient visual format suitable for status readouts, control interfaces, and data dashboards. Equipped with WLED backlighting, it offers enhanced brightness and improved energy efficiency. Engineered for reliable operation in challenging conditions, this panel is ideal for integration into automotive instrument clusters, industrial handheld devices, portable terminals, and medical monitoring equipment. With Kyocera's proven quality and durability, it delivers stable performance and long-term reliability in a wide range of professional and embedded display applications.

Brand	KYOCERA
Model	TCG062HVLDA-G20
Panel-type	a-Si TFT-LCD, LCM
Size	6.2"
Resolution	640(RGB)×480 (QVGA)
Aspect Ratio	8:3 (H:V)
Dot Pitch(mm)	0.077×0.231 (H×V)
Pixel Pitch(mm)	0.231×0.231 (H×V)
Display Area	147.84(H) × 55.44(V)
Bezel Opening	150.8(H) × 58.5(V)
Outline Size	173(H) × 70(V)
Display Mode	TN, Normally White
Brightness	300cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.) (TM)
Response Time	15/20 (Typ.)(Tr/Td)
Viewing Angle	80/80/80/80 (Typ.)(CR≥5)
Display Colors	262K , 47% NTSC
Signal Interface	40 pins Parallel RGB (1 ch, 6-bit) , Connector
Touch Screen	Without
Input Voltage	3.3V (Typ.)
Operating Temp	-20 ~ 70 °C
Storage	-30~ 80 °C

1.Question: This is a bare panel. How do you prevent the glass panel from breaking during transport packaging?
Answer: We use professional shock-proof and drop-proof packaging. Each TCG062HVLDA-G20 is first placed in an anti-static bag, then set in a custom foam tray. The screen surface is covered with a protective film, and finally packed into a five-layer corrugated cardboard box to ensure maximum safety.

2.Question: We urgently need this TCG062HVLDA-G20 panel for project verification. Do you offer expedited shipping services?
Answer: Yes, we offer expedited services. If you mark “Expedited” on your order, we will prioritize processing it and select the fastest international shipping channel (such as DHL Express), striving to deliver the goods within 3-5 business days
