L5S30479P01 10 inch LCD Display Screen For Industrial

Name: L5S30479P01 10 inch LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: L5S30479P01
Price: 80 USD
Availability: InStock

SKU: L5S30479P01

Model: L5S30479P01
Size: 10.1 inch (Diagonal)
Resolution: 1280 × 800 pixels (WXGA)
Display Type: a-Si TFT-LCD, IPS, Normally White, Transmissive

0.0 (0 Reviews)

0 Sold

~~$85.00~~ $80.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

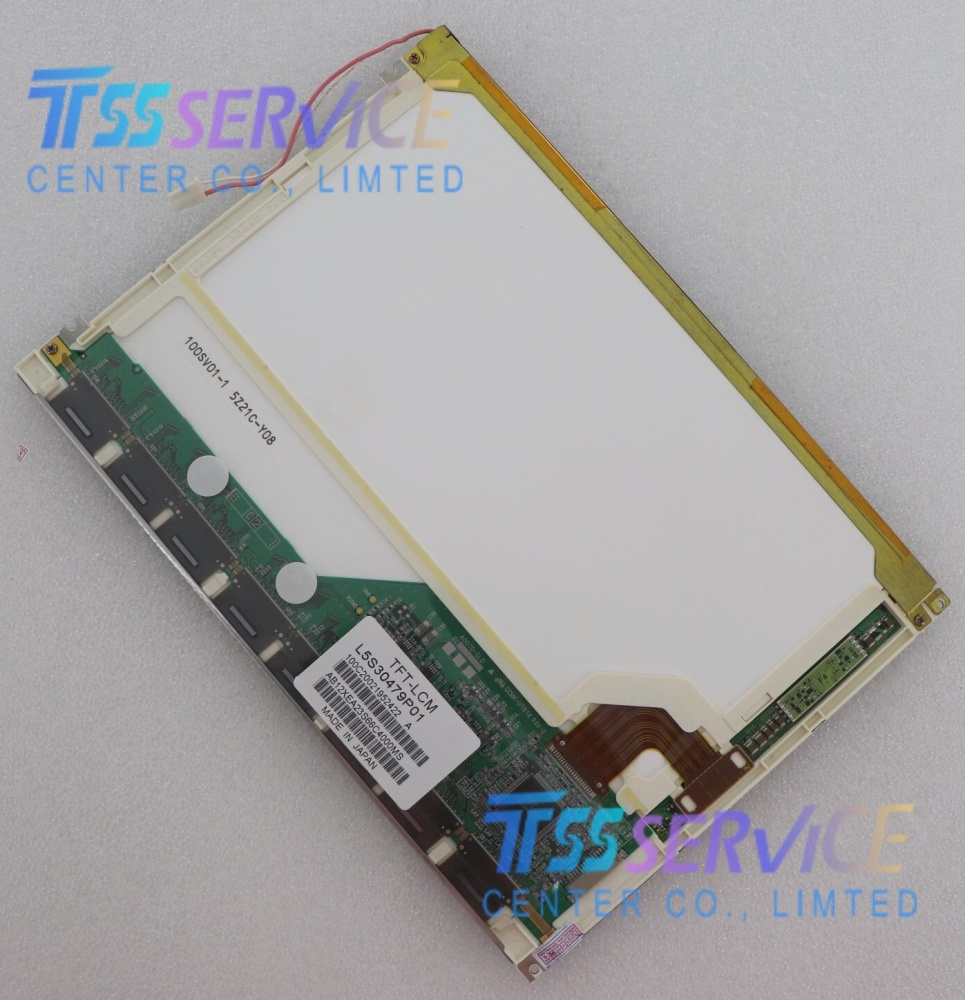

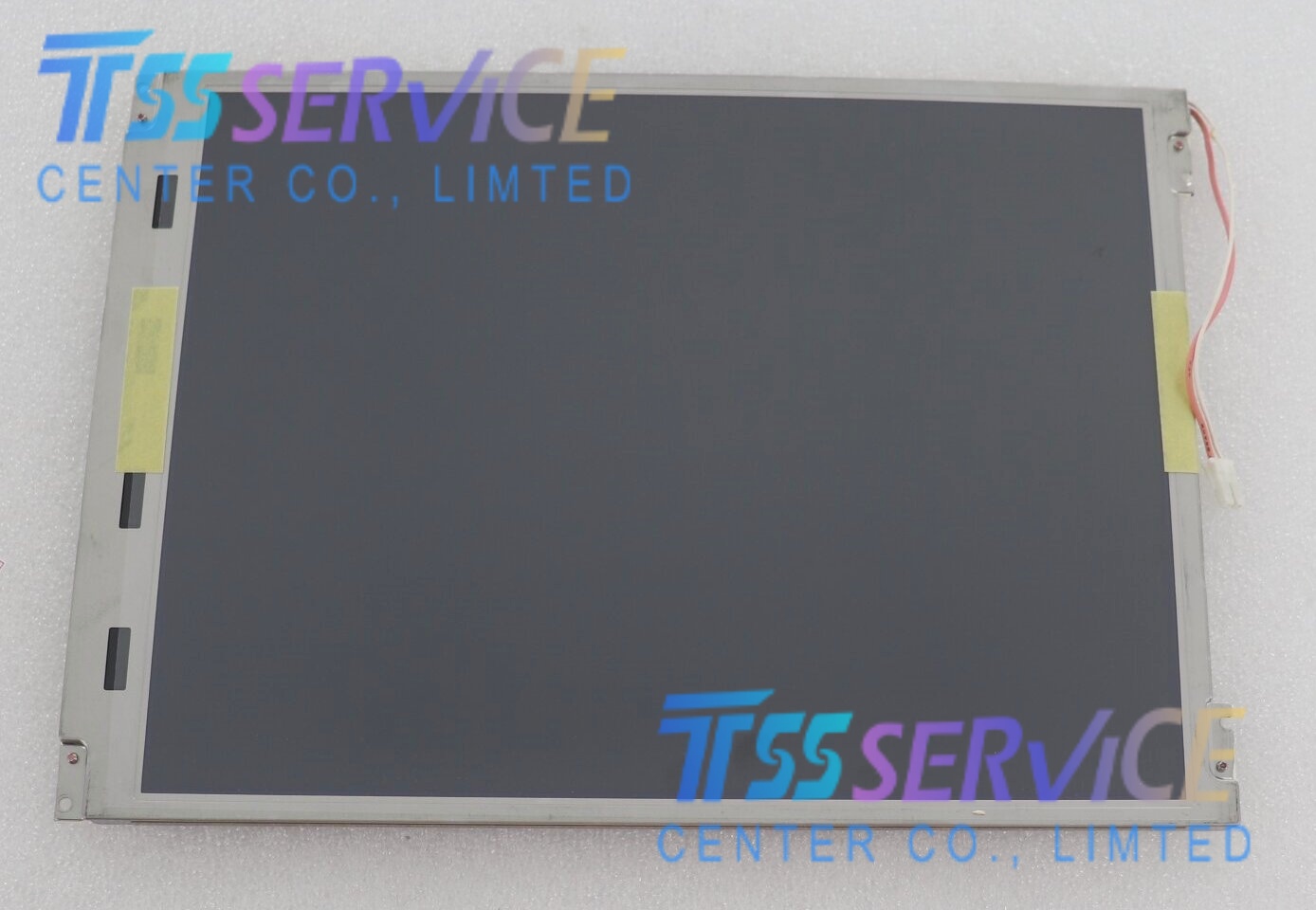

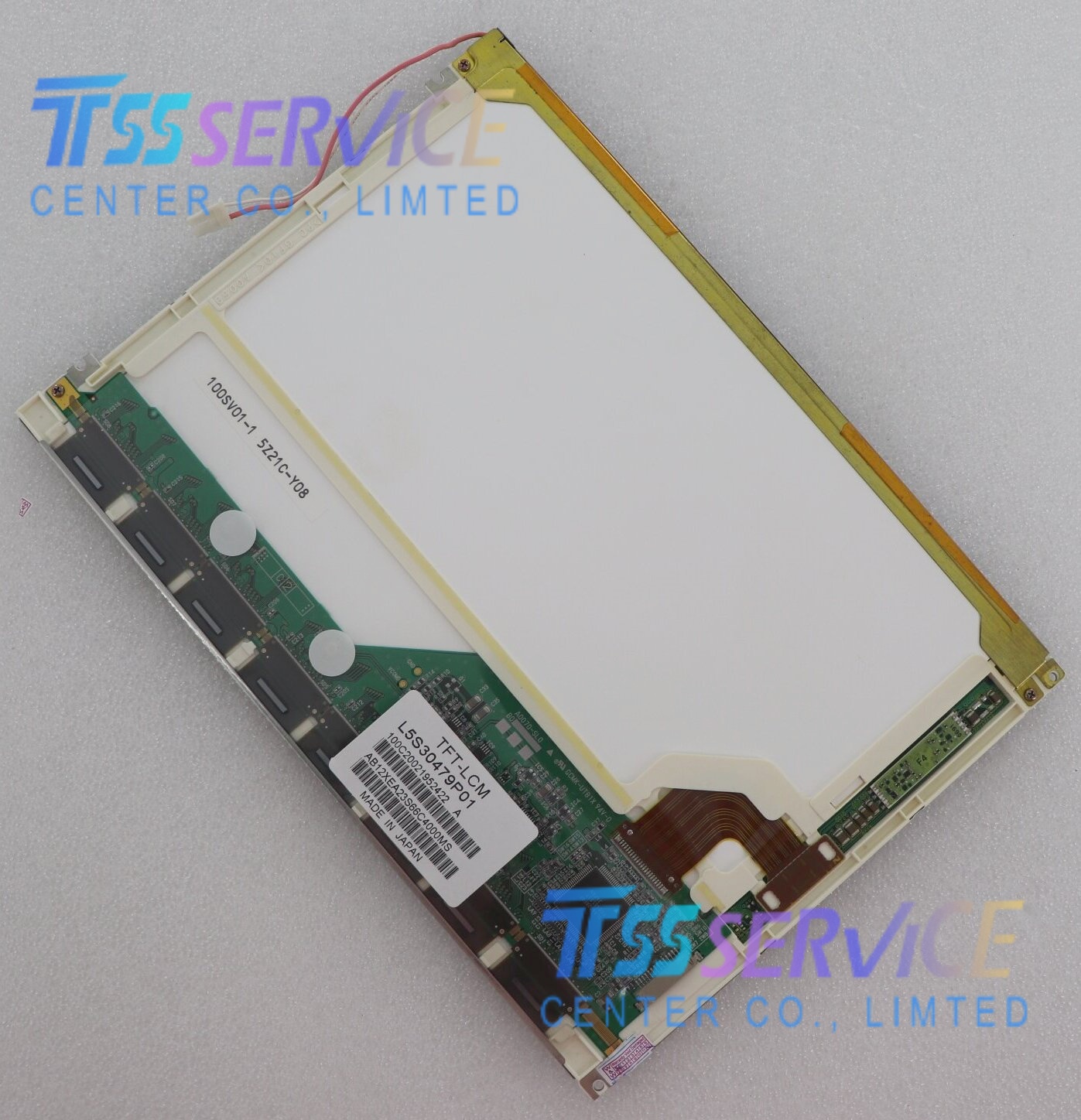

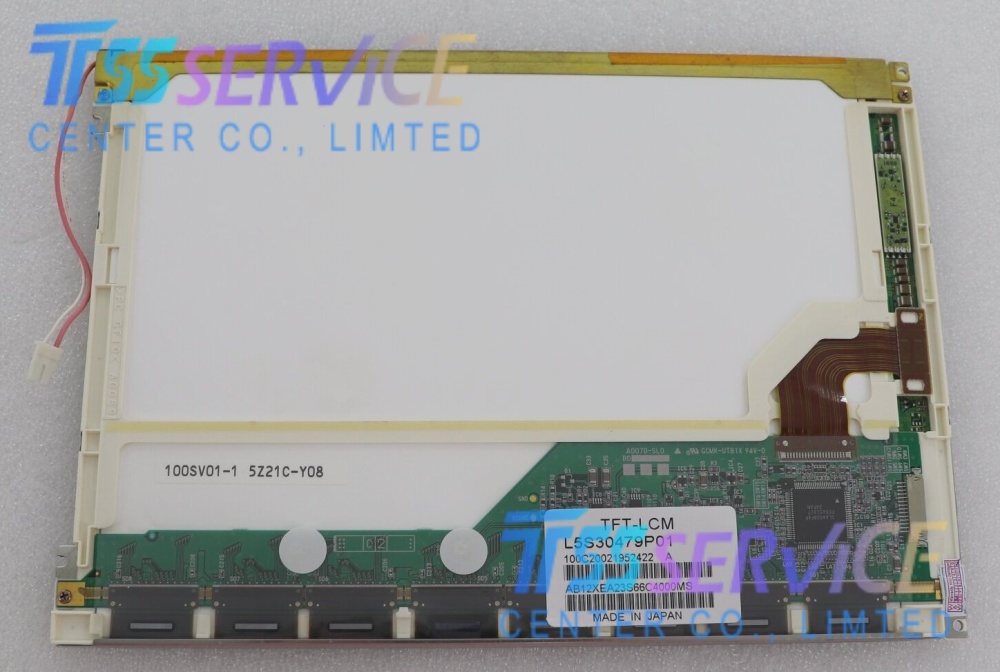

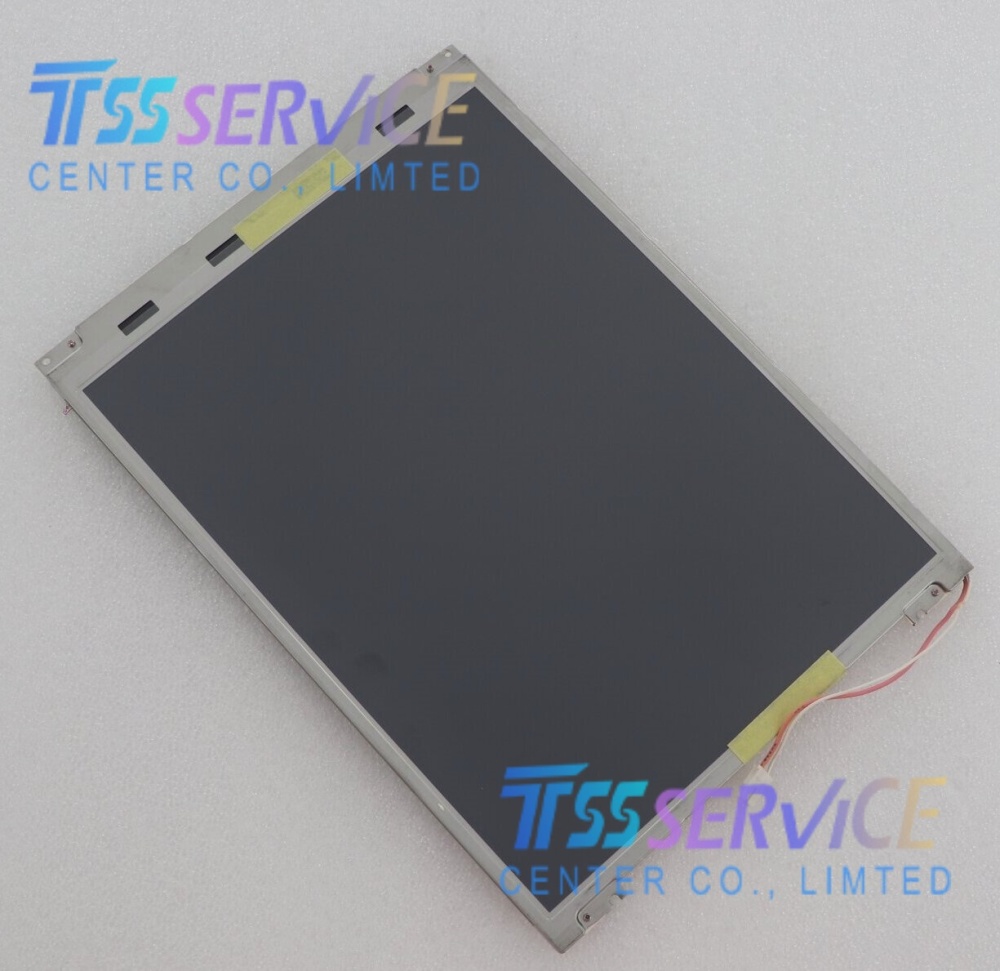

L5S30479P01 10 inch LCD Display Screen For Industrial

Parameter	Details
Model	L5S30479P01
Size	10.1 inch (Diagonal)
Resolution	1280 × 800 pixels (WXGA)
Display Type	a-Si TFT-LCD, IPS, Normally White, Transmissive
Backlight	WLED, lifespan ≥50,000 hours
Brightness	500 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.)
Viewing Angle (L/R/U/D)	85°/85°/85°/85° (CR≥10)
Display Colors	16.7M (8-bit)

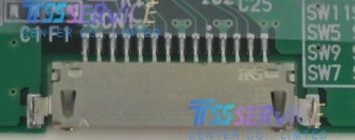

Interface	LVDS (2 ch, 8-bit), 40 pins
Supply Voltage	3.3V (Typ.)
Operating Temperature	-30°C ~ 85°C
Storage Temperature	-40°C ~ 90°C
Outline Dimensions	235 (W) × 143 (H) × 6.5 (D) mm
Active Area	218.4 (W) × 136.5 (H) mm
Weight	Approx. 450 g
Compliance	RoHS

Applications

Industrial HMIs & Control Panels: Factory automation, CNC equipment, and PLC operator interfaces requiring high brightness.
Medical Devices: Portable diagnostic tools, patient monitors, and handheld medical instruments with low power consumption.
Outdoor & Portable Equipment: Sunlight-readable terminals, outdoor handheld devices, and battery-powered industrial tools.
Test & Measurement: Portable oscilloscopes, data loggers, and analytical instruments in field environments.
Retail & Smart Devices: Compact POS terminals, smart home controllers, and wearable industrial devices with graphical interfaces
