Home > LCD Display > other PANEL > MORE > L5S30978P02

1/1

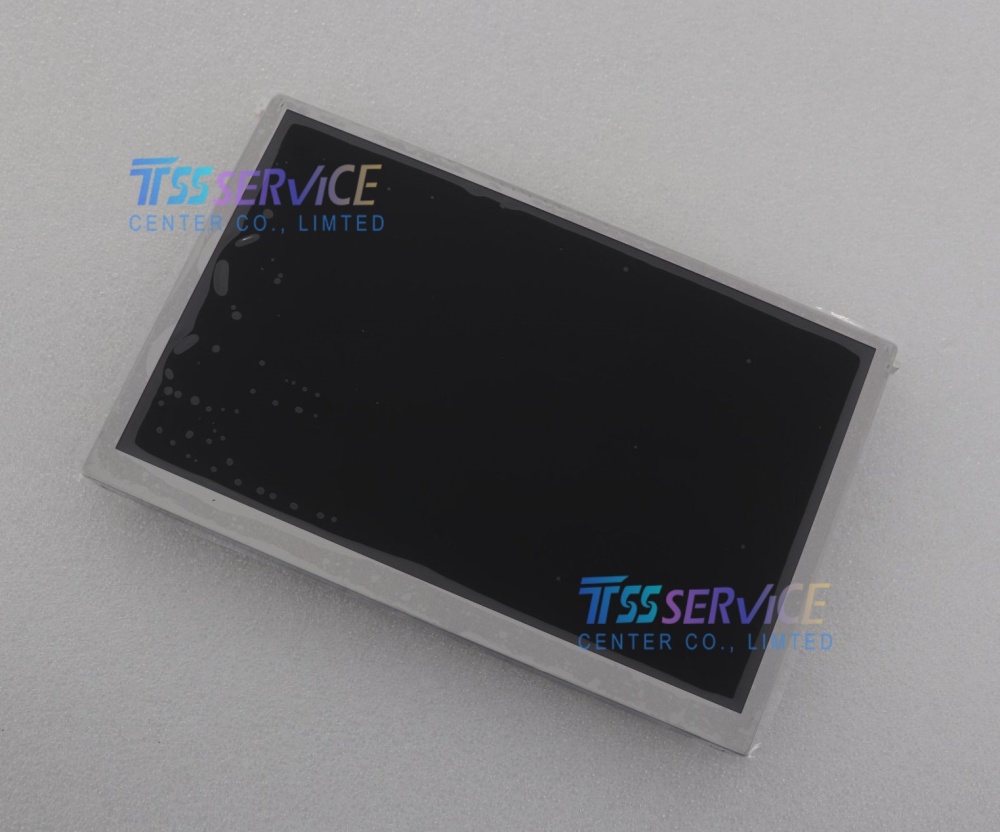

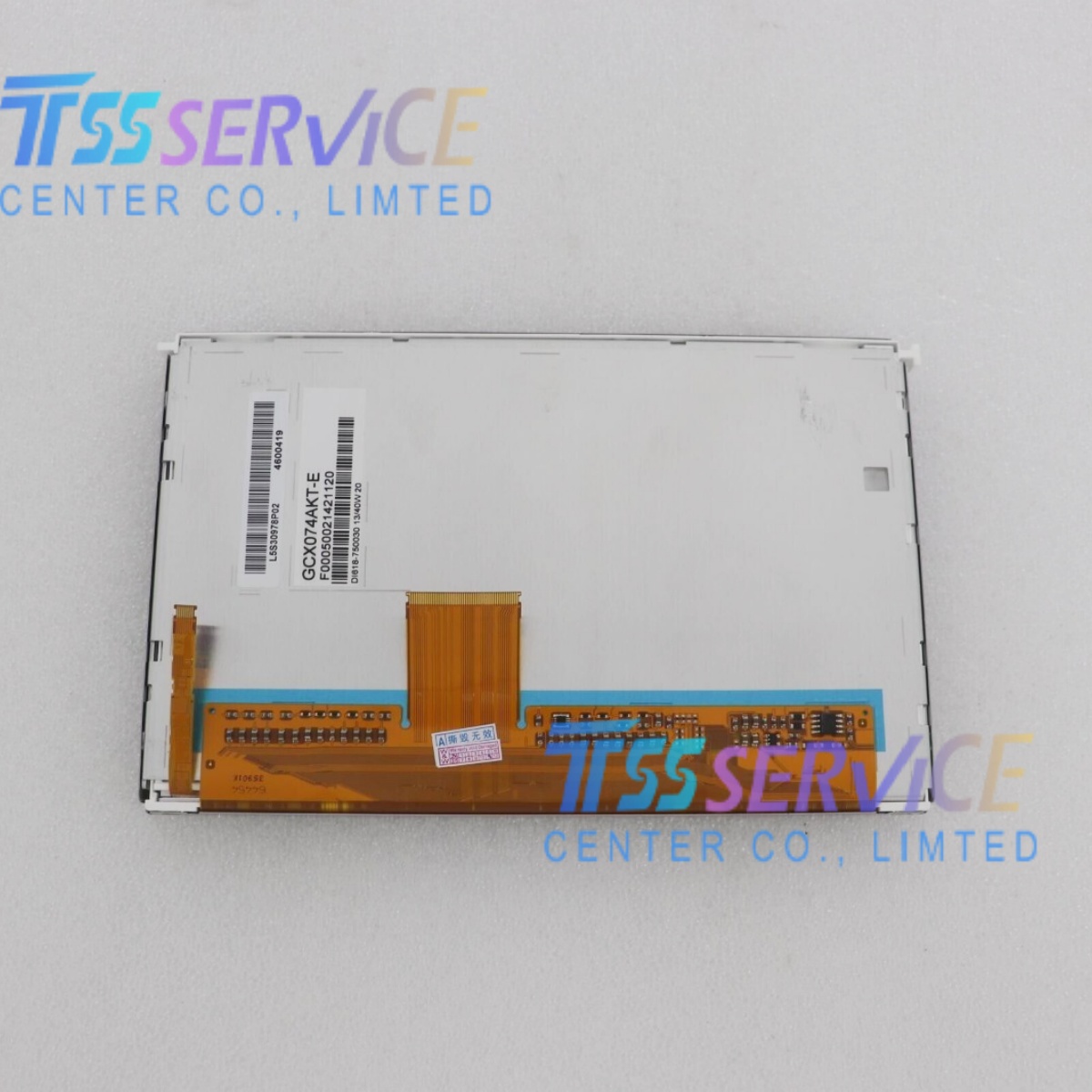

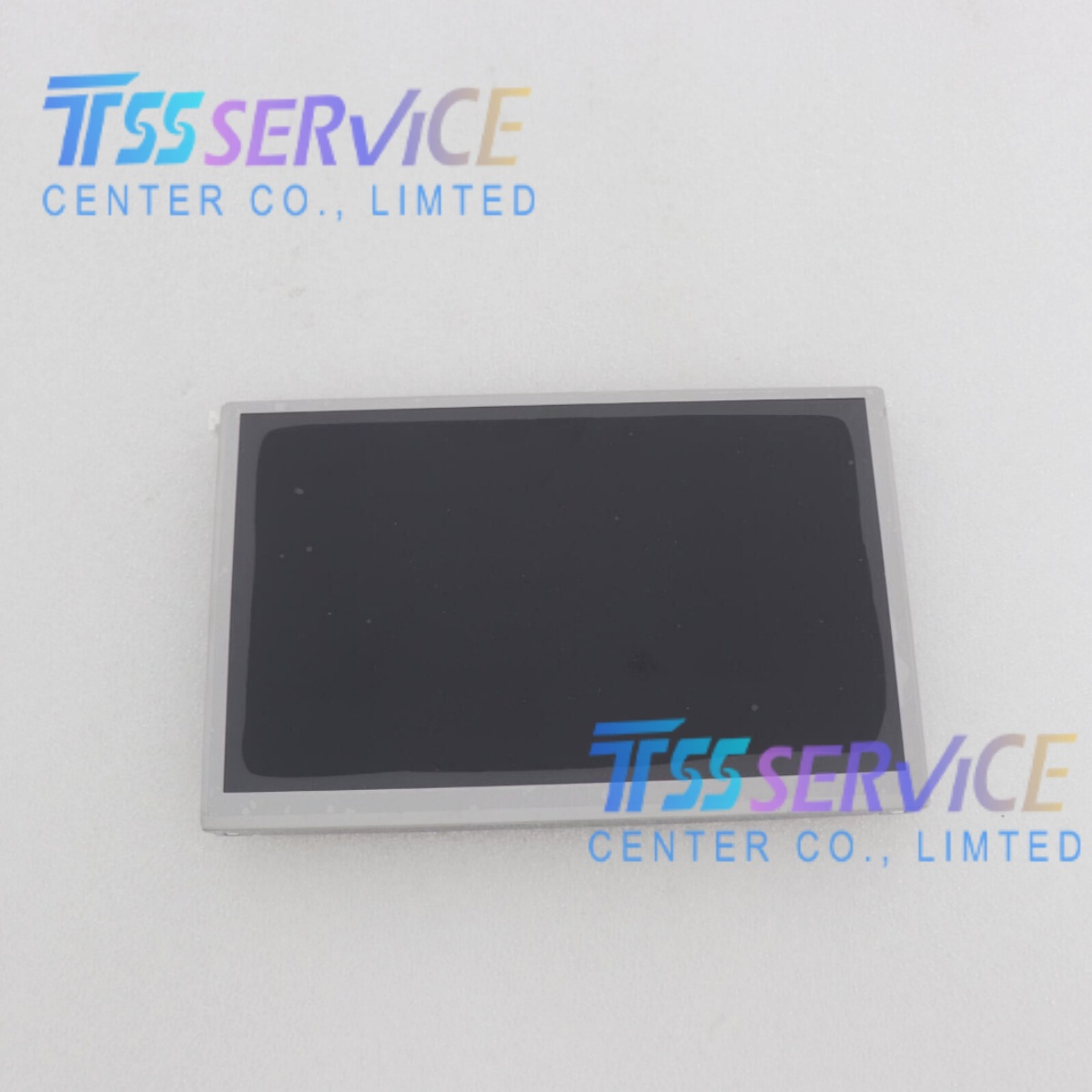

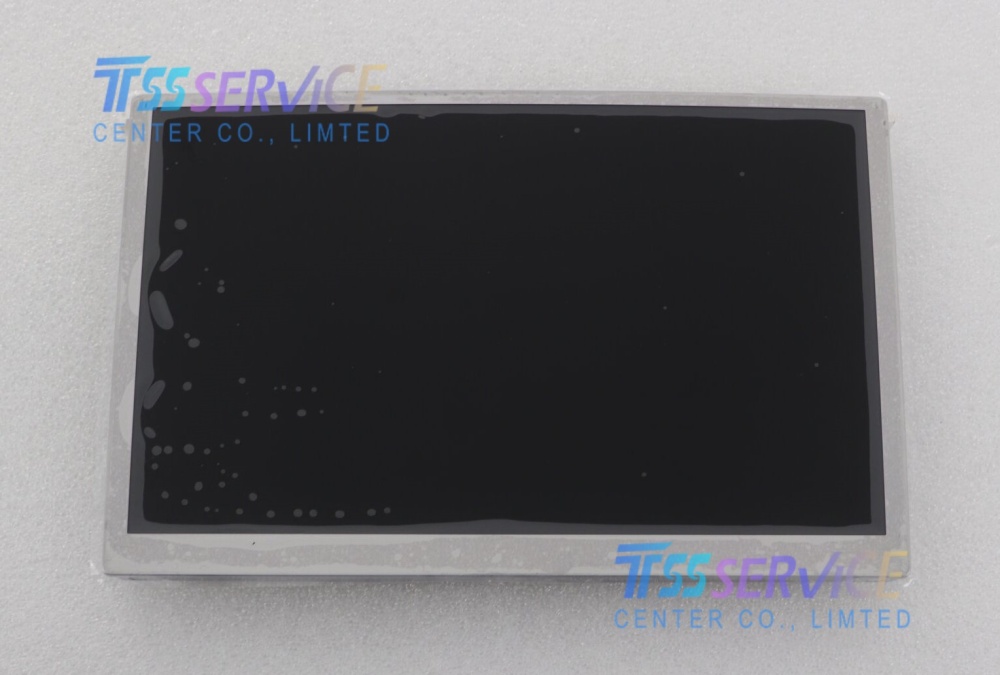

L5S30978P02 8 INCH 800 × 480 LCD Panel Screen For Industrial

Name: L5S30978P02 8 INCH 800 × 480 LCD Panel Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: L5S30978P02
Price: 99 USD
Availability: InStock

SKU: L5S30978P02

Model P/N: L5S30978P02
Diagonal Size: 8"
Pixel Number: 800 × 480 pixels (RGB stripe)

0.0 (0 Reviews)

0 Sold

~~$100.00~~ $99.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

L5S30978P02 8 INCH 800 × 480 LCD Panel Screen For Industrial

Parameter	Details
Model	L5S30978P02 (GCX074AKT-E)
Screen Size	8.0-inch TFT LCD
Resolution	800 × 480 pixels (RGB stripe)
Module Dimensions (W×H×D)	187.5 × 120 × 9.9 mm
Active Area (W×H)	174.0 × 104.4 mm
Weight	275 g
Interface	50-pin RGB (18-bit) + 3-wire serial (MPU)
Power Supply (VDD)	3.3 V (3.0–3.6 V), 200 mA (typ.)
Backlight	LED (24 LEDs, 40 V, 80 mA)
Brightness	650 cd/m² (typ.)
Contrast Ratio	700:1 (typ.)
Viewing Angle (CR≥100:1)	70°/70°/80°/80° (L/R/U/D)
Operating Temperature	-30°C to +85°C
Storage Temperature	-40°C to +90°C
