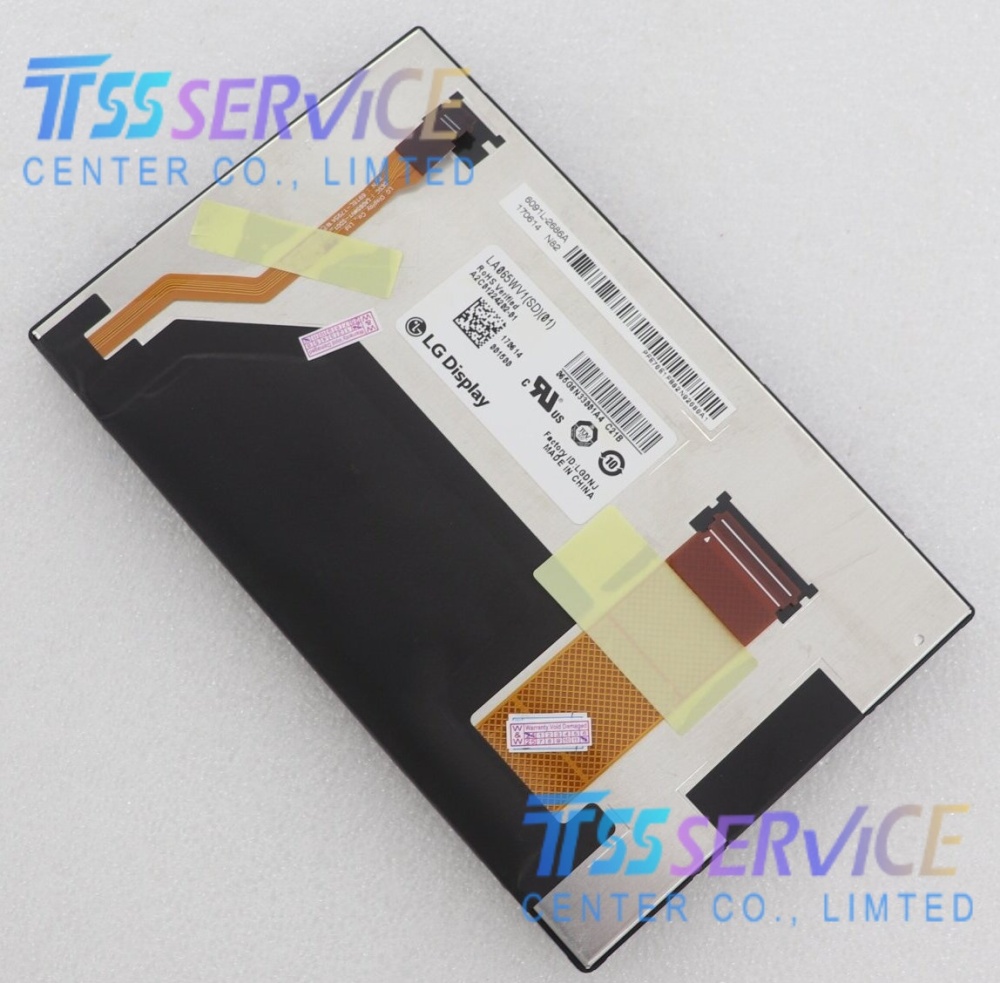

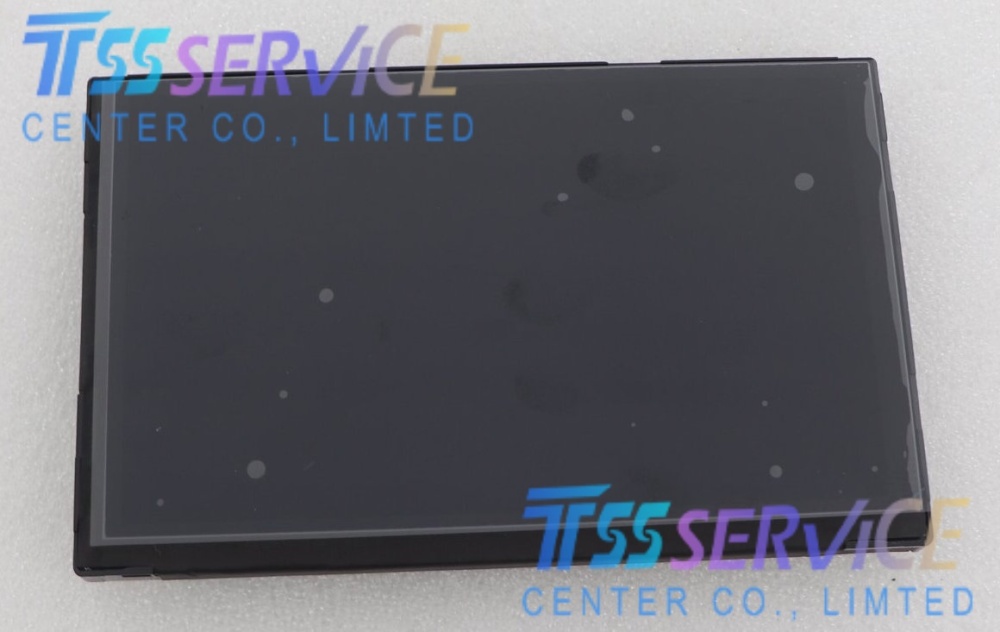

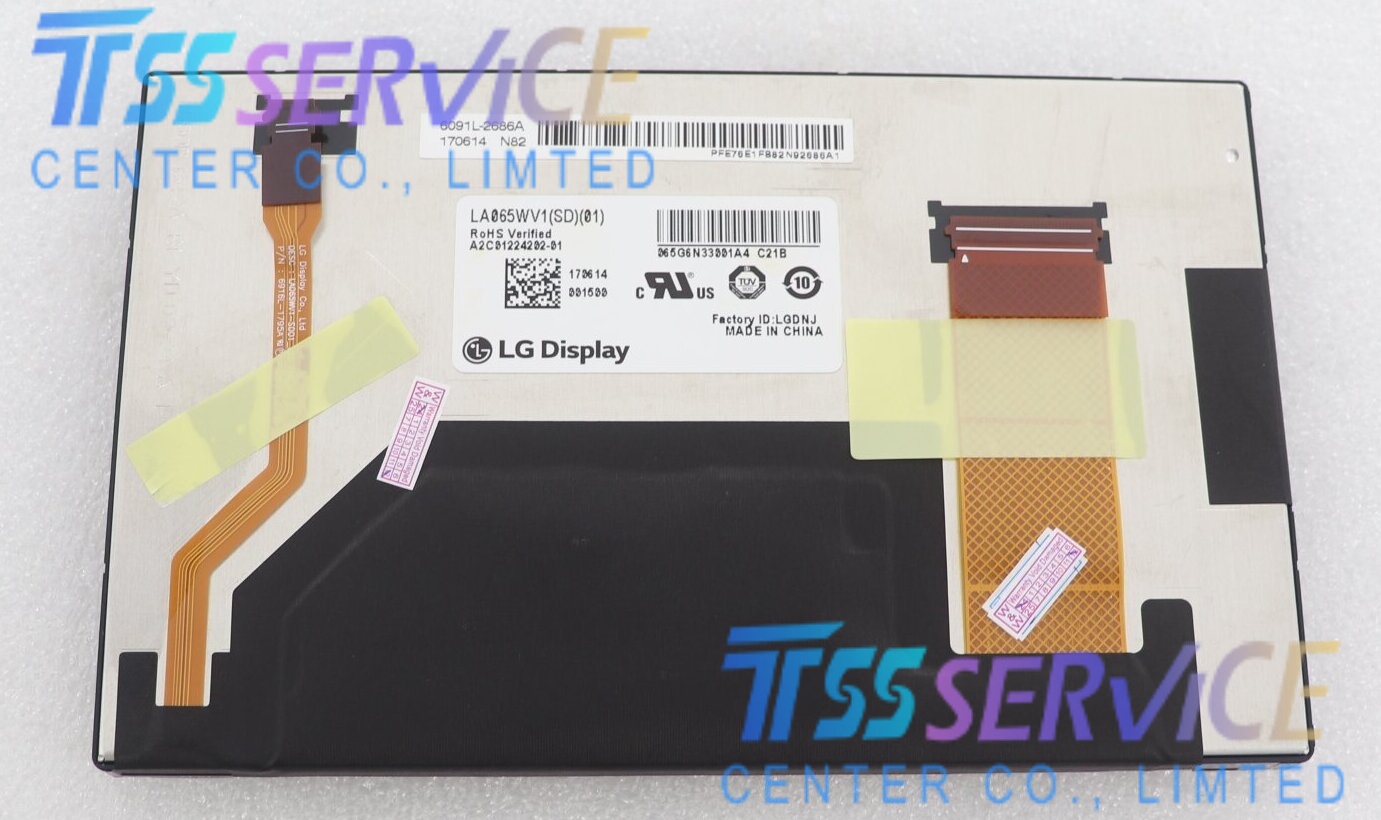

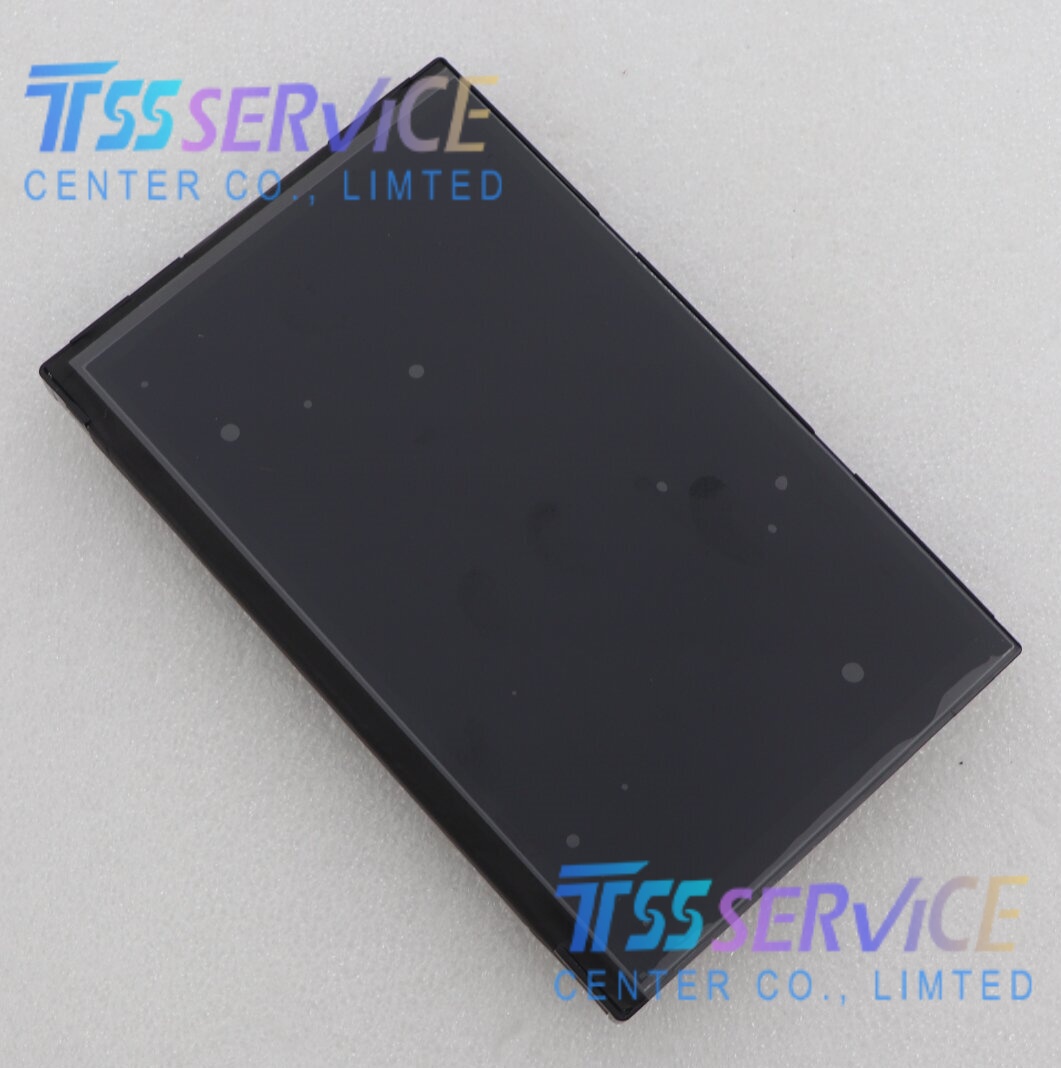

LA065WV1-SD01 LG Display 6.5 inch 800×480 LCD Panel for Industrial

SKU: LA065WV1-SD01
Model P/N: LA065WV1-SD01
Diagonal Size: 6.5"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×480, WVGA  143PPI
Pixel Format: RGB Vertical Stripe
0.0 (0 Reviews)
0 Sold
$95.00 $93.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • LA065WV1-SD01 LG Display 6.5 inch 800×480 LCD Panel for Industrial
  • LA065WV1-SD01 LG Display 6.5 inch 800×480 LCD Panel for Industrial
  • LA065WV1-SD01 LG Display 6.5 inch 800×480 LCD Panel for Industrial
  • LA065WV1-SD01 LG Display 6.5 inch 800×480 LCD Panel for Industrial
  • LA065WV1-SD01 LG Display 6.5 inch 800×480 LCD Panel for Industrial
  • LA065WV1-SD01 LG Display 6.5 inch 800×480 LCD Panel for Industrial
  • LA065WV1-SD01 LG Display 6.5 inch 800×480 LCD Panel for Industrial
  • LA065WV1-SD01 LG Display 6.5 inch 800×480 LCD Panel for Industrial
1/1
  • LA065WV1-SD01 LG Display 6.5 inch 800×480 LCD Panel for Industrial
  • LA065WV1-SD01 LG Display 6.5 inch 800×480 LCD Panel for Industrial
  • LA065WV1-SD01 LG Display 6.5 inch 800×480 LCD Panel for Industrial
  • LA065WV1-SD01 LG Display 6.5 inch 800×480 LCD Panel for Industrial
  • Description
LA065WV1-SD01 LG Display 6.5 inch 800×480 LCD Panel for Industrial
Parameter Details
Part Number LA065WV1-SD01
Manufacturer LG Display
Display Type a-Si TFT-LCD, Normally White, Transmissive
Diagonal Size 6.5 inch
Resolution 800(RGB) × 480 (WVGA)
Aspect Ratio 16:9
Active Area 143.2 × 85.9 mm (W×H)
Outline Dimensions 158 × 98.6 × 11.7 (H×V×D)
Pixel Format RGB Vertical Stripe, 16.7M Colors (8-bit)
Brightness 925 cd/m² (Typ.)
Contrast Ratio 1000:1 (Typ.)
Viewing Angle 89/89/89/89 (Min.)(CR≥10)
Response Time 30 ms (Typ.) (Tr+Td)
Interface LVDS (1 ch, 6-bit), 40-pin FPC
Backlight WLED, 50,000 hrs (Typ.), Driver Built-in
Supply Voltage 3.3V (Typ.)
Operating Temp.  -40 ~ 95 °C
Storage Temp.  -40 ~ 95 °C
Surface Treatment Anti-Glare (Matte)
RoHS Compliant

Typical Applications

  • Industrial Control Panels & HMI
  • Medical Diagnostic & Monitoring Equipment
  • Automotive Infotainment & Navigation Systems
  • Industrial & Automotive Projectors
  • Injection Molding Machine & Factory Automation Displays
  • Marine & Avionics Displays
  • Test & Measurement Instruments
  • Embedded Systems & Industrial IoT Terminals
