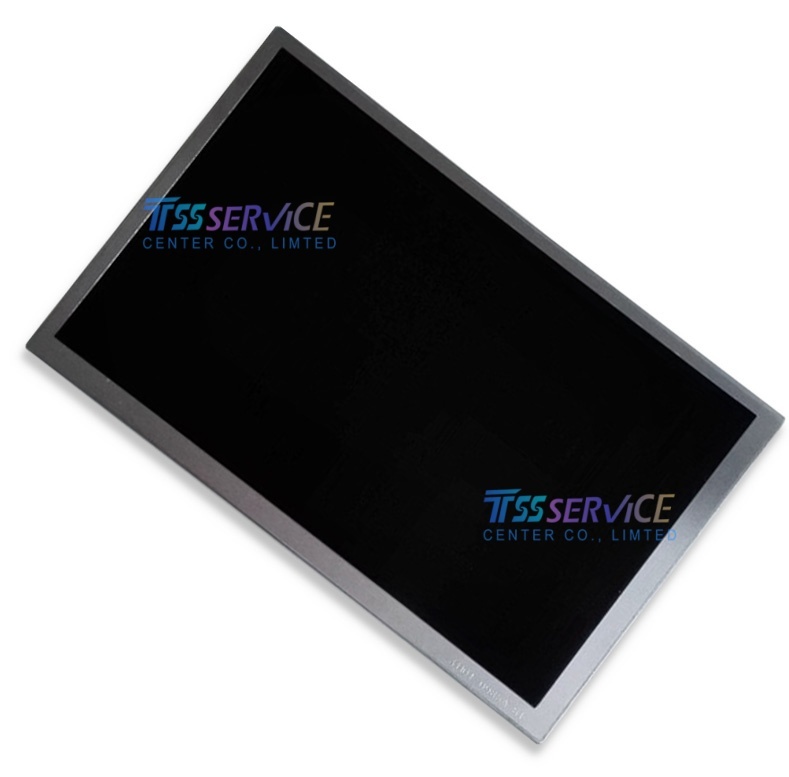

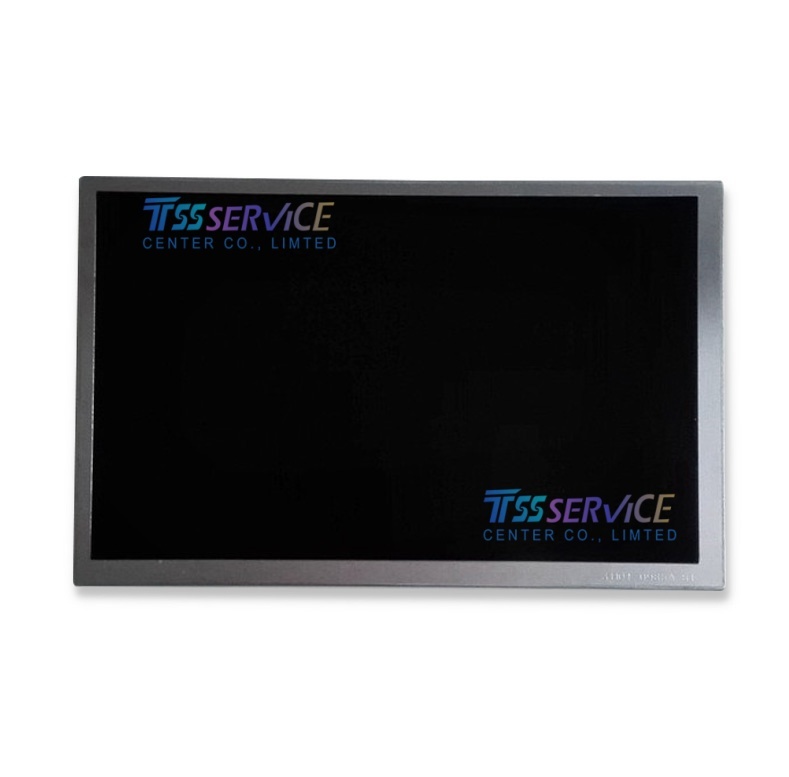

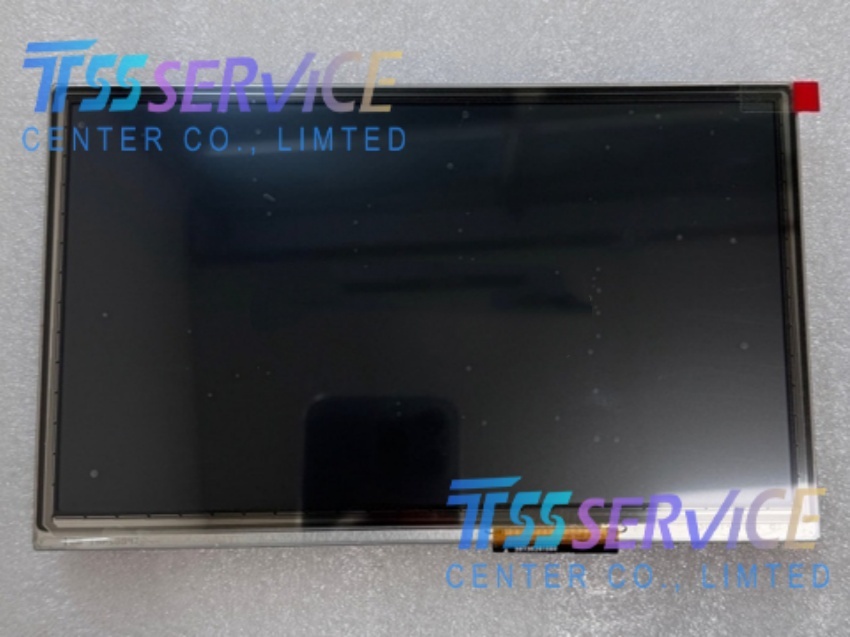

LA080WV8-SL01 LG Display 8 inch 800×480 LCD Panel Screen For Industrial
| Parameter |
Details |
| Manufacturer |
LG Display |
| Model Number |
LA080WV8-SL01 |
| Panel Type |
a-Si TFT-LCD, LCM, AH-IPS, Normally Black, Transmissive |
| Diagonal Size |
8.0 inches |
| Resolution |
800 (RGB) × 480 (WVGA, 15:9 Aspect Ratio) |
| Pixel Arrangement |
RGB Vertical Stripe |
| Active Area |
174.0 (W) × 104.4 (H) mm (Est.) |
| Outline Dimensions |
187.0 (W) × 120.3 (H) × 8.0 (D) mm (Est.) |
| Weight |
500 g (Typ.) |
| Brightness |
450 cd/m² (Typ.) |
| Contrast Ratio |
800:1 (Typ.) |
| Color Depth |
16.7M colors (8-bit) |
| Response Time |
30 ms (Typ.) |
| Viewing Angle |
70/70/60/50° (L/R/U/D) (Typ., CR≥10) |
| Backlight |
WLED, Edge-type, Backlight Driver Not Included |
| Touch Panel |
Integrated Capacitive Touch Screen |
| Interface |
LVDS (30-pin JAE FI-X30SSLA Connector) |
| Surface Treatment |
Anti-glare (AG) |
| Mounting |
4 Rear Mounting Holes |
| Supply Voltage |
3.3V / 12V |
| Operating Temperature |
-20°C ~ +70°C |
| Storage Temperature |
-30°C ~ +80°C |
| RoHS |
Compliant |
| Production Status |
Obsolete (Discontinued) |
LA080WV8-SL01 is a rugged 8.0-inch WVGA IPS LCD module with integrated capacitive touch, designed for automotive and industrial embedded systems requiring reliable performance in harsh environments.
- Automotive Infotainment: Primary application in car navigation systems, central information displays (CID), and rear-seat entertainment (RSE) systems.
- Industrial HMI & Control Panels: Used in factory automation, PLCs, and injection molding machine controllers.
- Medical Devices: Integrated into portable medical monitors and diagnostic equipment.
- Specialized Terminals: Deployed in outdoor kiosks, POS systems, and ruggedized industrial tablets.
- Marine & Avionics: Suitable for marine navigation displays and instrumentation.
