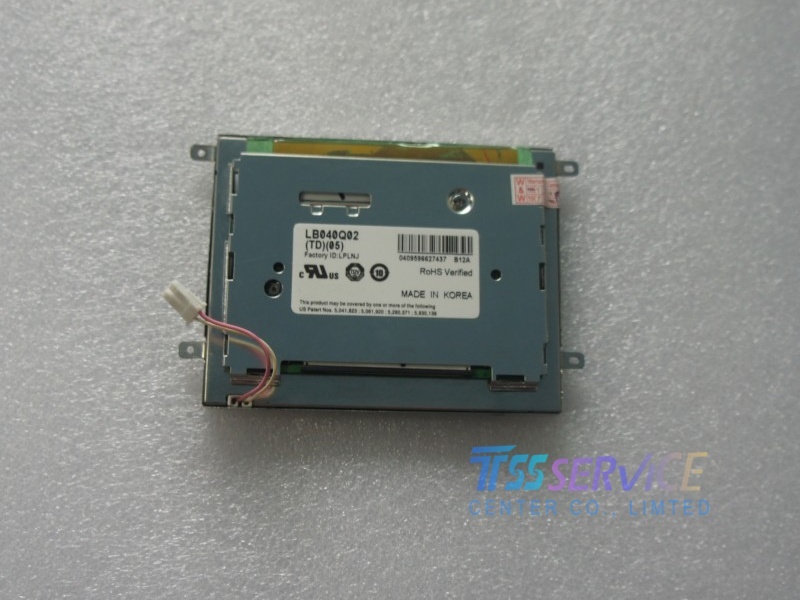

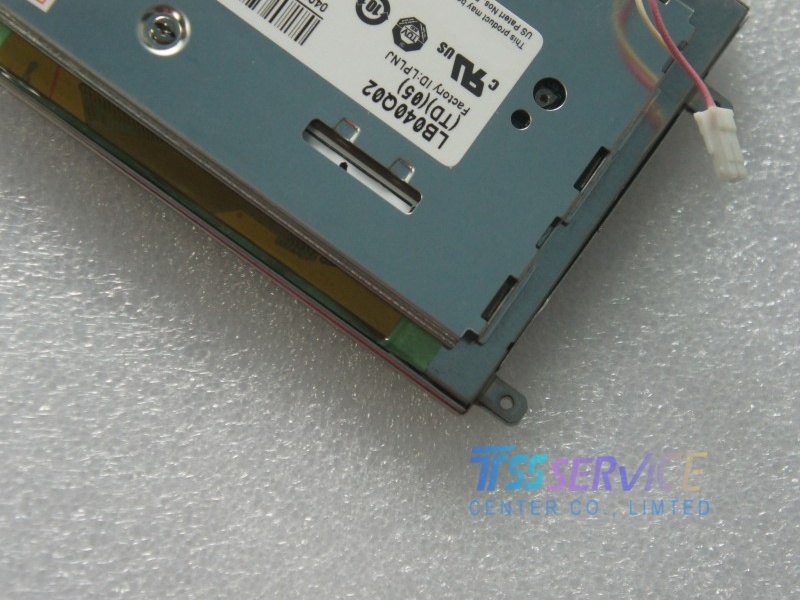

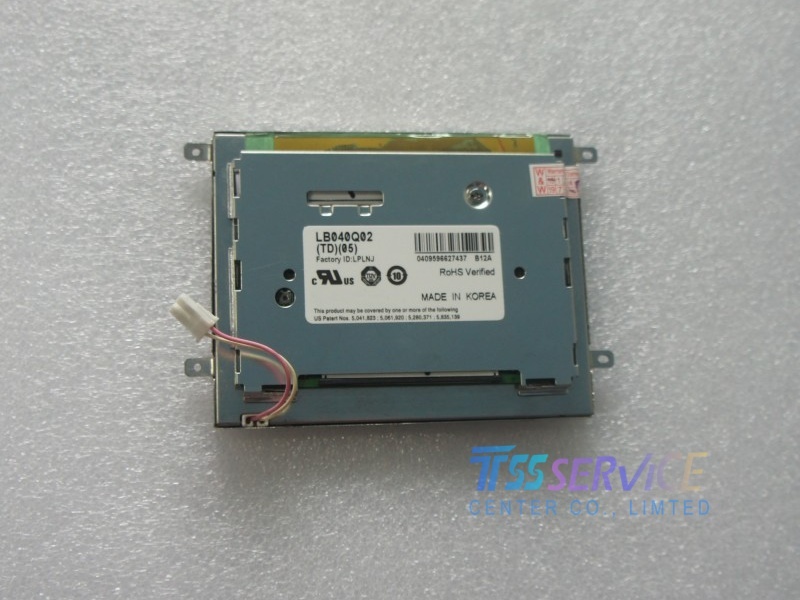

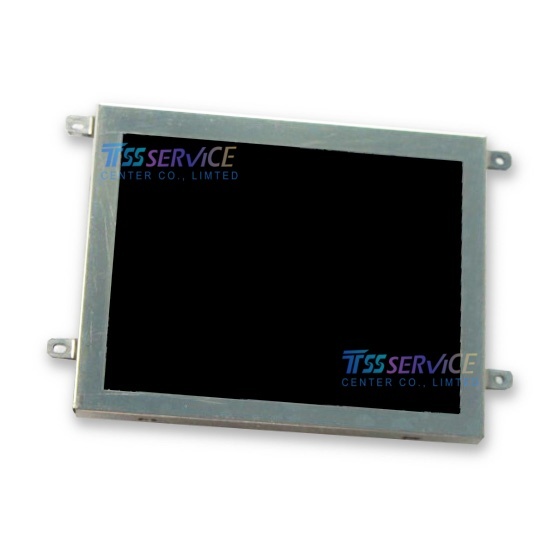

LB040Q02-TD05 4'' 320(RGB)×240 Lcd display screen LB040Q02(TD)(05)

Name: LB040Q02-TD05 4'' 320(RGB)×240 Lcd display screen LB040Q02(TD)(05)
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LB040Q02-TD05
Price: 90 USD
Availability: InStock

SKU: LB040Q02-TD05

Model P/N: LB040Q02-TD05
Diagonal Size: 4"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 320(RGB)×240, QVGA 99PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$91.00~~ $90.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The LB040Q02-TD05 is a refined variant of the 4.0-inch QVGA TFT-LCD panel, featuring 320 × RGB × 240 pixel resolution with enhanced performance characteristics. As part of the LB040Q02 series from LG Display , this model offers improved optical specifications and reliability for demanding compact display applications in industrial, medical, and consumer electronics.

Category	Parameter	Specification
Basic Info	Model	LB040Q02-TD05
	Manufacturer	LG.Philips LCD
	Diagonal Size	4.0 inches
Display	Resolution	320 × RGB × 240 (QVGA)
	Aspect Ratio	4:3
	Display Type	a-Si TFT LCD
	Color Depth	262K/16.7M colors
	Surface	Anti-Glare, Hard Coating
Optical	Brightness	450 cd/m² (Typical)
	Contrast Ratio	400:1 (Typ.) (TM)
	Viewing Angle	70/70/50/60 (Typ.)(CR≥10)
	Response Time	10/30 (Typ.)(Tr/Td)
	Color Gamut	44% NTSC
Interface	Type	CMOS/TTL (1 ch, 6-bit) 40 pins Connector
Backlight	Type	CCFL
Electrical	Supply Voltage	3.3V ± 0.3V
Environmental	Operating Temperature	-30°C to +80°C
	Storage Temperature	-40°C to +85°C
