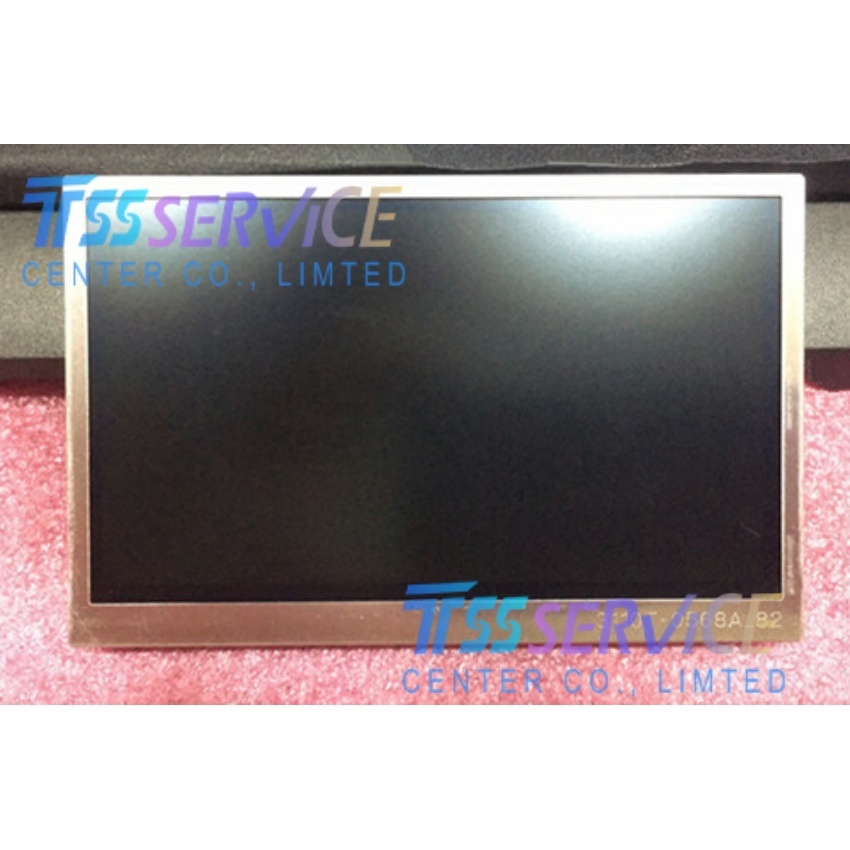

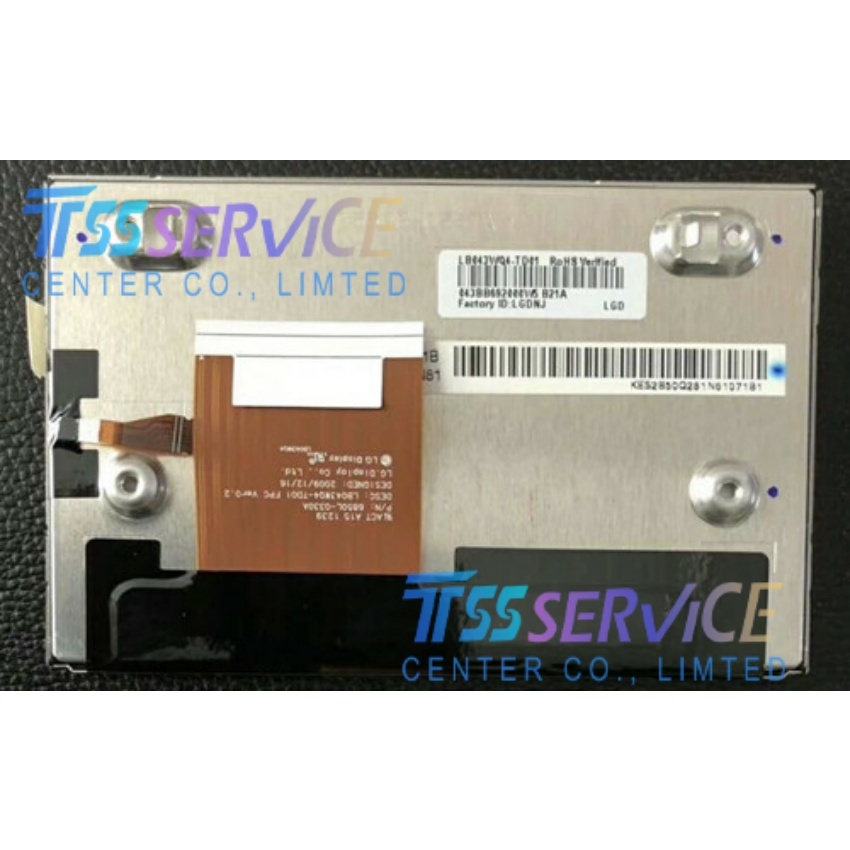

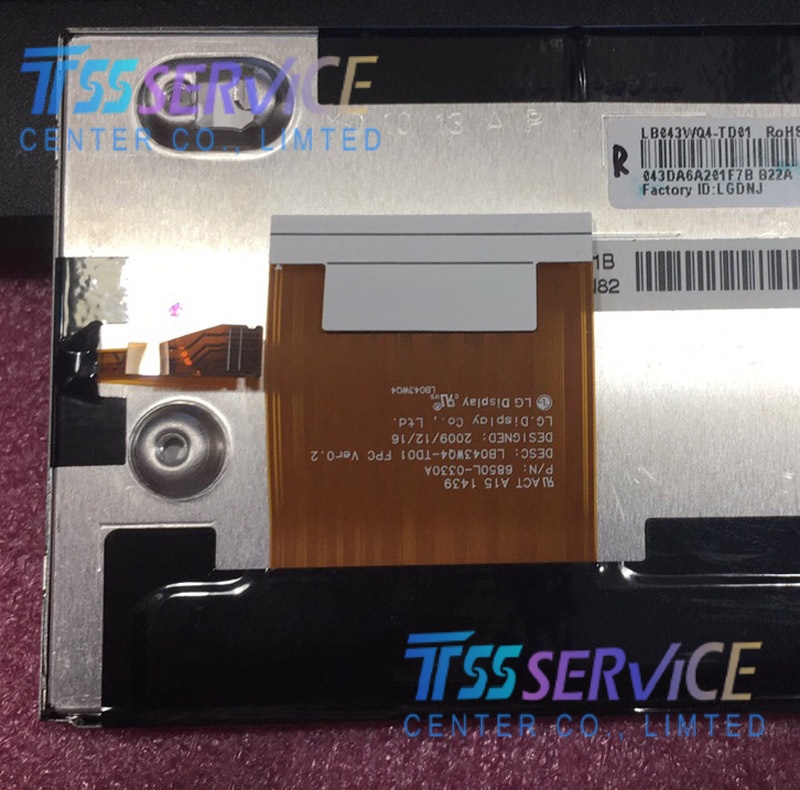

LG Display LB043WQ4-TD01 4.3" WQVGA TFT LCD Panel 480x272 Industrial & Automotive Display Module

Name: LG Display LB043WQ4-TD01 4.3" WQVGA TFT LCD Panel 480x272 Industrial & Automotive Display Module
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LB043WQ4-TD01
Price: 40 USD
Availability: InStock

SKU: LB043WQ4-TD01

Model: LB043WQ4-TD01
Size: 4.3 inches
Resolution: 480×272 (RGB), WQVGA
Display Mode: TN, Normally White, Transmissive

0.0 (0 Reviews)

0 Sold

~~$45.00~~ $40.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

LG Display LB043WQ4-TD01 4.3" WQVGA TFT LCD Panel 480x272 Industrial & Automotive Display Module

Parameter	Details
Brand	LG Display
Model	LB043WQ4-TD01
Size	4.3 inches
Resolution	480×272 (RGB), WQVGA
Display Mode	TN, Normally White, Transmissive
Brightness	400 cd/m² (Typ.)
Contrast Ratio	500:1 (Typ.)
Viewing Angle	70°/70°/50°/60° (L/R/U/D)
Color Depth	262K, 62% NTSC
Backlight	WLED, 100,000 hrs lifetime
Interface	Parallel RGB (1 ch, 6-bit), 60 pins FPC
Active Area	95.04 × 53.856 mm
Outline Dimensions	105.5 × 67 × 7.4 mm
Weight	85g (Max.)
Surface Treatment	Antiglare (Matte)
Operating Temperature	-30°C ~ 85°C
Storage Temperature	-40°C ~ 85°C
Vibration Resistance	3.0G

Applications

Automotive Navigation & Infotainment: GPS systems, car head units, and rear-seat displays.
Industrial Control & HMI: Factory automation panels, PLC interfaces, and process monitoring.
Portable & Rugged Devices: Handheld terminals, data collectors, and field instruments.
Medical Equipment: Portable patient monitors and diagnostic devices.
Outdoor Kiosks & POS: Sunlight-readable displays for self-service terminals.
Marine & Heavy Machinery: Dashboard displays for boats, construction, and agricultural equipment.
