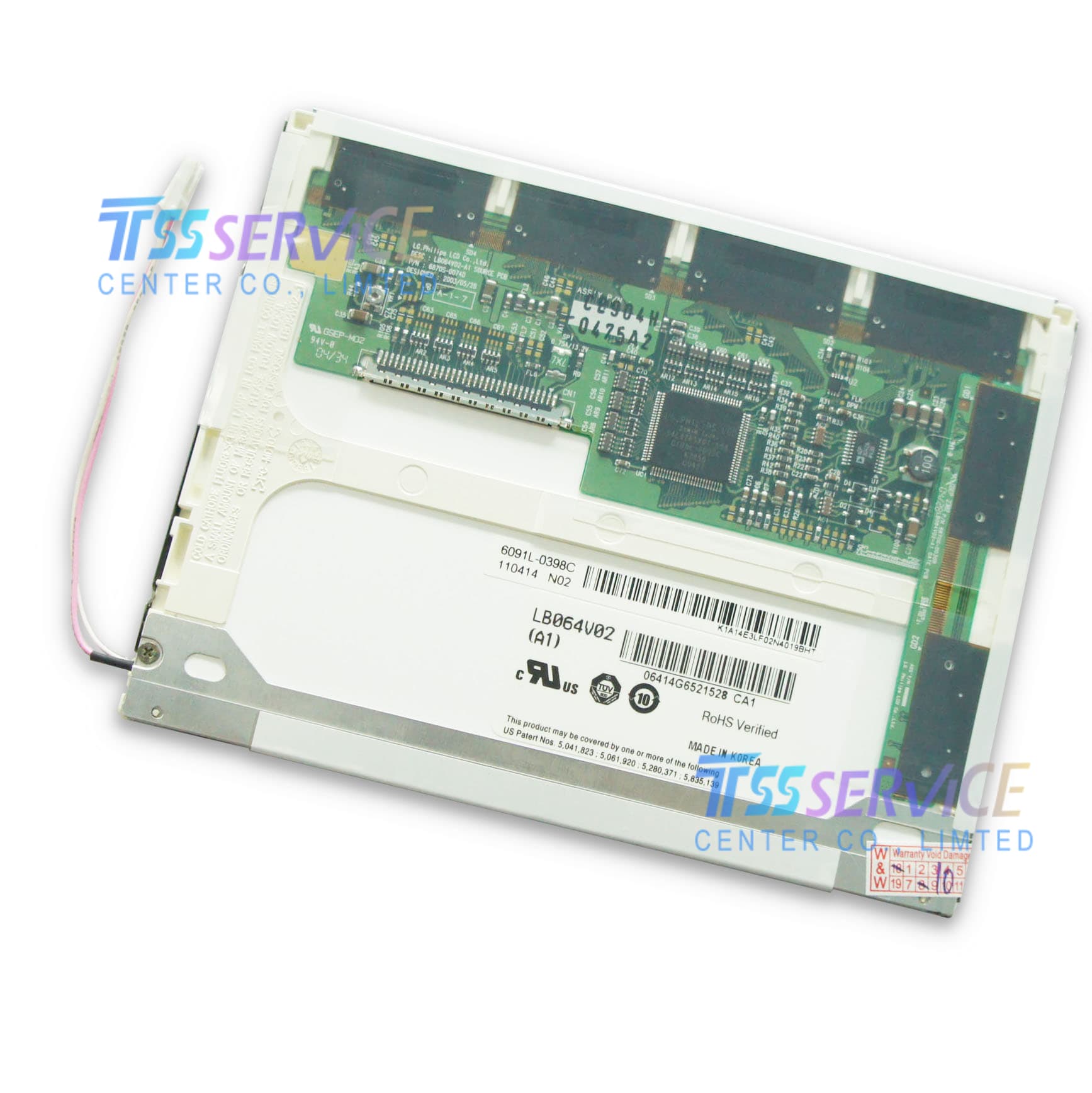

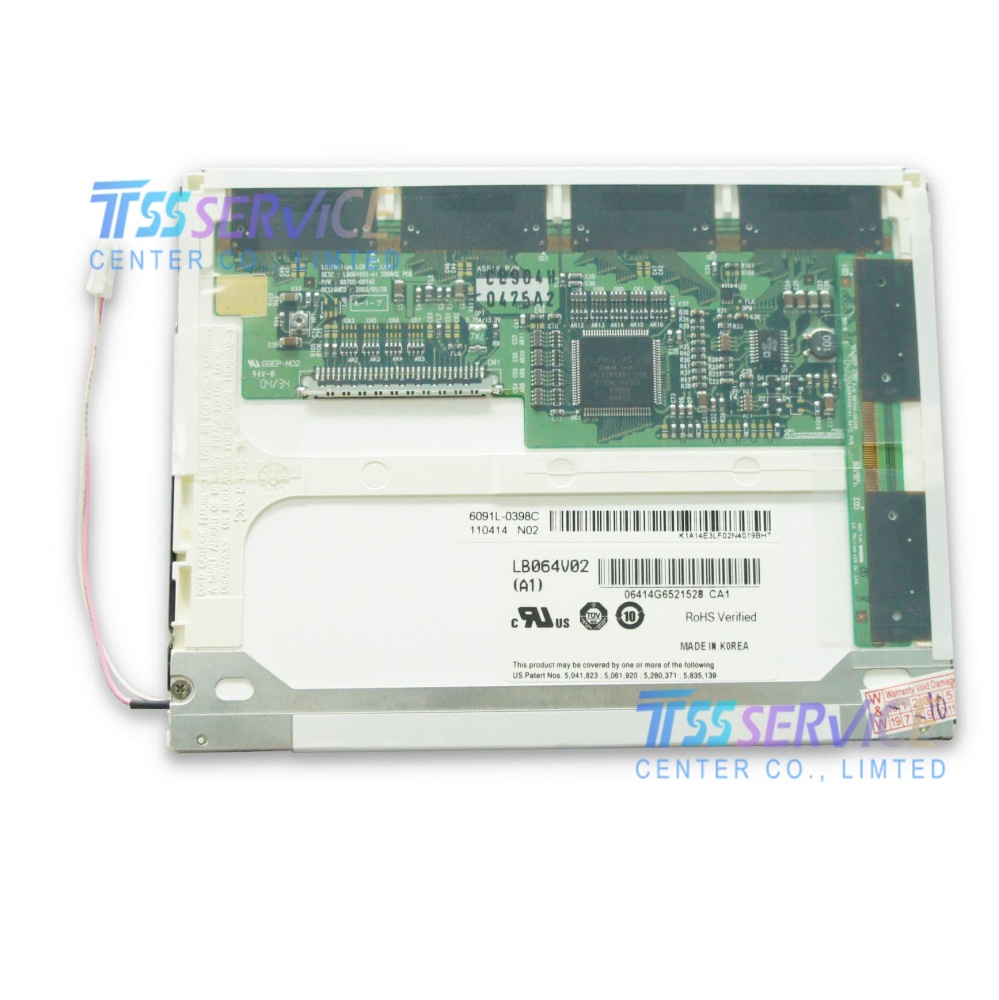

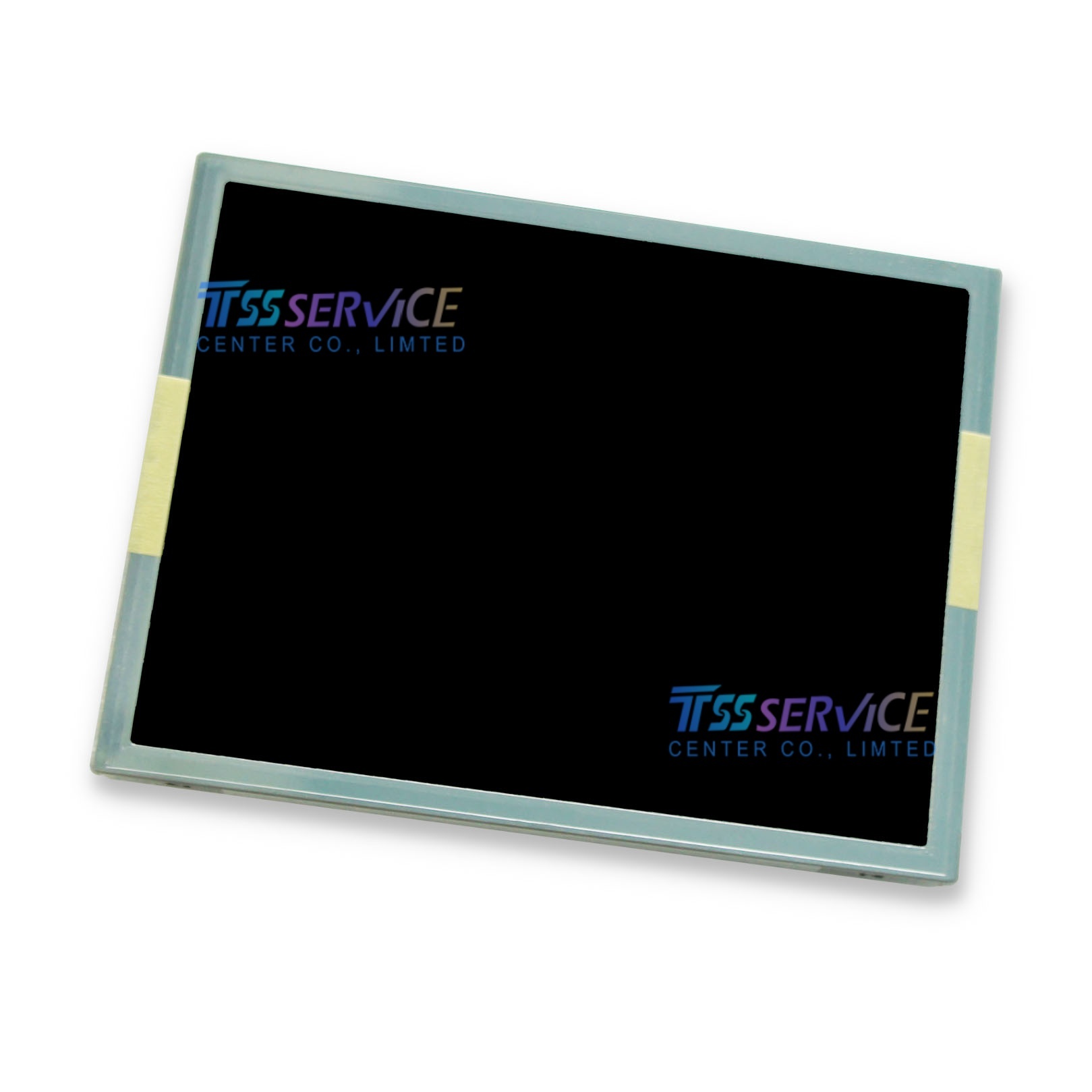

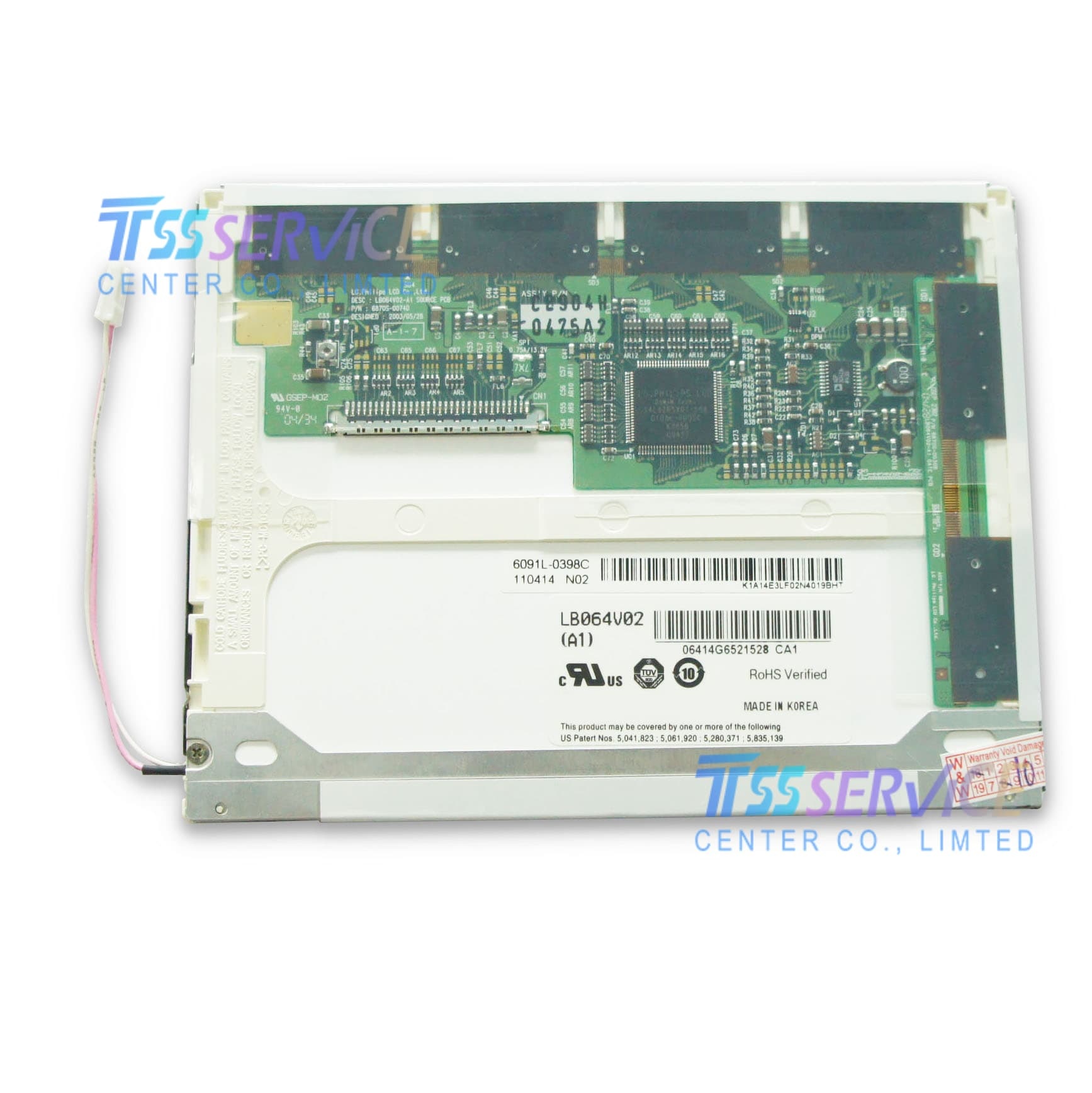

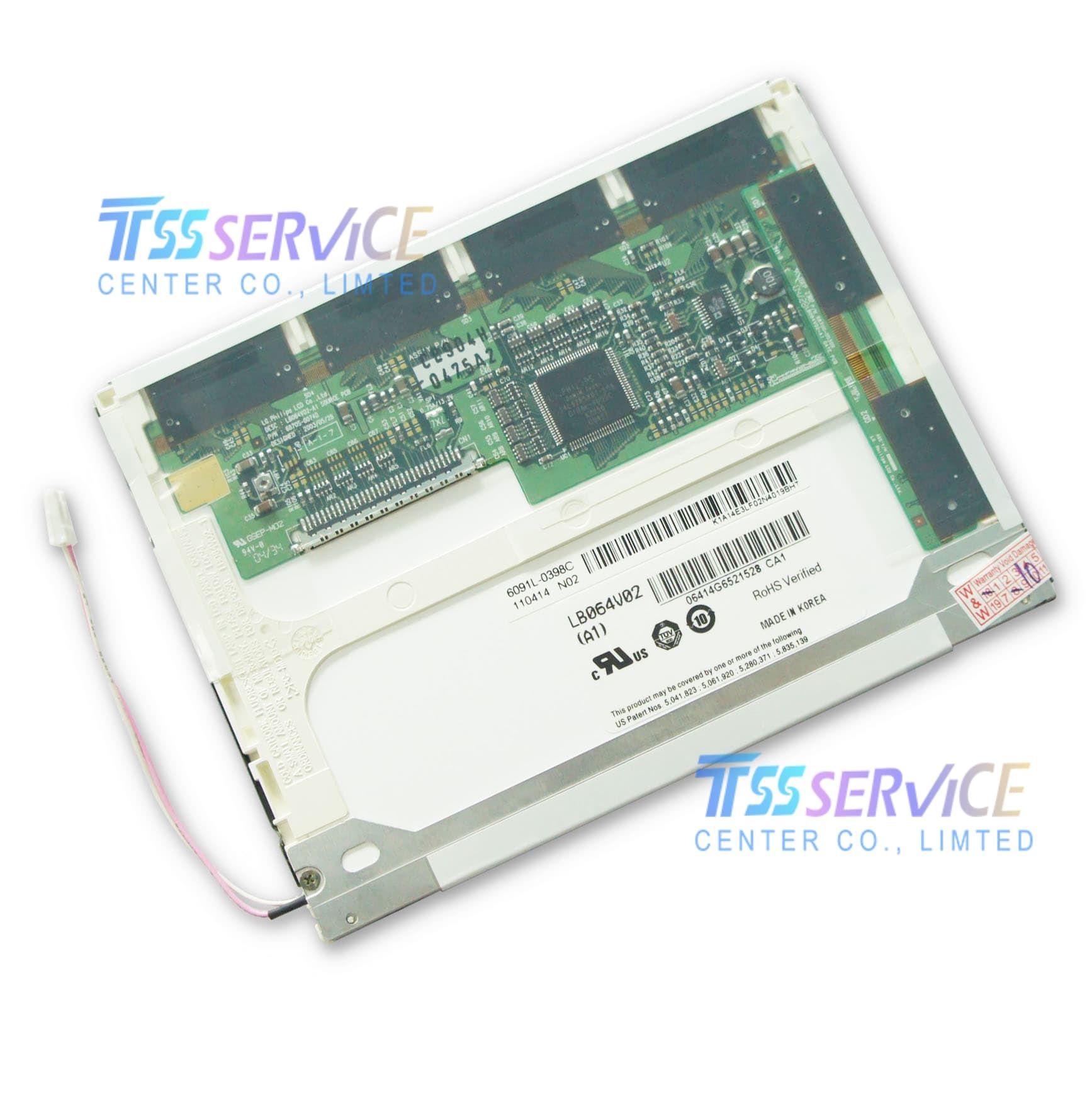

The LB064V02-A1 is a 6.4-inch industrial-grade a-Si TFT-LCD display module, originally developed and manufactured by LG.Philips LCD (now LG Display), a global leading manufacturer of professional display solutions. This transmissive LCD module features a VGA resolution of 640(RGB)×480, 262K color depth, and a robust industrial design, delivering stable and reliable display performance for long-term operation in harsh embedded and industrial environments.
As an authorized supplier of industrial display components with over 10 years of industry experience, TSS SERVICE CENTER CO., LIMITED provides 100% genuine, RoHS-compliant LB064V02-A1 modules, with full technical support and global shipping services for worldwide customers.
| Category |
Detailed Specification |
| Part Number |
LB064V02-A1 (also referred to as LB064V02 (A1)) |
| Panel Manufacturer |
LG Display (formerly LG.Philips LCD) |
| Panel Type |
a-Si TFT-LCD, Transmissive Type, LCM |
| Diagonal Display Size |
6.4 Inches |
| Resolution |
640 (H) × 480 (V) Pixels, VGA Format |
| Pixel Density |
124 PPI |
| Pixel Format |
RGB Vertical Stripe |
| Color Depth |
262K Colors (6-bit) |
| Typical Luminance |
250 cd/m² |
| Typical Contrast Ratio |
300:1 (TM) |
| Viewing Angle (Typ., CR≥10) |
45° (Left), 45° (Right), 15° (Upper), 35° (Lower) |
| Response Time (Typ.) |
15 ms (Rise Tr), 30 ms (Fall Td) |
| Surface Treatment |
Anti-glare (Haze 13%), 3H Hard Coating |
| Signal Interface |
TTL (1 Channel, 6-bit), 30-pin Connector |
| Typical Supply Voltage |
3.3V |
| Backlight Type |
CCFL (Cold Cathode Fluorescent Lamp) |
| Operating Temperature Range |
-20°C ~ +70°C |
| Storage Temperature Range |
-30°C ~ +80°C |
| Country of Origin |
Made in Korea |
| Compliance |
RoHS Verified |
| Compatible Connector Part Number |
6091L-0398C |
