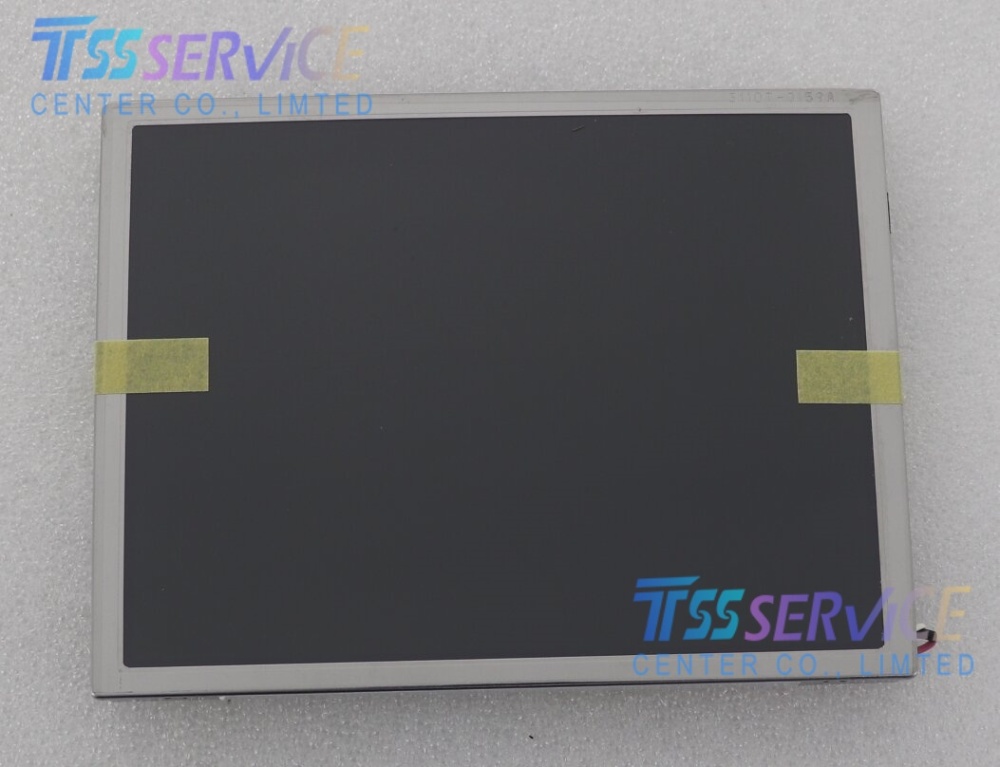

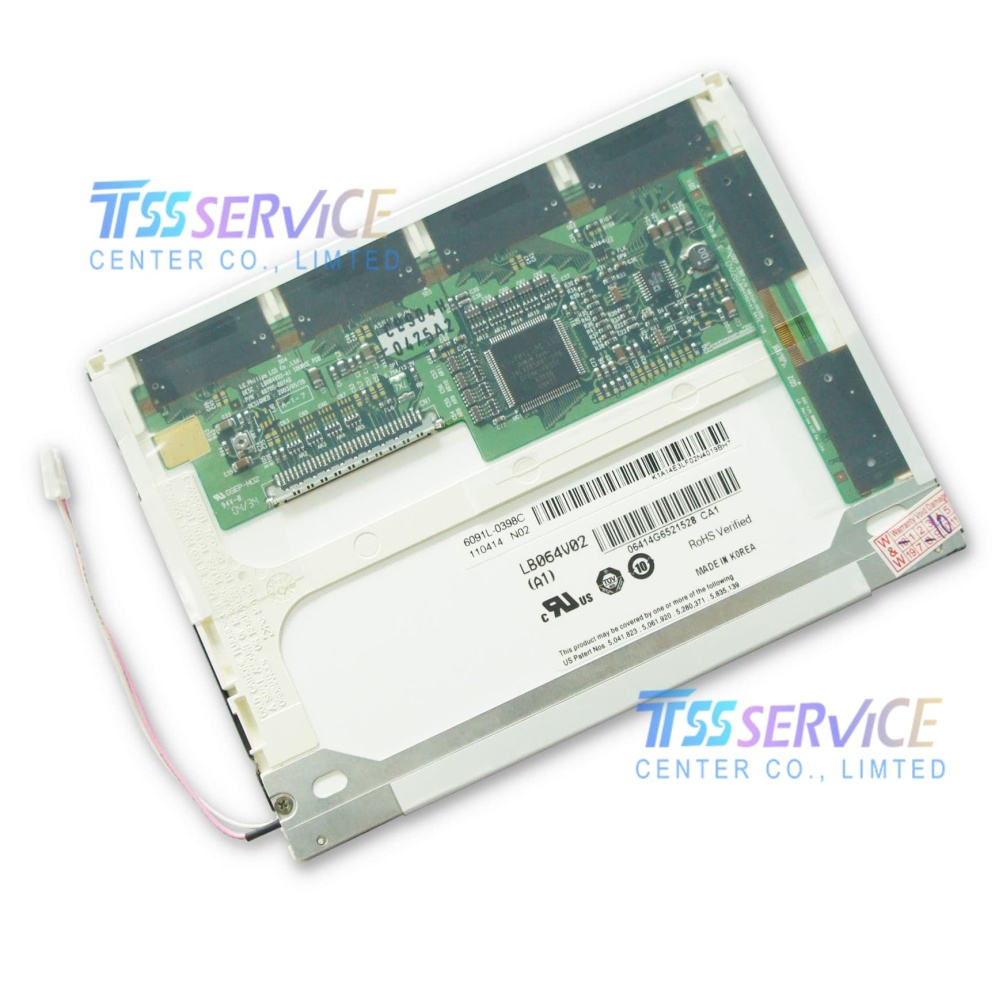

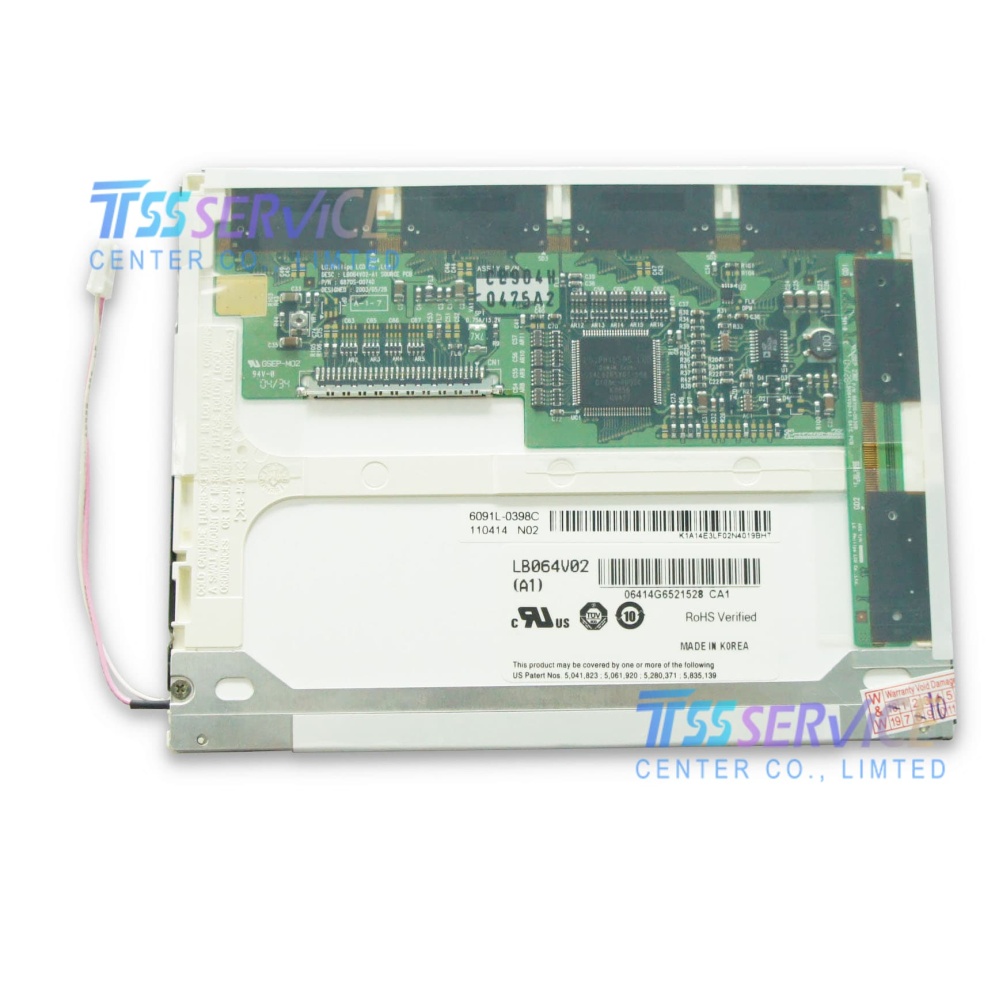

LB064V02-B1 6.4inch 640×480 industrial Lcd Panel for LG

Name: LB064V02-B1 6.4inch 640×480 industrial Lcd Panel for LG
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LB064V02
Price: 98 USD
Availability: InStock

SKU: LB064V02

Model P/N: LB064V02-B1
Diagonal Size: 6.4"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 640(RGB)×480, VGA 124PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)

0 Sold

~~$99.00~~ $98.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The LG.Philips LCD LB064V02-B1 is a 6.4-inch a-Si TFT-LCD module engineered for industrial and commercial applications requiring a compact display solution with integrated touch functionality. This model represents a mature, reliable display platform widely used in industrial control systems, portable instrumentation, and point-of-sale terminals where proven performance and straightforward integration are paramount .

Parameter	Specification
Brand	LG.Philips LCD
Model P/N	LB064V02-B1
Diagonal Size	6.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 124PPI
Pixel Format	RGB Vertical Stripe
Active Area	130.56(W)×97.92(H) mm
Bezel Opening	133.8(W)×101.1(H) mm
Outline Size	145.5(W)×111.5(H)×7(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	200 cd/m² (Typ.)
Viewing Angle	45/45/15/35 (Typ.)(CR≥10)
Response	15/30 (Typ.)(Tr/Td) ms
Good View at	6 o'clock
Work Mode	TN, Normally White, Transmissive
Color Depth	262K
Backlight	1 pcs CCFL, 20K hours, No Driver
Mass	175/185g (Typ./Max.)
Refresh Rate	60Hz
Touchscreen	4-wire Resistive Touch
Signal Type	TTL (1 ch, 6-bit), 30 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -20 ~ 60 °C; Operating Temp.: 0 ~ 50 °C

Applications:
With its integrated resistive touch screen, compact form factor, and standardized TTL interface, the LG.Philips LCD LB064V02-B1 is particularly well-suited for industrial control panels, factory automation equipment, medical monitoring devices, test and measurement instrumentation, point-of-sale (POS) terminals, and other embedded systems requiring a reliable, touch-enabled display solution where long-term stability and maintainability are critical . The TTL interface is especially valuable for legacy system upgrades and applications designed around older display technologies .
