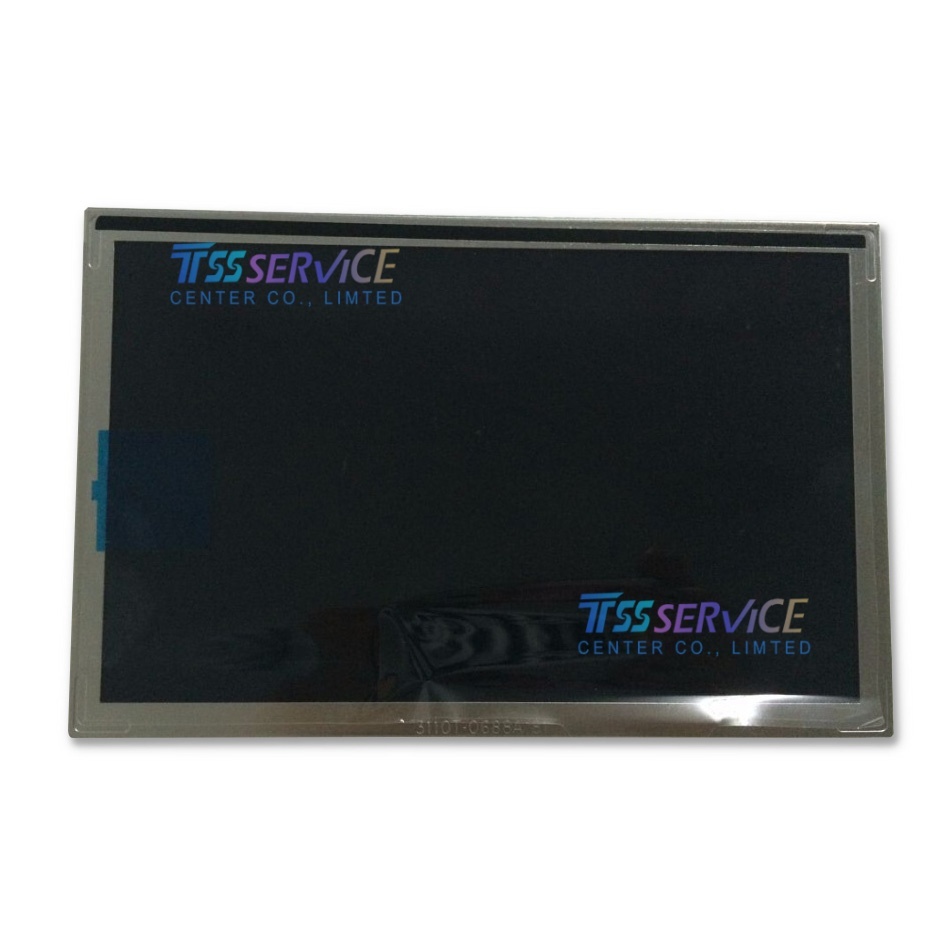

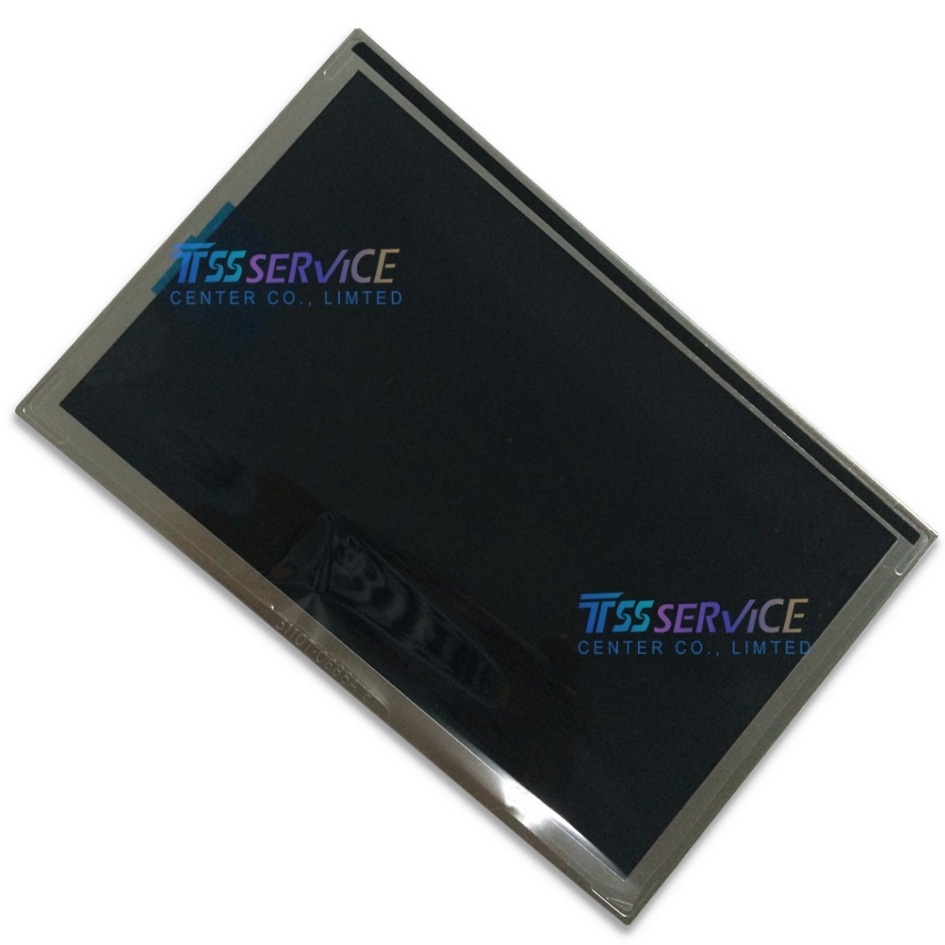

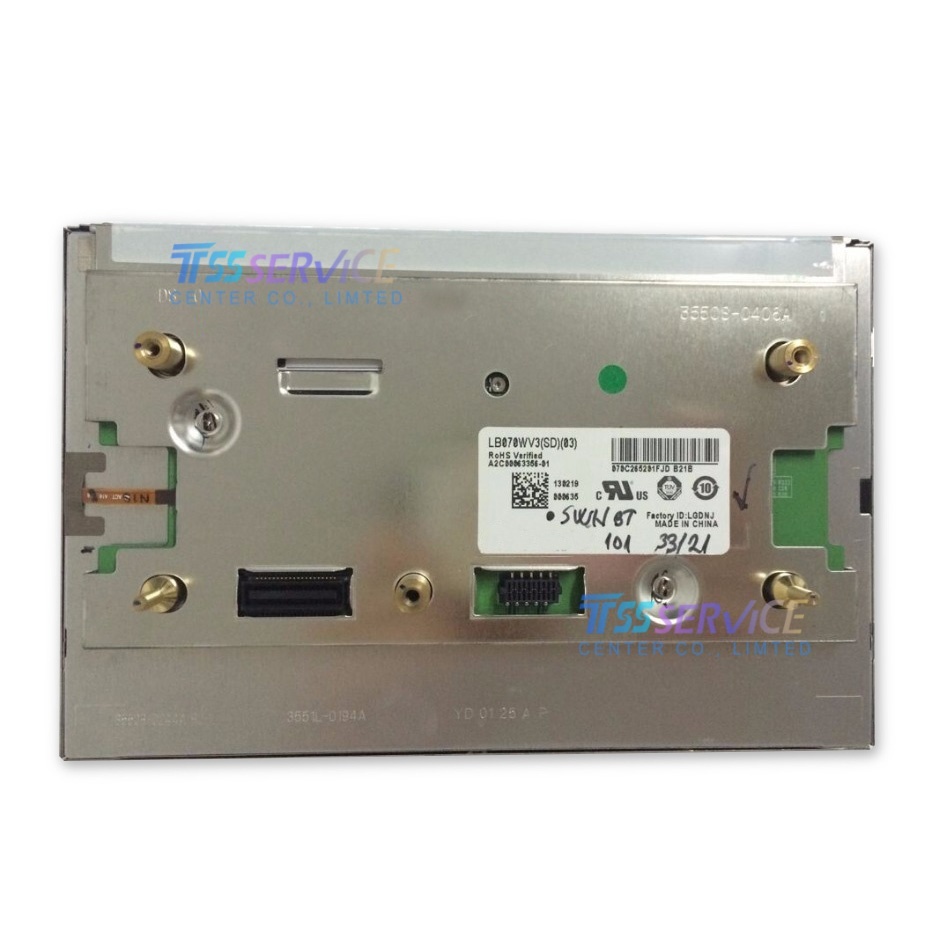

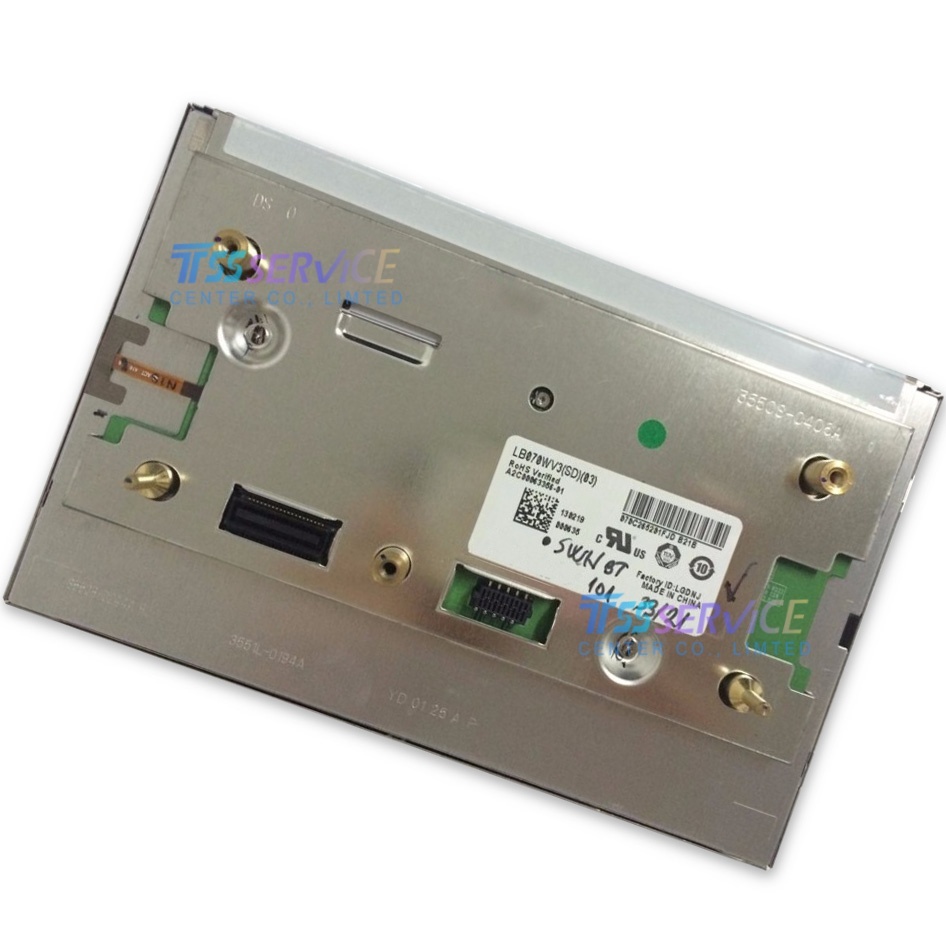

7 Inch LG Display LB070WV3-SD03 TFT LCD Screen 800x480 WLED for HMI & Vehicle

Name: 7 Inch LG Display LB070WV3-SD03 TFT LCD Screen 800x480 WLED for HMI & Vehicle
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LB070WV3-SD03
Price: 85 USD
Availability: InStock

SKU: LB070WV3-SD03

Model: LB070WV3-SD03
Brand: LG Display
Size: 7.0 inch (Diagonal)
Display Type: a-Si TFT-LCD, IPS, Normally Black, Transmissive
Resolution: 800(RGB)×480, WVGA, 133PPI

0.0 (0 Reviews)

0 Sold

~~$90.00~~ $85.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

7 Inch LG Display LB070WV3-SD03 TFT LCD Screen 800x480 WLED for HMI & Vehicle

Item	Specification
Model	LB070WV3-SD03
Brand	LG Display
Size	7.0 inch (Diagonal)
Display Type	a-Si TFT-LCD, IPS, Normally Black, Transmissive
Resolution	800(RGB)×480, WVGA, 133PPI
Brightness	470 cd/m² (Min.)
Contrast Ratio	900:1 (Typ.)
Viewing Angle	L/R/U/D: 70°/70°/30°/30° (CR≥10)
Display Colors	262K (6-bit RGB), 63% NTSC
Backlight	5S3P WLED, Lifespan: 20,000 Hours, Without Driver
Interface	Parallel RGB (1 ch, 6-bit), 40 Pin Connector
Supply Voltage	3.3V (Typ.)
Operating Temperature	-40℃ ~ +95℃
Storage Temperature	-40℃ ~ +105℃
Active Area	152.4(W) × 91.44(H) mm
Outline Dimension	165(W) × 105(H) × 8.5(D) mm
Weight	320g (Typ.)
Refresh Rate	60Hz
Touch Panel	Without Touch
Vibration Resistance	3.0G
Compliance	RoHS
Status	Discontinued (Released Q1 2010)
