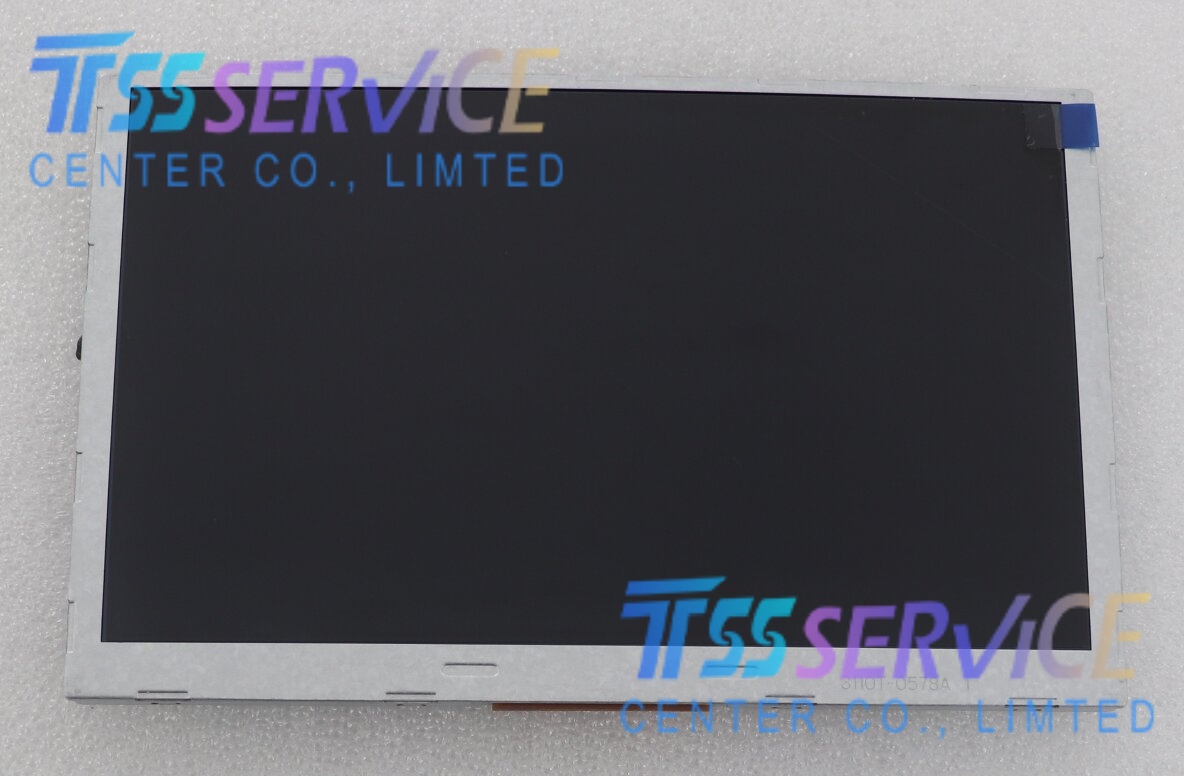

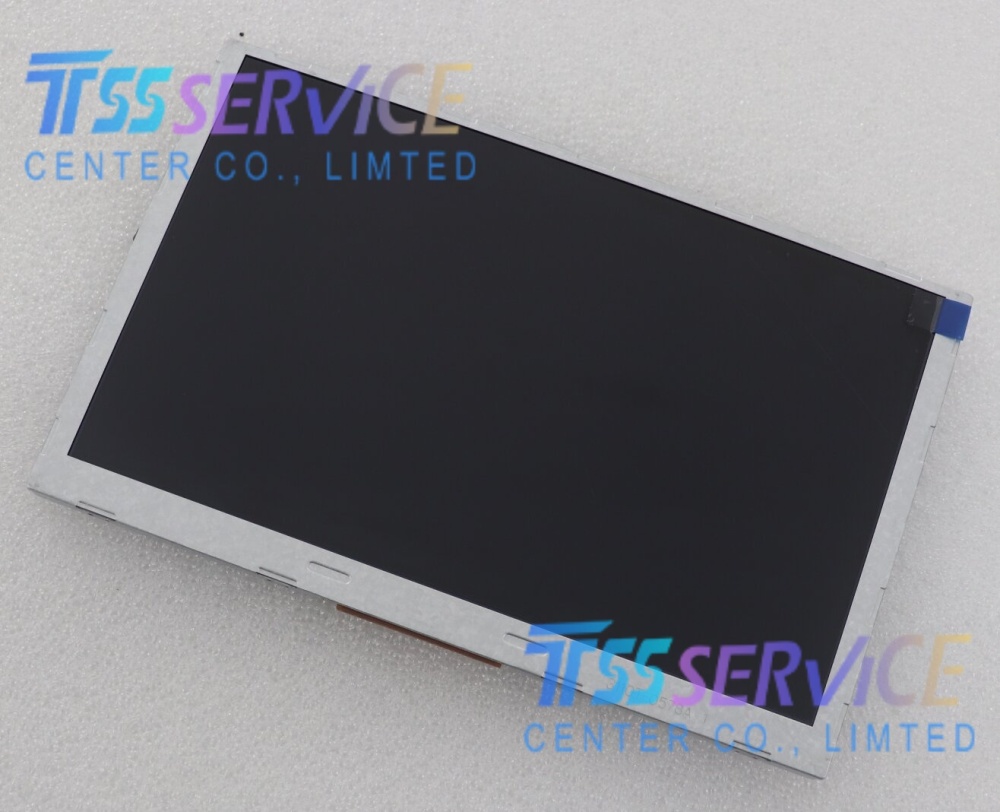

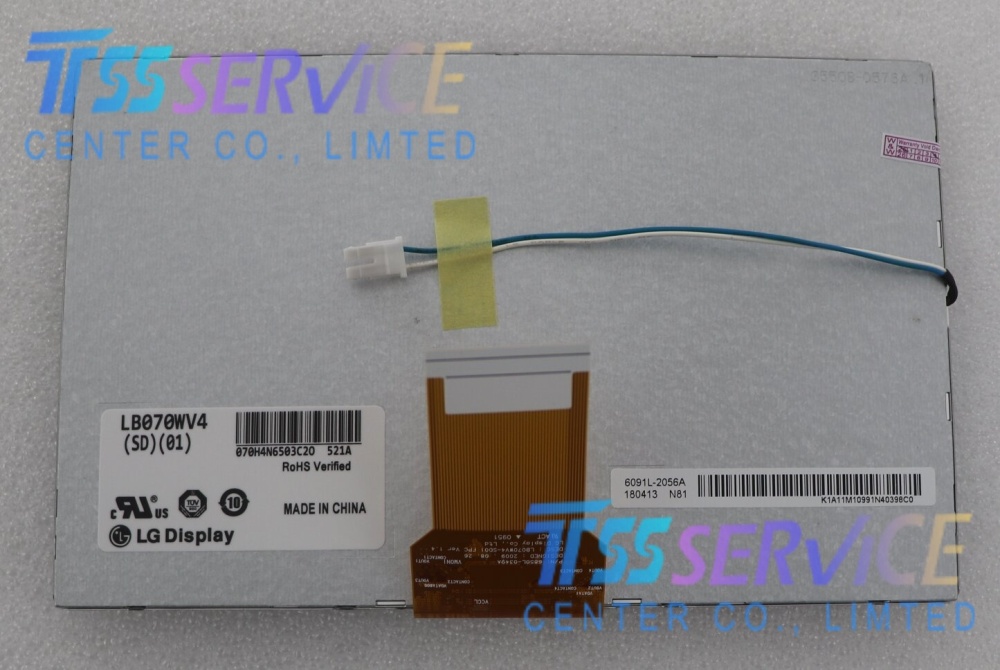

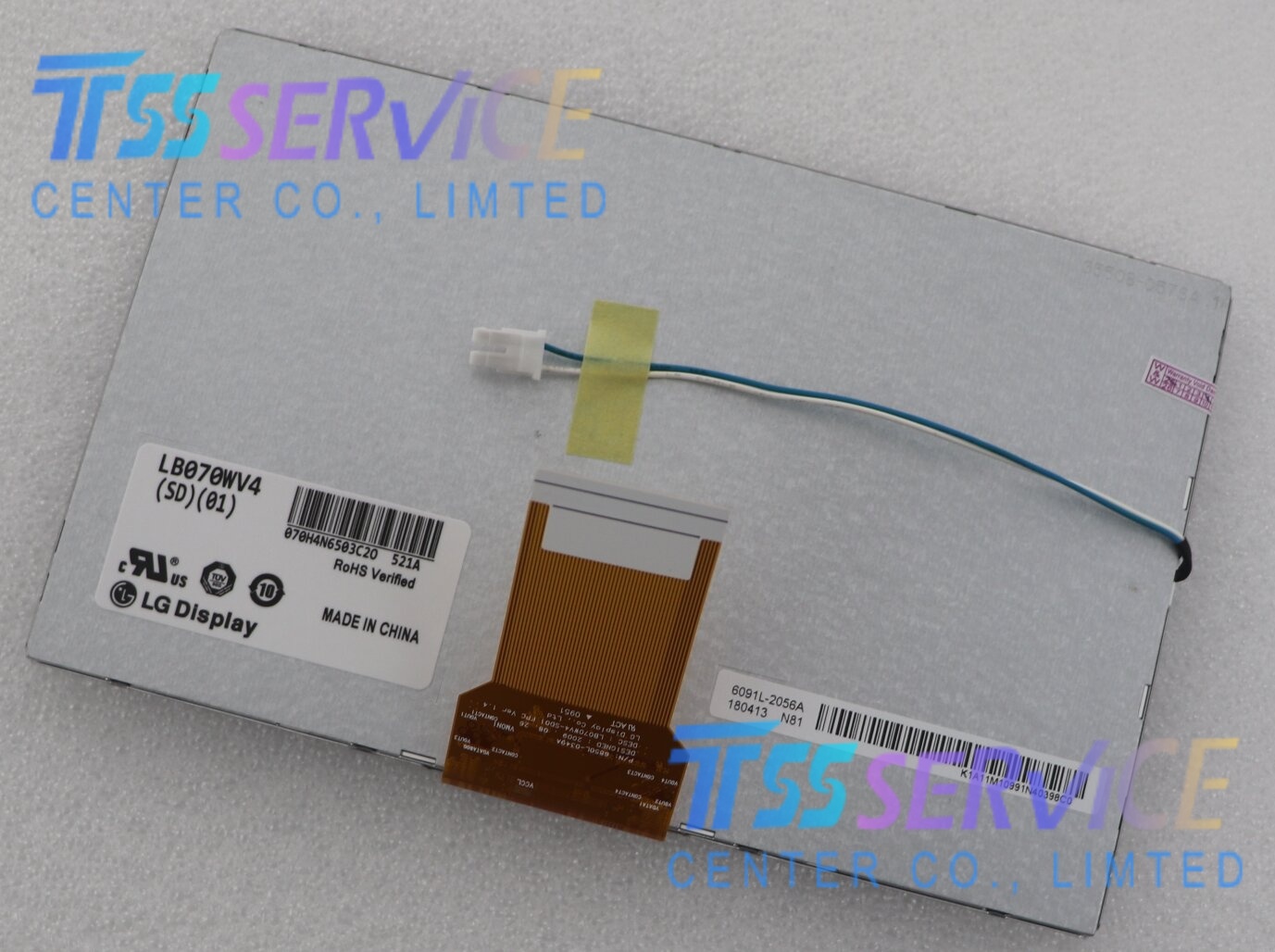

LG Display LB070WV4-SD01 7 Inch WVGA 800×480 IPS TFT LCD Screen For Industrial
| Item |
Parameter |
| Brand |
LG Display |
| Model No. |
LB070WV4-SD01 |
| Screen Size |
7.0 inch, 15:9 WVGA |
| Resolution |
800×480(RGB), RGB Horizontal Stripe |
| Active Area |
151.44(H)×90.576(V) mm |
| Overall Dimension |
165(H)×104.6(V)×5.4(D) mm |
| Display Type |
S-IPS, Normally Black, Transmissive a-Si TFT-LCD |
| Brightness |
400 cd/m² (Typ.) |
| Contrast Ratio |
700:1 (Typ.) |
| Viewing Angle |
85/85/85/85 (Typ., CR≥10) |
| Response Time |
30ms (Tr+Td Typ.) |
| Display Color |
262K Colors |
| Backlight |
3S7P WLED, No Built-in Driver |
| Interface |
50Pin FPC, 1CH 6-bit Parallel RGB |
| Supply Voltage |
3.3V DC (Typical) |
| Refresh Rate |
60Hz |
| Touch Panel |
Not Included |
| Operating Temp |
-10℃ ~ +60℃ |
| Storage Temp |
-20℃ ~ +70℃ |
| Surface Finish |
Antiglare Coating |
Application
1. Portable Consumer Electronics Repair & Replacement
Specially customized for MID, UMPC, PMP/MP4 portable media player original screen replacement, widely used for old-version handheld entertainment equipment repair, compatible with mainstream embedded player mainboard with parallel RGB interface.
2. Industrial HMI & Embedded Control Terminals
Perfect for 7-inch industrial touchless HMI panel, PLC control display, equipment operation panel, medical portable diagnostic device screen; stable working temperature range (-10~60℃) adapts normal factory workshop indoor environment.
3. Automotive Auxiliary Display & Aftermarket Monitor
Suitable for small-size car rearview backup monitor, vehicle auxiliary parameter display, aftermarket modified small car dashboard screen; antiglare coating reduces sunlight reflection for in-car use.
4. Smart Home & IoT Terminal Equipment
Applied on smart access control panel, intelligent home central control display, supermarket small POS cash register auxiliary screen, building intercom indoor monitor with parallel RGB drive circuit.
