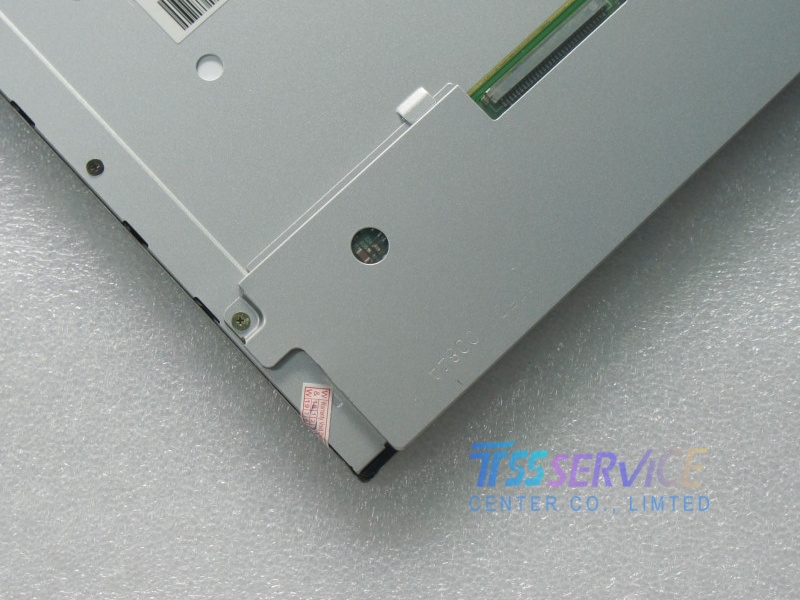

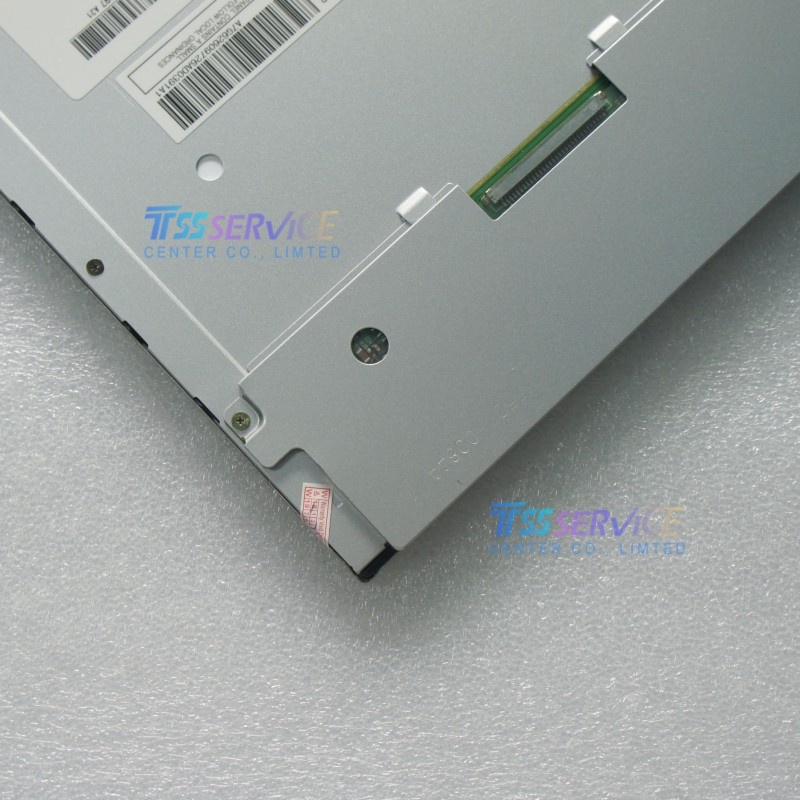

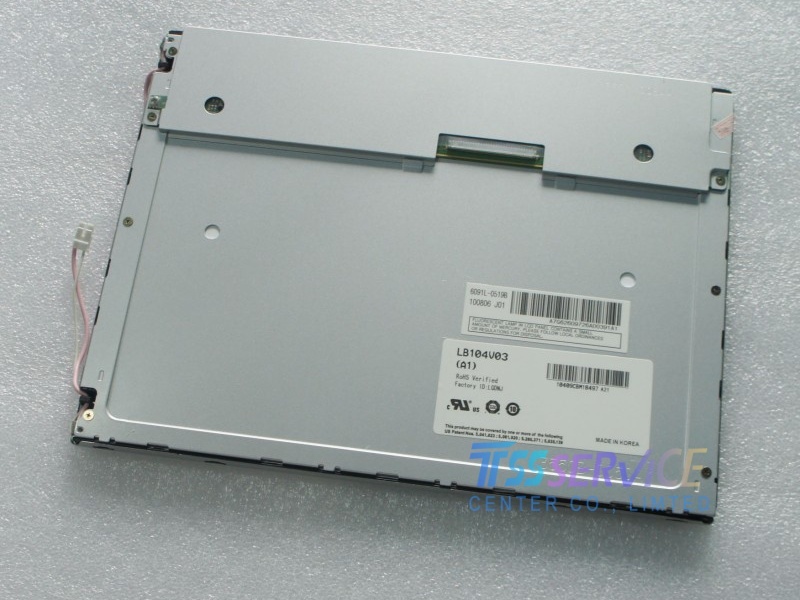

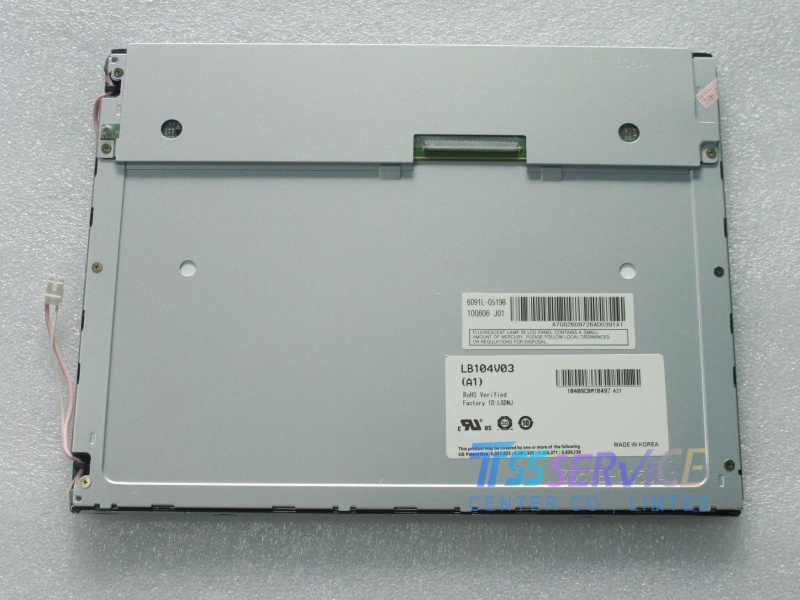

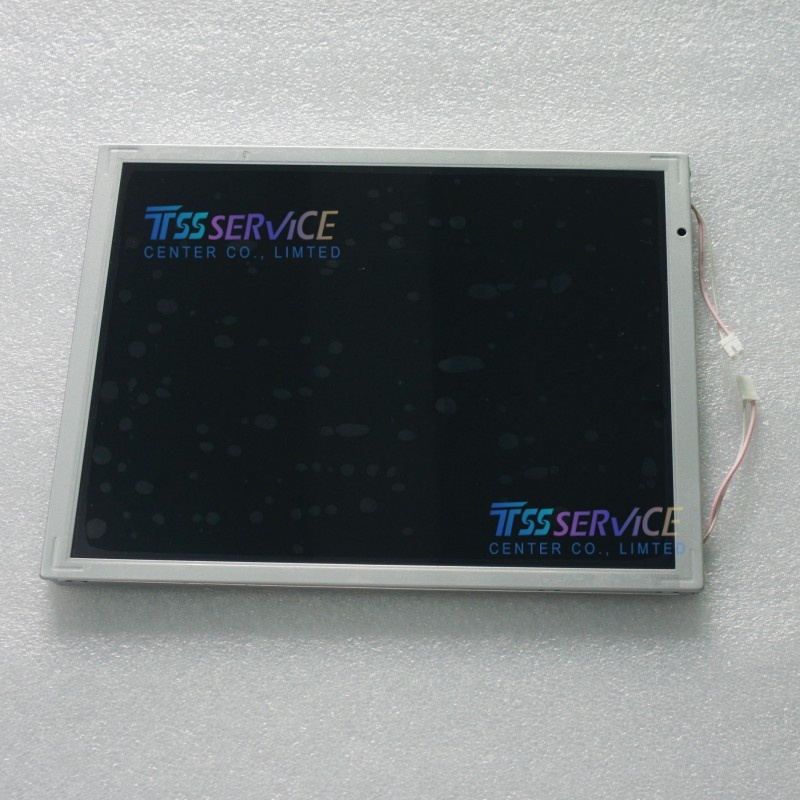

LG.Philips LB104V03-A1 10.4-inch 640×480 VGA TFT-LCD Panel

Name: LG.Philips LB104V03-A1 10.4-inch 640×480 VGA TFT-LCD Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LB104V03-A1
Price: 85 USD
Availability: InStock

SKU: LB104V03-A1

1，Condition: New，Grade A

2，Description: LB104V03-A1 10.4 inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$90.00~~ $85.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The LG.Philips LCD LB104V03-A1 is a 10.4-inch diagonal a-Si TFT-LCD (Thin Film Transistor Liquid Crystal Display) module designed for industrial, medical, and office automation applications. Featuring VGA (640×480) resolution with an RGB vertical stripe pixel arrangement, this display delivers reliable color performance with a built-in CCFL backlight system and a standard parallel RGB interface .

Category	Details
Brand	LG.Philips LCD
Model P/N	LB104V03-A1
Diagonal Size	10.4"
Panel Type	a-Si TFT-LCD, LCM
Resolution	640(RGB)×480, VGA 76PPI
Pixel Format	RGB Vertical Stripe
Active Area	211.2(W)×158.4(H) mm
Bezel Opening	215.6(W)×163.0(H) mm
Outline Dim.	236(W)×180(H)×10.5(D) mm
Treatment	Antiglare, Hard coating (3H)
Luminance	400 cd/m² (Typ.)
Contrast Ratio	300 : 1 (Typ.) (TM)
View Direction	6 o'clock
Response Time	5/25 (Typ.)(Tr/Td)
Viewing Angle	60/60/40/50 (Typ.)(CR≥10)
Operating Mode	TN, Normally White, Transmissive
Support Color	262K 45% NTSC
Light Source	CCFL [2 pcs], 40K hours, W/O Driver
Weight	490g (Max.)
Frame Rate	60Hz
Touch Panel	Without
Interface Type	Parallel RGB (1 ch, 6-bit), 30 pins Connector
Power Supply	3.3V (Typ.)
Operating Temp.	0 ~ 50 °C
Storage Temp.	-20 ~ 60 °C

Typical Applications

Industrial control panels and HMI (Human-Machine Interface)
Medical diagnostic equipment and patient monitoring systems
Office automation products such as Notebook PCs
Test and measurement instruments
Factory automation systems and process controllers
Point-of-sale (POS) terminals
Embedded systems requiring reliable VGA display solutions
