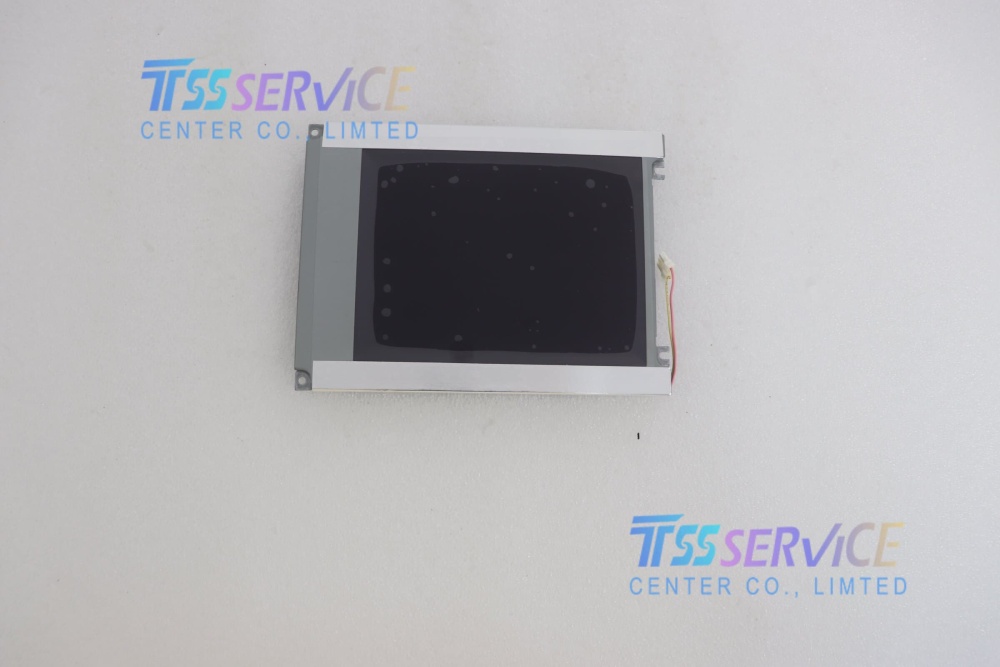

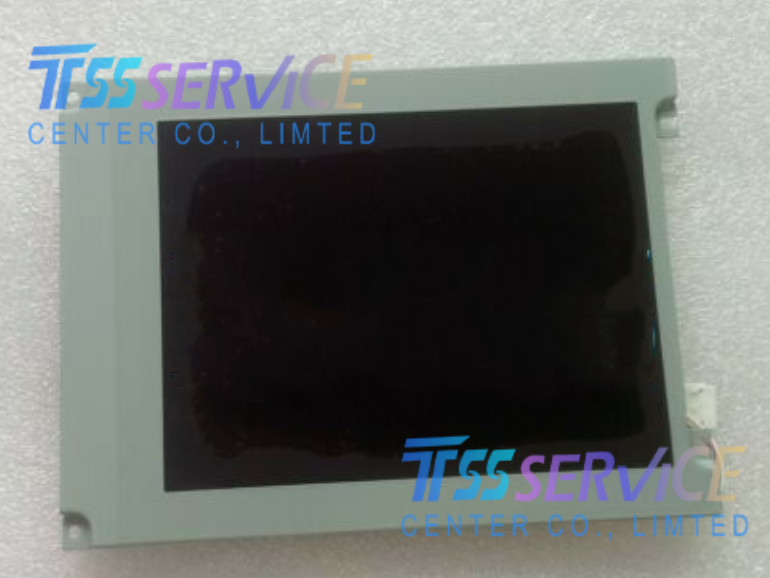

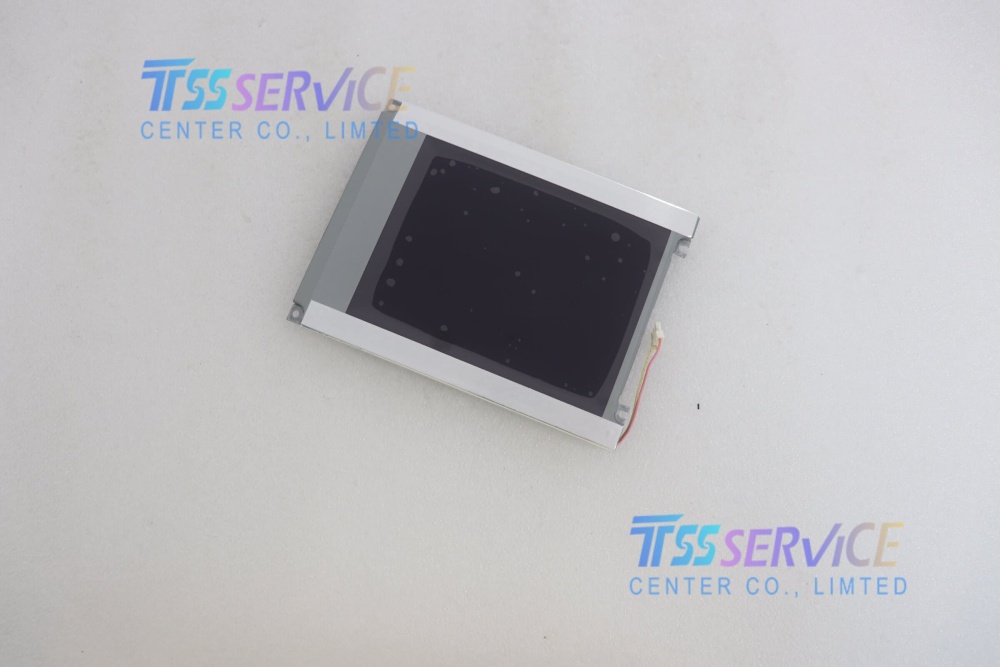

LCBFBTB61M70S LCD Display Screen For Industrial

Name: LCBFBTB61M70S LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LCBFBTB61M70S
Price: 113 USD
Availability: InStock

SKU: LCBFBTB61M70S

Model: LCBFBTB61M70S
Brand: Industrial FSTN LCD (compatible with Hitachi/KOE/NanYa series)
Display Type: FSTN Monochrome LCD, Normally Black, Transmissive
Resolution: 640 × 480 pixels (VGA)

0.0 (0 Reviews)

0 Sold

~~$115.00~~ $113.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

LCBFBTB61M70S LCD Display Screen For Industrial

Item	Description
Model	LCBFBTB61M70S
Brand	Industrial FSTN LCD (compatible with Hitachi/KOE/NanYa series)
Display Type	FSTN Monochrome LCD, Normally Black, Transmissive
Screen Size	7.0 inches (diagonal)
Resolution	640 × 480 pixels (VGA)
Active Area (AA)	142.2 × 106.7 mm
Module Size	160.0 × 125.0 × 8.0 mm (typ.)
Dot Pitch	0.222 × 0.222 mm
Backlight	CCFL (Cold Cathode Fluorescent Lamp)
Brightness	200 cd/m² (typ.)
Contrast Ratio	250:1 (typ.)
Display Mode	Negative (Black background, white text/graphics)
Interface	20-pin TTL Parallel
Supply Voltage	+5.0V (logic) / +12V (CCFL inverter)
Operating Temperature	-20°C ~ +70°C
Storage Temperature	-30°C ~ +80°C
Viewing Direction	6 o’clock
Status	EOL (End of Life), industrial replacement grade

Typical Applications

Industrial Control Panels: CNC machine tools, PLC workstations, factory automation systems, and process monitoring terminals (stable 24/7 operation, high contrast for clear data display).
Injection Molding & Plastic Machinery: Direct replacement for 7-inch monochrome panels in Haitian, Chen Hsong, and other industrial injection molding equipment.
Test & Measurement Instruments: Oscilloscopes, spectrum analyzers, industrial data loggers, and environmental monitoring devices (wide viewing angle, reliable performance in harsh environments).
Medical Equipment: Patient monitors, diagnostic devices, and rehabilitation instruments (stable brightness, high contrast for critical data readability).
Legacy Industrial Systems: Old-generation industrial computers, HMI terminals, and textile/printing machinery (drop-in replacement for discontinued 7-inch FSTN displays).
Marine & Heavy-Duty Vehicles: Cabin instrumentation, industrial vehicle dashboards, and outdoor monitoring terminals (wide temperature tolerance, anti-interference for rugged use).
