Home > LCD Display > other PANEL > MORE > LCBHBZ711Y13XS

1/1

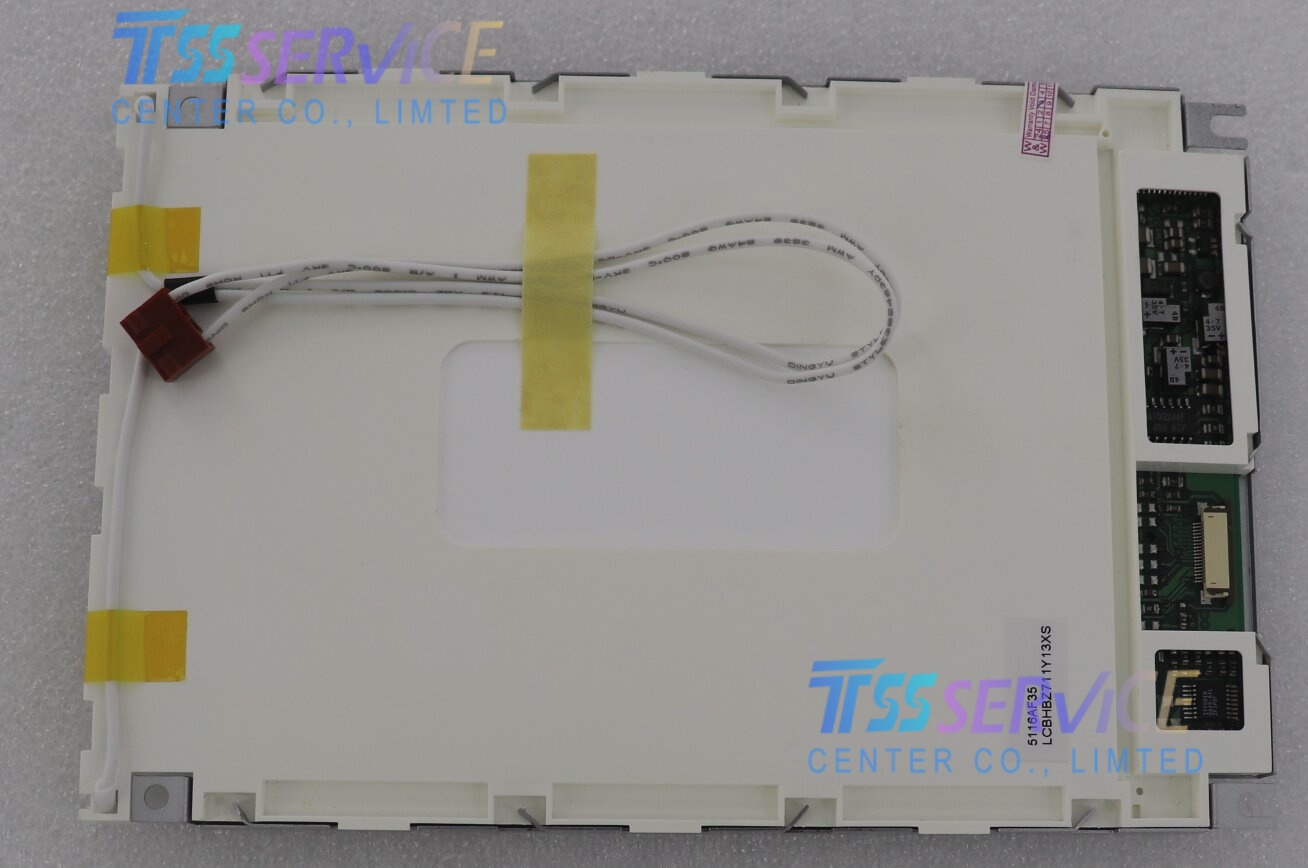

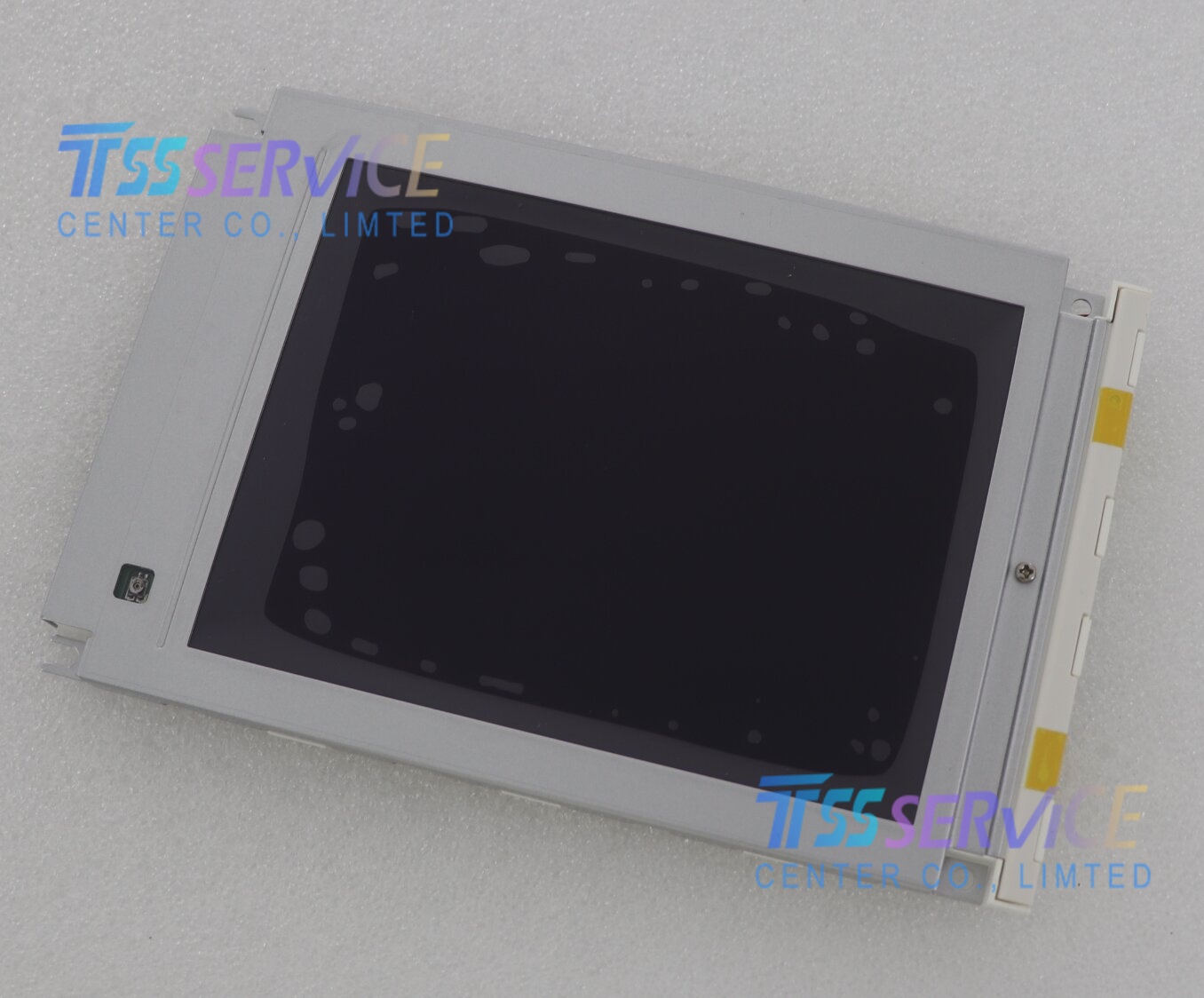

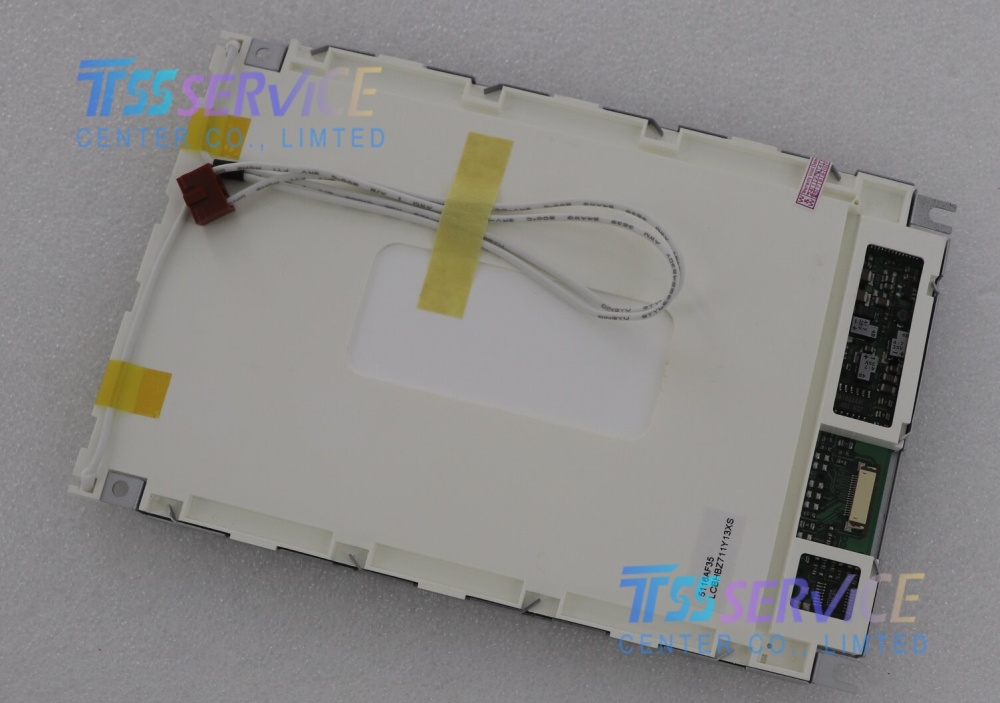

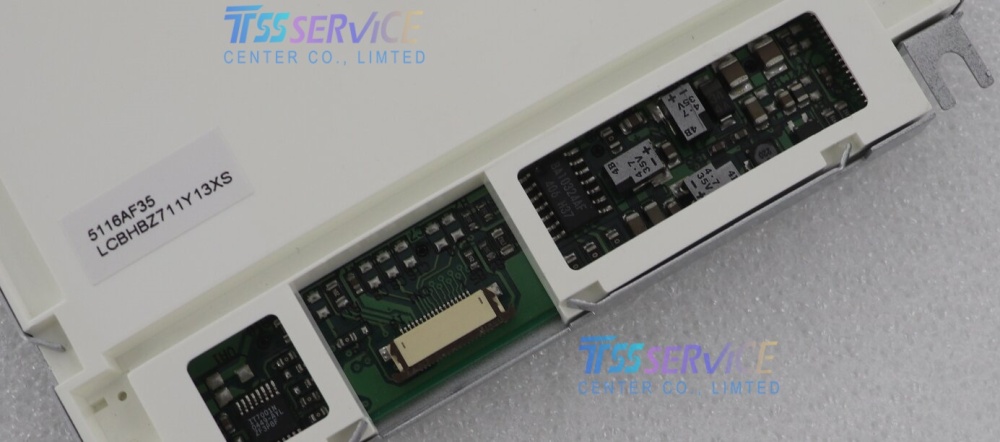

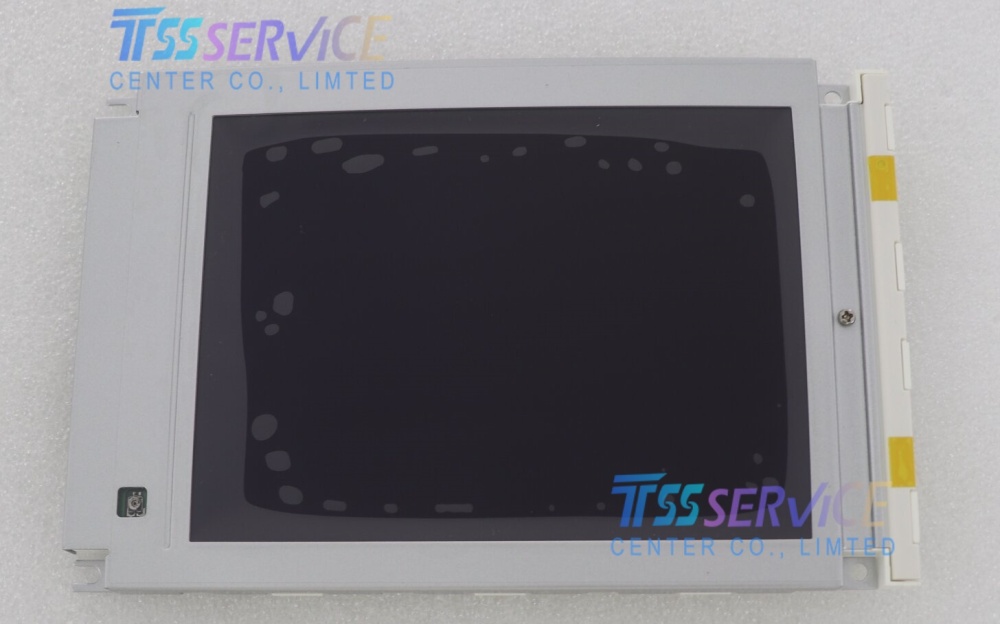

LCBHBZ711Y13XS 5.7 inch LCD Panel Display For Industrial

Name: LCBHBZ711Y13XS 5.7 inch LCD Panel Display For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LCBHBZ711Y13XS
Price: 118 USD
Availability: InStock

SKU: LCBHBZ711Y13XS

Part Number: LCBHBZ711Y13XS
Display Type: CSTN-LCD Module (LCM)
Diagonal Size: 5.7 Inches
Resolution: 320 (RGB) × 240 (QVGA, 70 PPI)

0.0 (0 Reviews)

0 Sold

~~$120.00~~ $118.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

LCBHBZ711Y13XS 5.7 inch LCD Panel Display For Industrial

Parameter	Specification
Part Number	LCBHBZ711Y13XS
Display Type	CSTN-LCD Module (LCM)
Diagonal Size	5.7 Inches
Resolution	320 (RGB) × 240 (QVGA, 70 PPI)
Active Area	115.2 (W) × 86.4 (mm)
Outline Dimensions	168 (W) × 111 (H) × 9.4 (D) mm
Brightness	100 cd/m² (Typ.)
Contrast Ratio	25:1 (Typ.)
Viewing Direction	12 O’Clock (Top)
Signal Interface	1-Channel 8-bit Parallel
Input Voltage	3.0 / 5.0 V (Typ.)
Operating Temperature	0°C ~ 50°C
Storage Temperature	-20°C ~ 60°C
Frame Rate	70 Hz
Weight	Max. 276 g
