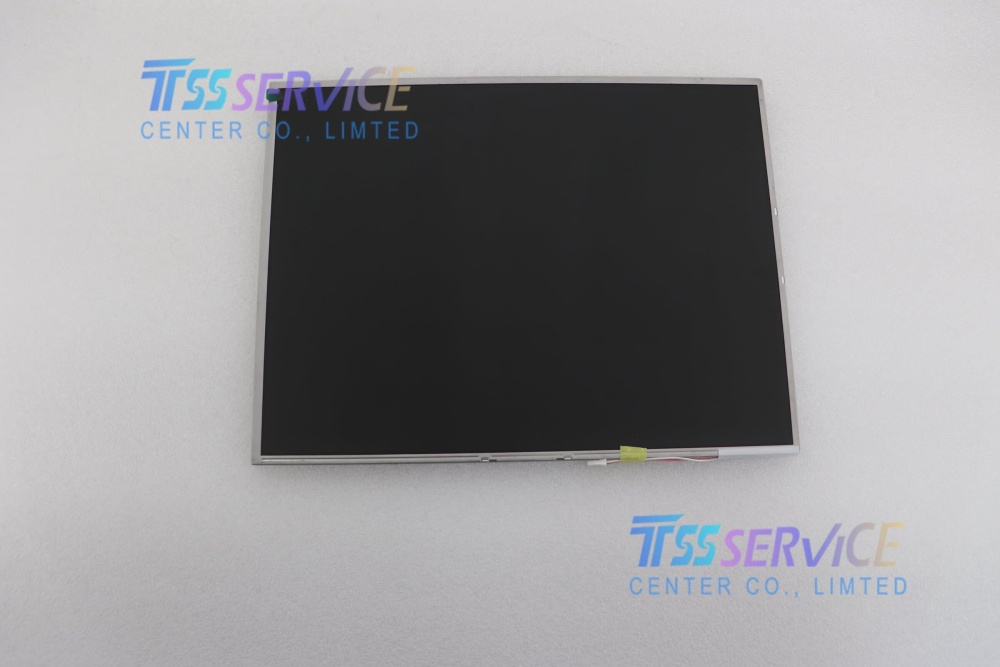

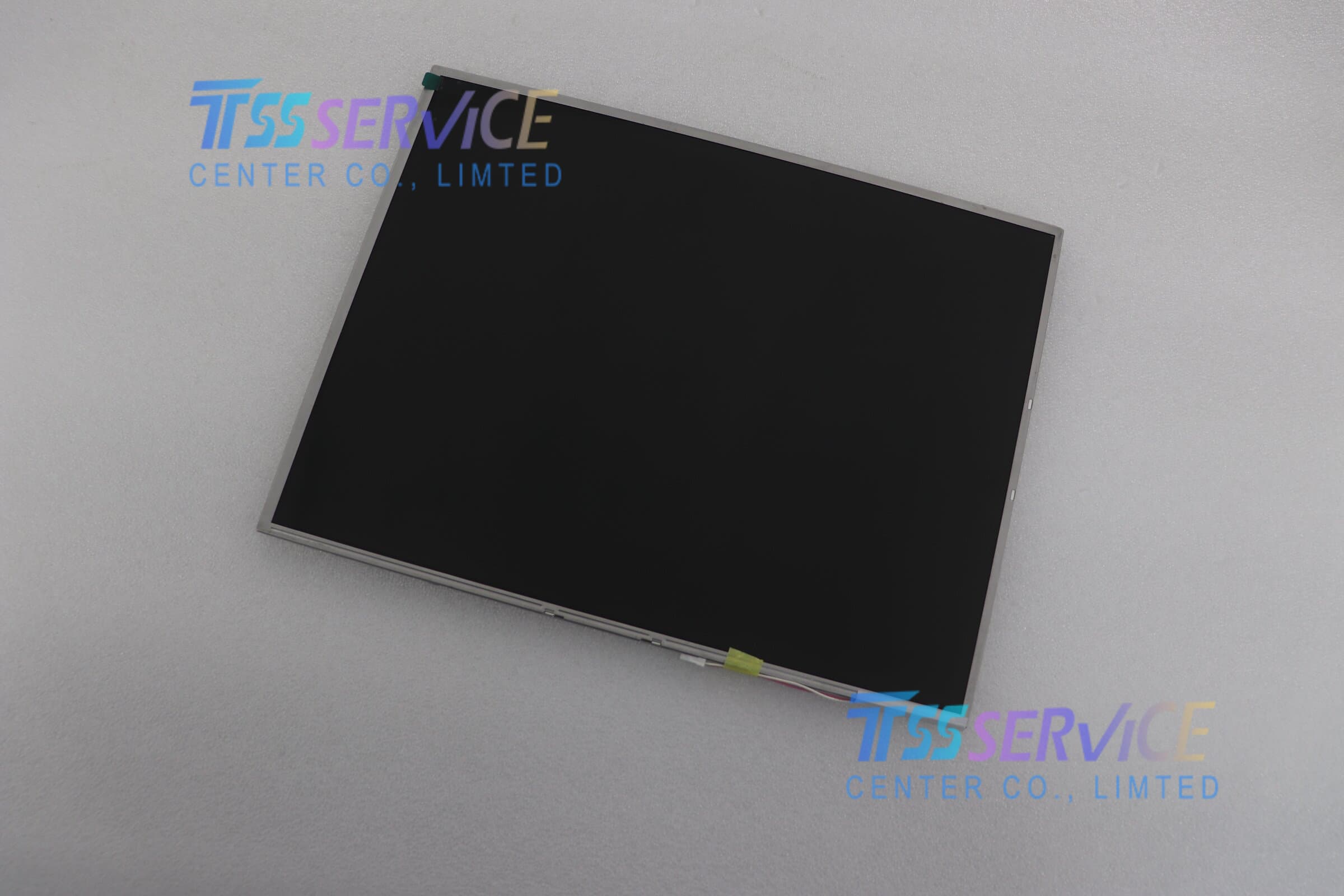

LP150E05-A2K1 | LG Display 15.0" SXGA+ IPS TFT-LCD Panel
LP150E05-A2K1 is a 15.0-inch 1400×1050 (SXGA+) a-Si IPS TFT LCD panel manufactured by LG Display. Equipped with single CCFL backlight, dual-channel 6-bit LVDS 30-pin interface, full symmetrical ultra-wide viewing angle, matte anti-glare surface and stable indoor industrial temperature resistance. Originally designed for high-end business laptops, it is now widely used for legacy industrial HMI, rack-mount monitors, medical auxiliary displays, test equipment and old device screen replacement projects.
| Parameter Item |
Specification Details |
| Part Number |
LP150E05-A2K1 |
| Manufacturer |
LG Display (LG.Philips LCD) |
| Display Size |
15.0 inch, landscape, 4:3 aspect ratio |
| Native Resolution |
1400(RGB) × 1050 pixels (SXGA+), 116 PPI |
| Display Technology |
a-Si TFT-LCD, IPS mode, Normally White, Transmissive |
| Pixel Arrangement |
RGB vertical stripe |
| Pixel Pitch |
0.2175 × 0.2175 mm |
| Active Area (AA) |
304.5 mm (W) × 228.375 mm (H) |
| Overall Outline Dimension |
317.3 × 241.5 × 6.0 mm |
| Typical Brightness |
200 cd/m² |
| Typical Contrast Ratio |
550:1 |
| Viewing Angle (L/R/U/D, CR≥10) |
88° / 88° / 88° / 88° full symmetrical wide angle |
| Response Time (Tr+Td) |
25 ms (Typical) |
| Display Color Depth |
262K colors (6-bit single channel) |
| Backlight System |
Single CCFL lamp, service life ≥ 30,000 hours, without built-in driver |
| Signal Interface |

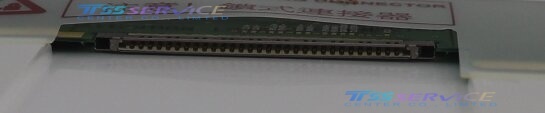

Dual-channel LVDS, 6-bit, 30-pin FPC connector |
| Logic Supply Voltage |
3.3 VDC (Typical) |
| Refresh Rate |
60 Hz |
| Vibration Resistance |
1.5G (14.7 m/s²) |
| Operating Temperature |
0°C ~ +50°C |
| Storage Temperature |
-20°C ~ +60°C |
| Touch Function |
Without touch panel (resistive touch can be customized externally) |
| Surface Treatment |
Matte anti-glare polarizer, 3H scratch-resistant hard coating |
| Net Weight |
Approx. 799 g |
| Compliance Standard |
RoHS compliant |
| Production Status |
Discontinued legacy panel, mainly used for maintenance & repla |
