Samsung LMS430HF18-003 4.3 inch 480 × 272 LCD Panel Screen For Industrial

Name: Samsung LMS430HF18-003 4.3 inch 480 × 272 LCD Panel Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LMS430HF18-003
Price: 29 USD
Availability: InStock

SKU: LMS430HF18-003

Model: LMS430HF18-003 (Samsung)
Diagonal Size: 4.3 inches
Resolution: 480 × 272 pixels (WQVGA)
Display Type: Industrial a-Si TFT-LCD, Normally Black (VA mode)

0.0 (0 Reviews)

0 Sold

~~$30.00~~ $29.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

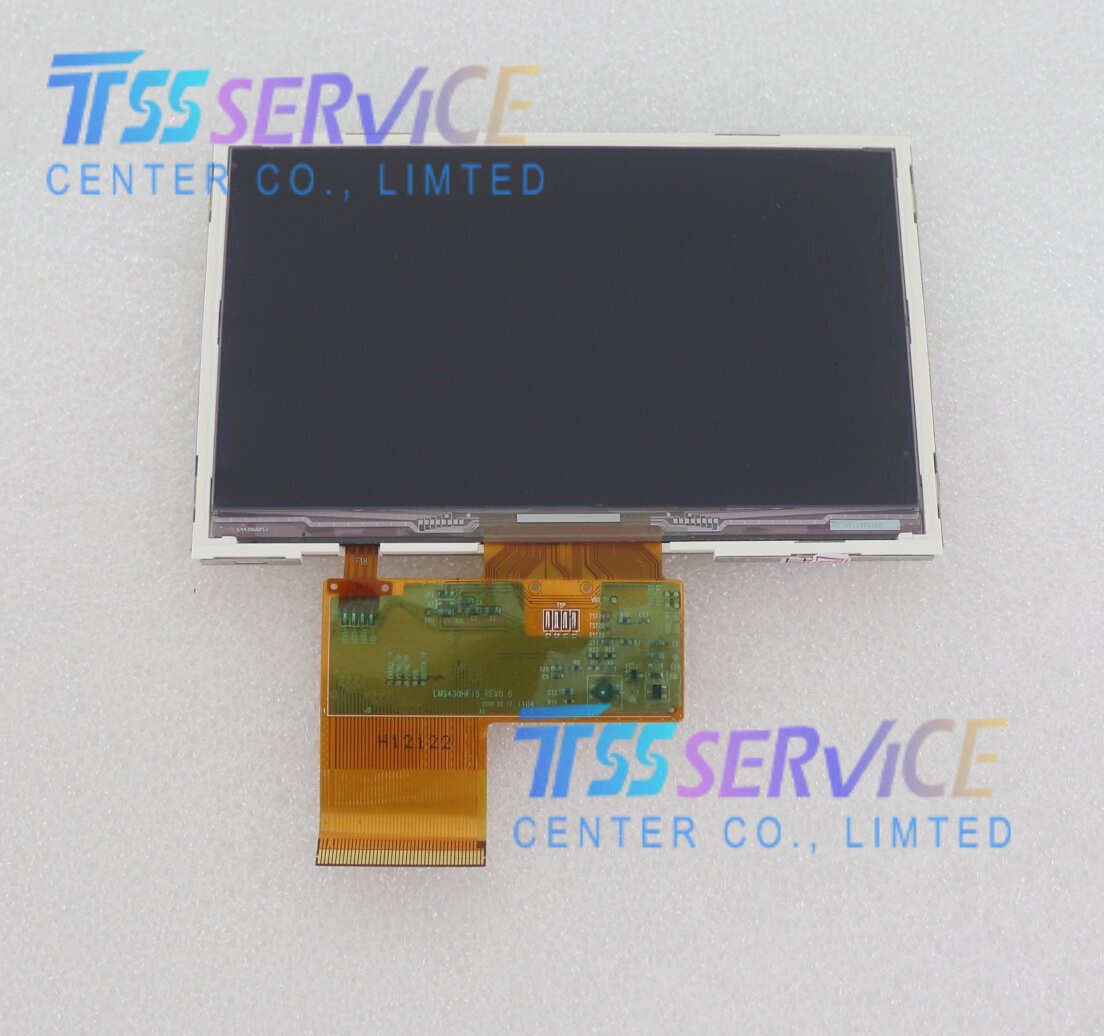

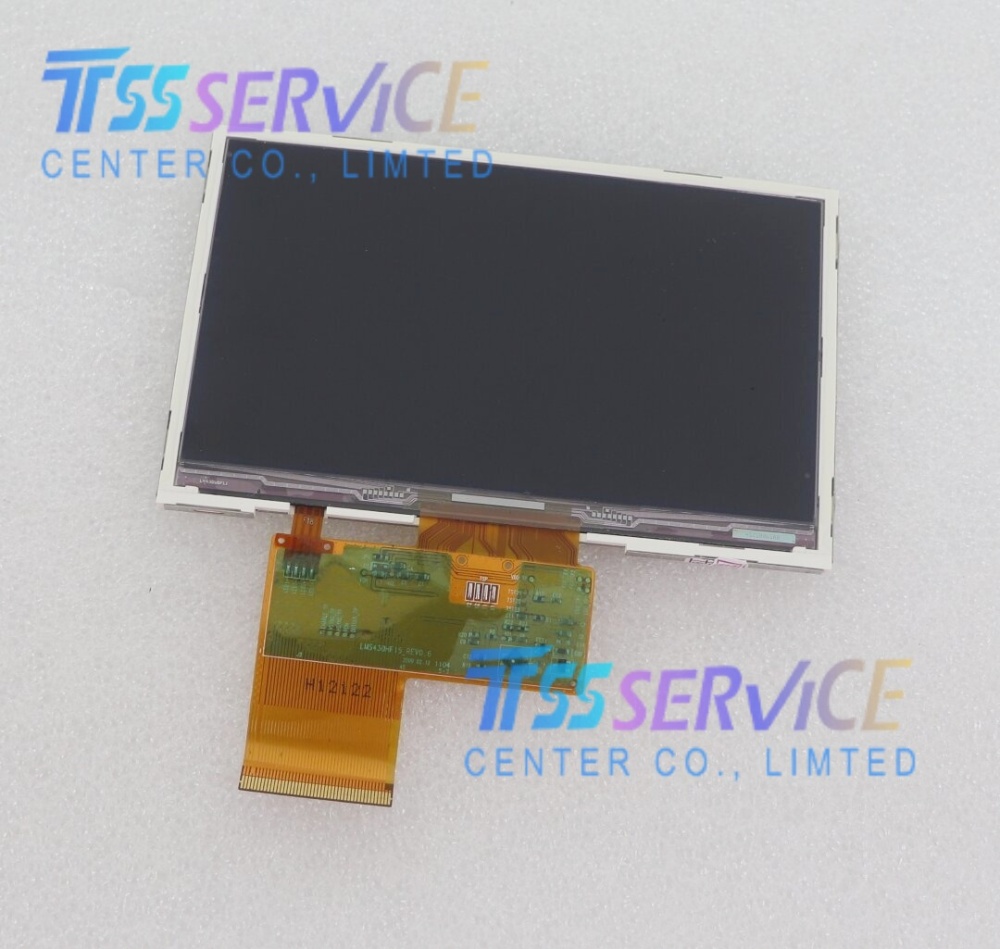

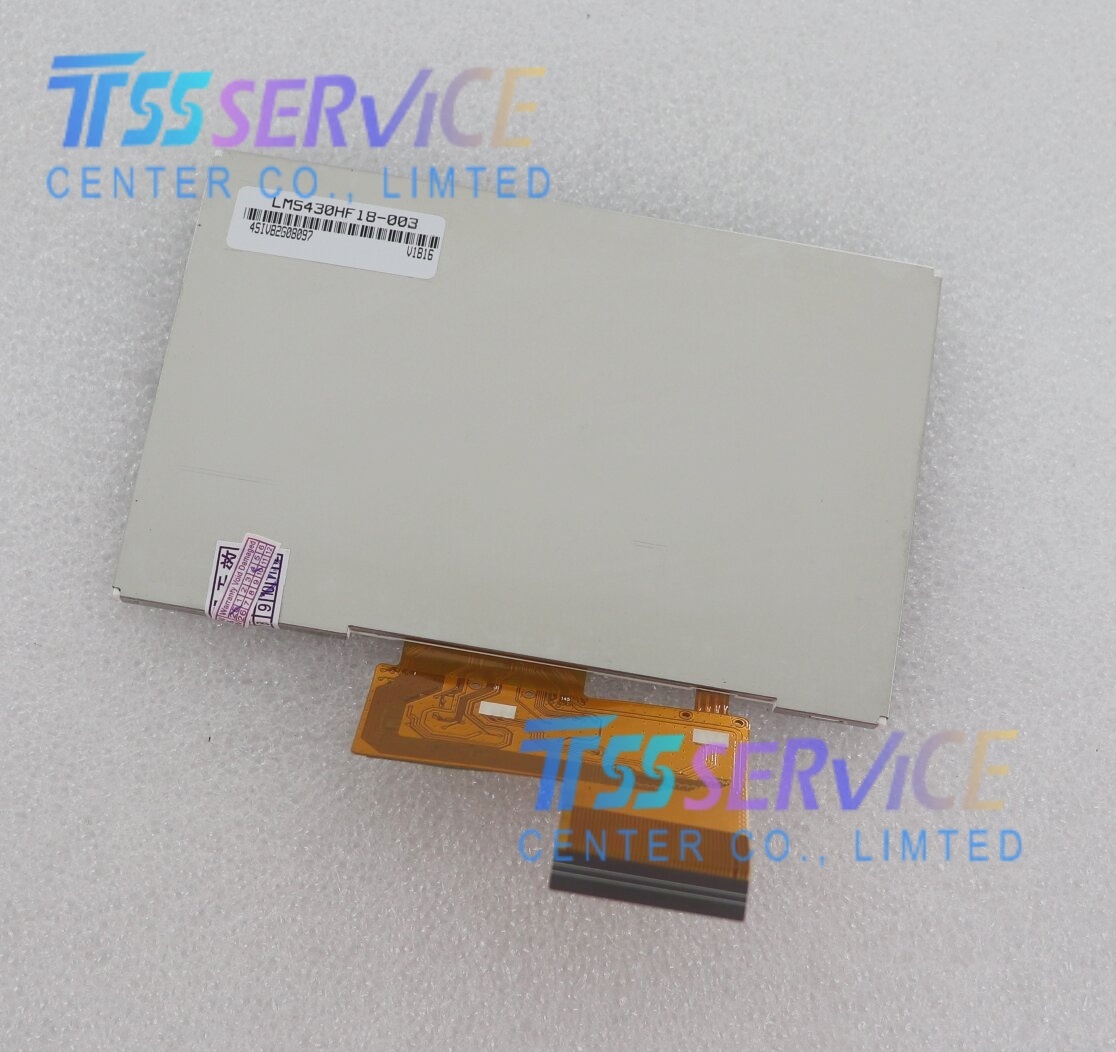

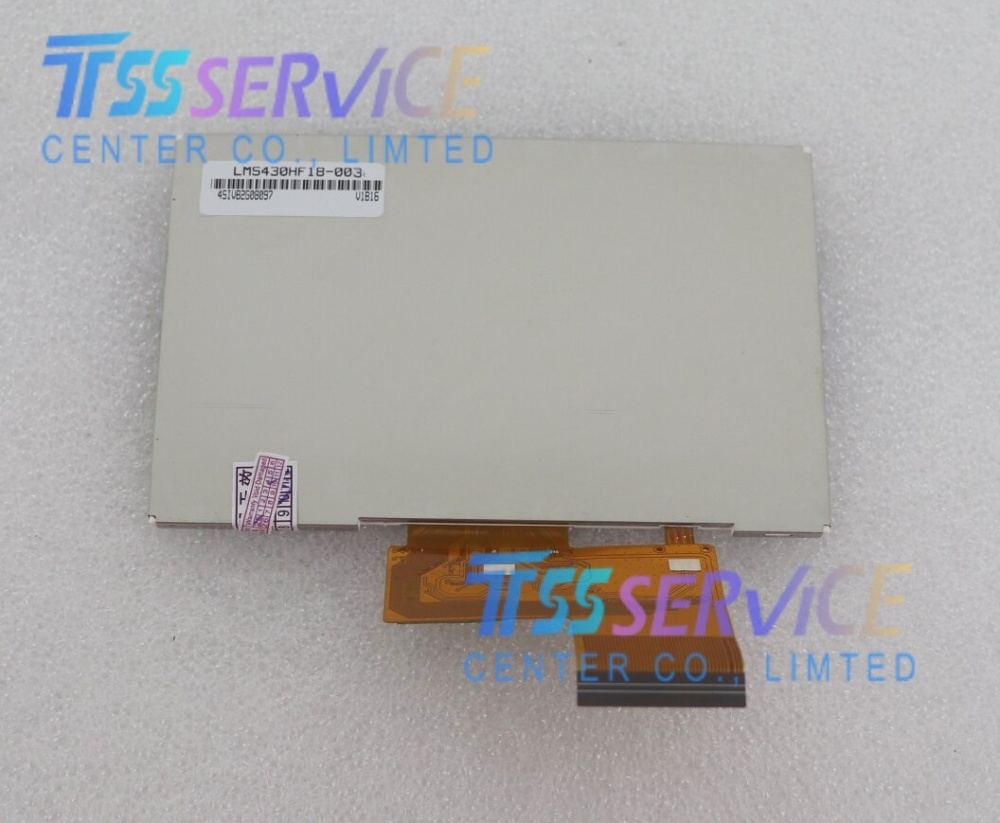

Samsung LMS430HF18-003 4.3 inch 480 × 272 LCD Panel Screen For Industrial

Parameter	Details
Model	LMS430HF18-003 (Samsung)
Diagonal Size	4.3 inches
Resolution	480 × 272 pixels (WQVGA)
Display Type	Industrial a-Si TFT-LCD, Normally Black (VA mode)
Active Area	95.04 × 53.856 mm
Outline Dimension	105.5 × 67.2 mm (approx.)
Brightness	300 cd/m² (typical)
Contrast Ratio	800:1 (typical)
Viewing Angle	80°/80°/80°/80° (CR ≥ 10)
Backlight	WLED (lifetime ≥ 50,000 hours)
Interface	Parallel RGB (1 ch 8-bit), FPC 45 pins
Supply Voltage	2.5 V / 3.3 V (typical)
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Features	Wide viewing angle, high contrast, industrial-grade reliability, ESD protection

Applications

Industrial HMIs: Factory automation panels, PLC control interfaces, and industrial workstations.
Portable Devices: Industrial handheld terminals, data collectors, and field test equipment.
Medical Equipment: Portable diagnostic tools, patient monitors, and medical instrument displays.
Consumer Electronics: GPS navigation systems, car infotainment screens, and portable media players.
Legacy Upgrades: Direct replacement for Samsung 4.3" WQVGA TFT-LCD panels in existing systems.
