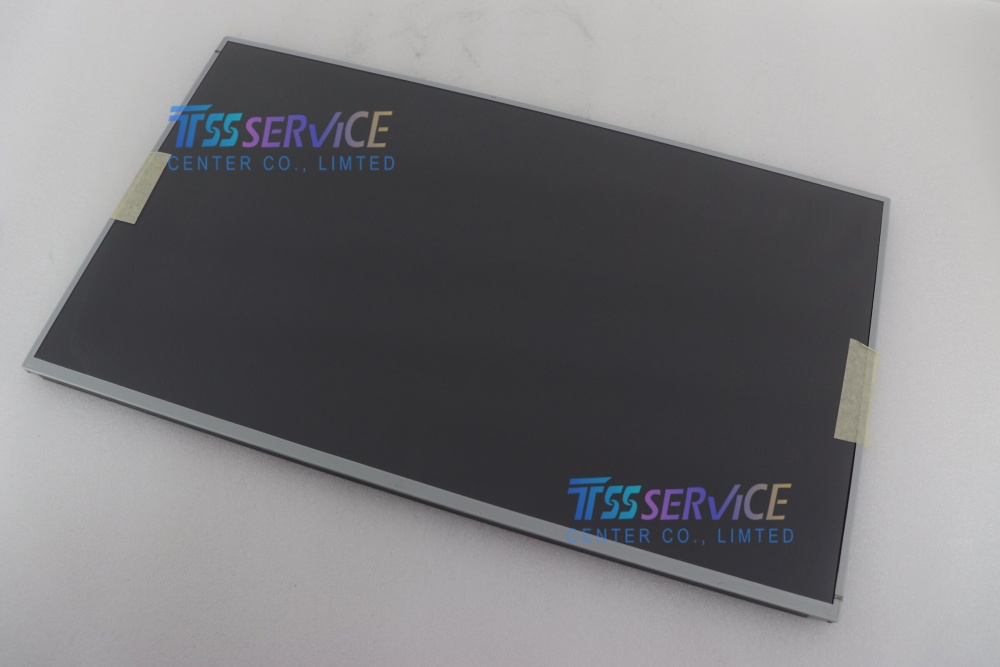

AUO NEW 27.0 inch LCD Display Panel LM270WF5(SL)(N2) for Industrial
| Parameter |
Specification |
| Panel Brand |
LG Display |
| Panel Model |
LM270WF5(SL)(N2) |
| Panel Size |
27.0 inch |
| Panel Type |
a-Si TFT-LCD, Transmissive |
| Resolution |
1920(RGB)×1080 [FHD] |
| Pixel Layout |
RGB Vertical Stripe |
| Display Area |
597.888 (W) × 336.312 (H) mm |
| Overall Dimension |
607.5 (W) × 366.6 (H) x 5.5 (D) mm (Approx.) |
| Surface Treatment |
Matte (Anti-Glare), Hard coating (3H) |
| Brightness |
250 cd/m² (Typ.) |
| Contrast Ratio |
1000:1 (Typ.) (TM) |
| Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) (Up/Down/Left/Right) |
| Display Mode |
IPS (In-Plane Switching), Normally Black |
| Response Time |
14 ms (G to G, Typ.) |
| Display Colors |
16.7M (8-bit), ~72% NTSC |
| Backlight Type |
WLED (White LED), Edge-entry |
| Signal Interface |
LVDS, 30 pins, Connector |
| Supply Voltage |
12.0V (Typ.) |
| Operating Temp. |
0 ~ 50 °C |
| Storage Temp. |
-20 ~ 60 °C |
The LM270WF5(SL)(N2) is a highly reliable and cost-effective display panel featuring FHD resolution and IPS technology. Its specific applications include:
- All-in-One (AIO) PCs: This is the most common application for this panel. As seen in various HP AIO series (such as the 27-a010 / 27-a series), its slim profile and excellent color consistency make it an ideal core component for 27-inch All-in-One desktop computers.
- Commercial & Office Monitors: With its native 1920x1080 (16:9 aspect ratio) resolution and standard brightness (250 cd/m²), this panel is perfectly suited for mainstream 27-inch office monitors, providing clear visuals for document editing, web browsing, and daily productivity tasks.
- Digital Signage & Information Kiosks: The IPS display mode ensures ultra-wide viewing angles (89 degrees in all directions) without color shifting. This makes it highly applicable for indoor digital advertising displays, self-service kiosks, and public information terminals where the screen is viewed from multiple angles.
- Industrial Control Panels: Featuring a durable matte surface treatment (Hard coating 3H) and a stable operating temperature range (0~50°C), this panel can be integrated into industrial HMIs (Human-Machine Interfaces) and factory automation equipment requiring reliable visual feedback.
- Home Entertainment Displays: Thanks to its large 27-inch size and FHD resolution, it is also suitable for entry-level smart TVs or as a secondary multimedia display screen for home entertainment systems.
