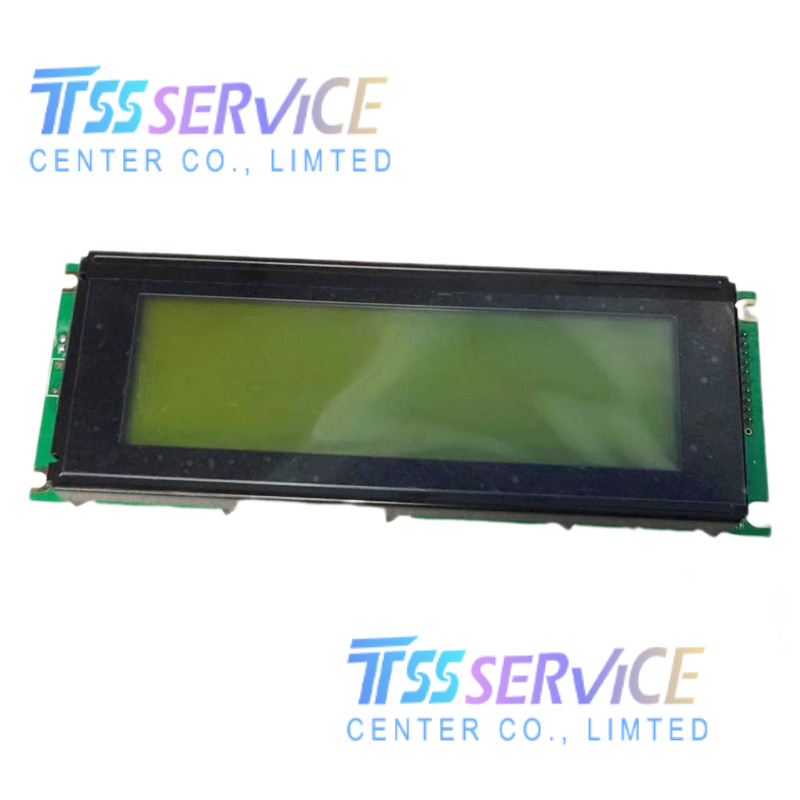

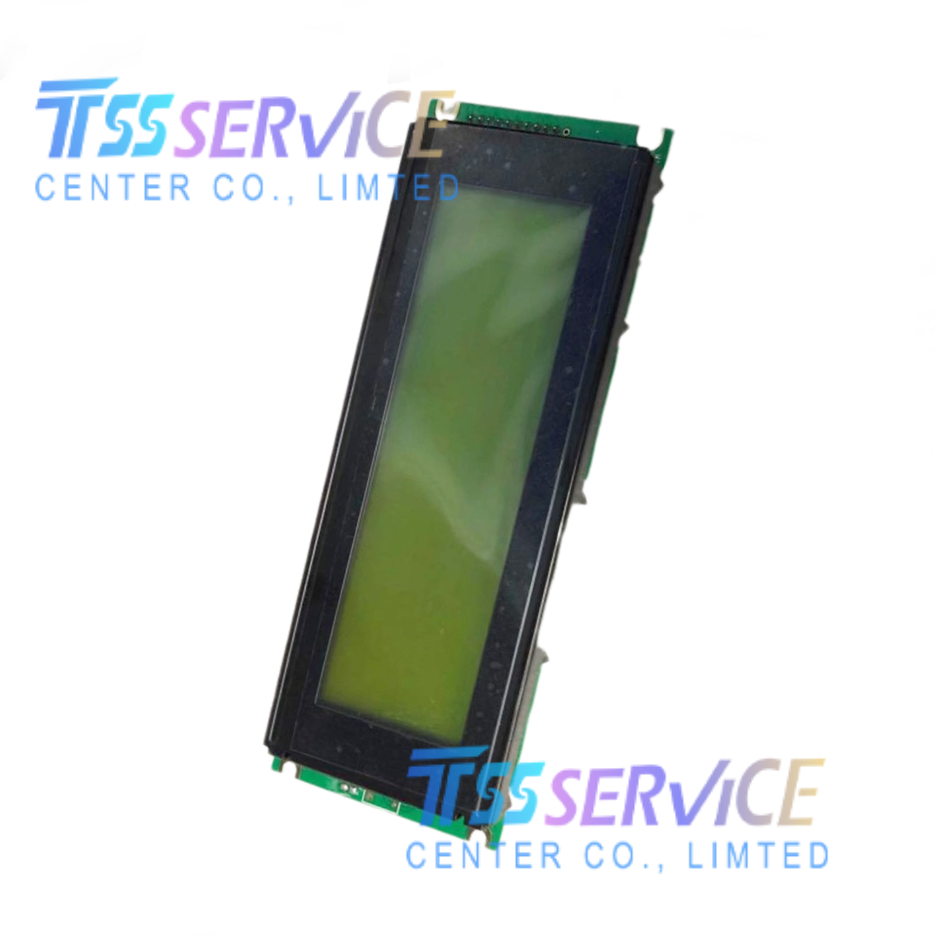

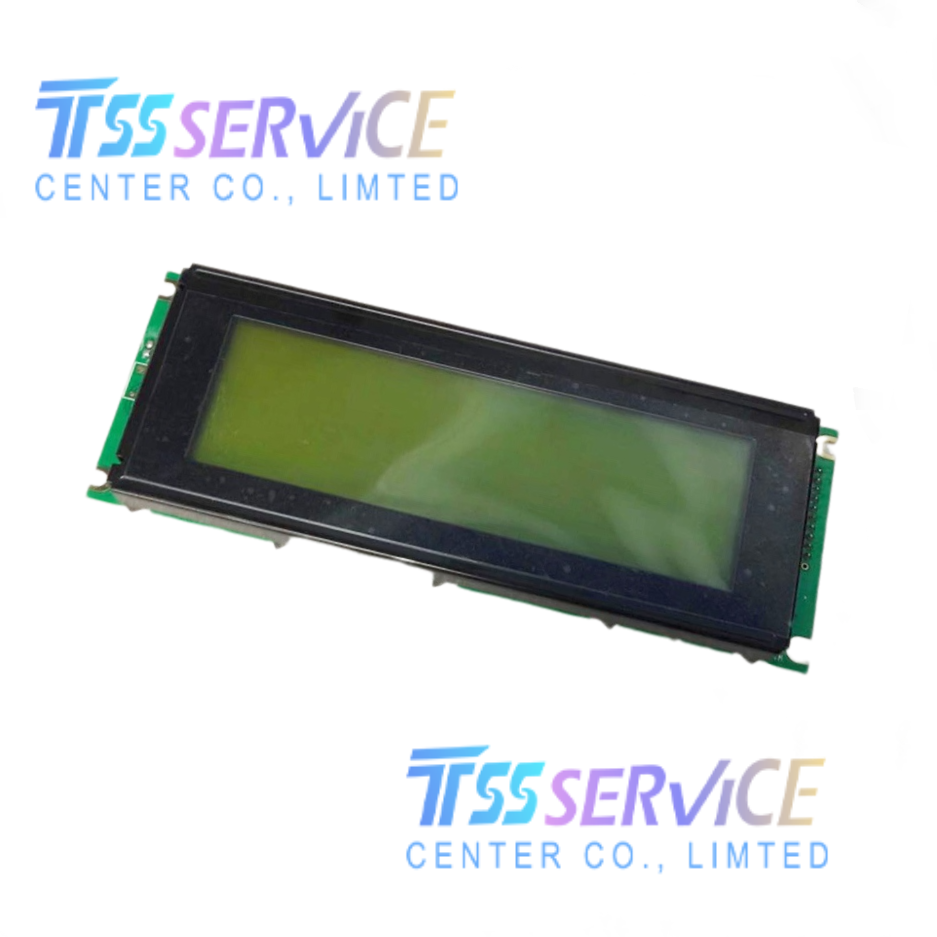

LM258XBN LCD Display Screen For Industrial

SKU: LM258XBN
Model: LM258XBN
Type: Industrial LCD Display Module
Display Type: Monochrome, Yellow-Green
Resolution: 256×64 pixels
Display Mode: STN (Super Twisted Nematic)
0.0 (0 Reviews)
0 Sold
$137.00 $135.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • LM258XBN LCD Display Screen For Industrial
  • LM258XBN LCD Display Screen For Industrial
  • LM258XBN LCD Display Screen For Industrial
  • LM258XBN LCD Display Screen For Industrial
  • LM258XBN LCD Display Screen For Industrial
  • LM258XBN LCD Display Screen For Industrial
1/1
  • LM258XBN LCD Display Screen For Industrial
  • LM258XBN LCD Display Screen For Industrial
  • LM258XBN LCD Display Screen For Industrial
  • Description
LM258XBN LCD Display Screen For Industrial
Parameter Details
Model LM258XBN
Manufacturer Hitachi
Type Industrial LCD Display Module
Display Type Monochrome, Yellow-Green
Resolution 256×64 pixels
Display Mode STN (Super Twisted Nematic)
Brightness 100 cd/m² (Typ.)
Contrast Ratio 200:1 (Typ.)
Viewing Angle 45°/45°/30°/30° (L/R/U/D)
Backlight LED, yellow-green
Interface Parallel (8-bit), TTL
Operating Temp -20°C ~ +70°C
Storage Temp -30°C ~ +80°C
Outline Dimension 180 × 45 × 10 mm (W×H×D)
Active Area 150 × 38 mm
Weight Approx. 200 g
Features High contrast, wide temperature range, durable structure

Applications

  • Industrial Control Panels: For factory automation, PLC systems, and CNC machinery requiring reliable monochrome displays.
  • Medical Devices: Suitable for patient monitors, diagnostic equipment, and portable medical instruments needing low-power, high-contrast screens.
  • Test & Measurement Equipment: Used in oscilloscopes, signal generators, and industrial meters for clear data visualization.
  • Marine & Rugged Environments: Applied in ship control panels, offshore equipment, and industrial vehicles due to wide temperature tolerance.
  • Telecom Infrastructure: For base station monitoring, network devices, and industrial communication terminals requiring stable performance.
