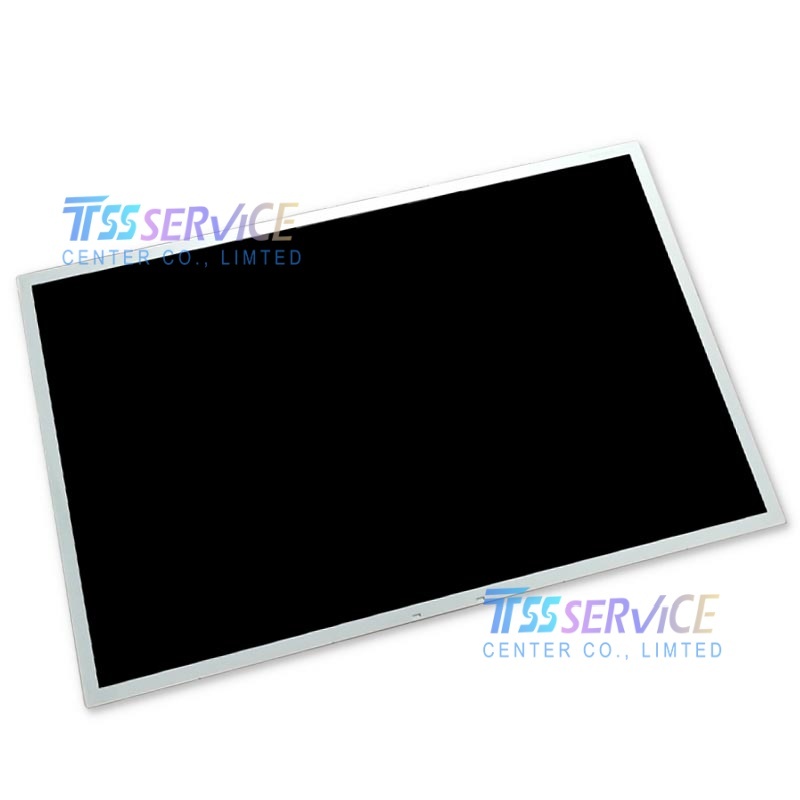

AUO NEW 24.0 inch LCD Display Panel LM240WU8(SL)(A3) for Industrial
| Parameter |
Specification |
| Panel Brand |
LG Display |
| Panel Model |
LM240WU8(SL)(A3) / SLA3 |
| Panel Size |
24.0 inch |
| Panel Type |
a-Si TFT-LCD, Transmissive |
| Resolution |
1920(RGB)×1200 [WUXGA] |
| Pixel Layout |
RGB Vertical Stripe |
| Display Area |
518.4 (W) × 324.0 (H) mm |
| Overall Dimension |
546.4 (W) × 352.0 (H) × 15.0 (D) mm |
| Surface Treatment |
Matte (Anti-Glare), Hard coating (3H) |
| Brightness |
350 cd/m² (Typ.) |
| Contrast Ratio |
1000:1 (Typ.) (TM) |
| Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) (Up/Down/Left/Right) |
| Display Mode |
e-IPS (Enhanced In-Plane Switching), Normally Black |
| Response Time |
14 ms (G to G, Typ.) |
| Display Colors |
16.7M (6-bit + Hi-FRC), ~72% NTSC |
| Backlight Type |
WLED (White LED), Side-entry, 30K hours (No driver) |
| Signal Interface |
LVDS (2 ch, 8-bit), 30 pins, Connector |
| Supply Voltage |
12.0V (Typ.) |
| Operating Temp. |
0 ~ 50 °C |
| Storage Temp. |
-20 ~ 60 °C |
The LM240WU8(SL)(A3) is a highly reliable display panel featuring WUXGA resolution and e-IPS technology. Its specific applications include:
- Mainstream Desktop Monitors: With its native 1920x1200 (16:10 aspect ratio) resolution and standard brightness (350 cd/m²), this panel is perfectly suited for 24-inch office monitors, providing extra vertical screen space ideal for document editing, web browsing, and general productivity.
- All-in-One (AIO) PCs: Thanks to its relatively slim profile (15.0mm thickness) and energy-efficient WLED backlight, it serves as an excellent core display component for various brands of 24-inch All-in-One desktop computers.
- Industrial Control & Automation: Featuring a durable matte surface treatment (Hard coating 3H) and a stable operating temperature range (0~50°C), this panel can be seamlessly integrated into industrial HMIs (Human-Machine Interfaces), CNC systems, and factory automation equipment requiring clear and reliable visual feedback.
- Digital Signage & Information Kiosks: The e-IPS display mode ensures ultra-wide viewing angles (89 degrees in all directions) without color shifting. This makes it highly applicable for indoor digital advertising displays, self-service kiosks, and public information terminals where the screen is viewed from multiple angles.
- Entry-Level Professional Displays: While covering around 72% of the NTSC color gamut, its accurate color reproduction and high contrast ratio make it suitable for entry-level photo viewing, basic graphic work, and multimedia entertainment systems.
AUO
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
