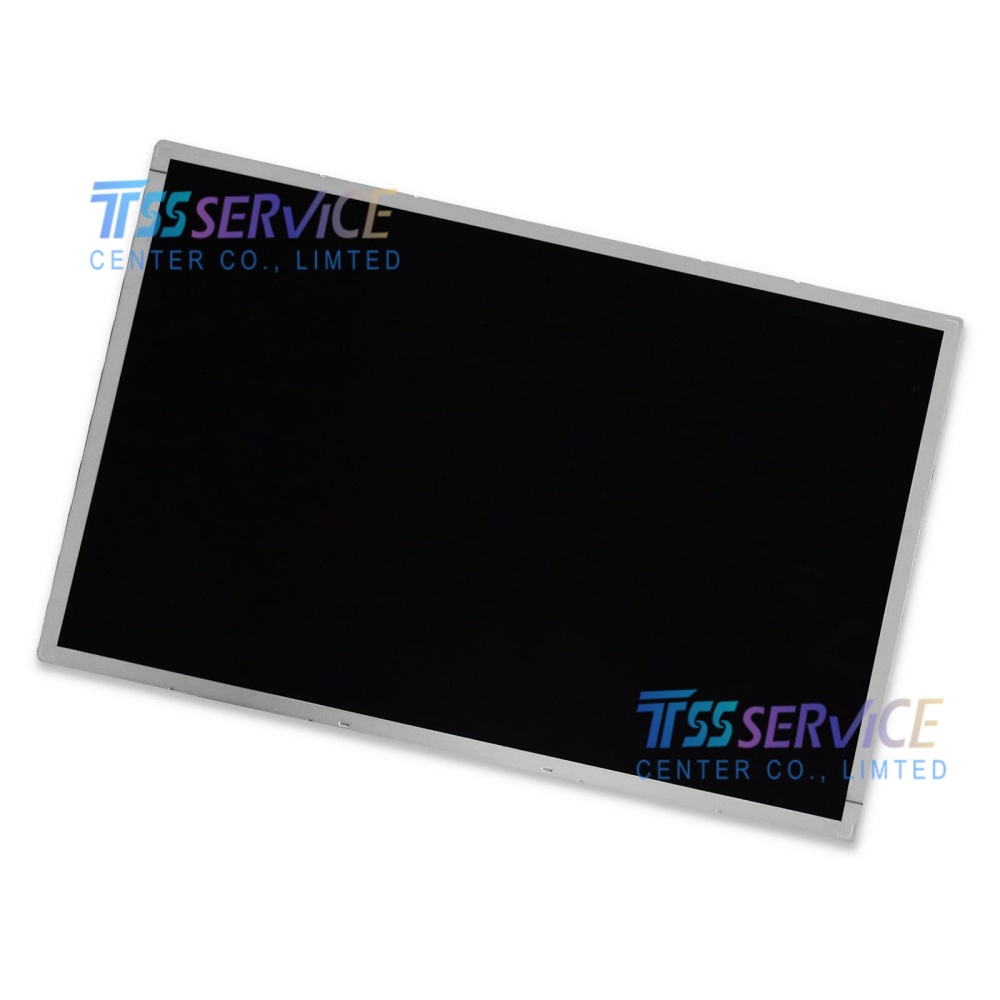

AUO NEW 24.0 inch LCD Display Panel LM240WU4(SL)(A1) for Industrial
| Parameter |
Specification |
| Panel Brand |
LG Display |
| Panel Model |
LM240WU4(SL)(A1) |
| Panel Size |
24.0 inch |
| Panel Type |
a-Si TFT-LCD, Transmissive |
| Resolution |
1920(RGB)×1200 [WUXGA] |
| Pixel Layout |
RGB Vertical Stripe |
| Display Area |
518.4 (W) × 324.0 (H) mm |
| Overall Dimension |
546.4 (W) × 352.0 (H) × 40.8 (D) mm |
| Surface Treatment |
Matte (Anti-Glare), Hard coating (3H) |
| Brightness |
400 cd/m² (Typ.) |
| Contrast Ratio |
1000:1 (Typ.) (TM) |
| Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) (Up/Down/Left/Right) |
| Display Mode |
S-IPS (Super In-Plane Switching), Normally Black |
| Response Time |
6 ms (G to G, Typ.) |
| Display Colors |
1.07B (10-bit / 8-bit + Hi-FRC), 102% NTSC |
| Backlight Type |
CCFL (Cold Cathode Fluorescent Lamp), 40K hours (With Inverter) |
| Signal Interface |
LVDS (2 ch, 10-bit), 51 pins, Connector |
| Supply Voltage |
12.0V (Typ.) |
| Operating Temp. |
0 ~ 50 °C |
| Storage Temp. |
-20 ~ 60 °C |
The LM240WU4(SL)(A1) is a high-performance display panel featuring WUXGA resolution and S-IPS technology. Its specific applications include:
- Professional Desktop Monitors: With its native 1920x1200 (16:10 aspect ratio) resolution and high brightness (400 cd/m²), this panel is ideal for high-end 24-inch computer monitors used in office productivity, multitasking, and professional workstations.
- Graphic Design & Photo Editing: The panel boasts an exceptional color gamut (covering 102% of NTSC, 100% sRGB, and 98% Adobe RGB) and 10-bit color depth. This makes it highly suitable for color-critical applications such as graphic design, digital photography, and print media production.
- Medical Imaging Displays: Utilizing S-IPS technology, it provides ultra-wide viewing angles (89 degrees in all directions) without color shifting. This ensures consistent image quality from any perspective, making it applicable for medical diagnostic monitors and healthcare information terminals.
- Broadcasting & Studio Monitors: Thanks to its accurate color reproduction and high contrast ratio, the panel serves well as a reference monitor in video editing suites, broadcasting studios, and post-production environments.
- Industrial Control & Automation: The durable matte surface treatment (Hard coating 3H) and stable operating temperature range allow it to be integrated into industrial HMIs (Human-Machine Interfaces) and automation equipment requiring reliable visual feedback.
