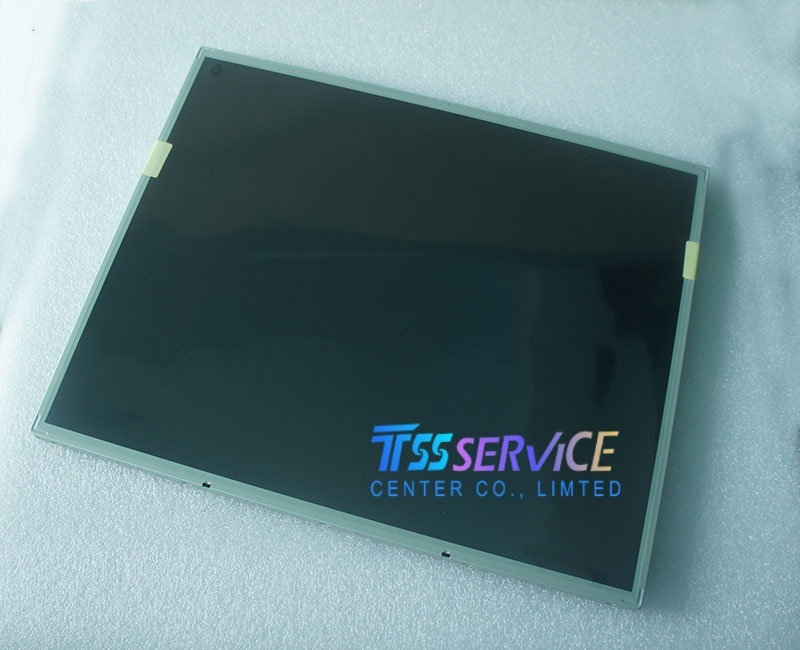

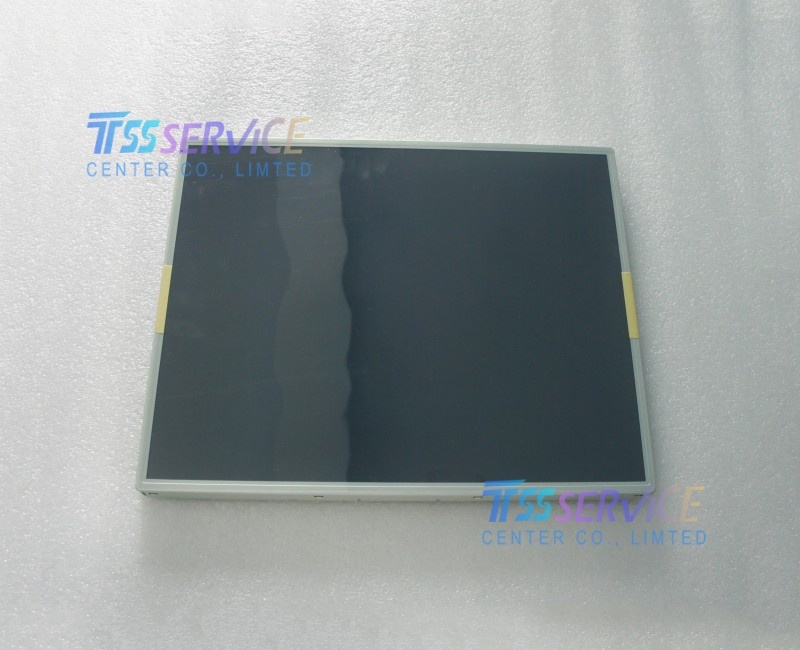

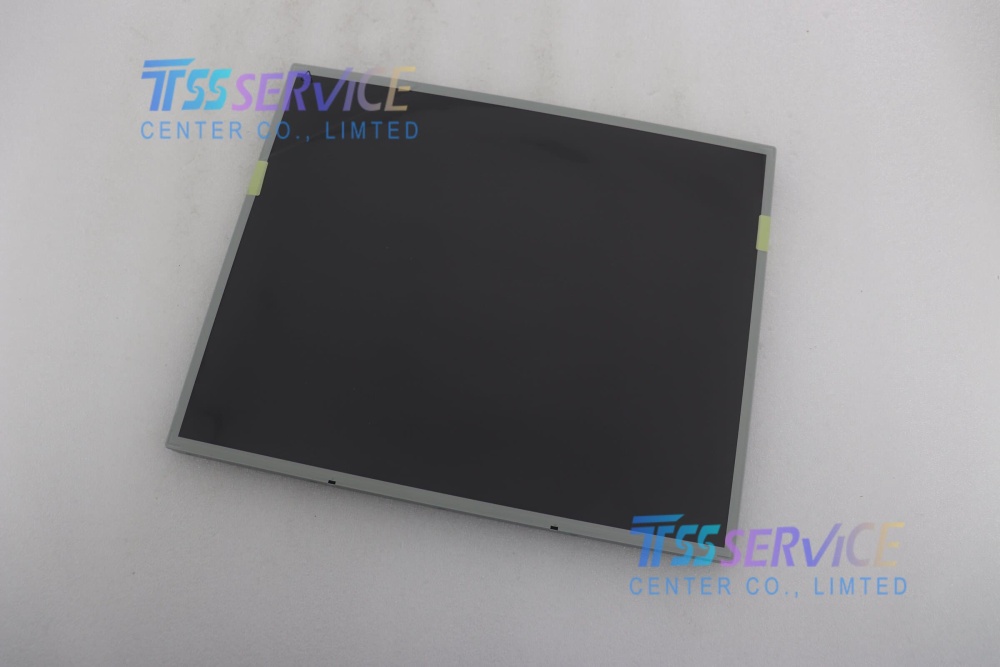

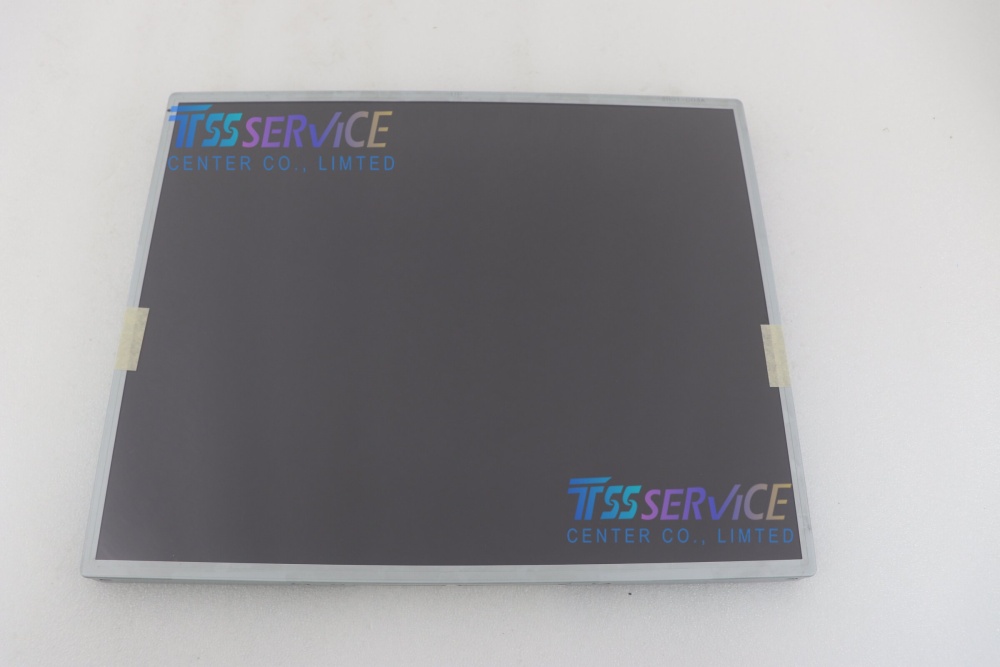

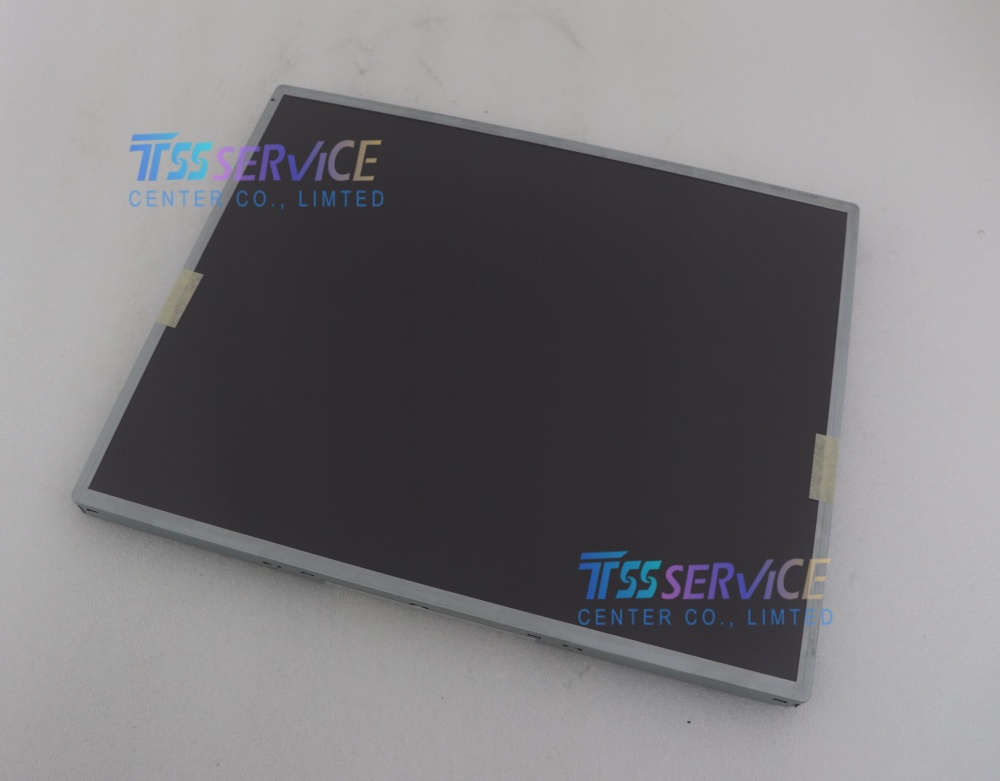

LM190E02-SL01 | LG Display 19.0” SXGA IPS TFT-LCD Panel
LM190E02-SL01 (internal model LB190E02-SL01) is a 19-inch SXGA (1280×1024) IPS a-Si TFT industrial LCD panel manufactured by LG Display. Equipped with long-life WLED backlight, full symmetrical wide viewing angle, 3H anti-glare hard coating, dual-channel LVDS interface and stable indoor temperature performance, it is widely adopted for industrial HMI, medical equipment, control room monitors and legacy embedded display upgrade solutions.
Specification Parameter Table
| Parameter Item |
Specification Details |
| Part Number |
LM190E02-SL01 (LB190E02-SL01 internal code) |
| Manufacturer |
LG Display |
| Display Size |
19.0 inch, landscape, 5:4 aspect ratio |
| Resolution |
1280(RGB) × 1024 pixels (SXGA) |
| Display Technology |
a-Si TFT-LCD, IPS, normally black, transmissive |
| Active Area |
376.32 mm (W) × 301.06 mm (H) |
| Outline Dimension |
396.0 × 324.0 × 12.8 mm |
| Pixel Pitch |
0.294 × 0.294 mm |
| Brightness |
250 cd/m² (Typical) |
| Contrast Ratio |
1000:1 (Typical) |
| Viewing Angle |
89°/89°/89°/89° (Left/Right/Up/Down, CR≥10) |
| Display Colors |
16.7M true color (6-bit + Hi-FRC) |
| Color Gamut |
72% NTSC standard |
| Response Time |
14 ms (G-to-G typical) |
| Backlight |
WLED backlight, service life ≥ 50,000 hours, without built-in driver |
| Interface |
Dual-channel LVDS, 30-pin FPC connector |
| Supply Voltage |
3.3 VDC (logic circuit) |
| Refresh Rate |
60 Hz |
| Operating Temperature |
0°C ~ +50°C |
| Storage Temperature |
-20°C ~ +60°C |
| Touch Screen |
Not equipped with touch panel (capacitive/resistive touch customizable) |
| Surface Treatment |
Matte anti-glare, 3H scratch-resistant hard coating |
| Net Weight |
1.25 kg (Typical) |
| Compliance Certifications |
RoHS, cULus certified |
| Production Status |
Mass production, widely used legacy industrial panel |
☛Shipment:
About the International Shipping:
The products depending on the item's customs value,will be subject to the customs processing.
As the buyer, you should be aware of:
★the delays from the customs inspection.
★the import duties and taxes which buyers must pay.
★The import duties and taxes are not included in the items fix price or shipping cost Cause these charges are the buyers' responsibility directly.
We will ship By DHL/ Fedex/ 4PX express/ SF express
L/T:3-4 working days
☛Delivery Details:
We will arrange the shipment within 1-3 working days asap after got your payment. And the tracking number and commercial inovice will be given to the customers asap. (only the standard speedpak or expedited shipping service). Expedited Shipping by DHL/FEDEX/4PX express Courier etc. But sometimes it is highly depended on buyer's payment, the courier company and local customs/duties.
✔☛Shipment detail:
box, including the seller's handling time, the buyers'destination ZIP Code, the time of the orders acceptance, shipping service selected and also the exact receipt of the cleared payment.
So the delivery times may be vary, especially during the shipping high peak periods.
Hope you understand, thanks!
☛Return Policy:
After received the items and in the event of an issue arising,please send us messages ASAP (Warranty 90 days ）
Whether the money back or replacement (at buyer's choice)
Please provide the detailed explanation, photos or videos needed when send us messages.
Unwanted product returns: The merchandise must be in the new, unused, uninstalled condition only.
☛About us:
We have specialized in LCD-Business for 20 years(NEC, SHARP, HITACHI, AUO, SAMSUNG, KOE, TIANMA LG Display, Samsung, Innolux, SHARP, MISTBISH,etc)
We are willing to provide the good service,professional technology and excellent products to you.
If you have any general questions and please contact us via sally@winnihk.com we will give you a exact reply within 24hours
