LM10V322 | Sharp 10.4-inch Color STN-LCD Module

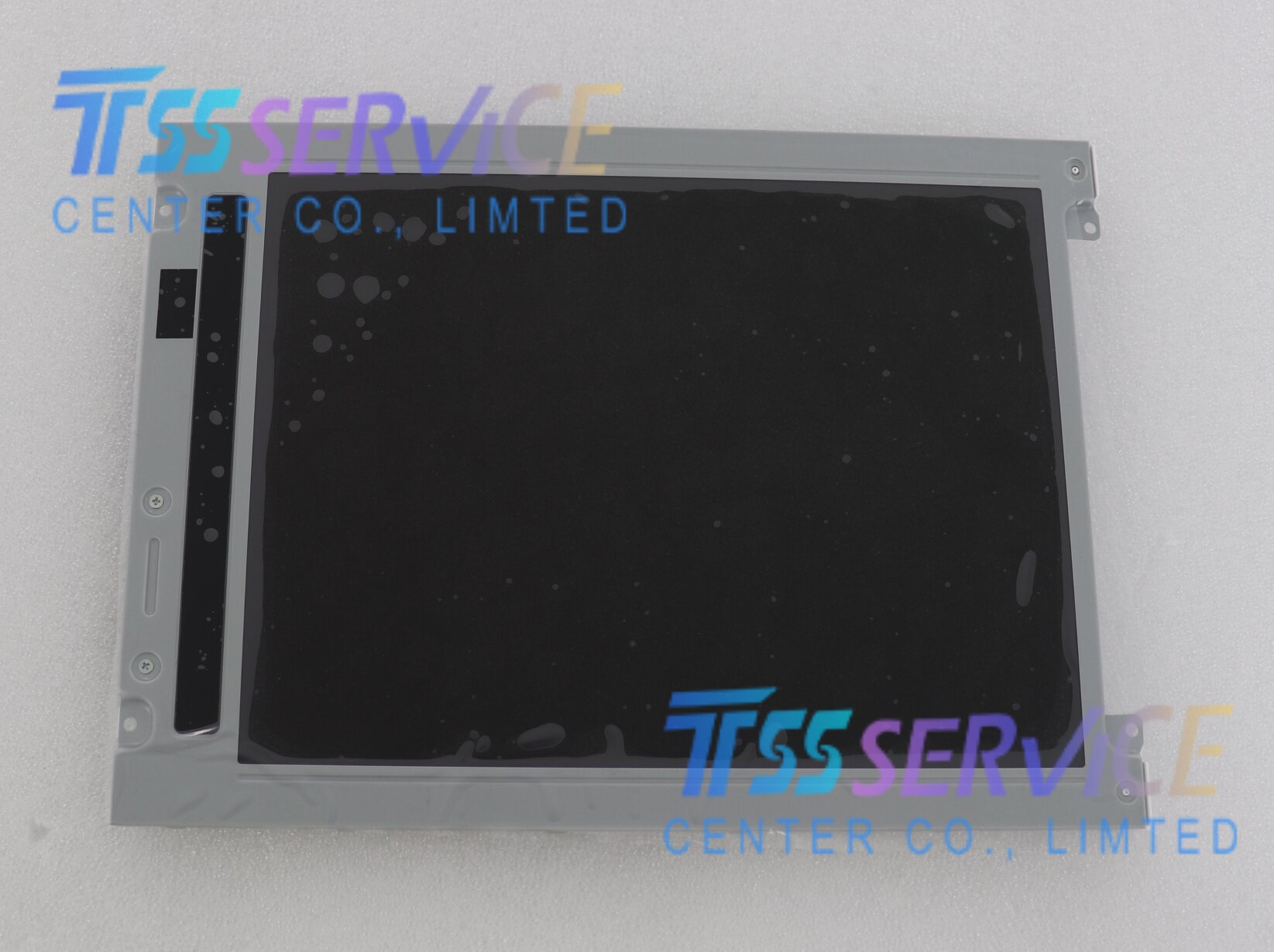

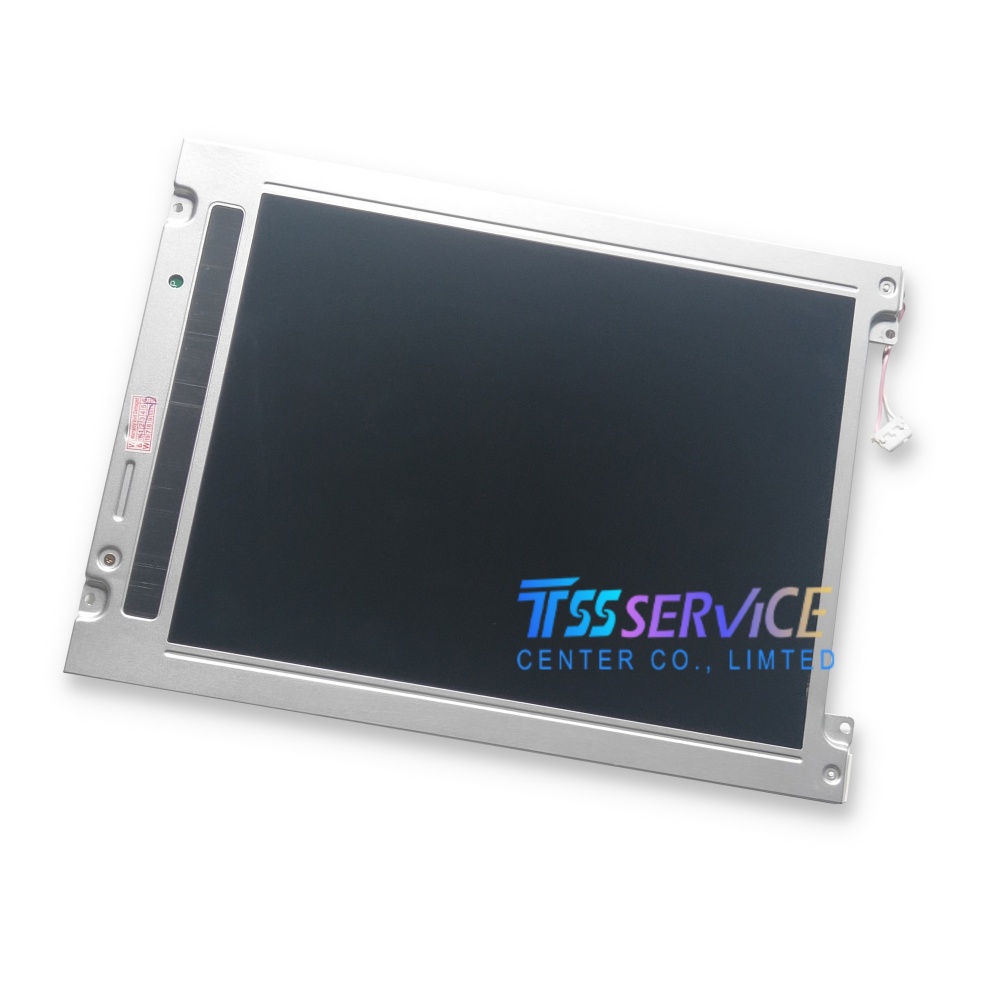

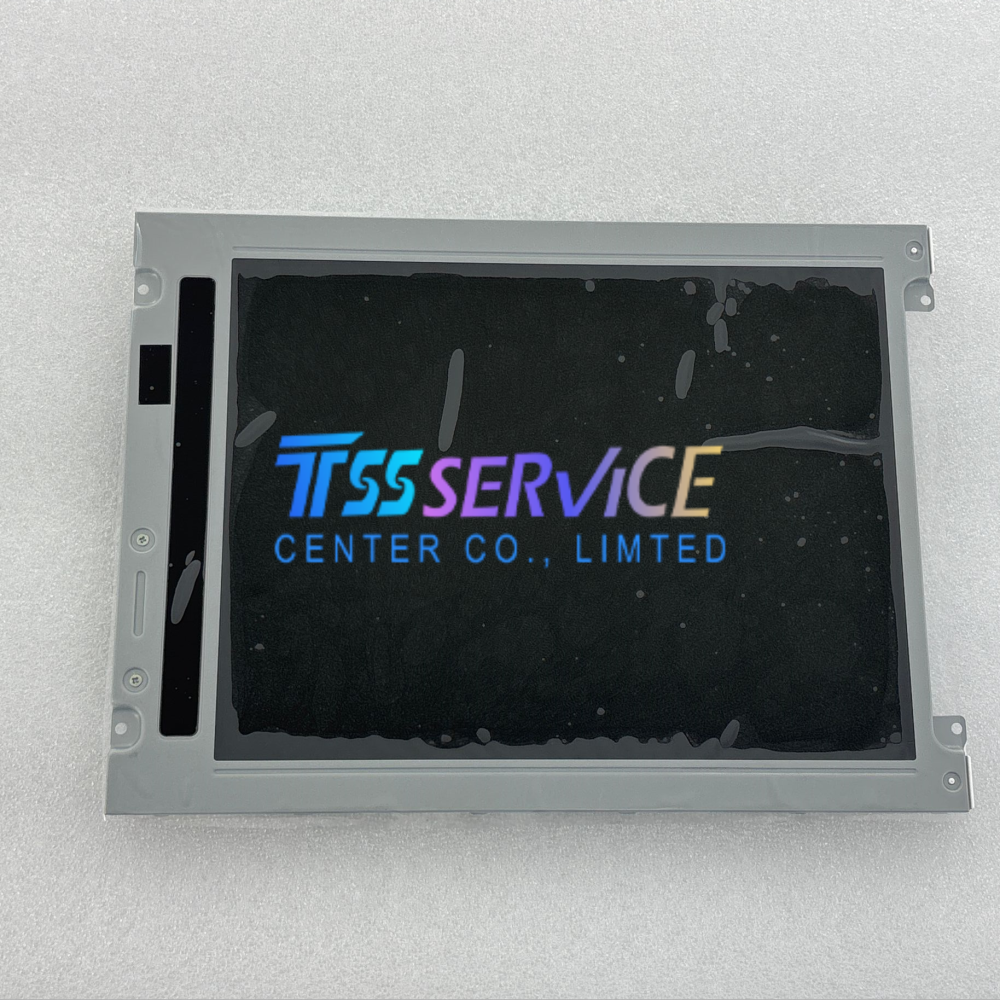

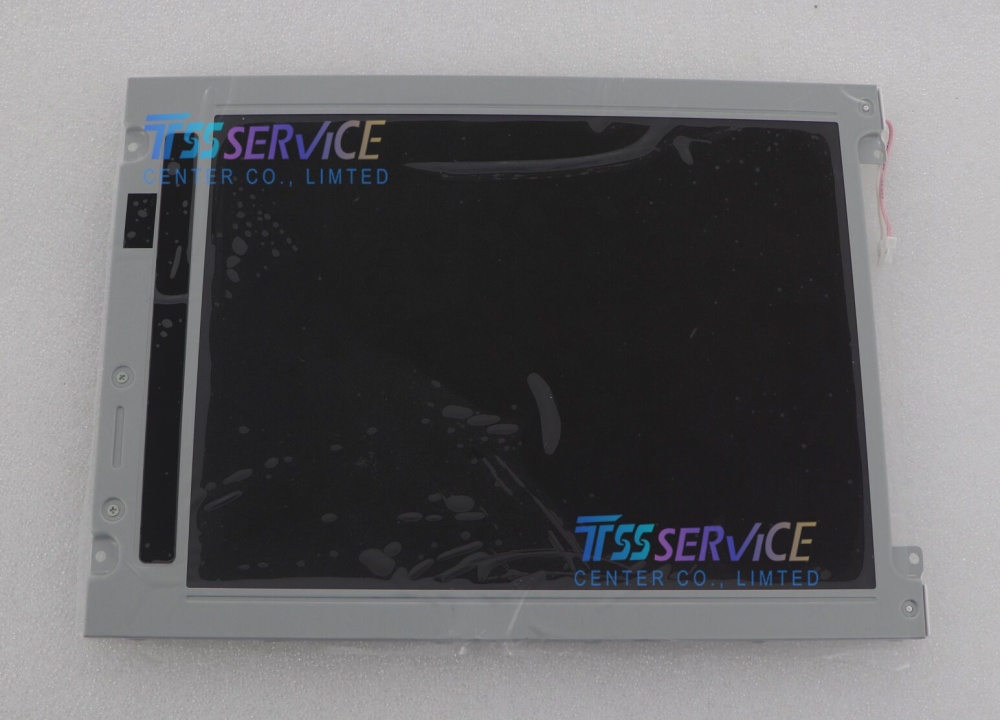

LM10V322 is a 10.4-inch VGA (640×480) color STN passive matrix LCD module manufactured by Sharp. Equipped with single CCFL backlight, parallel RGB interface, stable industrial optical performance and compact mechanical outline, it is a classic legacy display widely applied in old-generation industrial HMIs, injection molding machines, medical auxiliary equipment and embedded replacement screen projects.
Specification Parameter Table
| Parameter Item |
Specification Details |
| Part Number |
LM10V322 (equivalent to LM10V332 series) |
| Manufacturer |
Sharp Corporation (Japan) |
| Display Size |
10.4 inch, landscape, 4:3 aspect ratio |
| Native Resolution |
640(RGB) × 480 pixels (VGA) |
| Display Technology |
Color STN-LCD, normally black, transmissive passive matrix |
| Pixel Arrangement |
RGB vertical stripe |
| Active Area (AA) |
211.2 mm (W) × 158.4 mm (H) |
| Overall Outline Dimension |
246.0 × 193.6 × 11.2 mm |
| Pixel Pitch |
0.330 × 0.330 mm |
| Typical Brightness |
160 cd/m² |
| Typical Contrast Ratio |
50:1 (CR≥5 standard) |
| Viewing Angle (L/R/U/D, CR≥5) |
30° / 30° / 25° / 15° |
| Response Time (Tr/Td) |
220 ms / 80 ms (Typ.) |
| Display Color Depth |
262K simulated color |
| Backlight System |
Single CCFL lamp, service life ≥ 30,000 hours, no built-in inverter |
| Signal Interface |
Parallel 8-bit RGB, standard FPC connector |
| Logic Supply Voltage |
5.0 VDC |
| Refresh Rate |
60 Hz |
| Operating Temperature |
0°C ~ +40°C |
| Storage Temperature |
-20°C ~ +60°C |
| Touch Function |
Without touch panel (resistive touch can be customized externally) |
| Surface Treatment |
Standard glossy polarizer, basic hard coating |
| Net Weight |
Approx. 450 g |
| Compliance Standard |
RoHS compliant |
| Production Status |
Discontinued legacy industrial panel, mainly used for equipment maintenance & replacement |
☛Shipment:
About the International Shipping:
The products depending on the item's customs value,will be subject to the customs processing.
As the buyer, you should be aware of:
★the delays from the customs inspection.
★the import duties and taxes which buyers must pay.
★The import duties and taxes are not included in the items fix price or shipping cost Cause these charges are the buyers' responsibility directly.
We will ship By DHL/ Fedex/ 4PX express/ SF express
L/T:3-4 working days
☛Delivery Details:
We will arrange the shipment within 1-3 working days asap after got your payment. And the tracking number and commercial inovice will be given to the customers asap. (only the standard speedpak or expedited shipping service). Expedited Shipping by DHL/FEDEX/4PX express Courier etc. But sometimes it is highly depended on buyer's payment, the courier company and local customs/duties.
✔☛Shipment detail:
box, including the seller's handling time, the buyers'destination ZIP Code, the time of the orders acceptance, shipping service selected and also the exact receipt of the cleared payment.
So the delivery times may be vary, especially during the shipping high peak periods.
Hope you understand, thanks!
☛Return Policy:
After received the items and in the event of an issue arising,please send us messages ASAP (Warranty 90 days ）
Whether the money back or replacement (at buyer's choice)
Please provide the detailed explanation, photos or videos needed when send us messages.
Unwanted product returns: The merchandise must be in the new, unused, uninstalled condition only.
☛About us:
We have specialized in LCD-Business for 20 years(NEC, SHARP, HITACHI, AUO, SAMSUNG, KOE, TIANMA LG Display, Samsung, Innolux, SHARP, MISTBISH,etc)
We are willing to provide the good service,professional technology and excellent products to you.
If you have any general questions and please contact us via sally@winnihk.com we will give you a exact reply within 24hours
