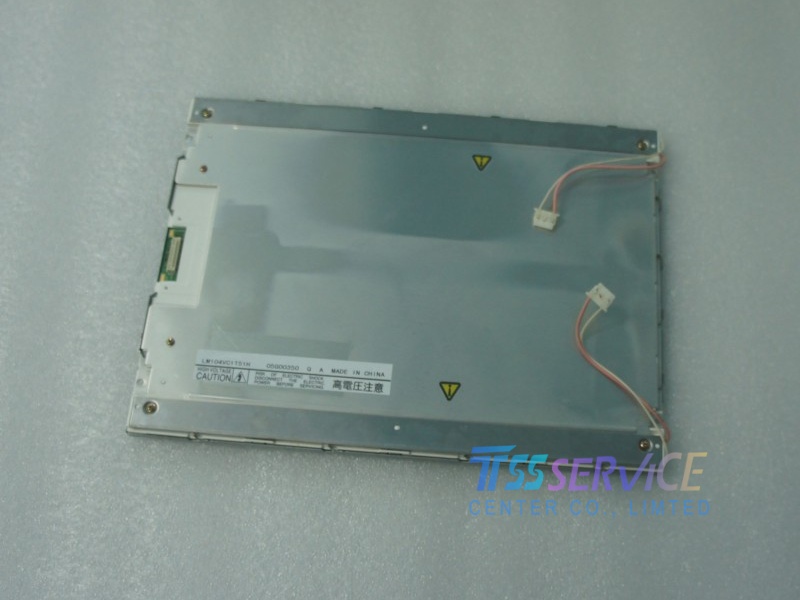

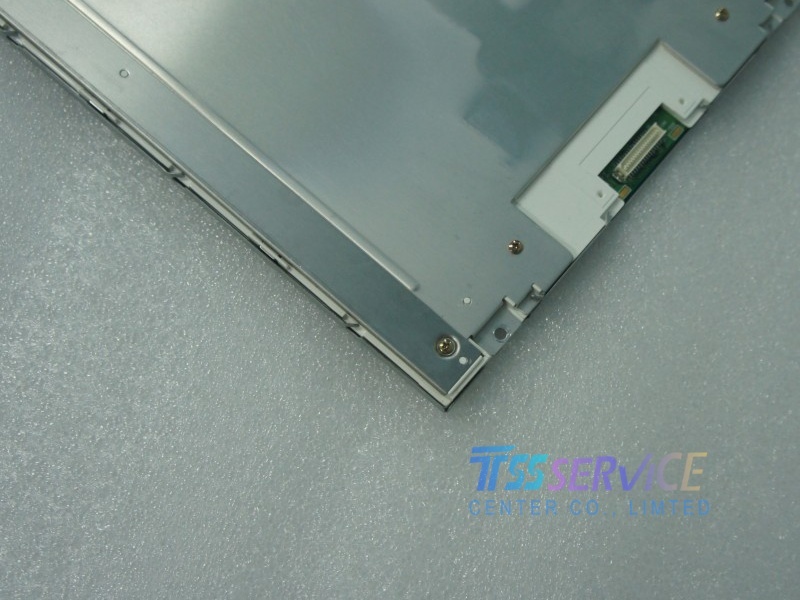

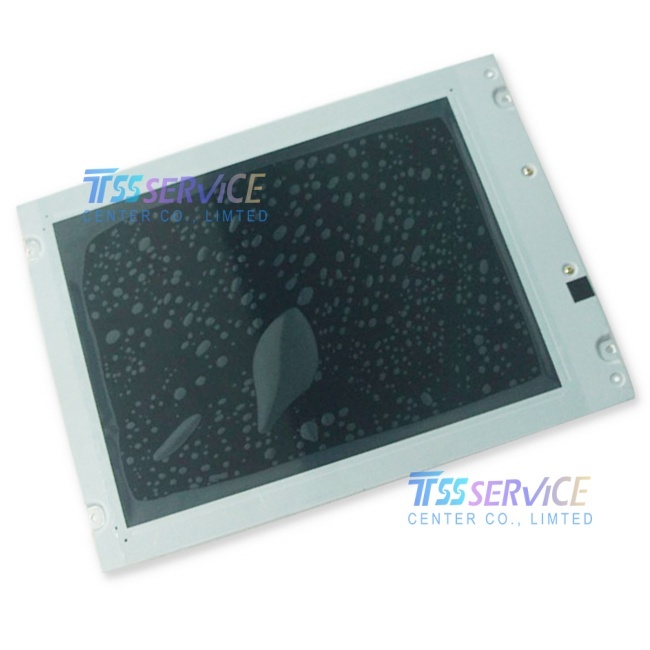

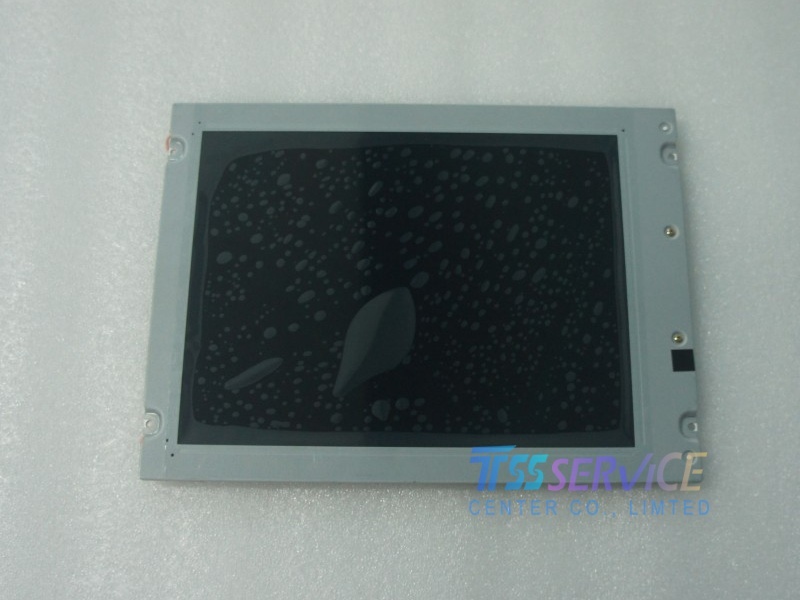

Part no : LM104VC1T51 R
Brand : SHARP
INCH : 10.4"
Resolution 640 (RGB) × 480 pixels (VGA)
| Parameter Item | Specification Details |
|---|---|
| Part Number | LM104VC1T51 |
| Manufacturer | Sharp Corporation |
| Display Size | 10.4 inch, landscape, 4:3 aspect ratio |
| Resolution | 640 (RGB) × 480 pixels (VGA) |
| Display Technology | CSTN-LCD, color, normally black, transmissive |
| Pixel Configuration | RGB vertical stripe |
| Active Area | 211.2 × 158.4 mm |
| Outline Dimension | 235 × 175 × 12 mm (approx.) |
| Brightness | 200 cd/m² (typ.) |
| Contrast Ratio | 300:1 (typ.) |
| Viewing Angle | 120° (H) / 100° (V) |
| Backlight | 2 × CCFL, long lifespan |
| Interface | 8-bit parallel TTL (RGB) |
| Supply Voltage | 5.0 VDC (logic), 12 VDC (backlight) |
| Operating Temperature | -10°C ~ +60°C |
| Storage Temperature | -20°C ~ +70°C |
| Touch Screen | Without touch functionality |
| Weight | Approx. 1.0 kg |
| Certifications | RoHS compliant |
