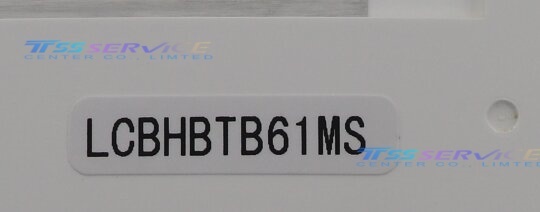

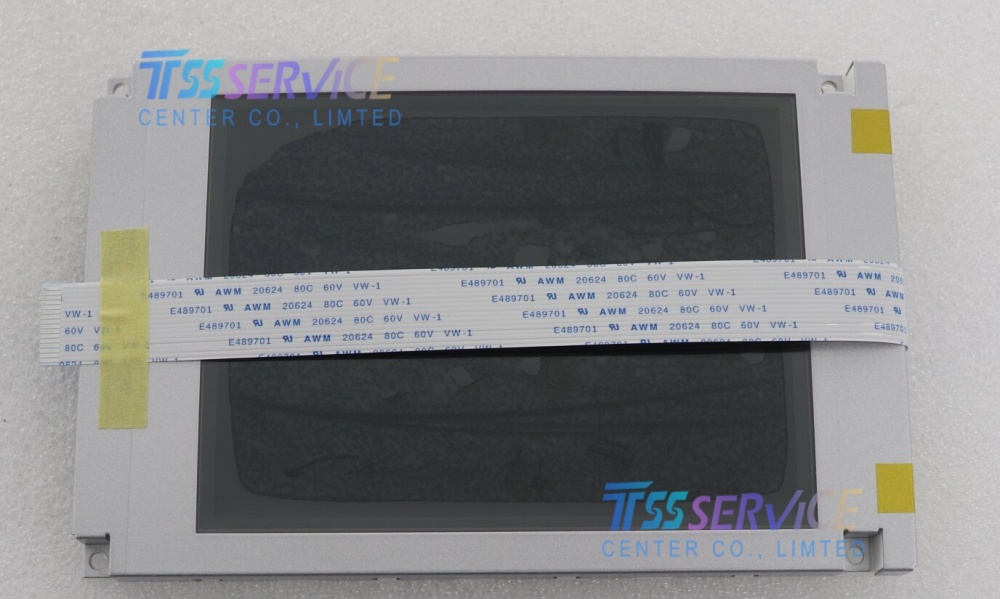

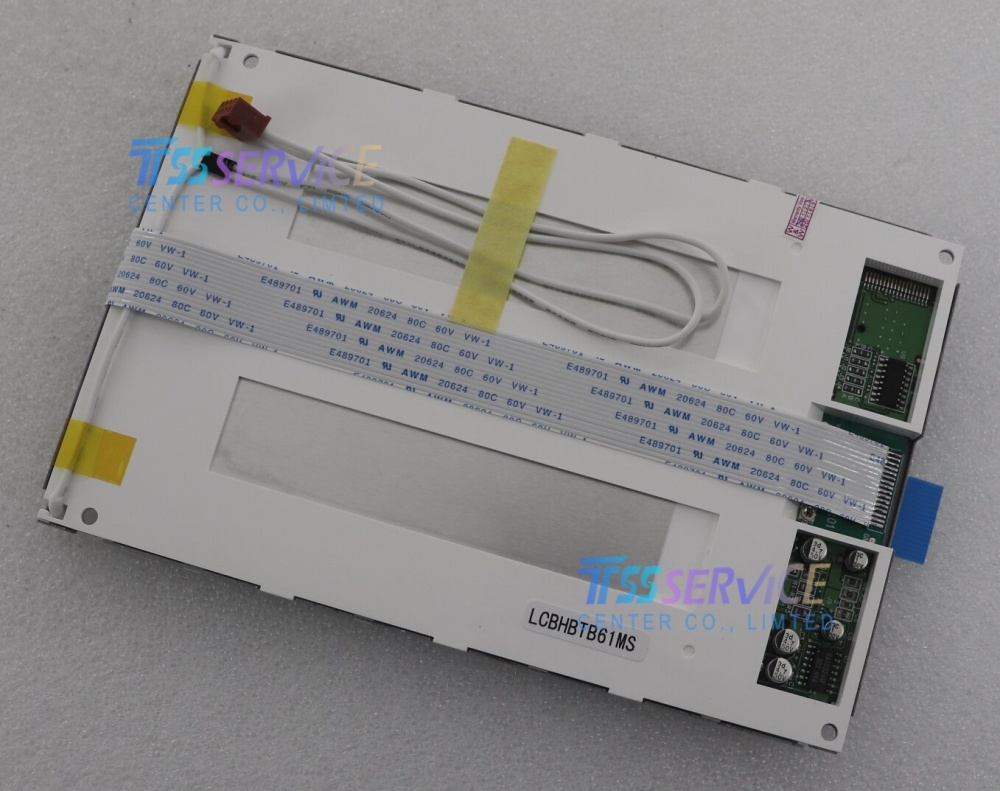

LCBHBTB61MS 5.7 INCH LCD Display Screen For Industrial
| Parameter |
Details |
| Model |
LCBHBTB61MS |
| Type |
Industrial TFT-LCD Panel |
| Size |
5.7 inch |
| Resolution |
320×240 (QVGA) |
| Display Mode |
Normally White, Transmissive |
| Brightness |
350 cd/m² (Typ.) |
| Contrast Ratio |
500:1 (Typ.) |
| Viewing Angle |
80°/80°/70°/70° (L/R/U/D) |
| Color Depth |
262K Colors (6-bit RGB) |
| Response Time |
12 ms (Typ.) |
| Backlight |
CCFL, 1 lamp |
| Interface |
Parallel Data (TTL) |
| Operating Temp |
-20°C ~ +70°C |
| Storage Temp |
-30°C ~ +80°C |
| Outline Dimension |
145×110×8 mm |
| Active Area |
115.2×86.4 mm |
| Weight |
Approx. 450 g |
| Certification |
RoHS, CE |
- Industrial Control HMI: For PLC, CNC, and automation equipment operation panels.
- Medical Equipment: Patient monitors, ultrasound scanners, and diagnostic devices.
- Automotive Displays: Industrial vehicle dashboards and onboard monitoring terminals.
- Smart Home & Appliances: High-end control panels for smart ovens and industrial refrigerators.
- Marine & Aerospace: Cabin control displays and portable instrument panels.
- Retail & Kiosks: Industrial touchscreen terminals for self-service and vending machines.
