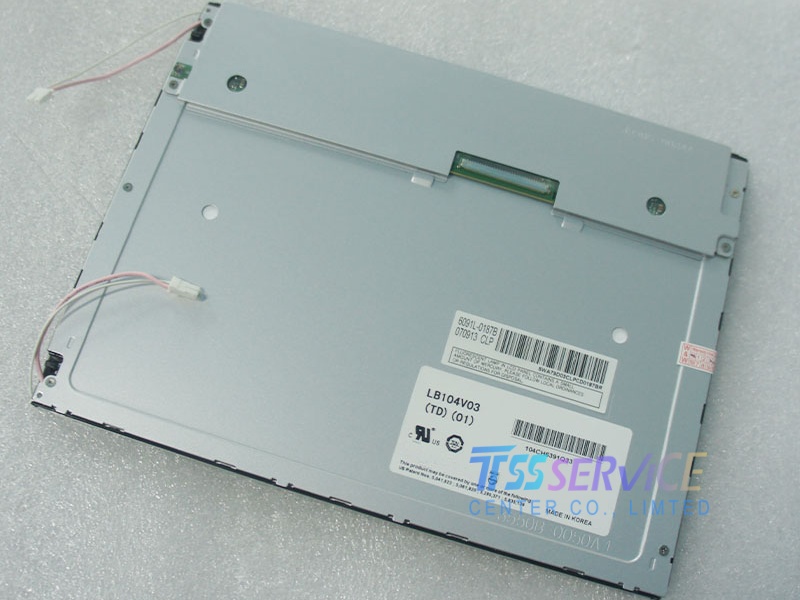

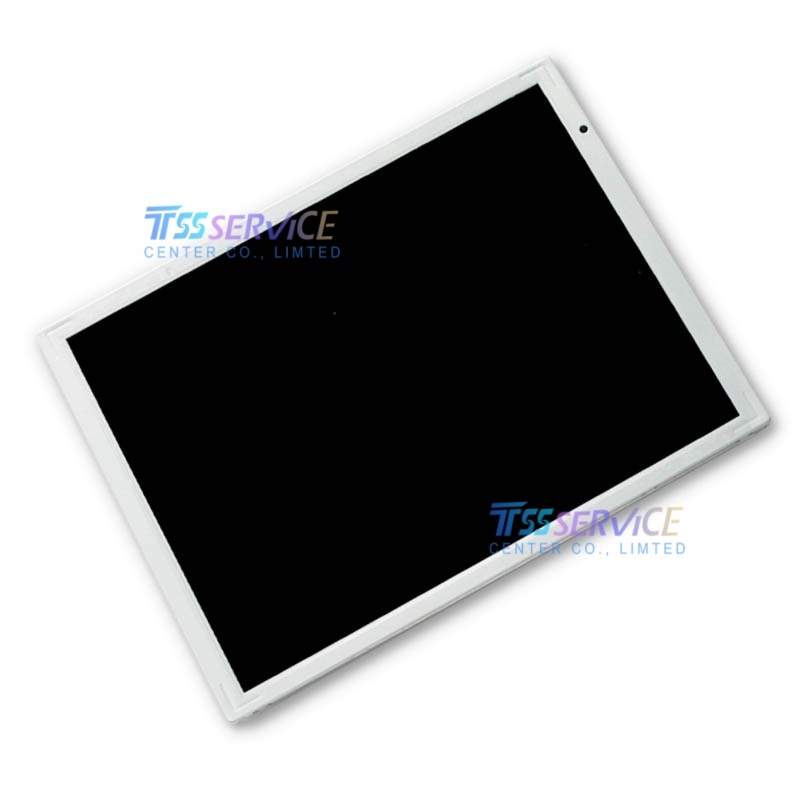

LG Display LB104V03-TD01 10.4-inch VGA TFT-LCD Panel

SKU: LB104V03(TD)(01)

1,Condition: New,Grade A

2,Description: LB104V03-TD01  10.4 inch LCD Display Panel

3,Warranty: 90 Days

4,Lead Time: 1-3 Working days

5,Shipping: DHL ,FedEx, EMS , SF express  or by air.

6,Packaging: Bubble pad+Paper box

7,Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)
0 Sold
$100.00 $95.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • LG Display LB104V03-TD01 10.4-inch VGA TFT-LCD Panel
  • LG Display LB104V03-TD01 10.4-inch VGA TFT-LCD Panel
  • LG Display LB104V03-TD01 10.4-inch VGA TFT-LCD Panel
  • LG Display LB104V03-TD01 10.4-inch VGA TFT-LCD Panel
1/1
  • LG Display LB104V03-TD01 10.4-inch VGA TFT-LCD Panel
  • LG Display LB104V03-TD01 10.4-inch VGA TFT-LCD Panel
  • Description
The LG Display LB104V03-TD01 is a 10.4-inch diagonal a-Si TFT-LCD (Thin Film Transistor Liquid Crystal Display) module designed for industrial applications. Featuring VGA (640×480) resolution with an RGB vertical stripe pixel arrangement, this display delivers reliable color performance with a replaceable CCFL backlight system and a standard parallel RGB interface.

Category Details
Brand LG Display
Model P/N LB104V03-TD01
Diagonal Size 10.4"
Panel Type a-Si TFT-LCD, LCM
Resolution 640(RGB)×480, VGA 76PPI
Pixel Format RGB Vertical Stripe
Active Area 211.2(W)×158.4(H) mm
Bezel Opening 215.6(W)×163.0(H) mm
Outline Dim. 236(H)×180(V)×10.5(D) mm
Treatment Antiglare, Hard coating (3H)
Luminance 400 cd/m² (Typ.)
Contrast Ratio 300 : 1 (Typ.) (TM)
View Direction 6 o'clock
Response Time 5/25 (Typ.)(Tr/Td)
Viewing Angle 60/60/40/50 (Typ.)(CR≥10)
Operating Mode TN, Normally White, Transmissive
Support Color 262K 60% NTSC
Light Source CCFL [2 pcs], 40K hours, W/O Driver
Weight 490g (Max.)
Frame Rate 60Hz
Touch Panel Without
Interface Type Parallel RGB (1 ch, 6-bit), 30 pins Connector
Power Supply 3.3V (Typ.)
Operating Temp. 0 ~ 50 °C
Storage Temp. -20 ~ 60 °C

Typical Applications

  • Industrial control panels and HMI (Human-Machine Interface)

  • Factory automation systems and process controllers

  • Test and measurement instruments

  • Medical diagnostic equipment

  • Point-of-sale (POS) terminals

  • Embedded systems requiring reliable VGA display solutions

  • Legacy system replacements
