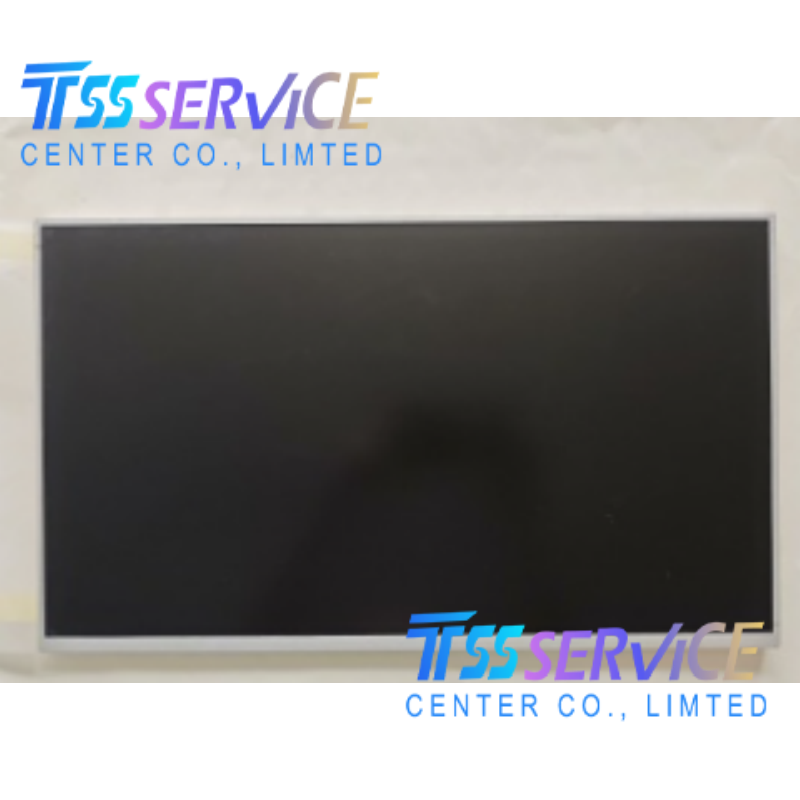

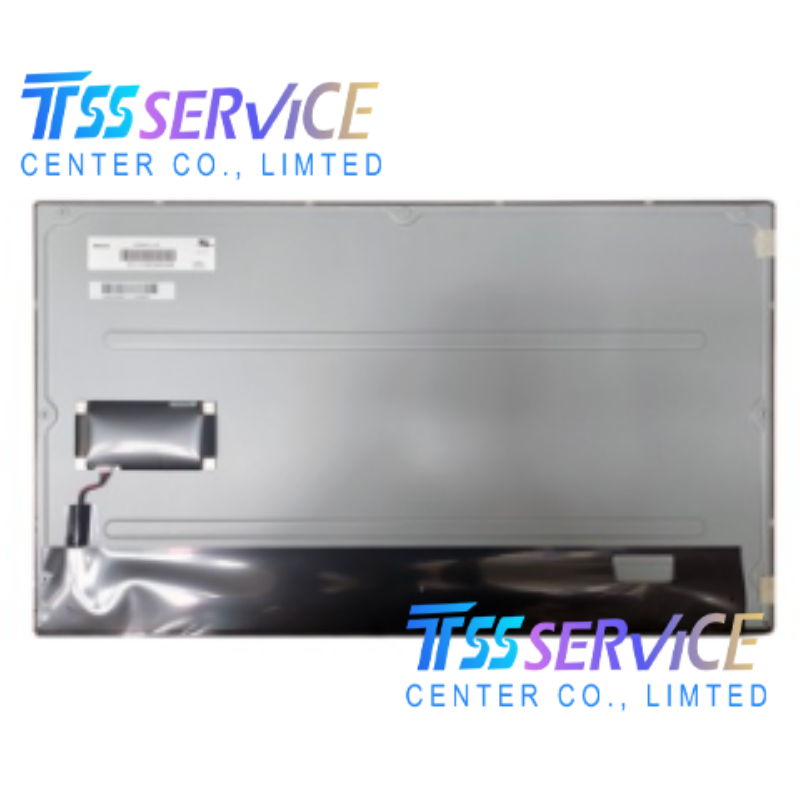

INNOLUX NEW 23.8 inch LCD Display Panel G238HCJ-L02 for Industrial
| Parameter |
Specification |
Remarks |
| Model Name |
G238HCJ-L02 |
Manufacturer: Innolux |
| Display Size |
23.8 inch |
Active Matrix a-Si TFT-LCD |
| Resolution |
1920 (RGB) × 1080 (FHD) |
16:9 Aspect Ratio |
| Brightness |
250 cd/m² (Typ.) |
Standard brightness for indoor use |
| Contrast Ratio |
1000:1 (Typ.) |
High contrast for clear images |
| Operating Temp. |
0°C ~ 50°C |
Standard commercial temperature range |
| Storage Temp. |
-20°C ~ 60°C |
|
| Backlight |
LED (WLED) |
Edge-lit, 30K hours lifespan (Typ.) |
| Interface |
LVDS (8 ch, 8-bit) |
51-pin connector (JST) |
| Active Area |
527.04 (W) × 296.46 (H) mm |
|
| Viewing Angle |
85/85/85/85 (Typ.)(U/D/L/R) |
IPS Technology for wide viewing |
| Features |
Open Frame, IPS Panel |
Designed for system integration |
The Innolux G238HCJ-L02 is specifically recommended for applications requiring a large, high-resolution display for indoor environments:
-
Industrial Control & Monitoring
- Scenarios: Factory automation HMIs, control room monitoring walls, and process visualization systems.
- Advantage: The Full HD resolution provides ample screen space for complex data and graphics, while the IPS panel ensures clarity from various viewing angles on the factory floor.
-
Commercial & Retail Displays
- Scenarios: Digital signage, point-of-information (POI) kiosks, and self-service terminals.
- Advantage: The 23.8-inch size is ideal for customer-facing applications, offering a large canvas for advertising and interactive content in retail or public spaces.
-
Medical & Office Equipment
- Scenarios: Medical imaging workstations (for non-diagnostic viewing), office information displays, and video conferencing systems.
- Advantage: The high resolution and good color consistency of the IPS panel make it suitable for displaying detailed information and high-quality video.
INNOLUX
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
