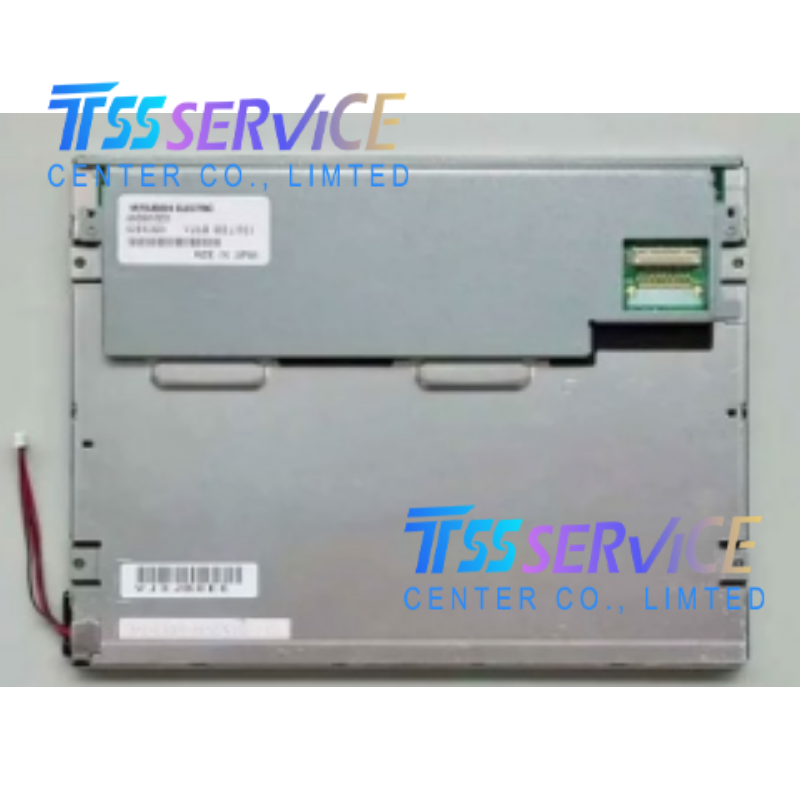

Mitsubishi NEW 8.4 inch LCD Display Panel AA084VG03 for Industrial
| Parameter |
Specification |
Remarks |
| Model Name |
AA084VG03 |
Manufacturer: Mitsubishi |
| Display Size |
8.4 inch |
Active Matrix a-Si TFT-LCD |
| Resolution |
640 (RGB) × 480 (VGA) |
4:3 Aspect Ratio |
| Brightness |
800 cd/m² (Typ.) |
Ultra-high brightness, sunlight readable |
| Contrast Ratio |
600:1 (Typ.) |
Clear image quality |
| Operating Temp. |
-30°C ~ +80°C |
Wide temperature range for extreme environments |
| Storage Temp. |
-30°C ~ +80°C |
|
| Backlight |
LED (WLED) |
Long lifespan, energy-efficient |
| Interface |
TTL (Parallel RGB) |
31-pin connector (JST) |
| Active Area |
170.88 (W) × 128.16 (H) mm |
|
| Viewing Angle |
60/80/80/80 (Typ.)(U/D/L/R) |
Optimized for 6 o'clock viewing |
| Features |
Wide Temp, High Brightness |
Outdoor visible, robust design |
The Mitsubishi AA084VG03 is specifically recommended for applications requiring high visibility and durability in harsh environments:
-
Outdoor & High-Brightness Displays
- Scenarios: Outdoor kiosks, portable test equipment, and marine navigation displays.
- Advantage: The 800 nits brightness ensures the screen is clearly readable even under direct sunlight, a critical feature for outdoor operations.
-
Transportation & Vehicle Systems
- Scenarios: Heavy-duty vehicle dashboards, construction machinery monitors, and railway control panels.
- Advantage: The wide operating temperature (-30°C to +80°C) guarantees reliable performance in freezing winters or hot summers, while the robust construction handles vibration.
-
Industrial Automation
- Scenarios: Factory floor Human-Machine Interfaces (HMIs) and machinery control units.
- Advantage: The TTL interface provides stable signal transmission in electrically noisy industrial environments, and the long-life LED backlight reduces maintenance needs.
