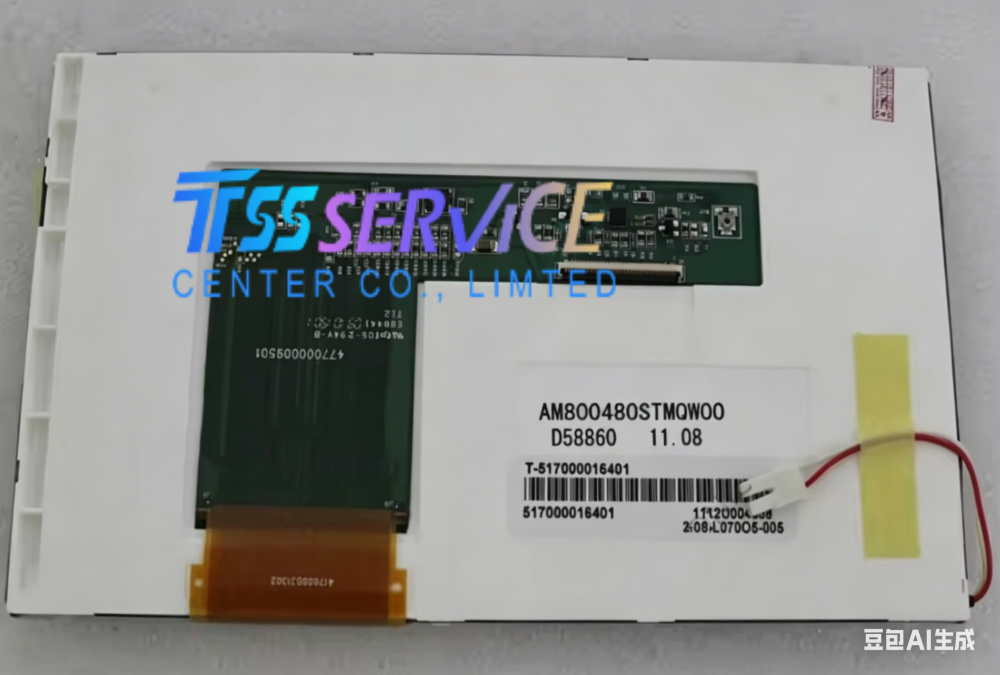

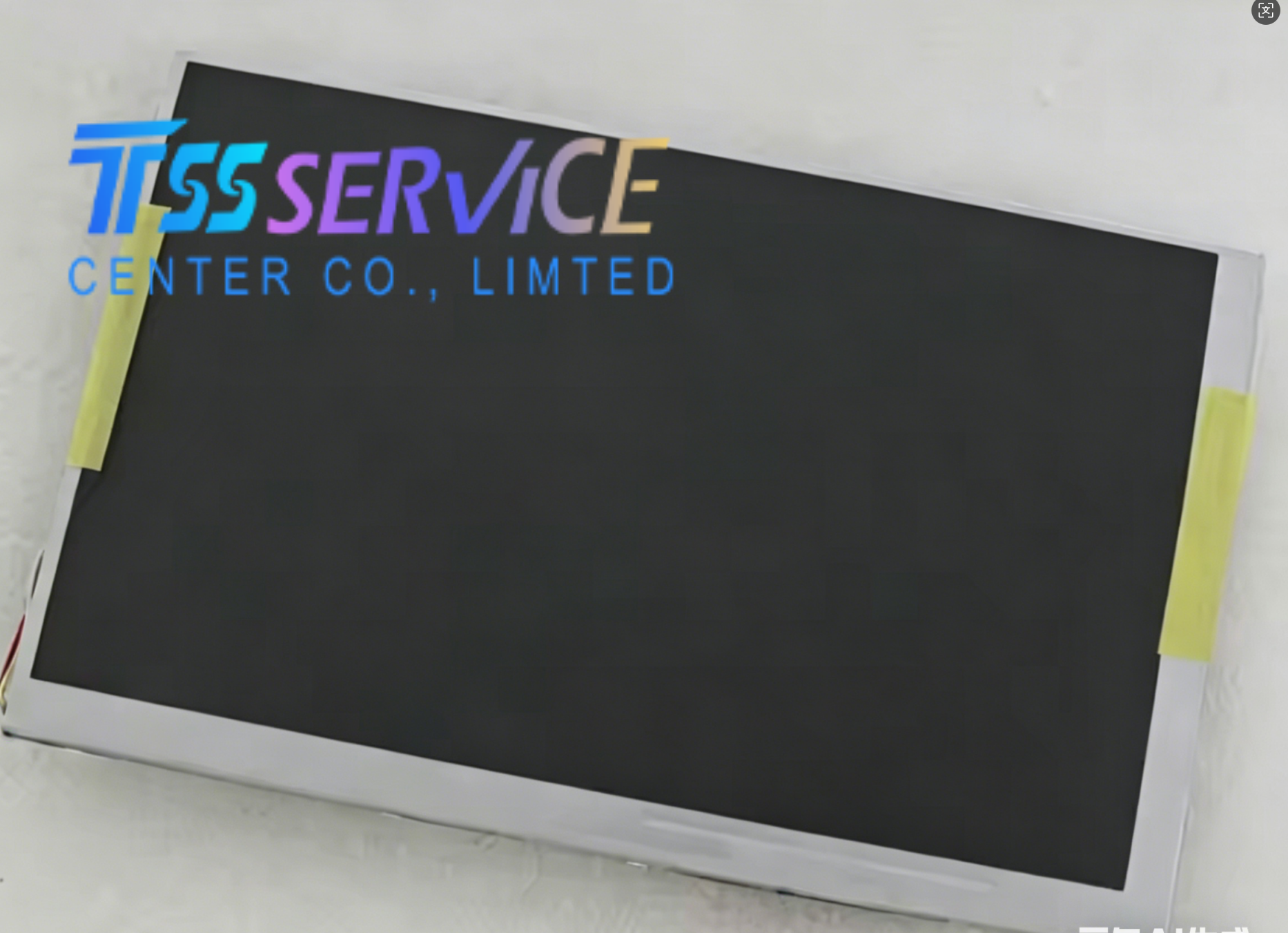

AM-800480STMQW-00 7.0 inch 800×480 Industrial LCD Display for AMPIRE AM800480STMQW00

Name: AM-800480STMQW-00 7.0 inch 800×480 Industrial LCD Display for AMPIRE AM800480STMQW00
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: AM-800480STMQW-00
Price: 42 USD
Availability: InStock

SKU: AM-800480STMQW-00

1，Condition: New，Grade A

2，Description: AM-800480STMQW-00 7.0 inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$43.00~~ $42.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The AM-800480STMQW-00 is a 7.0-inch industrial TFT-LCD display module manufactured by AMPIRE, a trusted name in display solutions. Featuring WVGA resolution (800×480) with a 15:9 aspect ratio, this panel delivers sharp image quality and reliable performance, making it an excellent choice for a wide range of industrial and commercial applications.

Parameter	Specification
Manufacturer	AMPIRE
Model No.	AM-800480STMQW-00
Screen Size	7.0 inch
Screen Type	a-Si TFT-LCD, LCM
Number of dots	800(RGB)×480, WVGA, 15:9
Dot Layout	RGB Vertical Stripe
Active Area	152.4 × 91.44 mm (H×V)
Outline Area	165 × 104.44 × 5.7 mm (H×V×D)
Luminance	350 cd/m² (Typ.)
Contrast Ratio	400 : 1 (Typ.) (TM)
Viewing Angle	70/70/70/60 (Typ.) (CR≥10)
Display Type	TN, Normally White, Transmissive
Good View at	12 o'clock
Display Colors	262K
Response (ms)	5/11 (Typ.) (Tr/Td)
Backlight	3S8P WLED, 20K hrs, No Driver
Refresh Rate	60 Hz
Touchscreen	Without
Signal Type	Parallel RGB (1 ch, 6-bit), 40 pins Connector
Voltage Supply	3.3V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ 80°C; Operating Temp.: -20 ~ 70°C

Typical Applications

Industrial control panels and HMIs
Medical equipment displays
Test and measurement instruments
POS (Point of Sale) terminals
Home automation interfaces
Automotive infotainment systems
Portable handheld devices
Kiosk and vending machine displays
