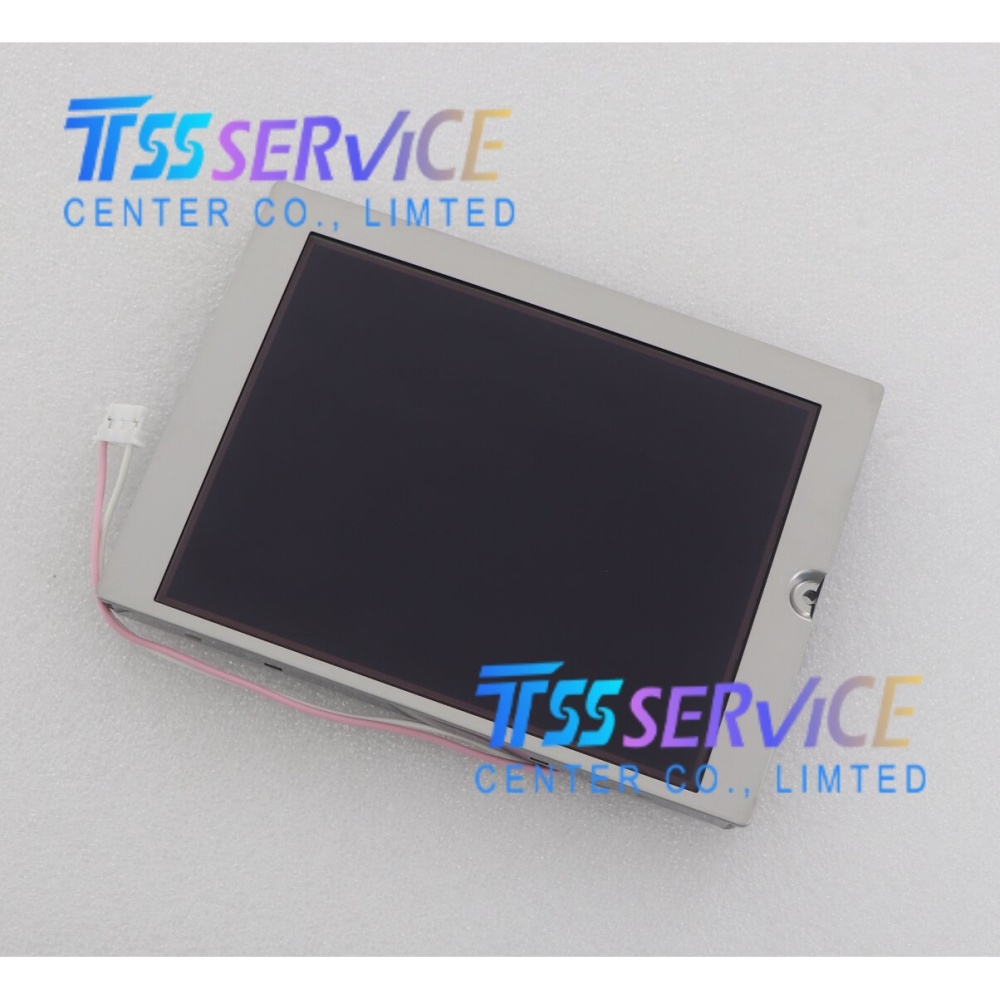

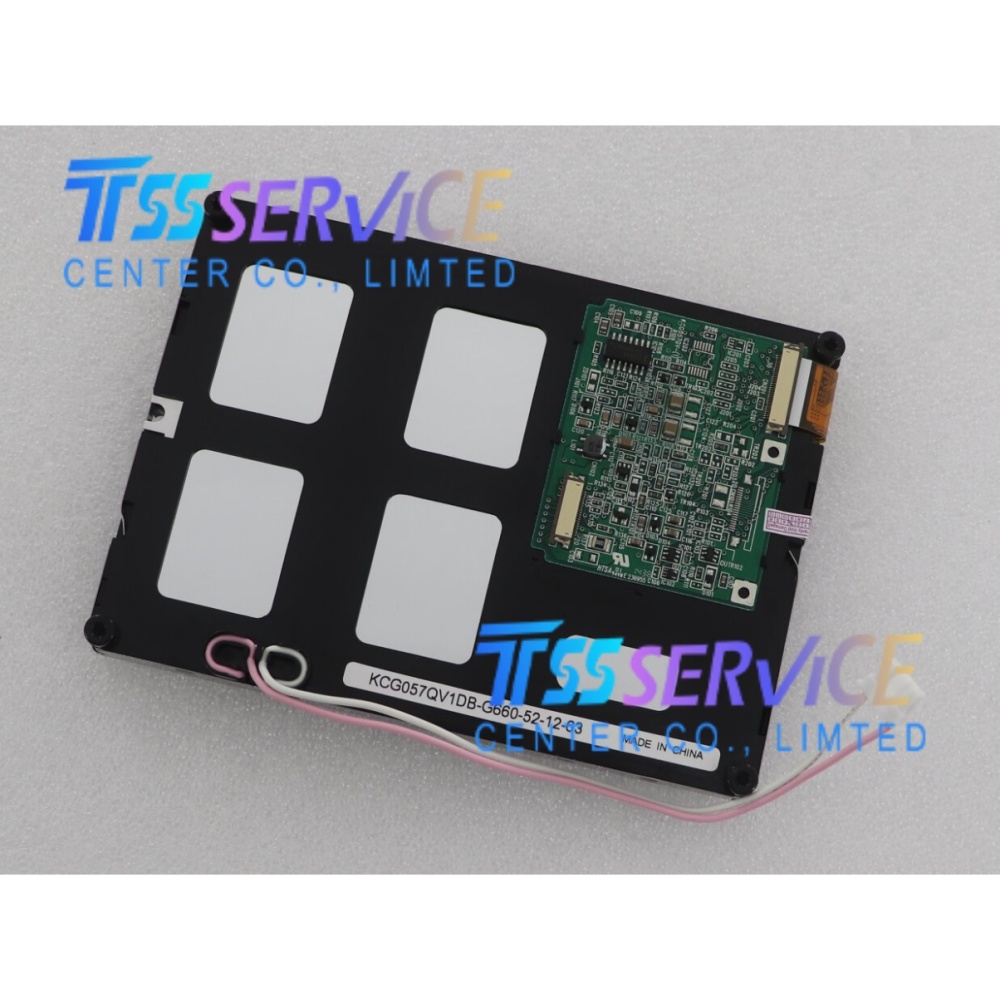

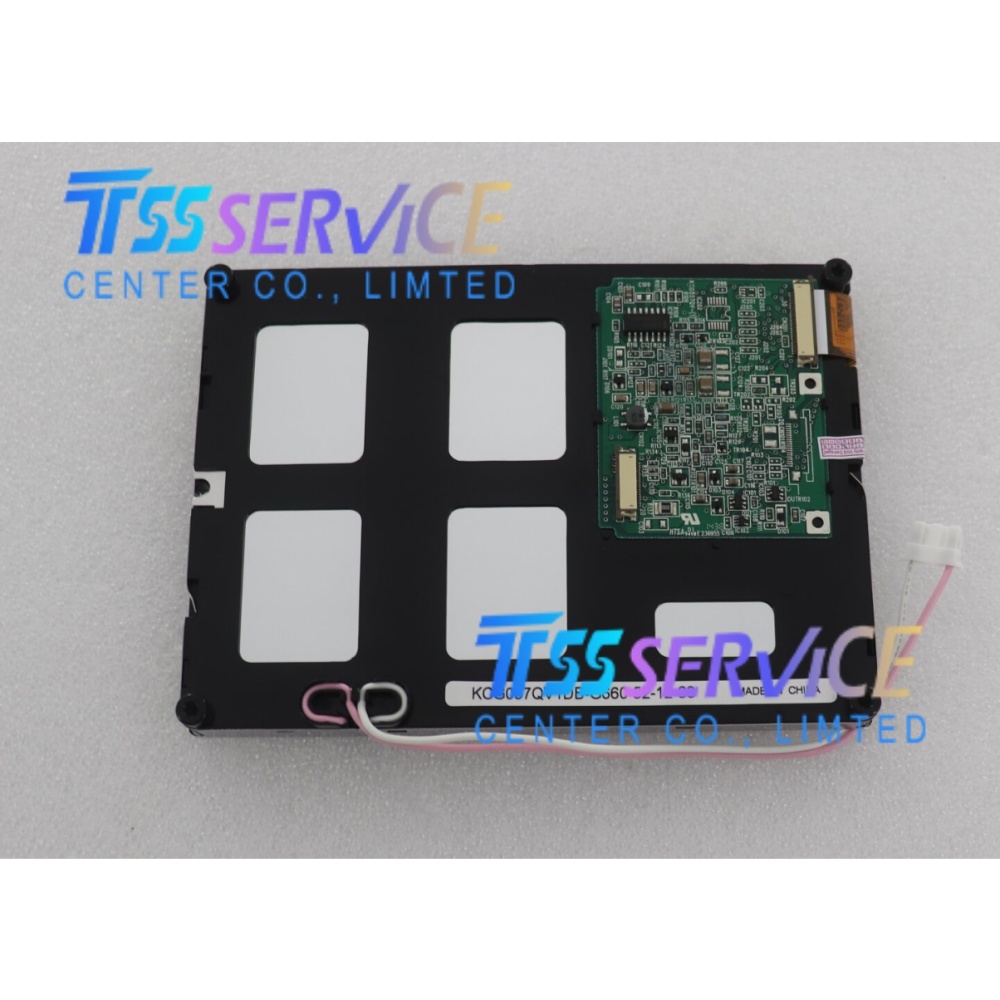

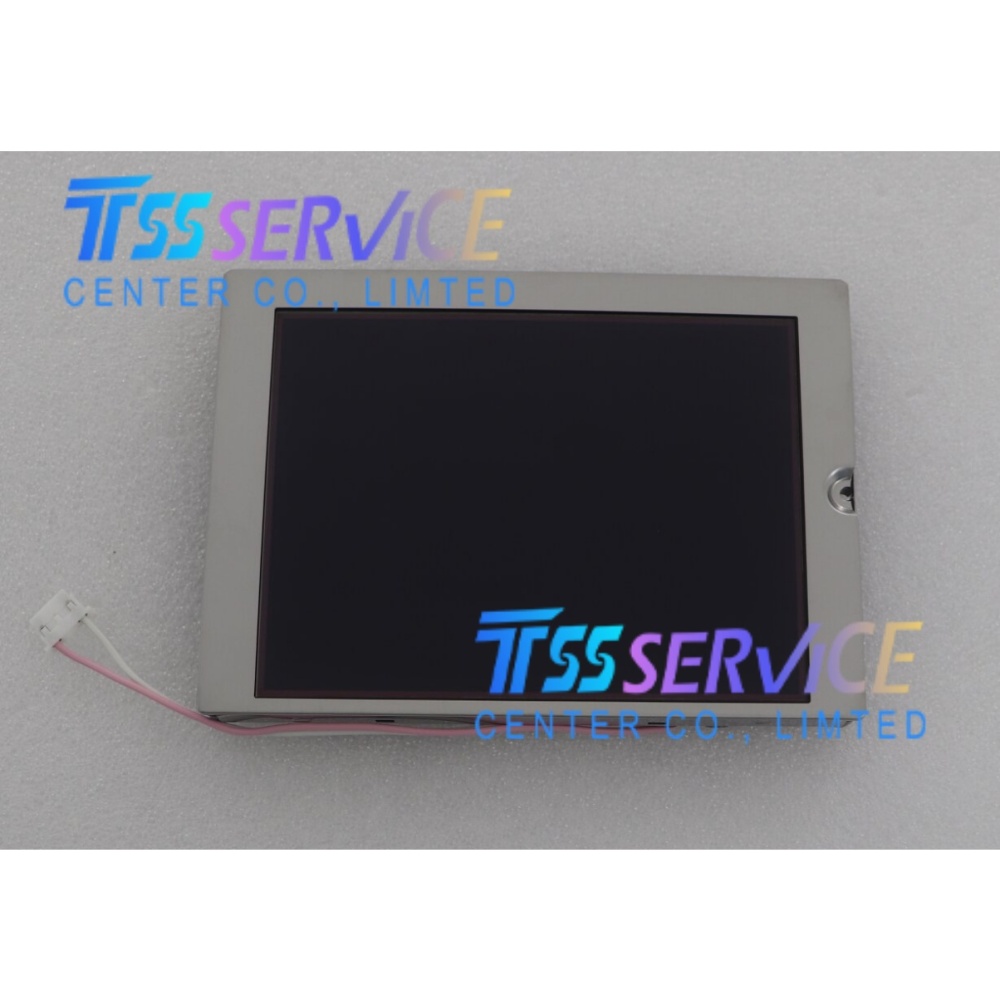

KYOCERA NEW 5.7 inch LCD Display Panel KCG057QV1DB-G57-6Y-29-15 for Industrial
| Parameter |
Specification |
| Brand |
Kyocera |
| Model |
KCG057QV1DB-G57-6Y-29-15 |
| Display Type |
5.7" CSTN-LCD Module (Pseudo Color) |
| Resolution |
320 × 240 pixels (QVGA) |
| Outline Dimension |
144.0 (W) × 104.8 (H) × 13.2 (D) mm |
| Active Area |
115.2 (W) × 86.4 (H) mm |
| Brightness |
400 cd/m² (Typ.) |
| Contrast Ratio |
55:1 (Typ.) |
| Interface |
Parallel Data (1ch, 8-bit), 20 pins |
| Supply Voltage |
3.3V / 5.0V (Typ.) |
| Backlight |
1 pcs CCFL (Cold Cathode Fluorescent Lamp) |
| Operating Temp. |
0°C to 60°C |
| Storage Temp. |
-20°C to 60°C |
-
Industrial Automation & CNC Systems
Widely used as the core display for CNC (Computer Numerical Control) systems, injection molding machines, textile machinery, printing machines, and various automated industrial control panels.
-
Medical Equipment
Integrated into various medical instruments and monitoring devices where a stable and reliable pseudo-color display is required.
-
Commercial & Self-Service Terminals
Commonly found in ATMs (Automated Teller Machines), receipt printers, and other self-service kiosk terminals.
-
Automotive & Surveillance
Applied in vehicle navigation systems and security monitoring equipment displays.
KYOCERA
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
