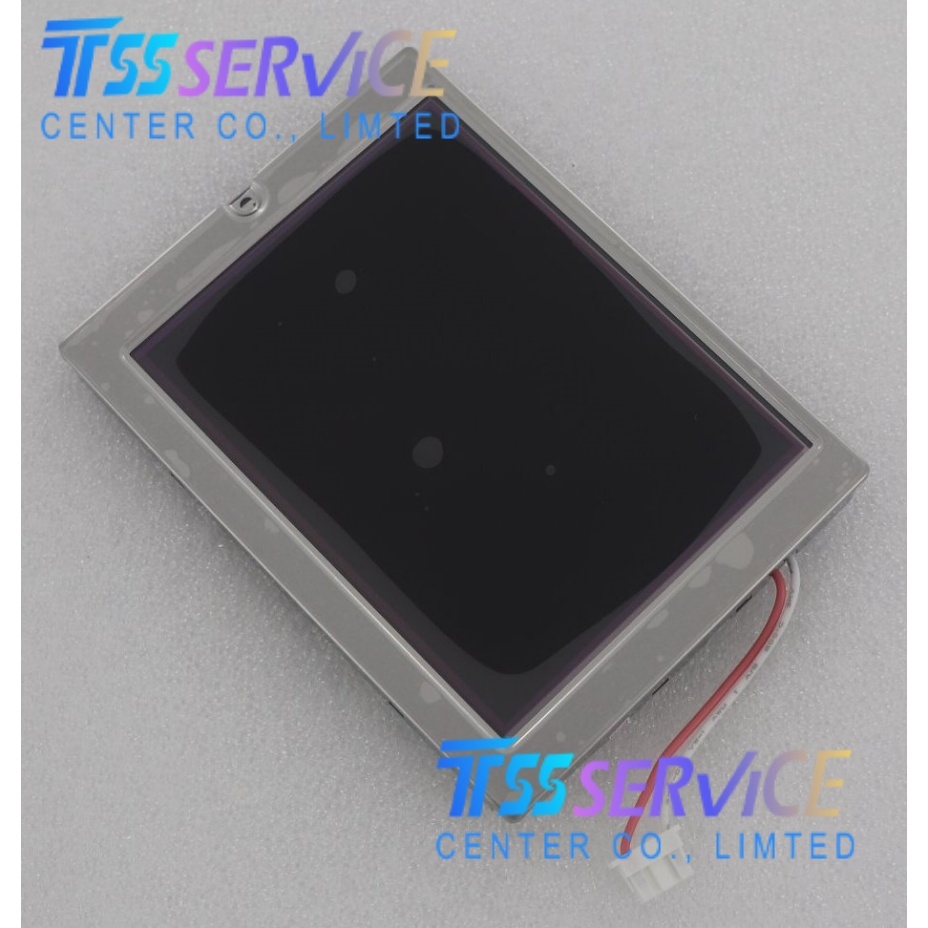

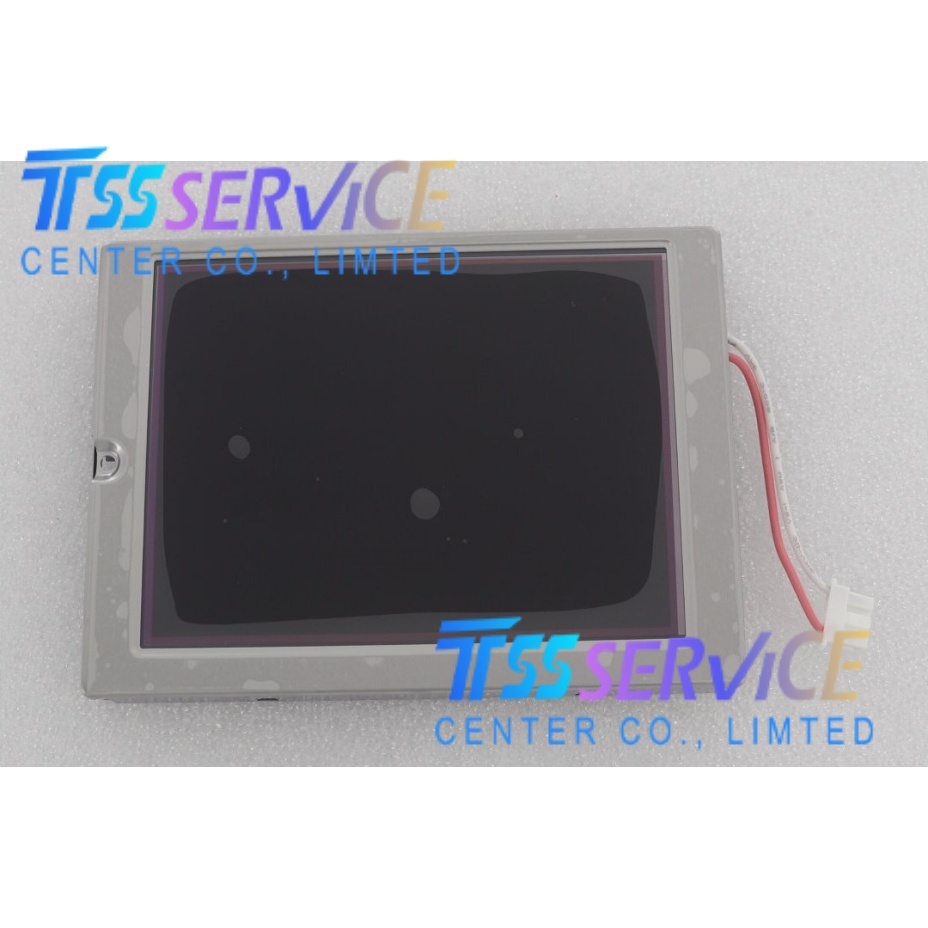

KYOCERA NEW 4.7 inch LCD Display Panel KCG047QV1AA-A210-W-26-26-2 for Industrial
| Parameter |
Specification |
| Product Model |
KCG047QV1AA-A210 (Base Model) |
| Manufacturer |
Kyocera |
| Screen Size |
4.7 inch (Diagonal) |
| Display Type |
CSTN-LCD, Transmissive, Normally Black |
| Resolution |
320 (RGB) × 240 [QVGA] |
| Aspect Ratio |
4 : 3 |
| Active Area |
95.98 mm (H) × 71.98 mm (V) |
| Outline Dimension |
122.4 mm × 90.0 mm × 11.4 mm (Typ.) |
| Display Color |
Pseudo Color |
| Brightness |
160 cd/m² (Typical) |
| Contrast Ratio |
30 : 1 (Typical) |
| Viewing Angle |
Top/Bottom/Left/Right: 50/50/15/35 (Typ.) |
| Backlight Type |
CCFL (1 pcs, approx. 54,000 hours lifespan) |
| Interface |
Parallel Data |
| Supply Voltage |
3.3V / 5.0V (VDD) |
| Operating Temperature |
0°C to 50°C |
the KCG047QV1AA-A210 series is widely used in the following specific scenarios:
1. Industrial CNC Control Systems
- Application: Embedded as the primary status display in Computer Numerical Control (CNC) machines, such as those from Fanuc, Siemens, or Mitsubishi systems.
- Function: Displays real-time machining coordinates, G-code program status, spindle speed, and feed rates. Its reliable CSTN technology ensures stable text display during long machining operations.
2. Medical Instrumentation
- Application: Integrated into portable or benchtop medical devices, such as patient monitors, infusion pumps, and laboratory analyzers.
- Function: Provides a clear interface for medical staff to view vital signs, set dosage parameters, and monitor device operational status. The 4.7-inch size is compact enough for mobile medical carts.
3. Self-Service Terminals & Vending Machines
- Application: Used in automated teller machines (ATMs), ticket vending machines, and industrial self-service kiosks.
- Function: Acts as the user interface for guiding customers through transaction steps, displaying menus, and providing system feedback.
4. Handheld PDAs and Industrial Scanners
- Application: Built into rugged handheld Personal Digital Assistants (PDAs) used in warehousing, logistics, and field services.
- Function: Displays inventory data, barcode scanning results, and work orders. The relatively low power consumption of the CSTN panel helps extend the battery life of these portable devices.
