HannStar HSD088KPW1-A00 8.8 inch 480×1920 LCD Display Screen For Industrial

Name: HannStar HSD088KPW1-A00 8.8 inch 480×1920 LCD Display Screen For Industrial
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: HSD088KPW1-A00
Price: 39 USD
Availability: InStock

SKU: HSD088KPW1-A00

Model: HSD088KPW1‑A00
Diagonal Size: 8.8 inches (wide bar type)
Panel Type: a‑Si TFT‑LCD, IPS Pro, Normally Black, Transmissive
Resolution: 1920 × 480 (RGB), 222 PPI

0.0 (0 Reviews)

0 Sold

~~$40.00~~ $39.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

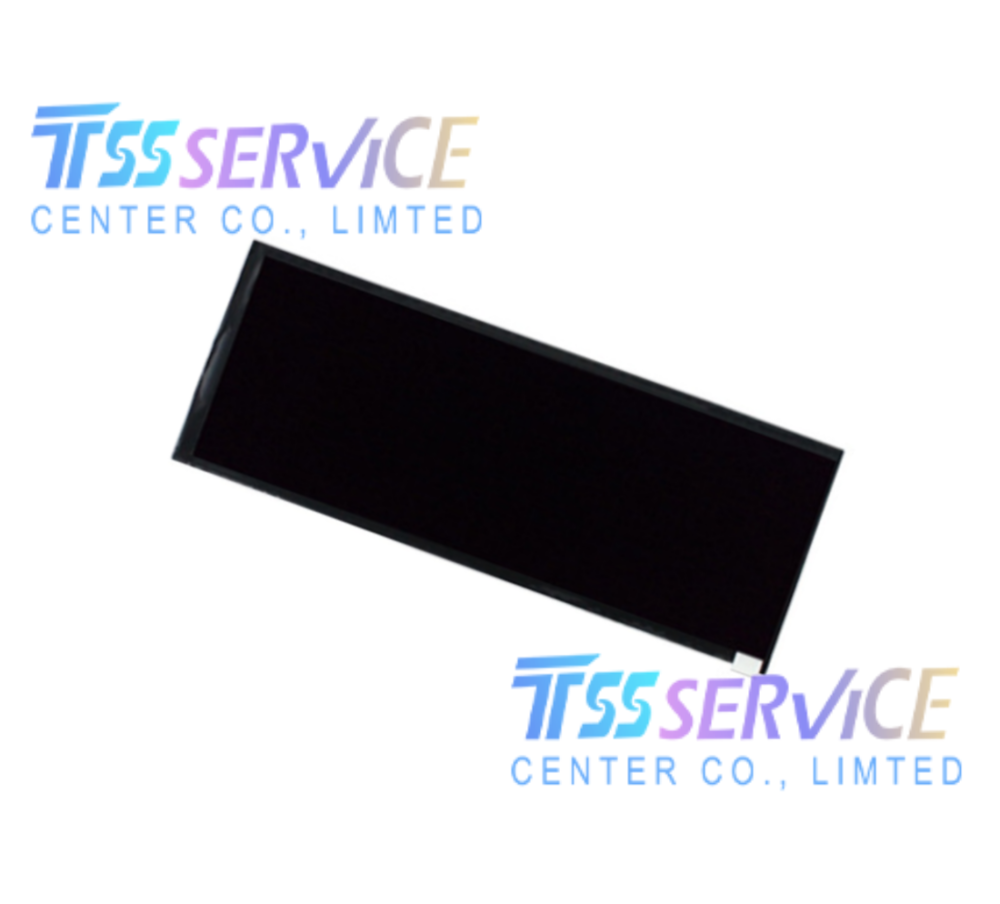

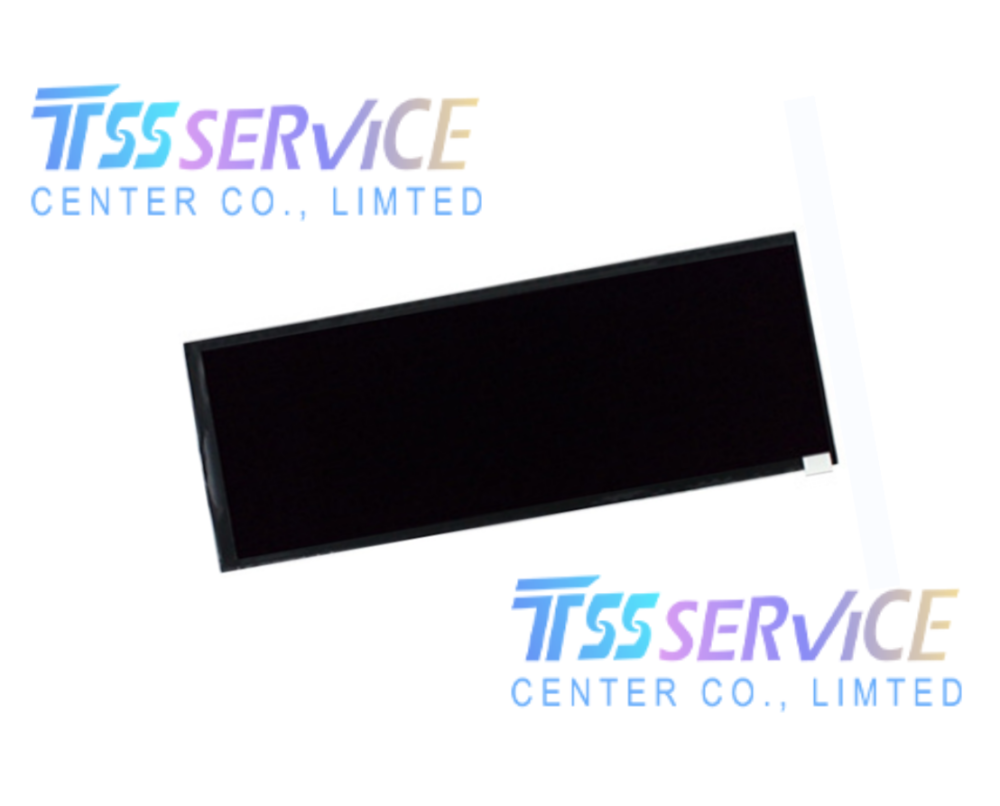

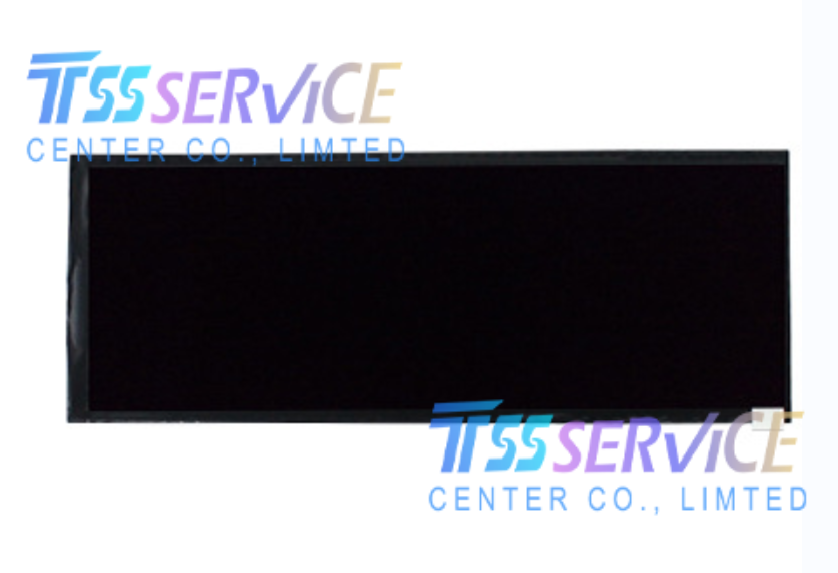

HannStar HSD088KPW1-A00 8.8 inch 480×1920 LCD Display Screen For Industrial

Parameter	Details
Model	HSD088KPW1‑A00
Brand	HannStar
Diagonal Size	8.8 inches (wide bar type)
Panel Type	a‑Si TFT‑LCD, IPS Pro, Normally Black, Transmissive
Resolution	1920 × 480 (RGB), 222 PPI
Aspect Ratio	4:1 (wide horizontal bar)
Active Area	218.88 (W) × 54.72 (H) mm
Outline Dimensions	231.3 (W) × 64.3 (H) × 6.4 (D) mm
Brightness	600 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.)
Viewing Angle	85°/85°/85°/85° (L/R/U/D, CR ≥ 10)
Color Depth	16.7M colors (RGB 8‑bit)
Backlight	WLED, integrated, long life
Interface	LVDS (40 pins)
Operating Temperature	−20 °C ~ +70 °C
Storage Temperature	−30 °C ~ +80 °C
Features	Ultra‑wide viewing angle, high brightness, industrial grade, wide temperature range

Applications

Automotive displays: Instrument clusters, center console wide bar screens, rear‑seat entertainment, Heads‑Up Display (HUD) peripherals.
Industrial control: Injection molding machines, CNC equipment, HMI panels, factory automation terminals.
Medical equipment: Patient monitors, diagnostic devices, medical instrument displays.
Smart home & commercial: Smart doorbells, video intercoms, shelf label displays, advertising bar screens.
Marine & special vehicles: Ship navigation displays, construction machinery dashboards, agricultural vehicle terminals.
