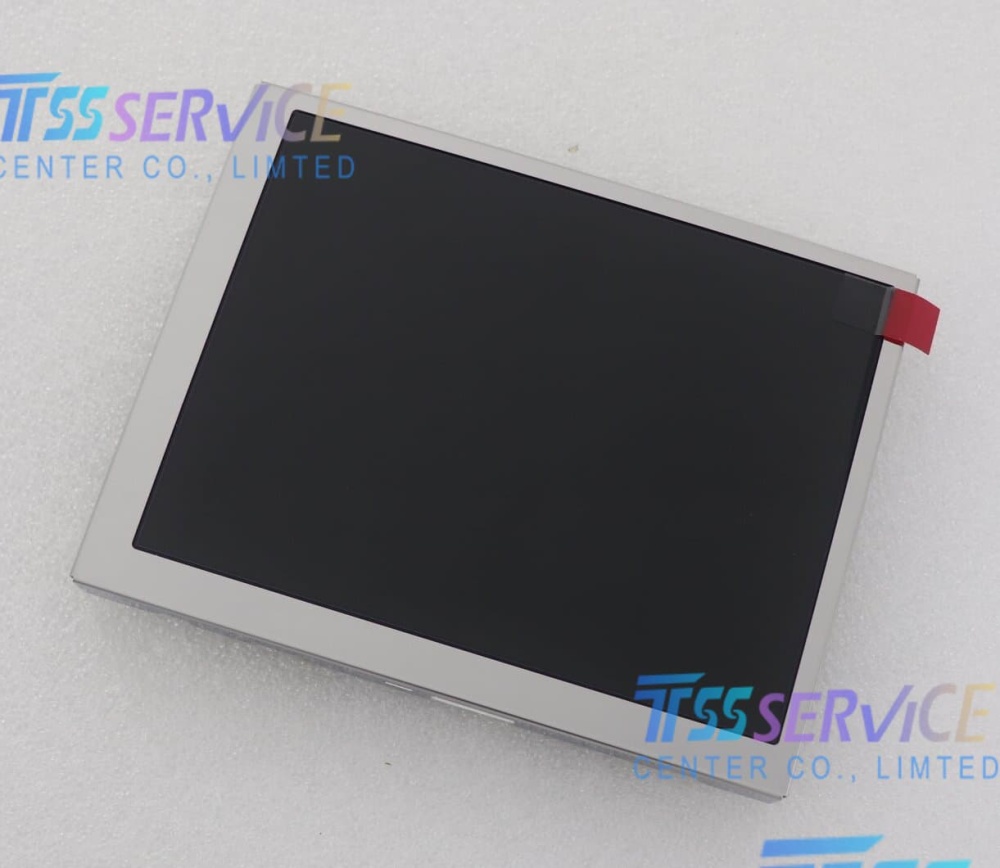

AMPIRE NEW 5.7 inch LCD Display Panel AM-640480GHTNQW-03H-A for Industrial
| Parameter |
Specification / Description |
| Brand |
AMPIRE |
| Model Number |
AM-640480GHTNQW-03H-A |
| Product Type |
a-Si TFT-LCD, Liquid Crystal Module |
| Display Size |
5.7 inch (Diagonal) |
| Resolution |
640(RGB) × 480 [VGA] (Note: Public data shows high-res variants, but this model follows standard VGA for 5.7") |
| Outline Dimensions |
Approx. 144.0(W) × 107.0(H) mm (Standard for 5.7" industrial panels) |
| Display Area |
Approx. 115.2(W) × 86.4(H) mm |
| Brightness |
400 cd/m² (Typ.) |
| Color Support |
16.7M (16.7 Million colors), 72% NTSC |
| Backlight Type |
WLED, Lifetime: 30,000 hours |
| Interface Type |
LVDS (1 ch, 6-bit or 8-bit), Connector: 30 pins or 40 pins |
| Supply Voltage |
3.3V (Typ.) |
| Operating Temp. |
-20°C to +70°C (Industrial Grade) |
-
- Industrial Automation & Control: Extensively applied in Human-Machine Interfaces (HMI), CNC machine systems (such as Fanuc, Siemens, Mitsubishi control panels), and factory automation equipment displays requiring high durability.
- Medical Equipment: Used in patient monitors, portable diagnostic devices, and medical imaging displays where reliable and clear visualization is critical.
- Transportation & Automotive: Integrated into vehicle navigation systems, dashboard clusters, and intelligent transportation monitoring terminals due to its wide operating temperature range.
- Commercial & Self-service Terminals: Commonly found in ATM machines, vending machines, ticketing kiosks, and handheld PDAs (Personal Digital Assistants).
- Security & Surveillance: Applied in video surveillance monitors and security control panels that require long operational lifespans and stable performance.
AMPIRE
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
