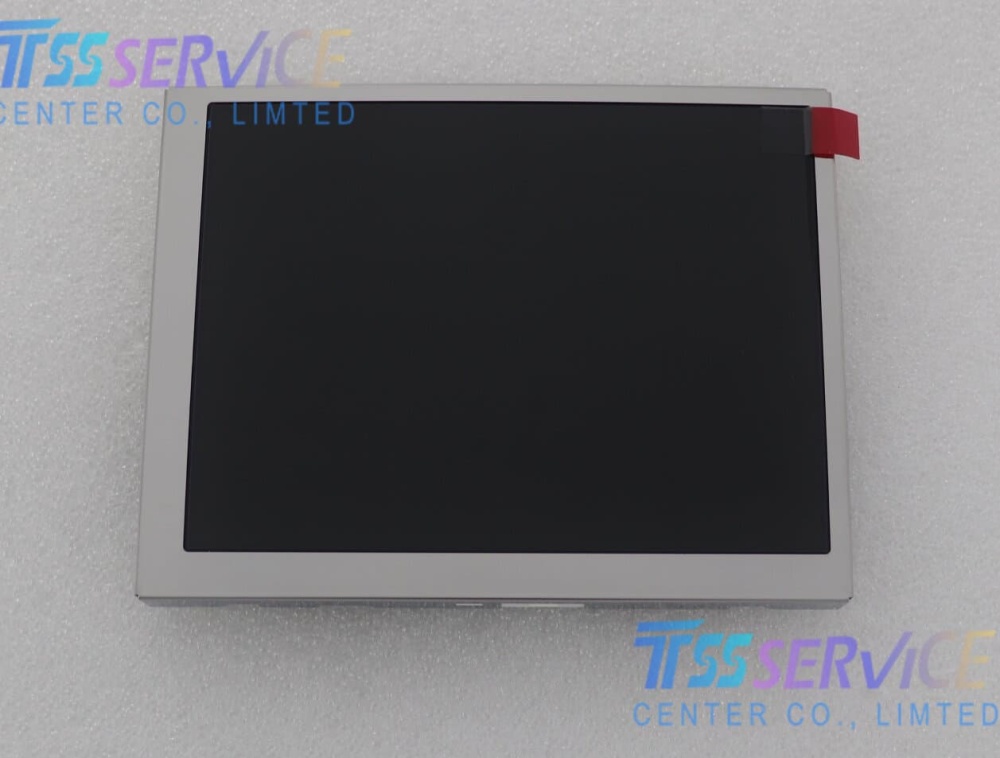

AMPIRE NEW 5.7 inch LCD Display Panel AM640480G2TNQW-00H for Industrial
| Feature |
Specification |
| Model Number |
AM-640480G2TNQW-00H |
| Manufacturer |
Ampire |
| Display Type |
a-Si TFT-LCD, Transmissive, Normally White |
| Resolution |
640 x 480 Pixels (VGA Standard) |
| Screen Size |
5.7 inches (Diagonal) |
| Active Area |
115.2 x 86.4 mm |
| Outline Dimension |
127.00 x 98.43 x 5.80 mm |
| Pixel Pitch |
0.18(H) x 0.18(V) mm |
| Interface Type |
Parallel RGB Interface (TTL) |
| Drive Voltage |
3.3V Logic Supply |
| Backlight Type |
WLED (White LED), typically 6 LEDs in series |
| Brightness |
500 nits (cd/m²) |
| Contrast Ratio |
250:1 (Typical) |
| Display Colors |
262K colors (18-bit RGB) |
| Viewing Angle |
50/50/70/70 (Top/Bottom/Left/Right) |
| Operating Temperature |
-20°C to +70°C |
| Storage Temperature |
-30°C to +80°C |
The AM-640480G2TNQW-00H is engineered for reliable color display and stable performance in various industrial settings. Its standard VGA resolution and 5.7-inch form factor make it a highly versatile choice for legacy system upgrades and new embedded designs. Here are its primary applications:
-
Industrial HMI & Control Panels:
This module is extensively used in Human-Machine Interfaces (HMIs) for factory automation. The 640x480 resolution provides ample space for intuitive graphical user interfaces (GUIs), allowing operators to easily monitor machinery status, view real-time process data, and control complex systems with clear visual feedback.
-
Medical Imaging & Monitoring Devices:
Due to its accurate color reproduction (262K colors) and high brightness (500 nits), this screen is ideal for portable medical equipment such as patient monitors, ultrasound machines, and diagnostic analyzers. Medical professionals can clearly interpret vital signs, waveforms, and imaging results even in well-lit hospital environments.
-
Automotive & Transportation Displays:
With a robust operating temperature range of -20°C to +70°C, this display is perfectly suited for automotive electronics. It is commonly integrated into vehicle dashboard clusters, GPS navigation units, and rear-seat entertainment systems, ensuring stable visibility and performance despite extreme temperature fluctuations inside a vehicle.
-
Test & Measurement Instruments:
The sharp VGA resolution makes it an excellent choice for digital oscilloscopes, spectrum analyzers, and network testers. Engineers can view detailed signal waveforms, measurement grids, and numerical readouts simultaneously with high precision, greatly enhancing the efficiency of electronic testing and debugging.
-
Legacy System Upgrades & Replacements:
As a classic and widely adopted 5.7-inch VGA panel, the AM-640480G2TNQW-00H is frequently sought after for Maintenance, Repair, and Operations (MRO). It serves as a direct replacement for aging displays in older industrial machinery, extending the lifespan of critical equipment without requiring costly hardware redesigns.
AMPIRE
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
