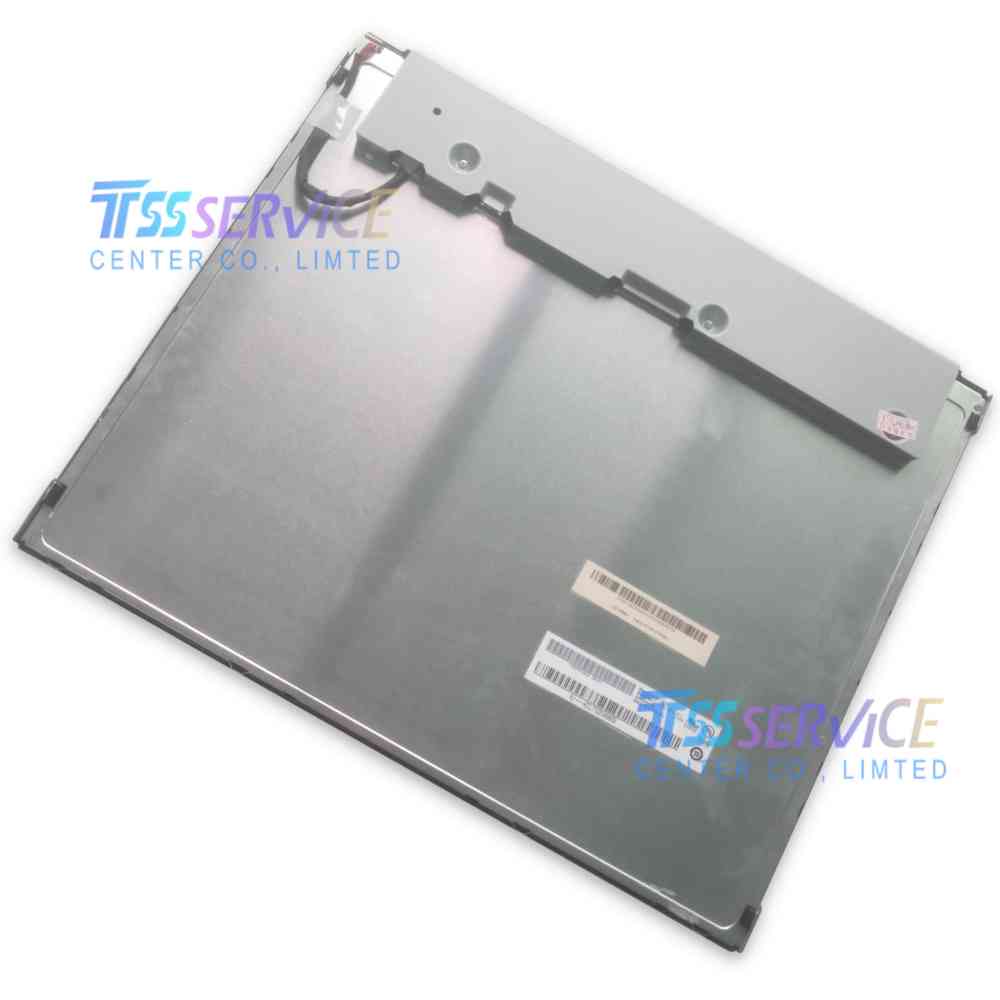

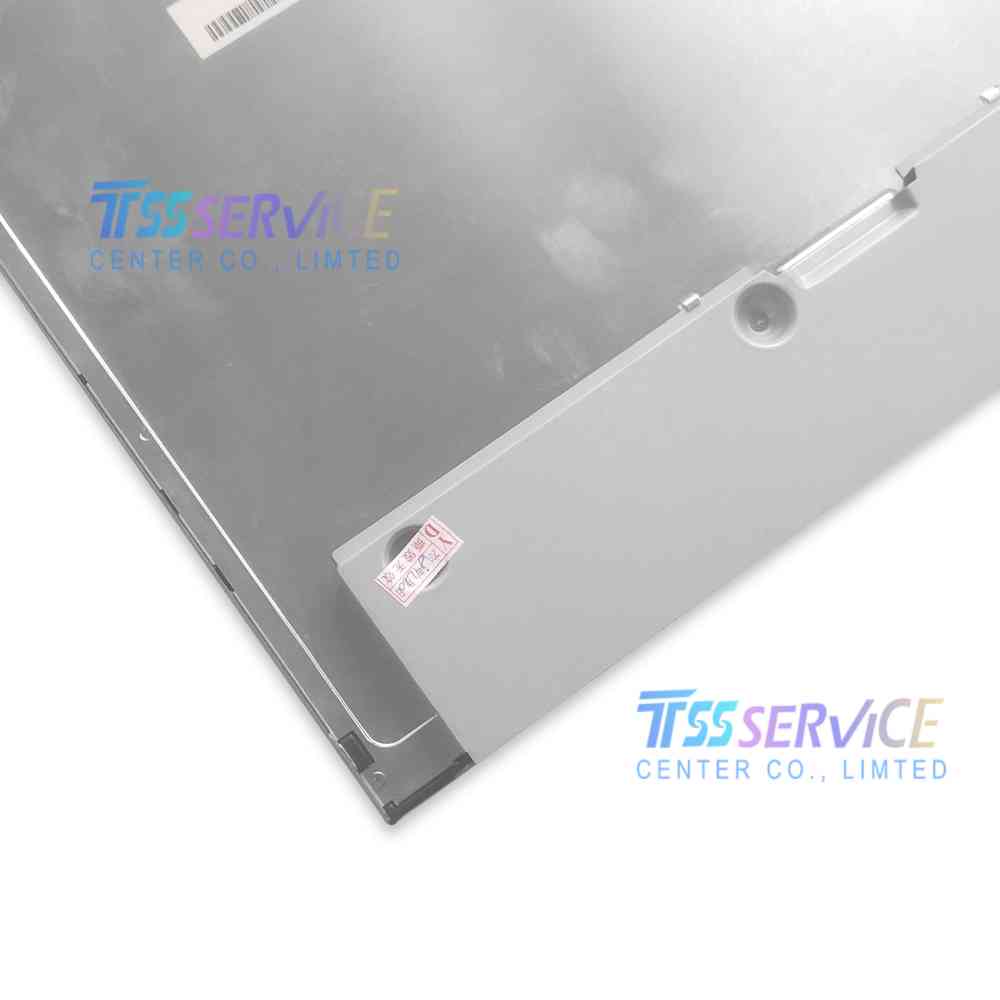

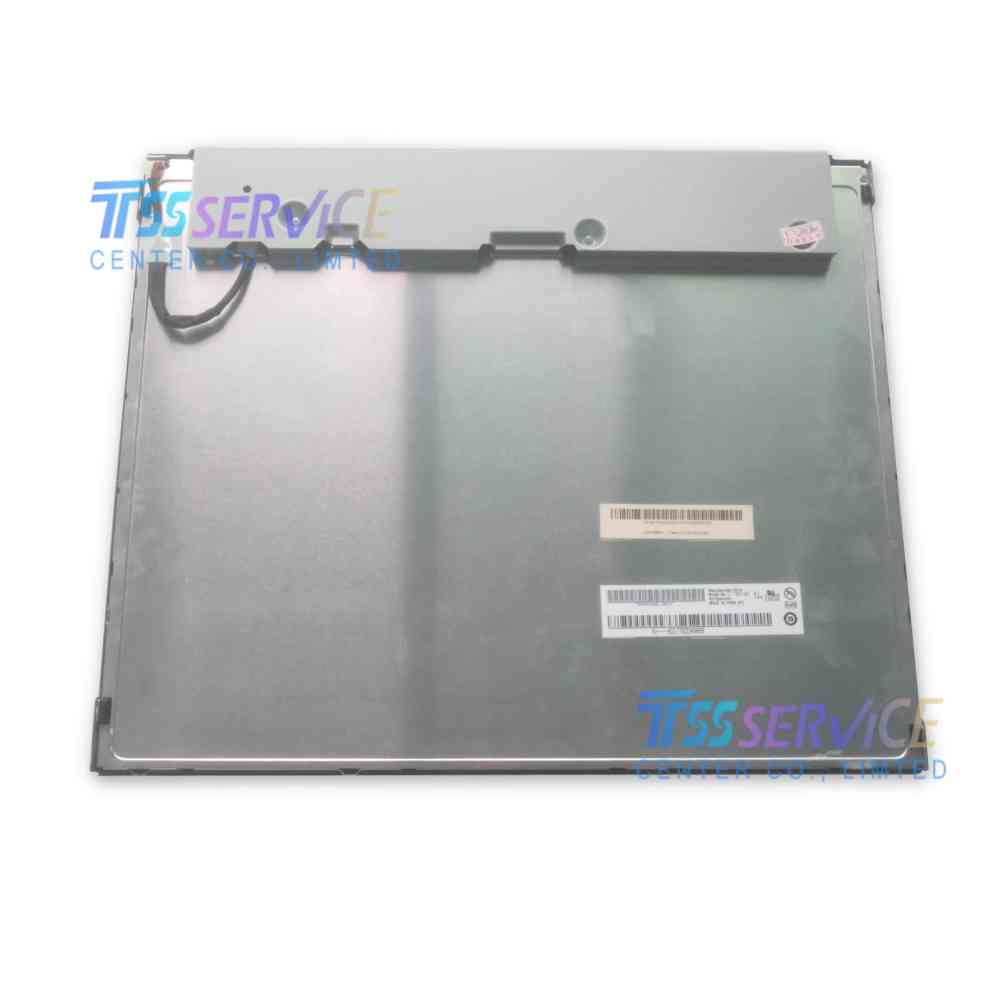

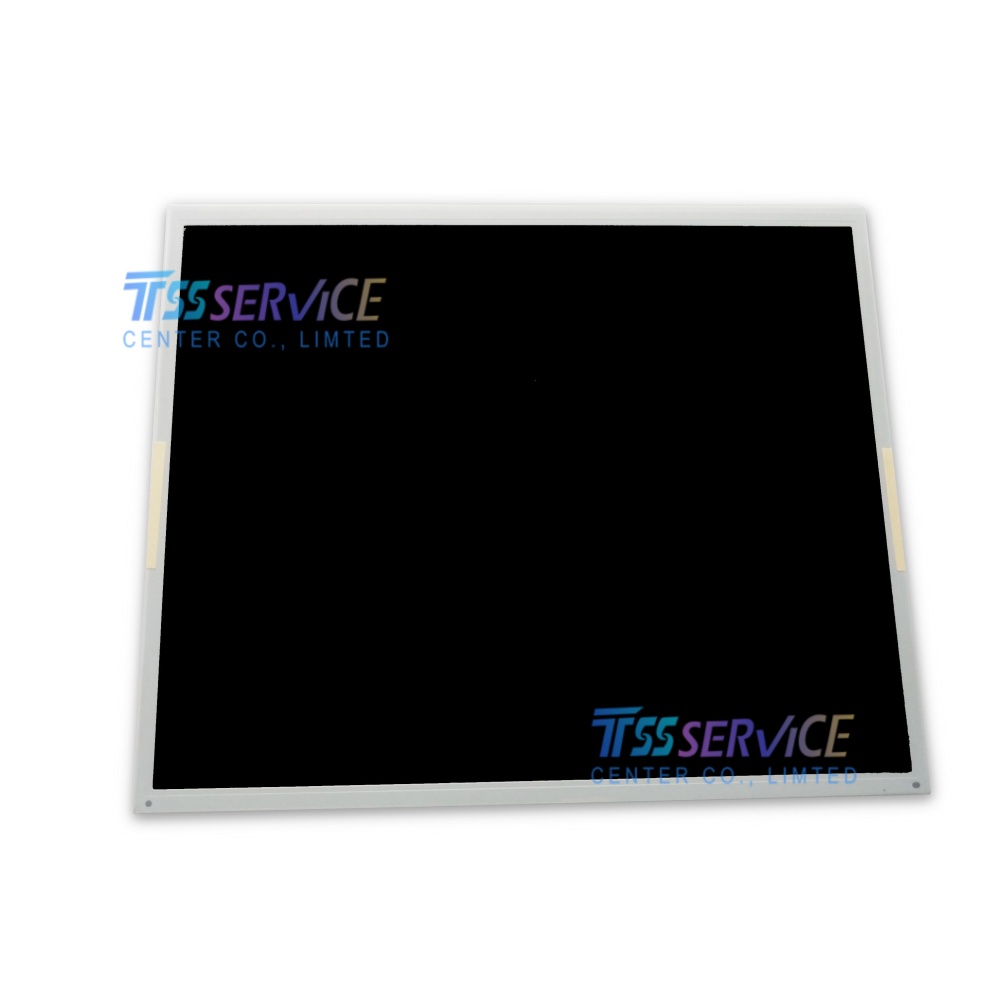

G170EG01 V1 17.0‘’ 1280×1024 Lcd Display Panel for AUO

Name: G170EG01 V1 17.0‘’ 1280×1024 Lcd Display Panel for AUO
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: G170EG01 V104
Price: 120 USD
Availability: InStock

SKU: G170EG01 V104

Model P/N：G170EG01 V1
Diagonal Size：17.0''
Panel Type： a-Si TFT-LCD, LCM
Resolution：1280(RGB)×1024, SXGA 96PPI
Pixel Format：RGB Vertical Stripe
Interface Type：LVDS (1 ch, 8-bit) 30 pins Connector

0.0 (0 Reviews)

0 Sold

~~$125.00~~ $120.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The AUO G170EG01 V1 is a 17.0-inch a-Si TFT-LCD module engineered by AU Optronics (AUO) for demanding industrial and professional applications . This model combines a wide operating temperature range, excellent color gamut, and an integrated LED driver, making it a versatile solution for factory automation, medical equipment, outdoor kiosks, and other mission-critical environments requiring reliable performance in harsh conditions .

Parameter	Specification
Brand	AUO
Model P/N	G170EG01 V1
Diagonal Size	17.0"
Panel Type	a-Si TFT-LCD, LCM
Resolution	1280(RGB)×1024, SXGA 96PPI
Pixel Format	RGB Vertical Stripe
Active Area	337.92(W)×270.336(H) mm
Bezel Opening	341.6(W)×274.0(H) mm
Outline Size	358.5(W)×296.5(H)×18(D) mm
Surface	Antiglare, Hard coating (3H)
Brightness	350 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.) (TM)
Viewing Angle	80/80/60/80 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	6 o'clock
Response Time	20/10 (Typ.)(Tr/Td)
Display Colors	16.7M 72% NTSC
Lamp Type	WLED , 50K hours , With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	1.35Kgs (Typ.)
Signal Interface	LVDS (2 ch, 8-bit) , 30 pins Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: -30 ~ 85 °C ; Storage Temp.: -30 ~ 85 °C

Applications:
With its wide temperature range, excellent color gamut, and rugged industrial design, the AUO G170EG01 V1 is particularly well-suited for industrial control panels, factory automation equipment, medical devices, outdoor kiosks, marine displays, transportation signage, gaming machines, and other mission-critical applications requiring reliable performance in demanding environmental conditions.
