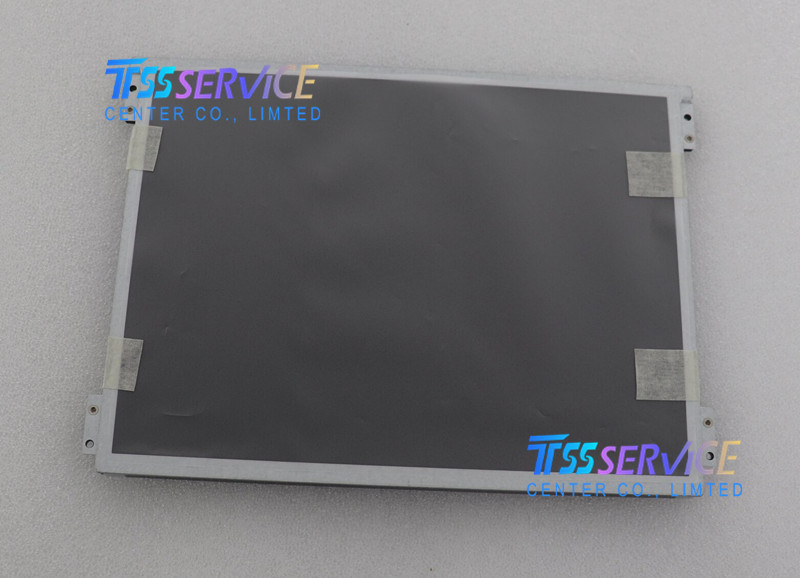

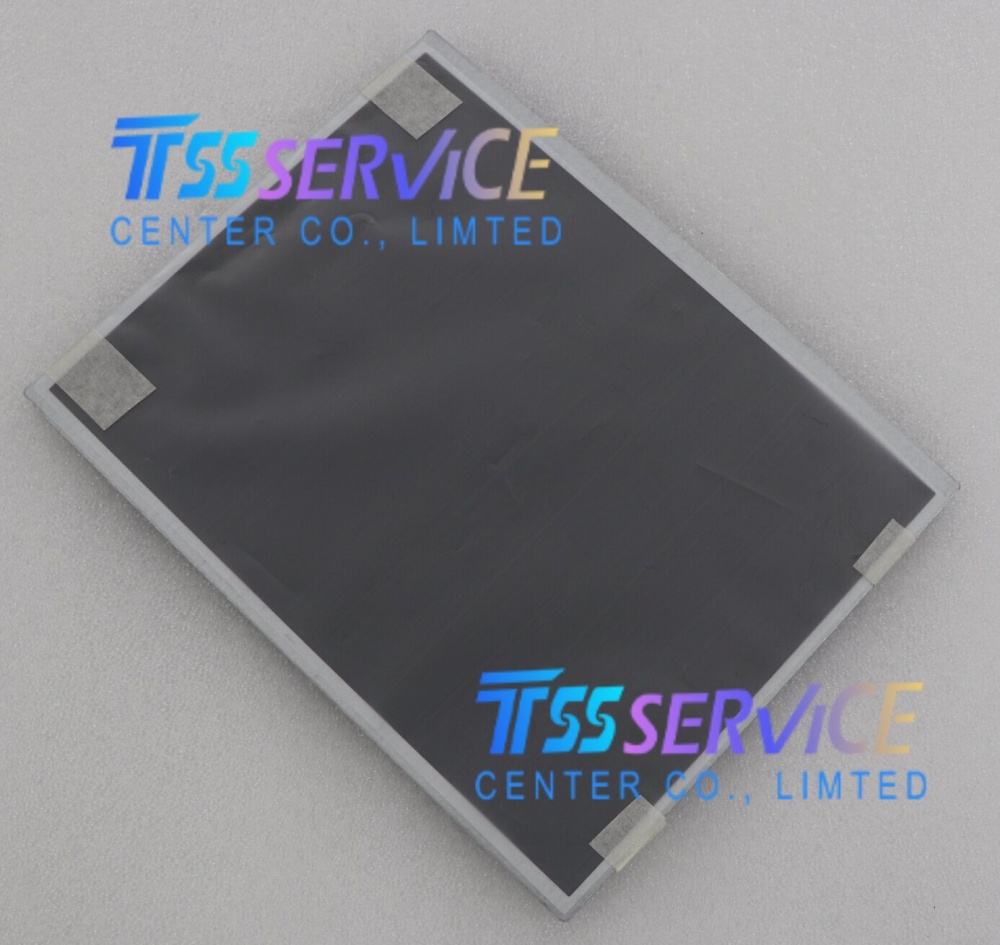

INNOLUX NEW 10.4 inch LCD Display Panel G104XCE-L04 for Industrial
| Parameter |
Specification |
| Brand |
Innolux |
| Model |
G104XCE-L04 |
| Display Type |
a-Si TFT-LCD, Normally Black |
| Screen Size |
10.4 inch |
| Resolution |
1024 × 768 (XGA) |
| Aspect Ratio |
4:3 |
| Outline Dimensions |
Approx. 265.0 × 200.0 × 5.8 mm (H×V×D) |
| Active Area |
211.2 × 158.4 mm (H×V) |
| Brightness |
500 ~ 1000 cd/m² (High Brightness / Sunlight Readable) |
| Contrast Ratio |
700:1 ~ 1000:1 (Typ.) |
| Viewing Angle |
88/88/88/88 (Up/Down/Left/Right) |
| Backlight |
WLED (With LED Driver integrated) |
| Interface |
LVDS (1 channel, 6-bit or 8-bit color depth) |
| Operating Temperature |
-30°C to +85°C (Industrial Wide Temp) |
| Lifespan |
> 50,000 hours (Backlight life) |
- Industrial Automation & HMI: Perfect for Human-Machine Interface panels, factory automation controllers, and CNC machine displays where clear visibility of complex graphics and text is required.
- Transportation & Marine: Integrated into vehicle-mounted computers, railway signaling systems, and marine navigation/chartplotter displays due to its ability to withstand extreme temperatures and vibrations.
- Outdoor Kiosks & ATMs: Used in self-service terminals, ticket vending machines, and outdoor information kiosks that are exposed to direct sunlight.
- Medical Equipment: Applied in portable diagnostic devices and patient monitoring systems requiring high-resolution and reliable displays.
- Test & Measurement Instruments: Ideal for oscilloscopes, network analyzers, and other precision engineering equipment that demands accurate waveform and data visualization.
INNOLUX
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
