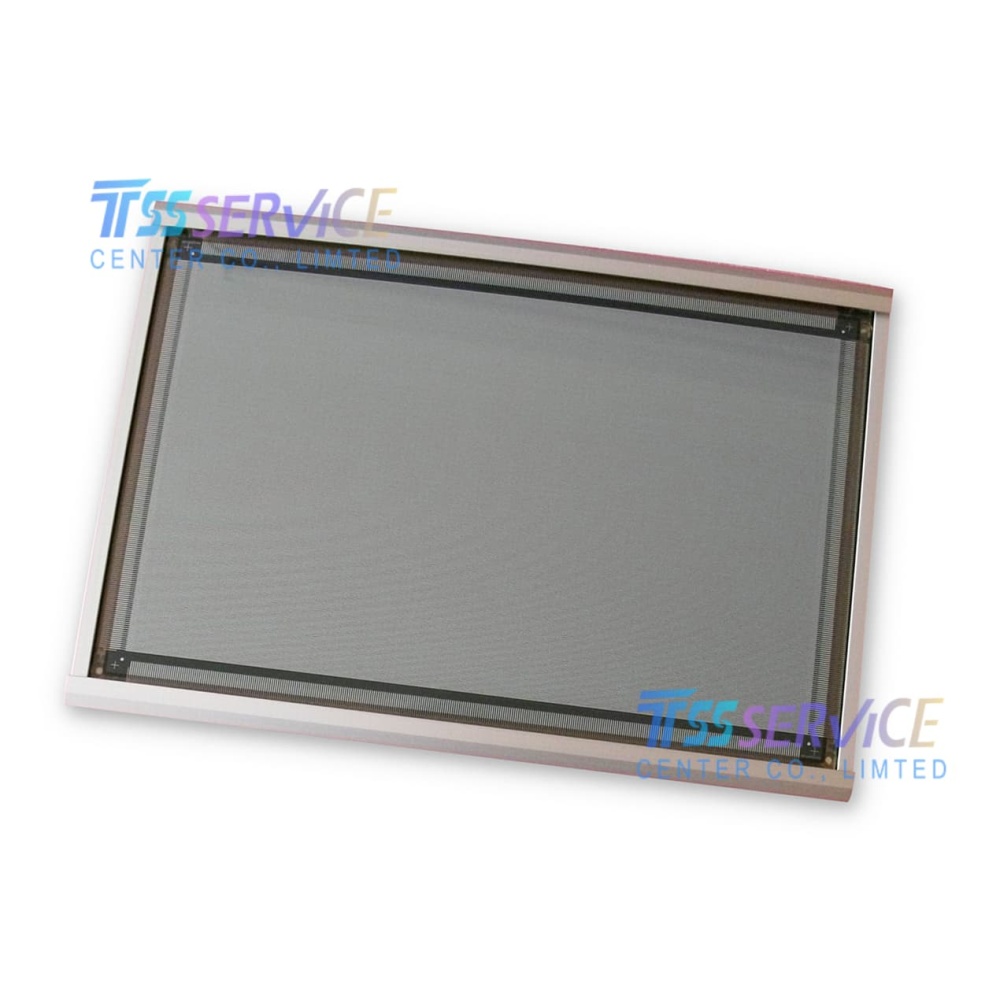

Lumineq NEW 9.1 inch LCD Display Panel EL640.400.CD3 FRA for Industrial
| Parameter |
Specification |
| Brand |
Lumineq (formerly Planar) |
| Model |
EL640.400-CD3 FRA |
| Display Type |
Monochrome Yellow TFEL (Thin Film Electroluminescent) |
| Screen Size |
9.1 inch |
| Resolution |
640 × 400 pixels |
| Outline Dimensions |
225.8 × 152.8 mm (H×V) |
| Active Area |
195.0 × 121.8 mm (H×V) |
| Brightness |
20 ~ 53 cd/m² (Typical varies by specific batch) |
| Viewing Angle |
Excellent (Wide viewing angle inherent to EL technology) |
| Backlight |
Self-emissive (No separate backlight required) |
| Interface |
VGA Compatible / 1 or 2 bit LCD interface |
| Supply Voltage |
5V logic + (11~30)V DC input |
| Operating Temperature |
-25°C to +65°C (Industrial Wide Temp) |
| Lifespan |
> 50,000 hours (Maintains >75% brightness after 100k hrs) |
- Industrial Automation & Control: Commonly found in CNC machine interfaces (such as textile machinery from Toyota or Tsudakoma), injection molding machines, and PLC control panels where vibration resistance is crucial.
- Medical Equipment: Integrated into older generation patient monitors, biochemical analyzers, and diagnostic devices due to its high contrast and reliability.
- Military & Aerospace: Used in avionics displays and military vehicle dashboards because EL screens perform exceptionally well in extreme temperatures and harsh conditions.
- Transportation & Marine: Applied in train control systems, marine navigation charts, and heavy-duty vehicle terminals.
- ATMs & Kiosks: Historically used in automated teller machines and self-service terminals for its long operational lifespan and clear text display.
Lumineq
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
