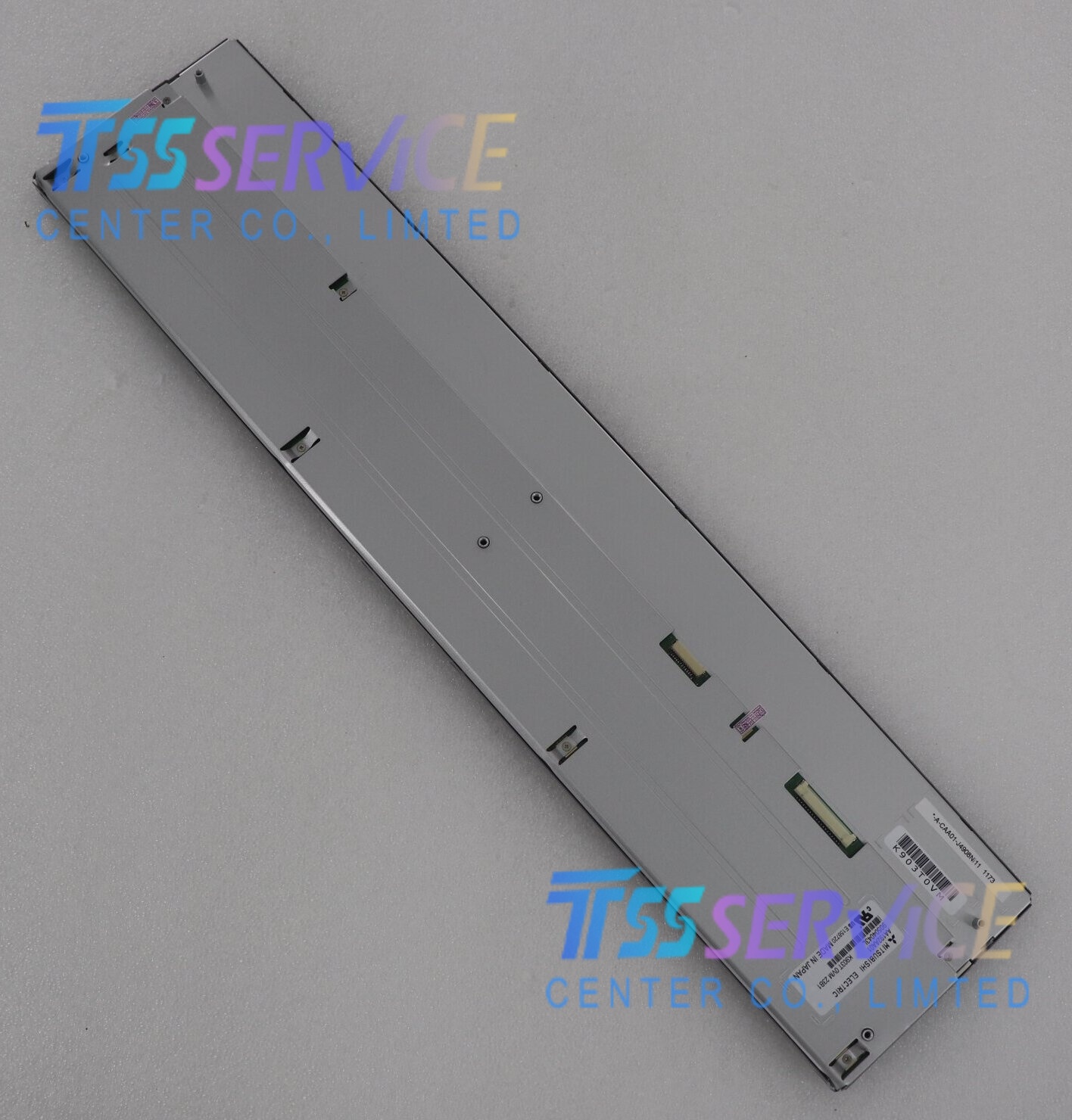

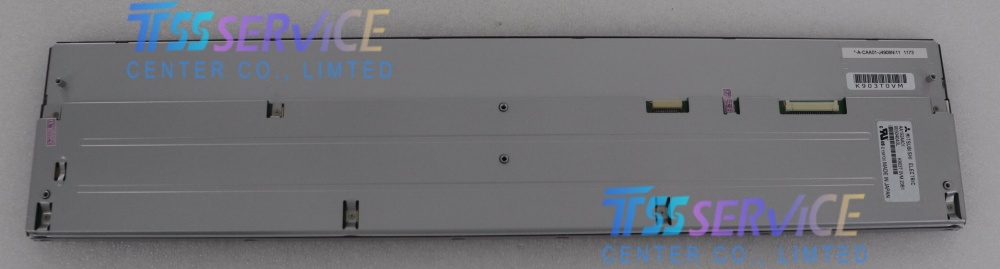

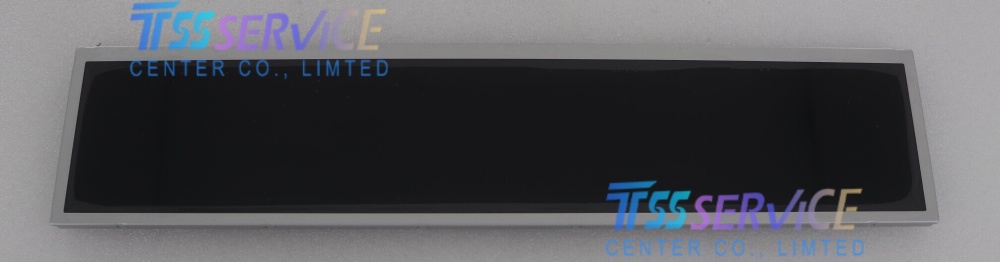

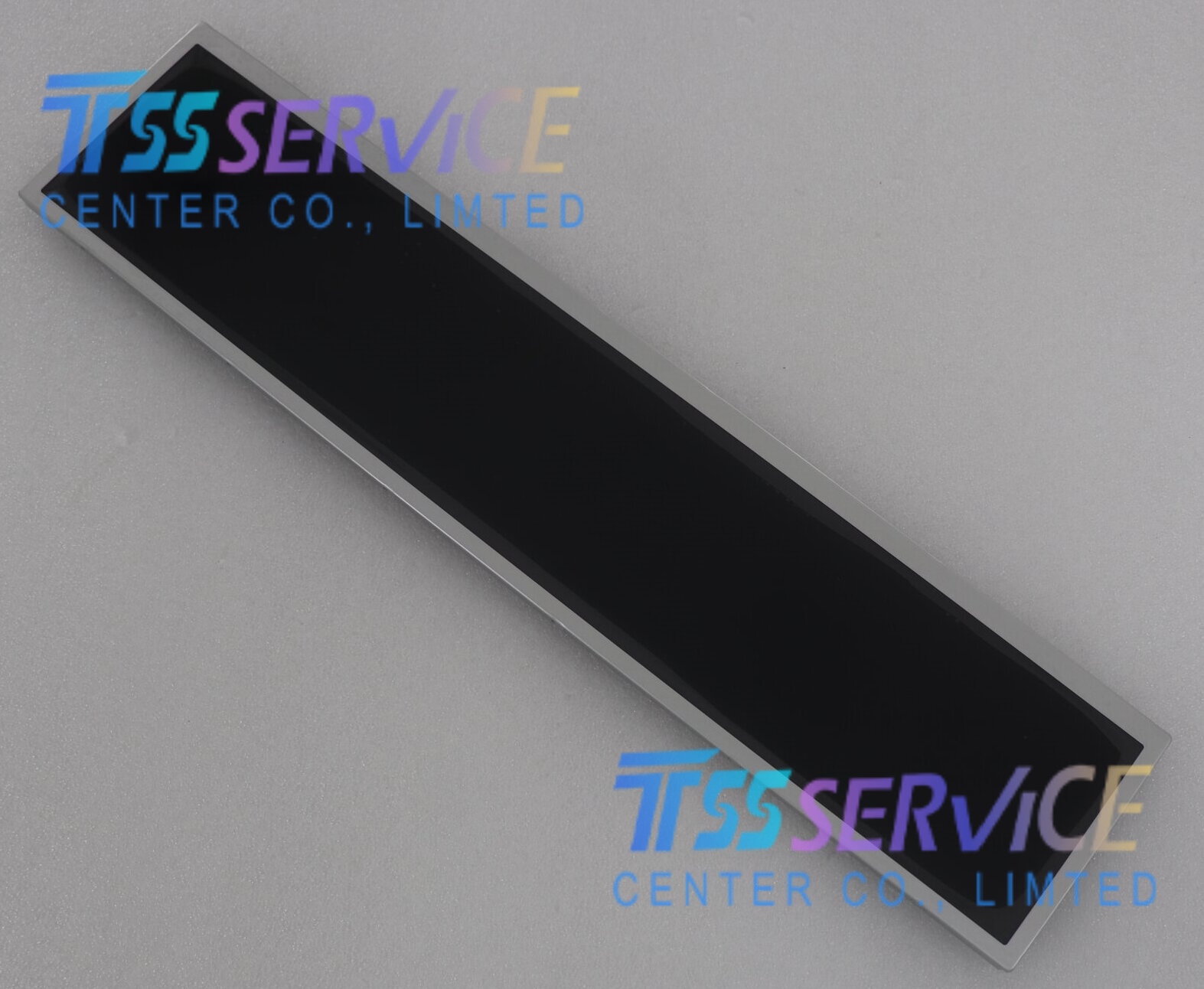

Mitsubishi 19.2 inch 1920×360 LCD Panel AA192AA01 For Industrial
| Parameter |
Details |
| Manufacturer |
Mitsubishi Electric |
| Model Name |
AA192AA01 |
| Display Size |
19.2" (Native Bar-Type Format, >3:1 aspect ratio) |
| Panel Type |
a-Si TFT-LCD, LCM (Liquid Crystal Module) |
| Resolution |
1920(RGB) × 360 |
| Dot Layout |
RGB Vertical Stripe |
| Display Area |
478.08(W) × 89.64(H) mm |
| Outline Size |
496(W) × 109.2(H) × 13.9(D) mm |
| Brightness |
500 cd/m² (Typical) |
| Contrast Ratio |
700:1 (Typical, Transmissive Mode) |
| Viewing Angle |
80°/80°/80°/60° (Typical, CR≥10) |
| View Direction |
6 o'clock |
| Response Time |
4/12 ms (Typical, Tr/Td) |
| Display Colors |
262K / 16.7M, 50% NTSC |
| Display Mode |
TN, Normally White, Transmissive |
| Surface Treatment |
Antiglare, Hard Coating (3H) |
| Backlight |
WLED, 100,000 hours lifetime, with integrated LED Driver |
| Power Consumption |
11.5 W (Typical) |
| Panel Weight |
780 g (Typical) |
| Interface |
LVDS (1 channel, 6/8-bit), 20-pin connector |
| Refresh Rate |
60 Hz |
| Touch Screen |
Without touch panel |
| Input Voltage |
3.3 V (Typical) |
| Operating Temperature |
-30 °C ~ +80 °C |
| Storage Temperature |
-30 °C ~ +80 °C |
Key Applications
The AA192AA01 is a rugged, industrial-grade bar-type display, designed for applications requiring a wide, long screen format with reliable performance in harsh environments.
- Industrial Control & Automation
Used as status/information displays in factory automation equipment, CNC machines, and process control systems, where its wide format is ideal for showing long data streams or multi-parameter readouts.
- Transportation & Automotive Displays
Widely adopted in in-vehicle infotainment systems, dashboard extensions, and public transport (bus/train) route information displays, leveraging its wide aspect ratio and wide operating temperature range.
- Retail & Digital Signage
Ideal for shelf-edge displays, digital price tags, and narrow-format advertising screens in supermarkets and convenience stores, providing clear visibility with its 500 cd/m² brightness.
- Gaming & Amusement Machines
Used as secondary information or status displays in arcade games and casino machines, where the long, narrow form factor is required for specific cabinet designs.
- Marine & Outdoor Equipment
Suitable for outdoor kiosks, marine navigation systems, and other equipment requiring reliable operation in a wide temperature range, with its antiglare surface improving visibility in bright light.
- Medical Equipment
Integrated into medical diagnostic devices and patient monitoring systems, where its stable performance and high contrast ratio are essential for clear readouts.
