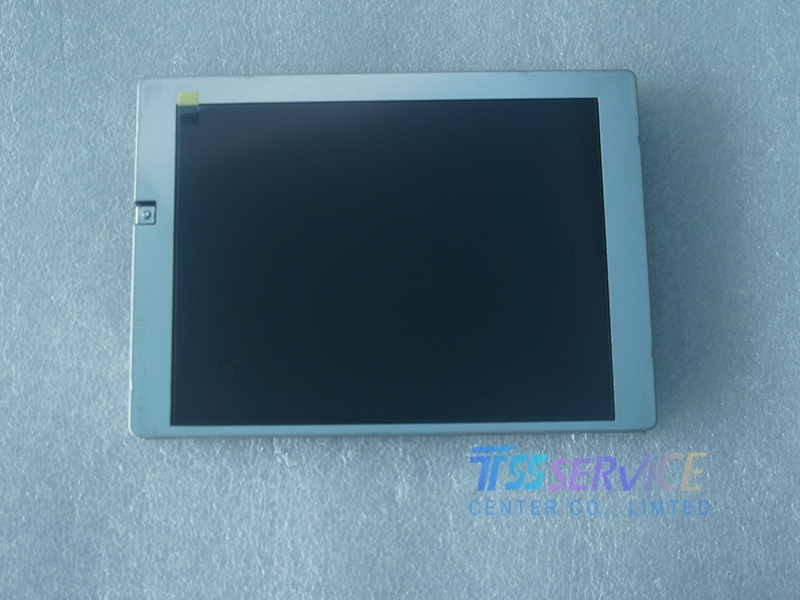

LQ057Q3DC03A 5.7inch 320×240 QVGA TFT-LCD Panel

Name: LQ057Q3DC03A 5.7inch 320×240 QVGA TFT-LCD Panel
Brand: TSS SERVICE CENTER CO., LIMITED
SKU: LQ057Q3DC03A
Price: 68 USD
Availability: InStock

SKU: LQ057Q3DC03A

1，Condition: New，Grade A

2，Description: LQ057Q3DC03A 5.7inch LCD Display Panel

3，Warranty: 90 Days

4，Lead Time: 1-3 Working days

5，Shipping: DHL ,FedEx, EMS , SF express or by air.

6，Packaging: Bubble pad+Paper box

7，Note: All LCD display panels will be full tested before shipping.

0.0 (0 Reviews)

0 Sold

~~$70.00~~ $68.00

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

The Sharp LQ057Q3DC03A is a high-performance 5.7-inch diagonal a-Si TFT-LCD (amorphous silicon thin-film transistor liquid crystal display) module, designed for demanding industrial, automotive, and embedded applications. This panel combines high brightness, wide viewing angles, and an extended temperature range, making it suitable for use in harsh environments.

Parameter	Specification
Brand	Sharp
Model P/N	LQ057Q3DC03A
Diagonal Size	5.7"
Panel Type	a-Si TFT-LCD, LCM
Resolution	320×240(RGB), QVGA 70PPI
Pixel Format	RGB Horizontal Stripe
Active Area	115.2(W)×86.4(H) mm
Bezel Opening	121.0(W)×92.2(H) mm
Outline Size	144(W)×104.6(H)×12.8(D) mm
Surface	Glare (Haze 0%), Hard coating (2H)
Brightness	500 cd/m² (Typ.)
Contrast Ratio	350:1 (Min.) (TM)
Viewing Angle	80/80/80/65 (Typ.)(CR≥10)
Display Mode	TN, Normally White, Transmissive
Best View on	12 o'clock
Response Time	30 (Typ.)(Tr+Td)
Display Colors	262K
Lamp Type	WLED, 50K hours, With LED Driver
Frequency	60Hz
Touch Screen	Without
Panel Weight	210g (Max.)

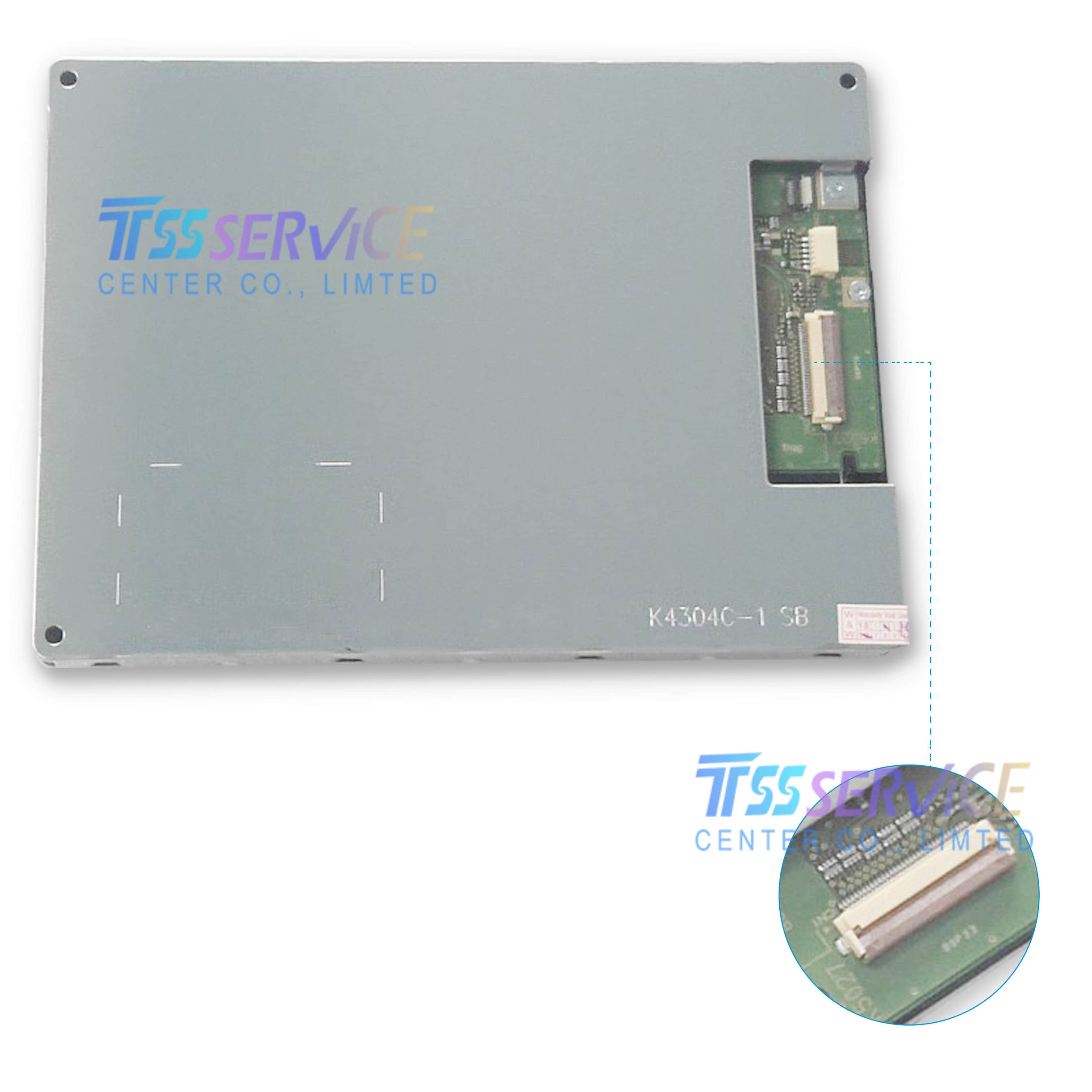

Signal Interface	Parallel RGB (1 ch, 6-bit), 33 pins Connector
Input Voltage	3.3V (Typ.)
Environment	Operating Temp.: -30 ~ 80 °C; Storage Temp.: -30 ~ 80 °C

Typical Applications

Industrial control systems – HMIs, PLC interfaces, factory automation
Automotive displays – Infotainment, navigation, instrument clusters
Outdoor equipment – Marine displays, outdoor kiosks, portable instruments
Medical devices – Patient monitoring, diagnostic equipment
Test and measurement – Field testers, analytical instruments
- Embedded systems – Custom devices requiring a durable, high-brightness display
  Point-of-sale (POS) terminals – Retail and hospitality applications
