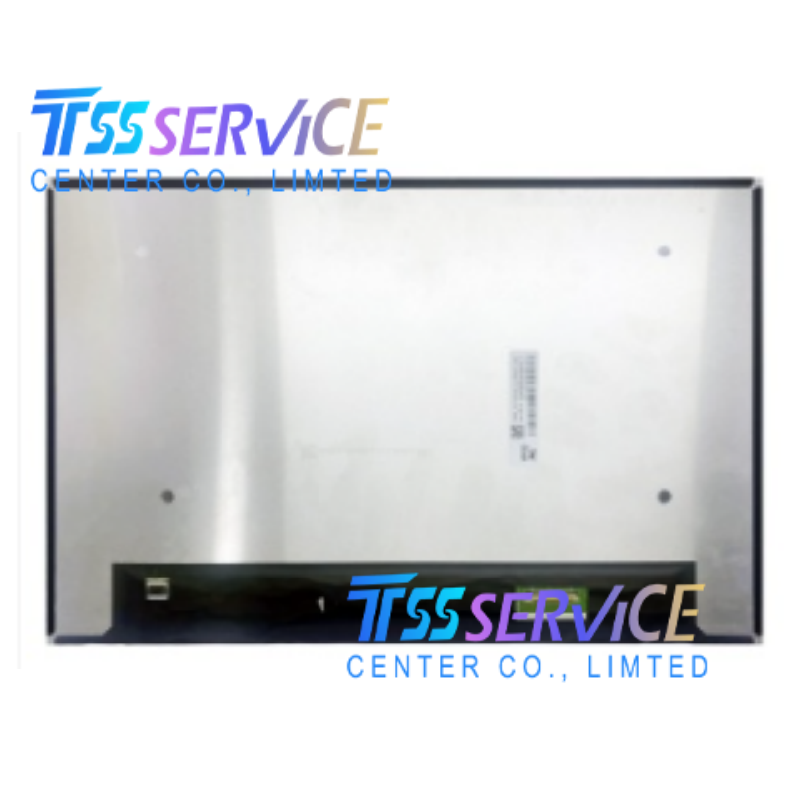

BOE NEW 13.3 inch LCD Display Panel NV133WUM-N62 for Laptop
| Parameter |
Value |
Notes |
| Panel Brand |
BOE |
Leading display manufacturer |
| Model Number |
NV133WUM-N62 |
Part number for this specific module |
| Screen Size |
13.3 inches |
Diagonal measurement |
| Resolution |
1920 × 1080 (FHD) |
Full HD resolution |
| Pixel Arrangement |
RGB Vertical Stripe |
Standard sub-pixel layout |
| Display Mode |
IPS (In-Plane Switching) |
Type of LCD technology |
| Viewing Angles |
85/85/85/85 (Typ.) |
Top/Bottom/Left/Right (CR≥10) |
| Brightness |
300 cd/m² (Typ.) |
Standard brightness for laptops |
| Contrast Ratio |
1000:1 (Typ.) |
Transmissive mode |
| Response Time |
8 ms (Typ.) |
Fast response for dynamic content |
| Backlight |
WLED (White LED) |
Edge-lit for slim design |
| Operating Temperature |
-20 ~ 70°C |
Wide operating range |
| Signal Interface |
30-pin (LVDS) |
Standard interface for laptop panels |
| Power Consumption |
Not specified |
Varies with backlight and usage |
Based on the technical specifications (such as the 13.3-inch size, IPS technology, and 30-pin LVDS interface), this panel is specifically designed for the following consumer and industrial applications:
-
Laptops & Ultrabooks:
- The 13.3-inch size and IPS technology make it suitable for slim and lightweight laptops, offering wide viewing angles and good color reproduction.
- The 30-pin LVDS interface is a standard interface for connecting the panel to a laptop's motherboard.
-
All-in-One PCs:
- The 13.3-inch size and IPS technology make it suitable for use in compact all-in-one PCs, where a high-quality display is required.
-
Industrial PCs (IPC):
- The wide operating temperature (-20~70°C) and robust construction make it suitable for use in industrial PCs (IPC) used in manufacturing, automation, or data centers.
-
Medical Displays:
- The IPS technology provides wide viewing angles and good color reproduction, which is crucial for medical imaging and monitoring displays.
-
Digital Signage:
- The 13.3-inch size and IPS technology make it suitable for use in digital signage applications, such as kiosks or point-of-sale displays.
BOE
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
