P215HAN01.1 | AUO 21.5” FHD IPS

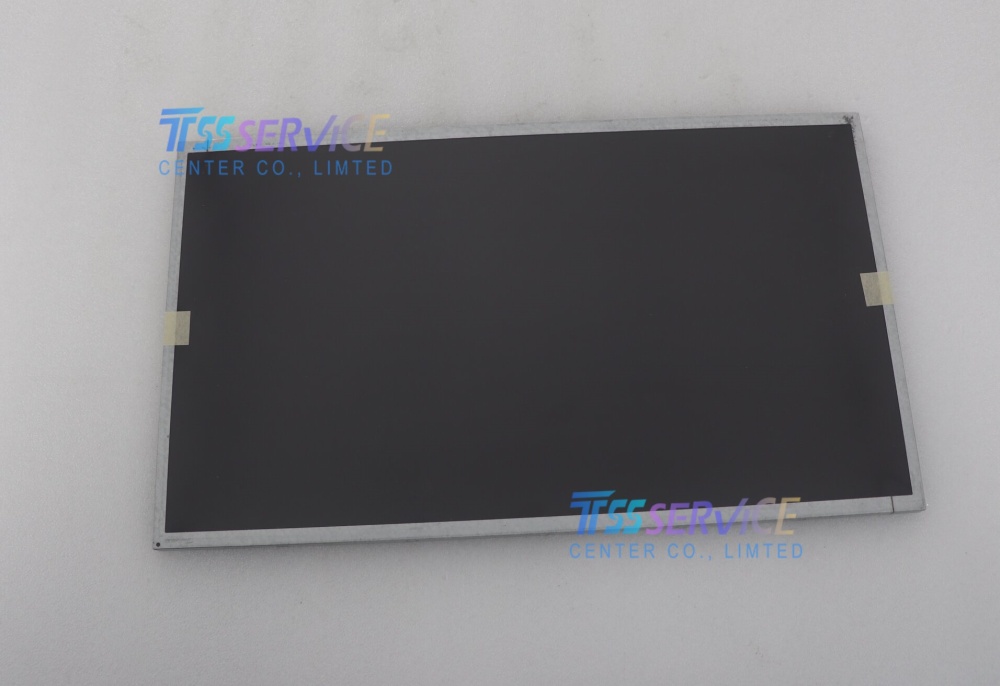

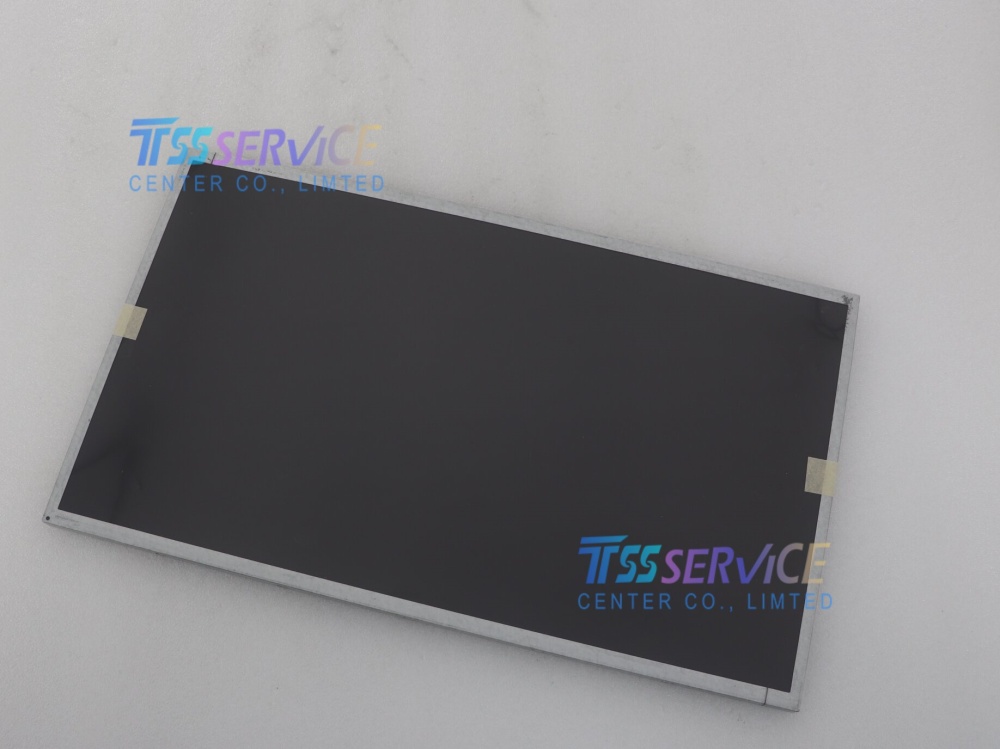

P215HAN01.1 is a 21.5-inch FHD (1920×1080) a-Si TFT-LCD module by AUO, featuring 250 cd/m² brightness, 1000:1 contrast, 89°/89°/89°/89° viewing angle, AHVA (IPS) technology, 3H hard coating, WLED backlight, 30-pin LVDS interface, and 5V supply for industrial, digital signage, and commercial display applications.
| Parameter Item |
Specification Details |
| Part Number |
P215HAN01.1 |
| Manufacturer |
AUO (友达光电) |
| Display Size |
21.5 inch, landscape, 16:9 |
| Resolution |
1920 (RGB) × 1080 pixels (FHD), 102 PPI |
| Technology |
a-Si TFT-LCD, AHVA (IPS), normally black, transmissive |
| Active Area |
476.064 × 267.786 mm |
| Outline Dimension |
497.6 × 292.2 × 11 mm |
| Pixel Pitch |
0.248 × 0.248 mm |
| Brightness |
250 cd/m² (typ.) |
| Contrast Ratio |
1000:1 (typ., transmissive) |
| Viewing Angle |
89°/89°/89°/89° (L/R/U/D, CR≥10) |
| Display Colors |
16.7M colors, 72% CIE1931 color gamut |
| Backlight |
WLED (4 strings), lifespan ≥ 30,000 hours, w/o driver |
| Interface |

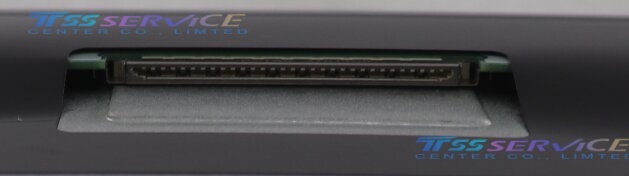

LVDS (2 channels, 8-bit), 30-pin connector |
| Supply Voltage |
5.0 VDC (typ.) |
| Refresh Rate |
60 Hz |
| Response Time |
14 ms (typ., G-to-G) |
| Operating Temperature |
0°C ~ +50°C |
| Storage Temperature |
-20°C ~ +60°C |
| Touch Screen |
Without touch (customizable) |
| Surface Treatment |
Matte, 3H hard coating |
| Weight |
Approx. 1.74 kg |
| Certifications |
RoHS compliant |
| Status |
Active, mass production |
