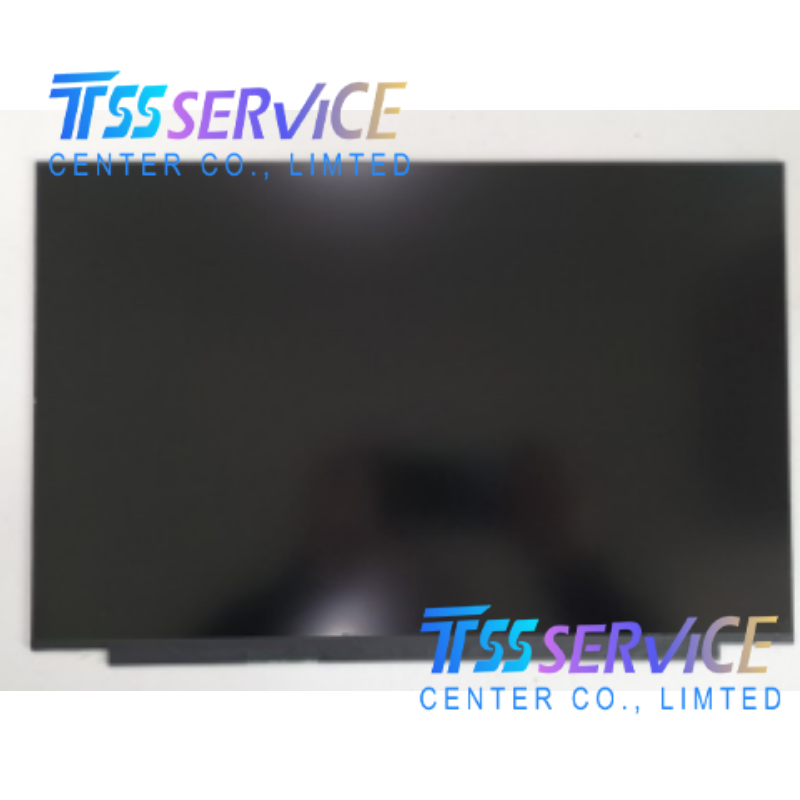

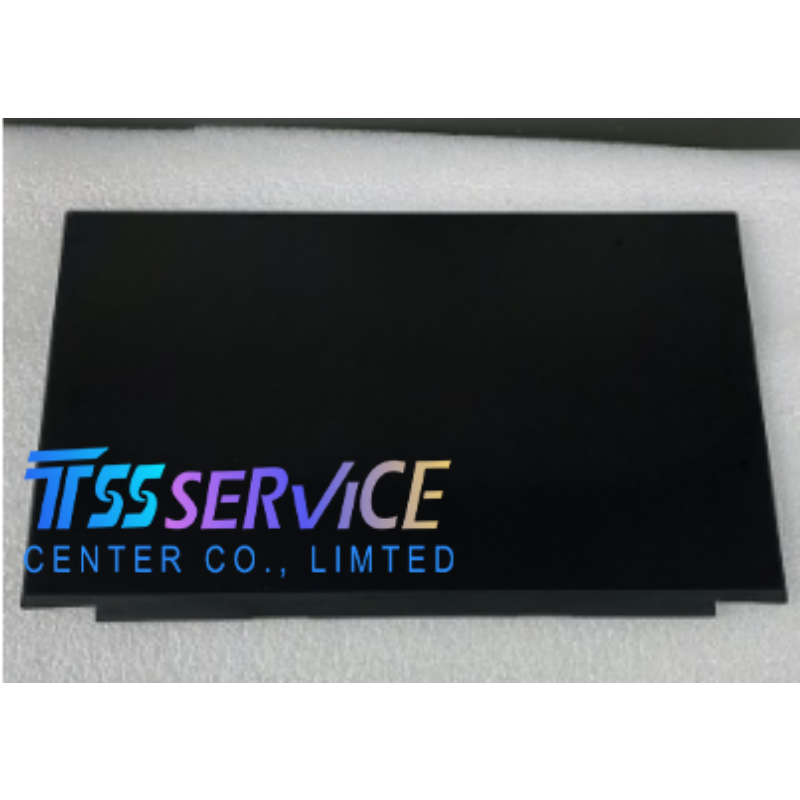

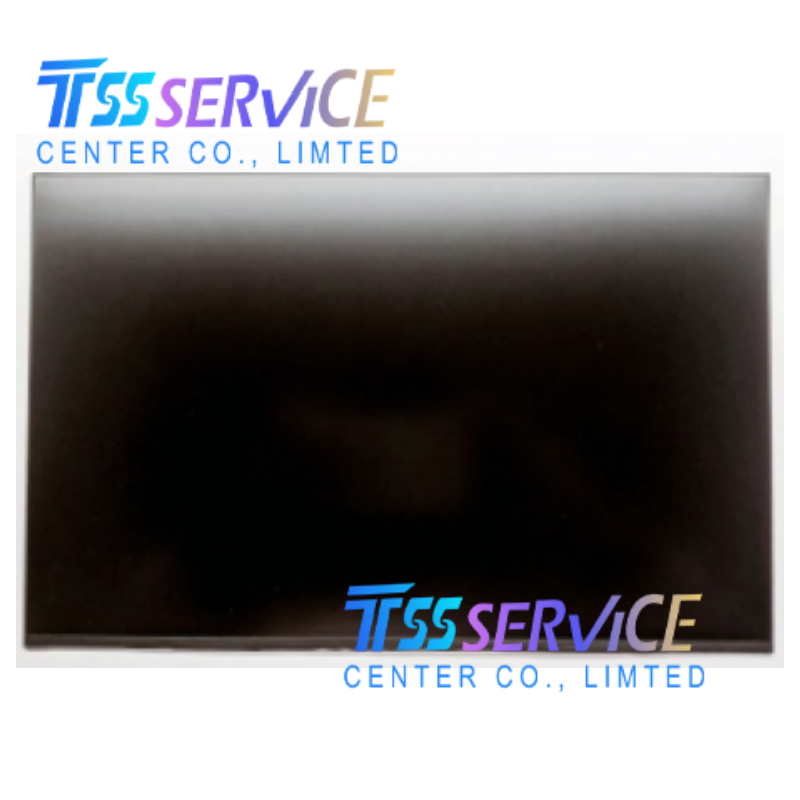

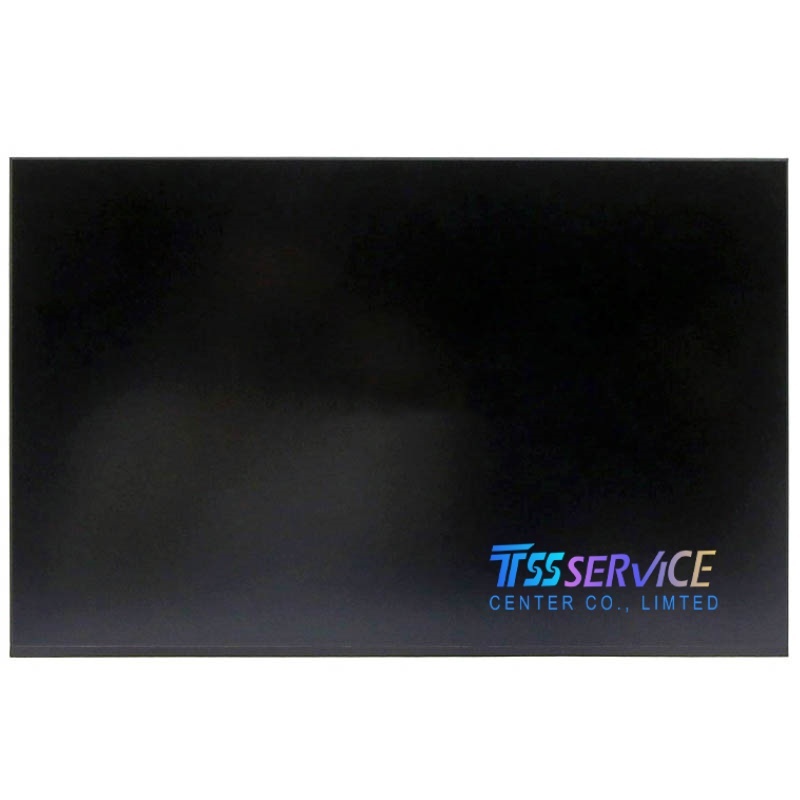

NE135FBM-N41 V8.1 | BOE 13.5” 2256×1504 IPS
NE135FBM-N41 V8.1 is a 13.5-inch FFS IPS TFT-LCD panel by BOE, featuring 2256×1504 (3:2) resolution, 415 cd/m² brightness, 1500:1 contrast, 85°/85°/85°/85° viewing angle, 100% sRGB, eDP 1.4 (2 lanes) interface, 3.3V supply, and slim 2.1mm thickness for premium laptops and high-end portable devices.
| Parameter Item |
Specification Details |
| Part Number |
NE135FBM-N41 V8.1 |
| Manufacturer |
BOE (京东方) |
| Display Size |
13.5 inch, landscape, 3:2 |
| Resolution |
2256 (RGB) × 1504 pixels (QHD+) |
| Technology |
a-Si TFT-LCD, FFS, IPS, normally black, transmissive |
| Active Area |
289.99 × 212.28 mm |
| Outline Dimension |
289.99 × 212.28 × 2.1 mm |
| Pixel Pitch |
0.126 × 0.126 mm |
| Brightness |
415 cd/m² (typ.) |
| Contrast Ratio |
1500:1 (typ.) |
| Viewing Angle |
85°/85°/85°/85° (L/R/U/D, CR≥10) |
| Display Colors |
16.7M colors, 100% sRGB |
| Backlight |
WLED (9S6P), lifespan ≥ 15,000 hours, with driver |
| Interface |
eDP 1.4 (2 lanes, HBR1 2.7G/lane), 40-pin connector |
| Supply Voltage |
3.3 VDC (typ.) |
| Refresh Rate |
60 Hz |
| Response Time |
30 ms (typ., Tr+Td) |
| Operating Temperature |
0°C ~ +50°C |
| Storage Temperature |
-20°C ~ +60°C |
| Touch Screen |
Without touch (customizable) |
| Surface Treatment |
Matte / Glossy (optional) |
| Weight |
Approx. 50 g |
| Certifications |
RoHS compliant |
| Status |
Active, mass production |
