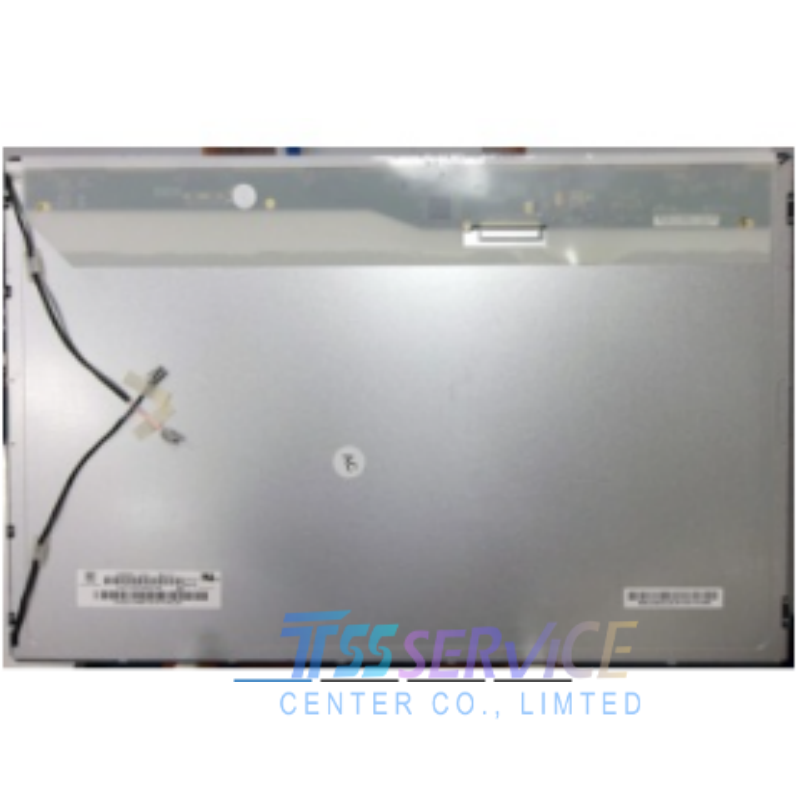

Innolux NEW 22.0 inch LCD Display Panel M220Z1-L0A REV.C1 for Industrial
| Parameter |
Specification |
Details / Notes |
| Brand |
Innolux |
Original Manufacturer |

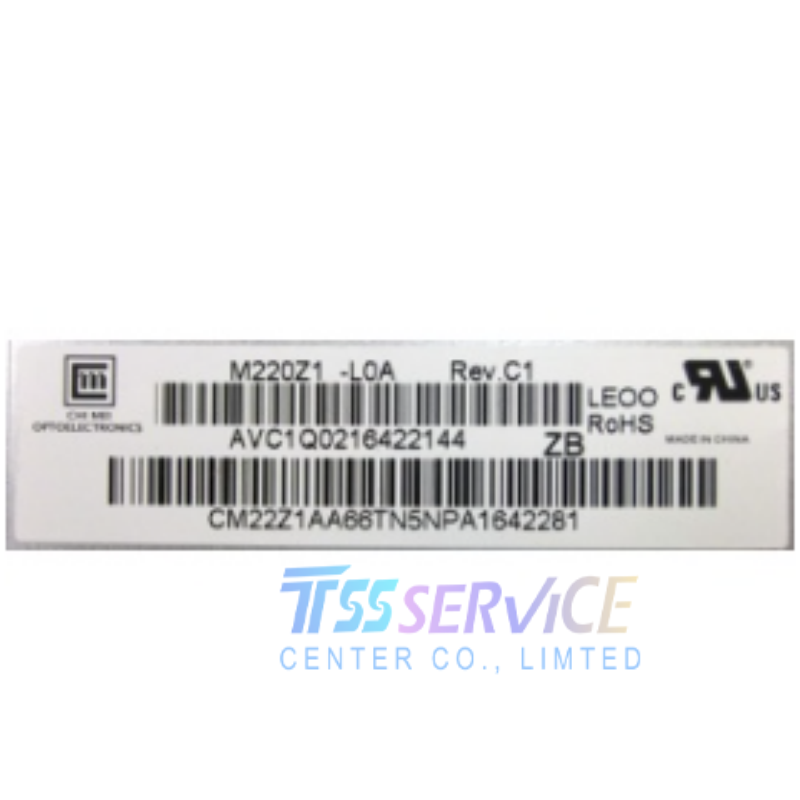

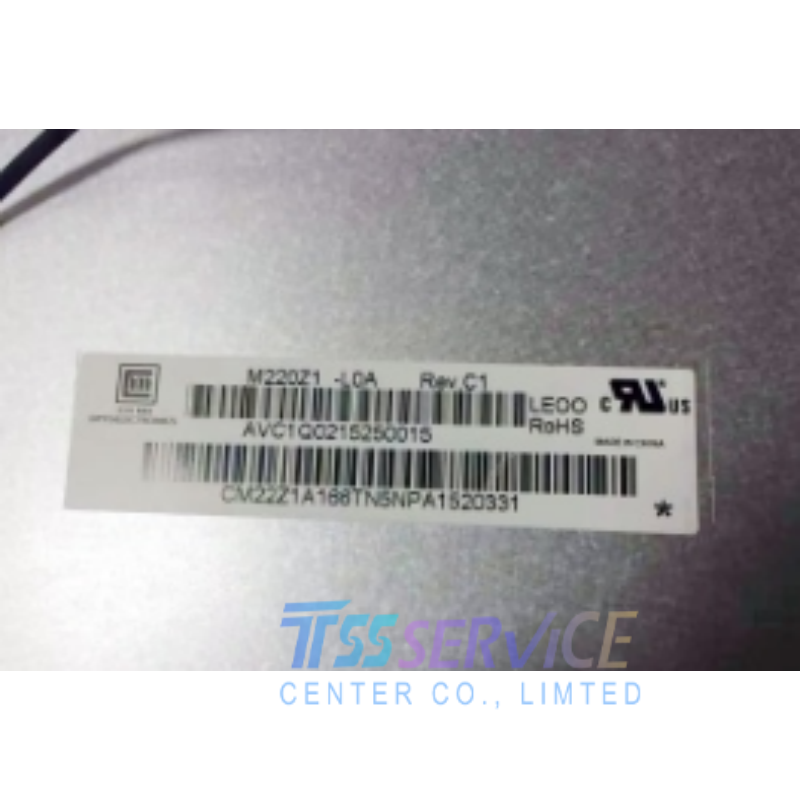

| Model Number |
M220Z1-L0A |
REV.C1 |
| Screen Size |
22.0 Inch |
Diagonal Measurement |
| Resolution |
1920(RGB) × 1080 |
FHD Format, 16:9 Aspect Ratio |
| Pixel Arrangement |
RGB Vertical Stripes |
Standard TFT Matrix |
| Display Mode |
TN, Normally White, Transmissive |
6 o'clock optimal viewing angle |
| Brightness |
300 cd/m² (Typ.) |
Suitable for indoor industrial use |
| Contrast Ratio |
1000:1 (Typ.) |
Transmissive Mode |
| Viewing Angle |
80/80/80/80 (Typ.) |
Left / Right / Up / Down (CR≥10) |
| Response Time |
5 / 8 ms (Typ.) |
Tr / Td |
| Display Colors |
16.7 Million |
6/8-bit Gray Scale Selectable |
| Backlight |
WLED (Side-in) |
70K Hours Lifespan, With LED Driver |
| Interface |
LVDS (2 ch, 8-bit) |
30 Pins, Terminal Connector |
| Supply Voltage |
12.0V (Typ.) |
Logic & Backlight Supply Voltage |
| Refresh Rate |
60Hz |
Typical Vertical Frequency |
| Operating Temp. |
-20°C ~ 70°C |
Wide Temperature Range |
| Storage Temp. |
-30°C ~ 80°C |
Extreme Temperature Tolerance |
| Vibration Resistance |
1.5G (14.7 m/s²) |
Industrial Grade Durability |
| Surface Treatment |
Anti-Glare, Hard Coating (3H) |
Foggy / Matte Finish |
| Dimensions (W×H×D) |
527.0 × 304.0 × 11.0 mm |
Outline Dimensions |
| Active Area |
476.64 × 268.11 mm |
Display Area |
| Weight |
2.60 / 2.70 kg |
Typ. / Max. |
-
-
-
-
-
- Industrial Automation & Control: Human-Machine Interfaces (HMI), PLC control panels, and CNC machine displays.
- Medical Equipment: Portable diagnostic devices, patient monitors, and laboratory instrumentation.
- Automotive & Transportation: In-vehicle displays, fleet management terminals, and marine navigation systems.
- Smart Metering & Instruments: Industrial testing equipment, power analyzers, and environmental monitoring devices.
- Commercial Terminals: POS systems, ticketing kiosks, and access control panels.
