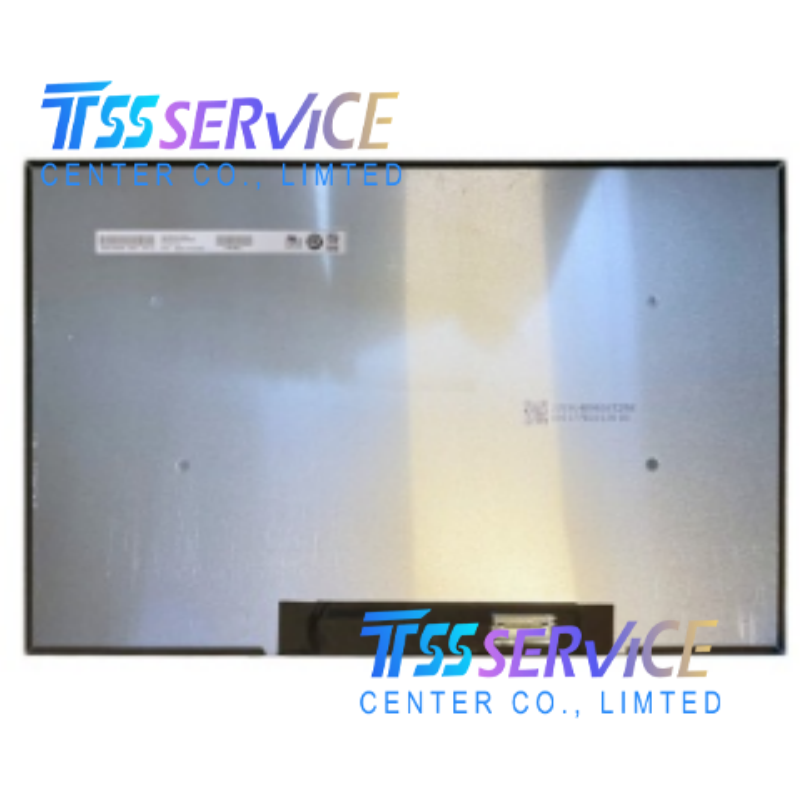

AUO NEW 14.0 inch LCD Display Panel B140UAN02.2 for Laptop
| Parameter |
Specification |
| Model Number |
B140UAN02.2 |
| Screen Size |
14.0 inches (Diagonal) |
| Resolution |
1920 × 1080 (FHD) |
| Pixel Format |
1920(RGB)×1080 |
| Display Type |
TFT-LCD, a-Si |
| Backlight |
LED (WLED) |
| Active Area |
309.408 × 174.048 mm |
| Brightness |
300 cd/m² (Typical) |
| Contrast Ratio |
800:1 (Typical) |
| Interface |
eDP (Embedded Display Port), 30 Pins |
| Color Depth |
16.7M (6-bit + Hi-FRC) |
| Surface Treatment |
Anti-Glare, Hard Coating |
The B140UAN02.2 is primarily utilized in the following areas:
- Laptop Computers: This is the most common application. It serves as the primary display unit for 14-inch notebooks, offering clear text and video playback capabilities for daily office and multimedia use.
- All-in-One PCs: Due to its slim profile and standard FHD resolution, it is sometimes integrated into compact All-in-One desktop computers.
- Industrial & Medical Equipment: The panel is suitable for handheld diagnostic devices or industrial control interfaces where a lightweight, high-resolution screen is required for data visualization.
AUO
FAQ
Q: How long will I receive my goods ?
A: Generally speaking ,It will take 3-8days to your hand by DHL/FEDEX
Q:Can you give me a discount if I need a large quantity of ?
A:Of course!If you make a large order, we will give you a discount.
Q:Can I pay my order via credit card ?
A:Yes!you can use your credit card through your Paypal account.
- Q: May I ask what kind of packaging you use?
A: We use anti-static packaging and shock-resistant packaging.Anti-static packaging: Ensure that the packaging materials used comply with ESD standards, including anti-static bags and foam.Shock-resistant packaging: Use custom foam and sturdy outer boxes to ensure that they can pass through regular transportation tests (such as dropping and vibration).So the goods arrive at your hands in perfect condition.
Q: Do you conduct tests before shipment?
A: Yes, we strictly follow 100% pre-shipment testing procedures.Our testing process is standardized to ensure that every LCD panel sent to you is in compliance with specifications and is fully functional.
