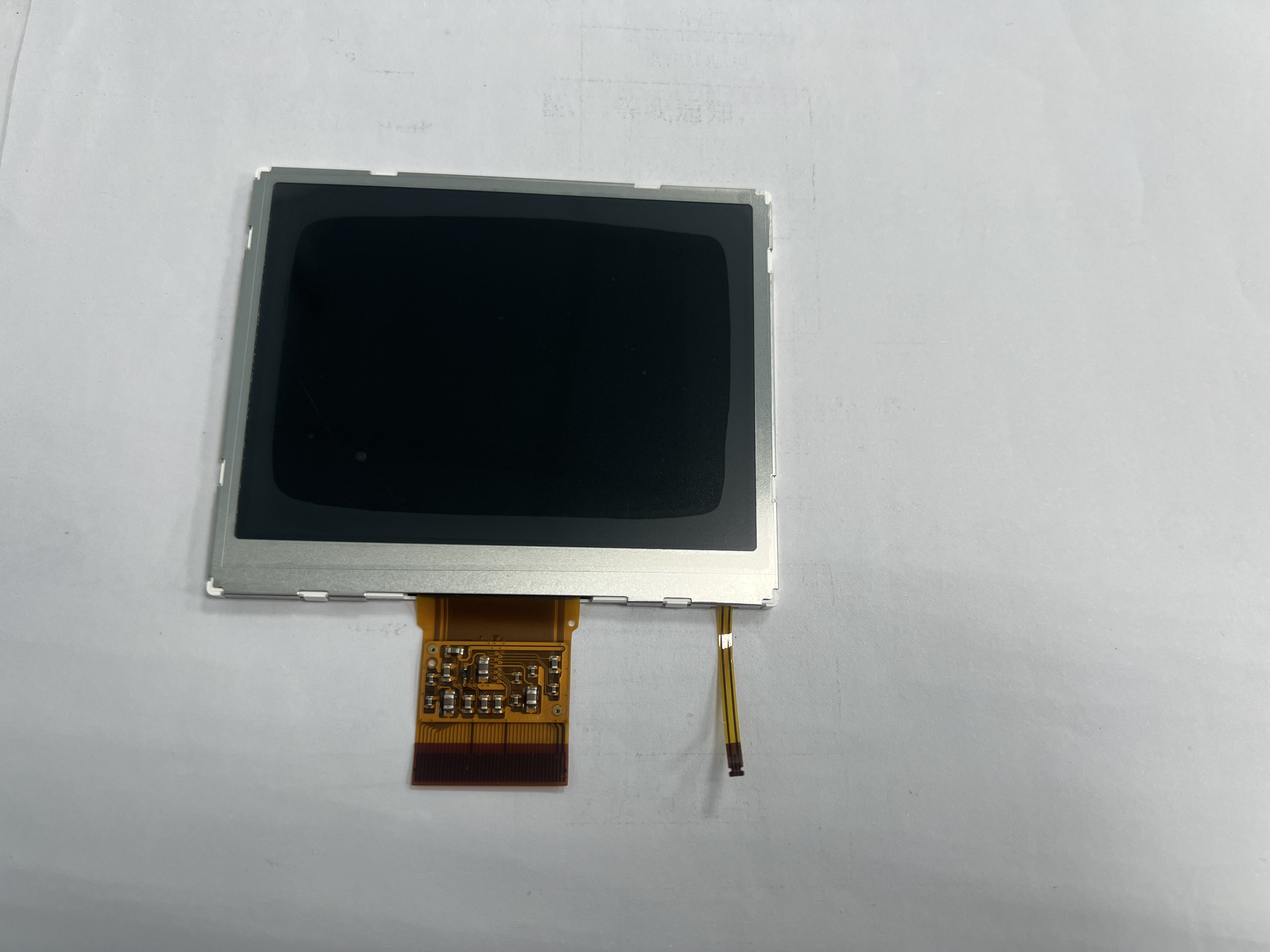

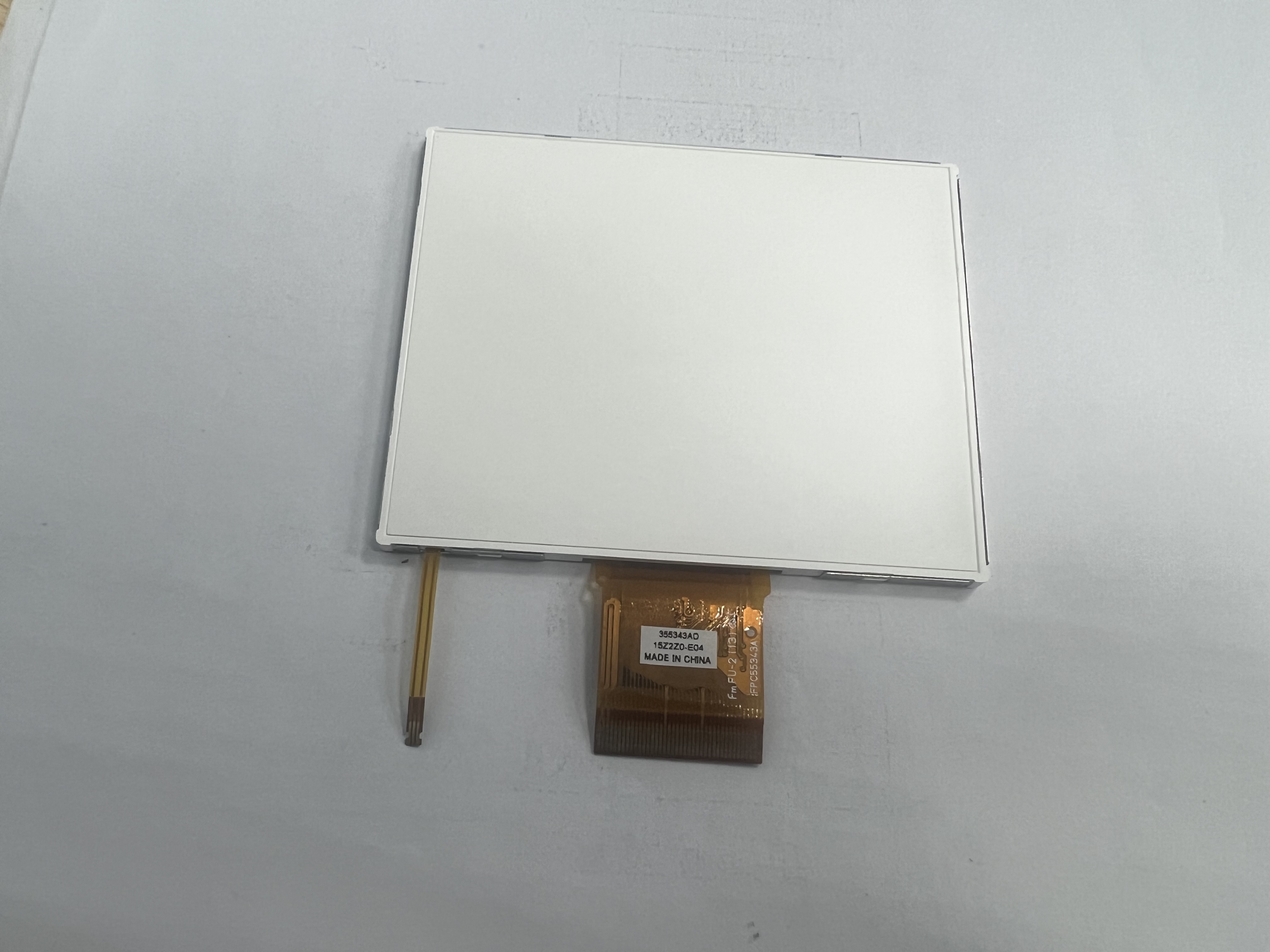

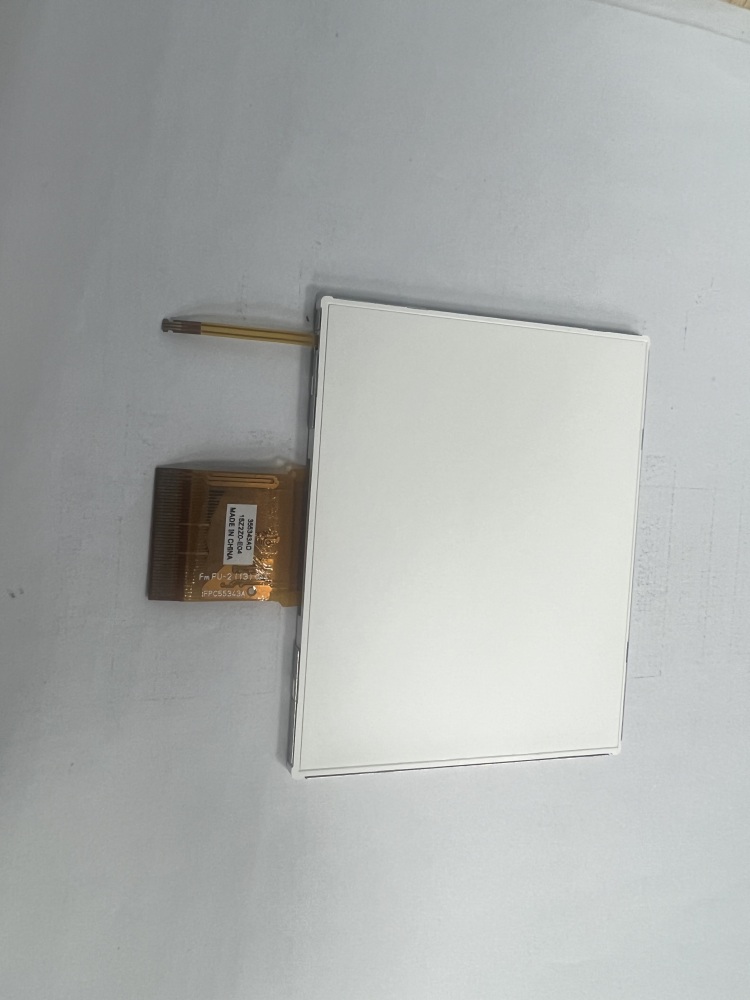

T-55343GD035JU-LW-AKN 3.5inch 320×240 TFT Lcd Display Panel for OPTREX

SKU: T-55343GD035JU-LW-AKN
Model P/N: T-55343GD035JU-LW-AKN
Diagonal Size: 3.5"
Panel Type: a-Si TFT-LCD, LCM
Resolution: 320(RGB)×240, QVGA  115PPI
Pixel Format: RGB Vertical Stripe

0.0 (0 Reviews)
0 Sold
$65.00 $60.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity:
-
+
  • T-55343GD035JU-LW-AKN 3.5inch 320×240 TFT Lcd Display Panel for OPTREX
  • T-55343GD035JU-LW-AKN 3.5inch 320×240 TFT Lcd Display Panel for OPTREX
  • T-55343GD035JU-LW-AKN 3.5inch 320×240 TFT Lcd Display Panel for OPTREX
  • T-55343GD035JU-LW-AKN 3.5inch 320×240 TFT Lcd Display Panel for OPTREX
1/1
  • T-55343GD035JU-LW-AKN 3.5inch 320×240 TFT Lcd Display Panel for OPTREX
  • T-55343GD035JU-LW-AKN 3.5inch 320×240 TFT Lcd Display Panel for OPTREX
  • Description
The OPTREX T-55343GD035JU-LW-AKN is a 3.5-inch amorphous silicon (a-Si) thin-film transistor (TFT) liquid crystal display module designed for industrial and high-performance applications. This model features QVGA resolution with exceptionally high brightness of 600 cd/m², making it suitable for outdoor or high-ambient-light environments. Originally manufactured by OPTREX, this panel is now supported within Kyocera's display portfolio as part of their industrial TFT offering.

Parameter Value
Brand OPTREX
Model P/N T-55343GD035JU-LW-AKN
Diagonal Size 3.5"
Panel Type a-Si TFT-LCD, LCM
Resolution 320(RGB)×240, QVGA, 115 PPI
Pixel Format RGB Vertical Stripe
Active Area 70.08(W)×52.56(H) mm
Outline Dim. 79(H)×65(V)×3.2(D) mm
Treatment Antiglare
Luminance 600 cd/m² (Typ.)
Contrast Ratio 700:1 (Typ.) (TM)
View Direction 12 o'clock
Response Time 8/15 (Typ.)(Tr/Td)
Viewing Angle 80/80/80/80 (Typ.)(CR≥5)
Operating Mode TN, Normally White, Transmissive
Support Color 16.7M, 60% NTSC
Light Source WLED, Without Driver
Weight 29.5g (Max.)
Touch Panel Without
Interface Type Parallel RGB (1 ch, 8-bit) + SPI, 40 pins FPC
Power Supply 3.3V (Typ.)
Environment Operating Temperature: -20 ~ 70 °C; Storage Temperature: -30 ~ 80 °C

Applications

The T-55343GD035JU-LW-AKN is ideally suited for:

  • Outdoor handheld devices and portable equipment.

  • Industrial control panels and HMIs (Human-Machine Interfaces).

  • Medical monitoring devices requiring high visibility.

  • Test and measurement instruments.

  • Point-of-sale (POS) terminals.

  • Navigation systems for automotive and marine applications.

  • Any application requiring high brightness in challenging lighting conditions.
