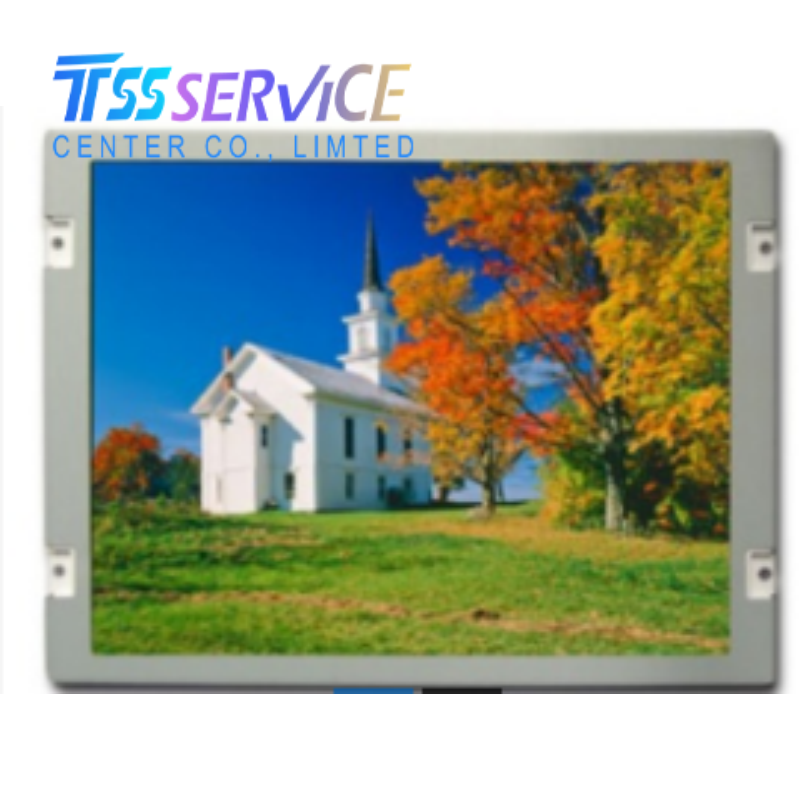

KYOCERA NEW 8.4 inch LCD Display Panel TCG084SVLAECNN-AN30 for Industrial
| Parameter |
Specification |
| Manufacturer |
Kyocera |
| Series / Model |
TCG084SVLPAANN-AN30 (Reference) |
| Screen Size |
8.4 inch |
| Resolution |
800(RGB) × 600 (SVGA) |
| Panel Technology |
a-Si TFT-LCD, Transmissive |
| Display Colors |
16.2M (51% NTSC) |
| Brightness |
750 cd/m² (Typ.) |
| Contrast Ratio |
800:1 (Typ.) |
| Interface Type |
LVDS (1 ch, 8-bit), 30 pins |
| Supply Voltage |
3.3V (Typ.) |
| Backlight Type |
WLED, with LED Driver, 70,000 hours lifetime |
| Active Area |
170.4 × 127.8 mm |
| Outline Dimension |
199.5 × 147.4 × 9.5 mm |
| Operating Temperature |
-20°C to 70°C |
| Storage Temperature |
-30°C to 80°C |
This 8.4-inch industrial LCD module is highly regarded for its wide operating temperature range, high brightness, and reliable LVDS interface. It is widely deployed in demanding professional environments:
- Industrial Automation & CNC Machinery: Frequently used as the core display for Human-Machine Interfaces (HMI) and control panels in industrial equipment, such as FANUC, Siemens, and Mitsubishi CNC systems.
- Medical Equipment: Integrated into various medical instruments and diagnostic devices requiring stable, long-life, and clear visual output.
- Automotive & Transportation: Applied in vehicle-mounted navigation systems, onboard control displays, and transportation monitoring systems.
- Commercial & Self-Service Terminals: Widely utilized in ATMs, receipt printers, security monitoring equipment, handheld PDAs, and self-service kiosks.
